Front Power Seat Lumbar Switch

SEAT: FRONT POWER SEAT LUMBAR SWITCH:

INSPECTION

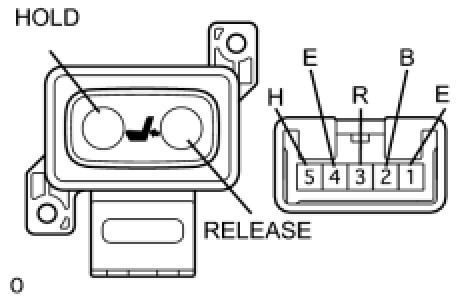

1. INSPECT FRONT POWER SEAT LUMBAR SWITCH LH






(a) Measure the resistance between the terminals when the switch is operated
Standard resistance:





If the result is not as specified, replace the switch.

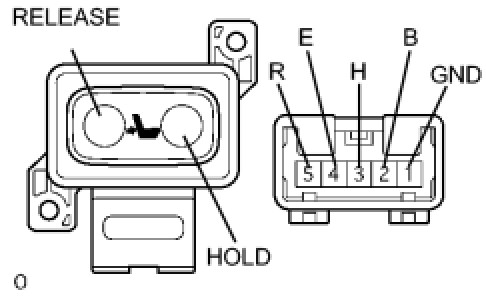

2. INSPECT FRONT POWER SEAT LUMBAR SWITCH RH






(a) Measure the resistance between the terminals when the switch is operated.

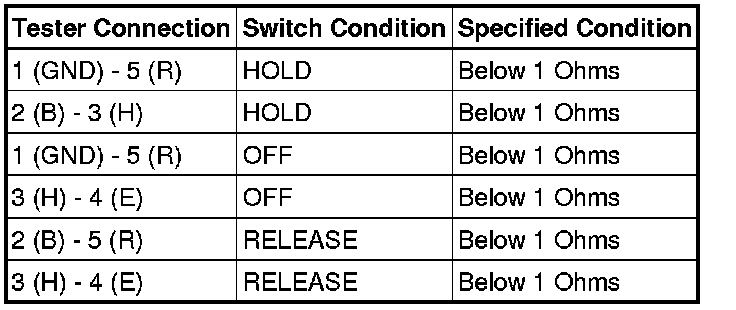

Standard resistance:





If the result is not as specified, replace switch.
