Installation

MIRROR: OUTER MIRROR SWITCH:

INSTALLATION

1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard)

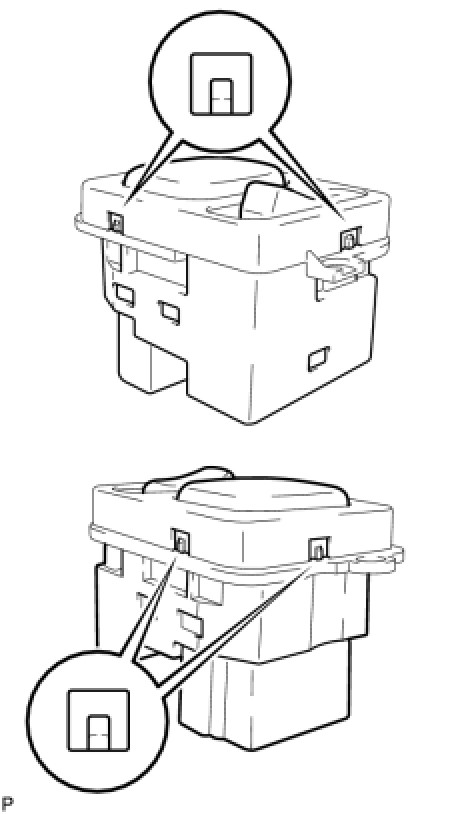

(a) Engage the 4 claws to install the outer mirror switch assembly.
2. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)

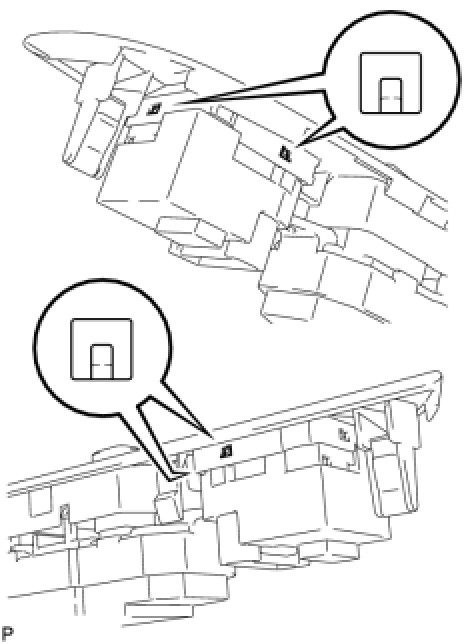

(a) Engage the 4 claws to install the outer mirror switch assembly.

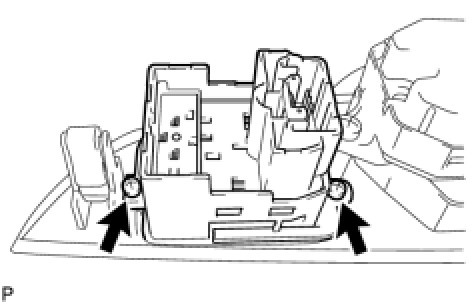

(b) Install the outer mirror switch assembly with the front door armrest base cover lower LH with the 2 screws.
3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly

4. INITIALIZE POWER WINDOW CONTROL SYSTEM Reassembly
