Steering Mounted Controls Assembly: Testing and Inspection

METER: STEERING PAD SWITCH:

INSPECTION

1. INSPECT STEERING PAD SWITCH

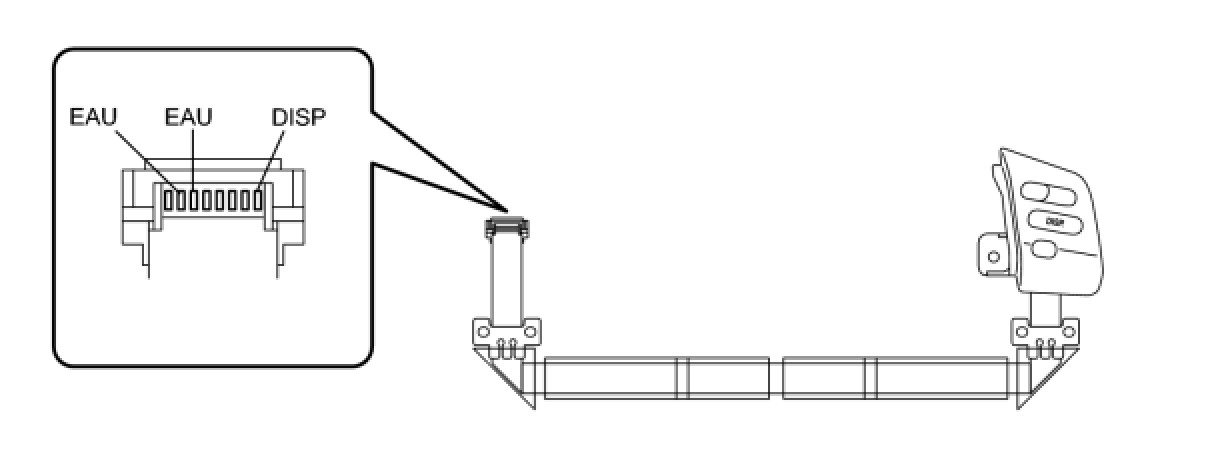

(a) Remove the steering pad switch connector with the steering pad switch and spiral cable still connected.

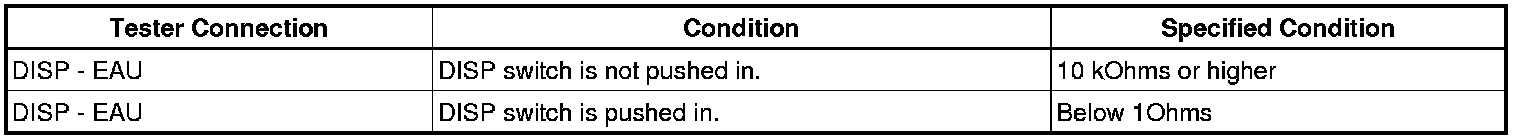

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, replace the steering pad switch.
