Driver Side Knee Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEM: DRIVER SIDE KNEE AIRBAG ASSEMBLY:

ON-VEHICLE INSPECTION

1. INSPECT DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)
(a) Perform a diagnostic system check Diagnosis System.






(b) With the driver side knee airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the driver side knee airbag assembly with a new one:

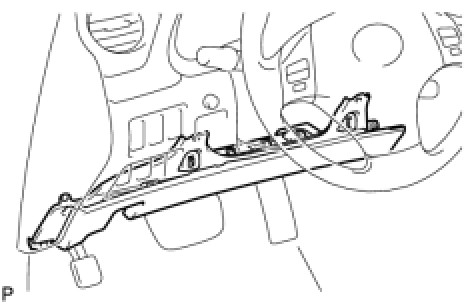

Cuts, minute cracks or marked discoloration on the driver side knee airbag assembly.
2. INSPECT DRIVER SIDE KNEE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)
(a) Perform a diagnostic system check Diagnosis System.






(b) With the driver side knee airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the driver side knee airbag assembly with a new one:
- Cuts, minute cracks or marked discoloration on the driver side knee airbag assembly.
- Cracks or other damage to the connector.

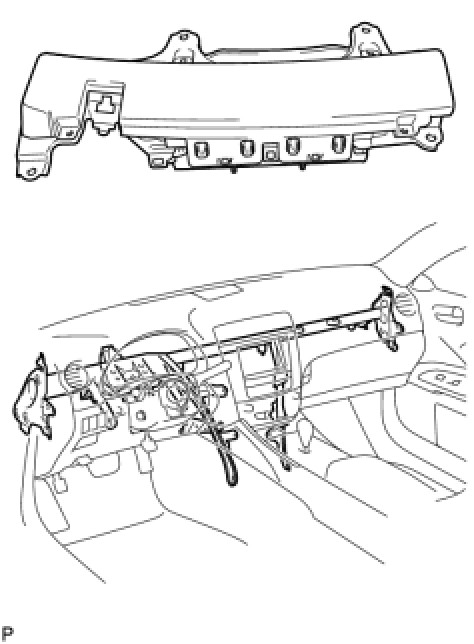

- Deformation or cracks on the instrument panel reinforcement.
CAUTION: Be sure to follow the correct removal and installation procedures.
