Removal

BRAKE CONTROL: SKID CONTROL ECU (w/ VDIM):

REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

2. REMOVE SKID CONTROL ECU






(a) Disconnect the 3 connectors from the skid control ECU.

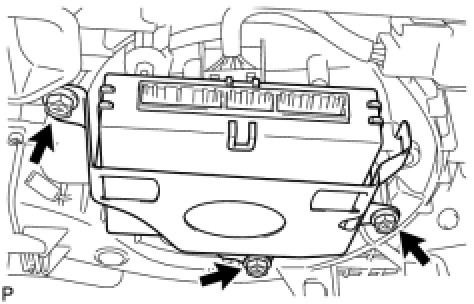

(b) Remove the 3 screws and skid control ECU.
