Inspection








CLUTCH PEDAL SWITCH:

INSPECTION

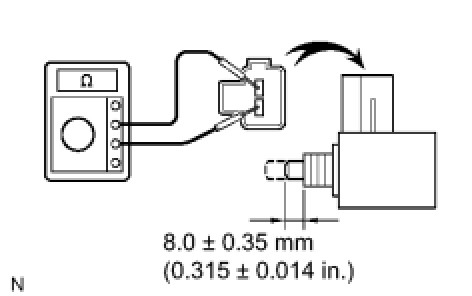

1. INSPECT CLUTCH PEDAL SWITCH ASSEMBLY

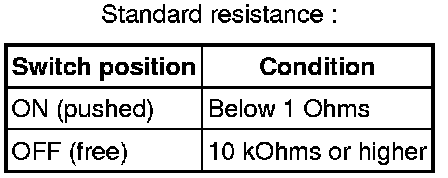

(a) Measure the resistance between the terminals when the switch is ON and OFF.
