Knock Sensor: Testing and Inspection

4GR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR:

INSPECTION

1. INSPECT KNOCK SENSOR

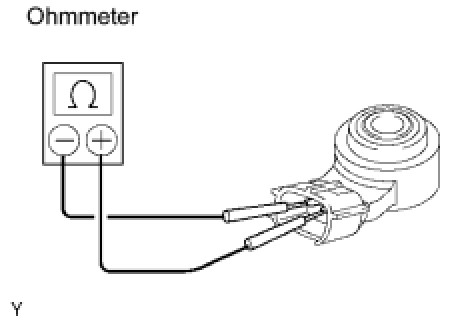

(a) Measure the resistance between the terminals.
Standard resistance:
120 to 280 kOhms at 20°C (68°F)
If the result is not as specified, replace the sensor.
