Body Control Module: Diagrams

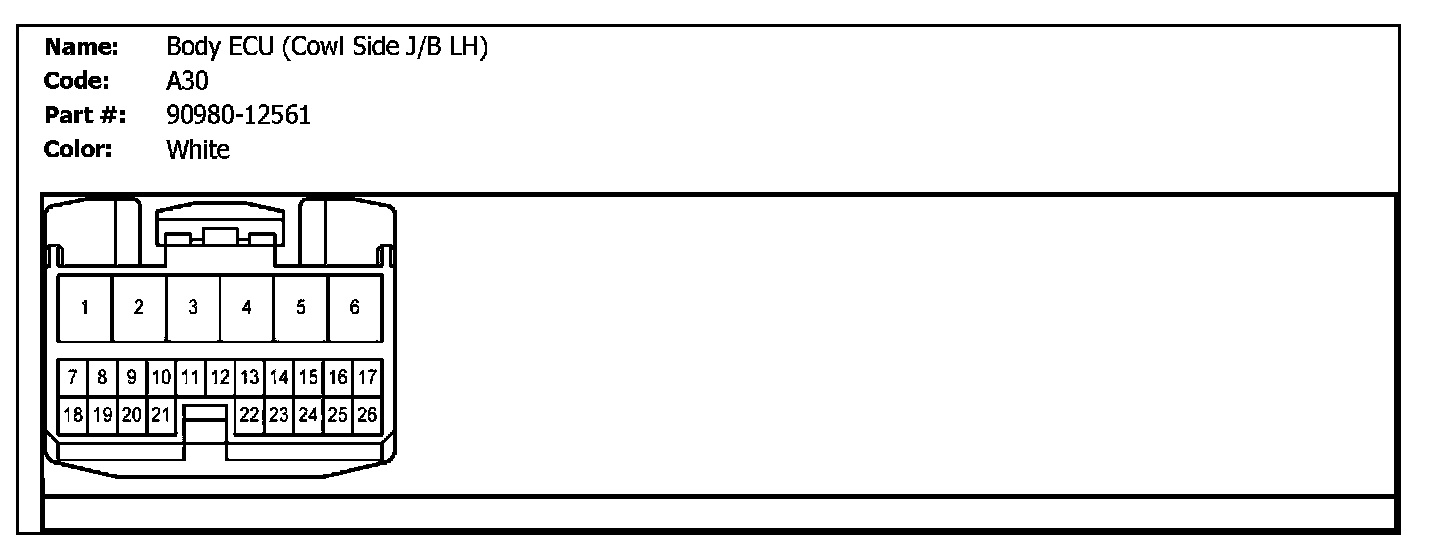

A30 (Body ECU (Cowl Side J/B LH)):

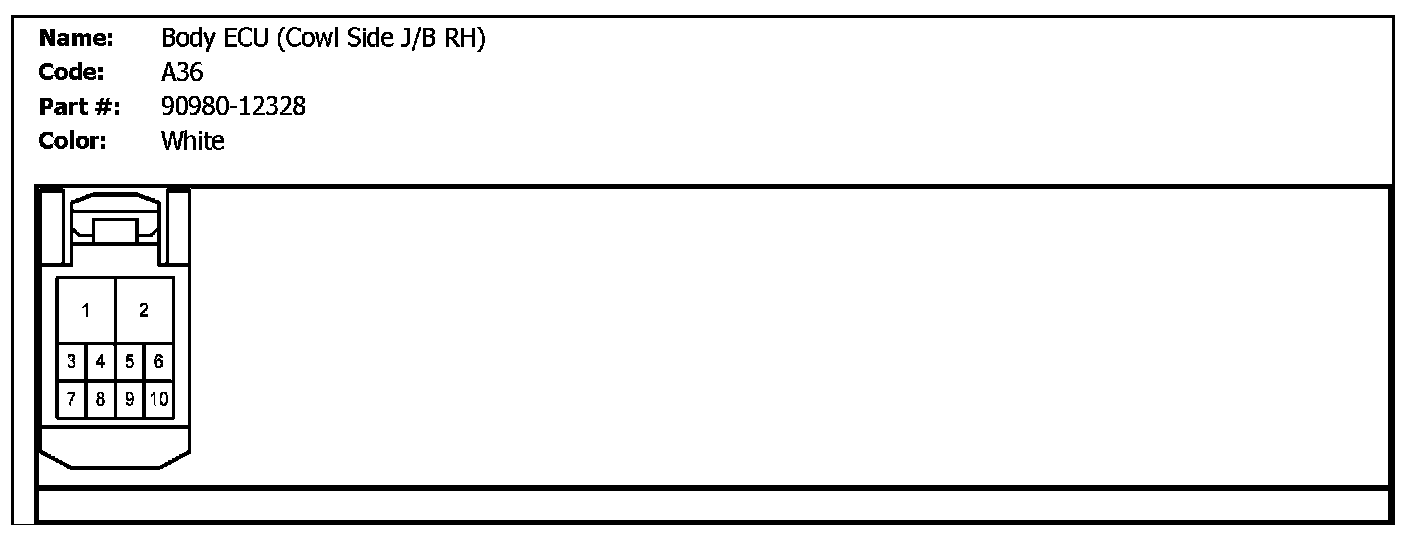

A36 (Body ECU (Cowl Side J/B RH)):

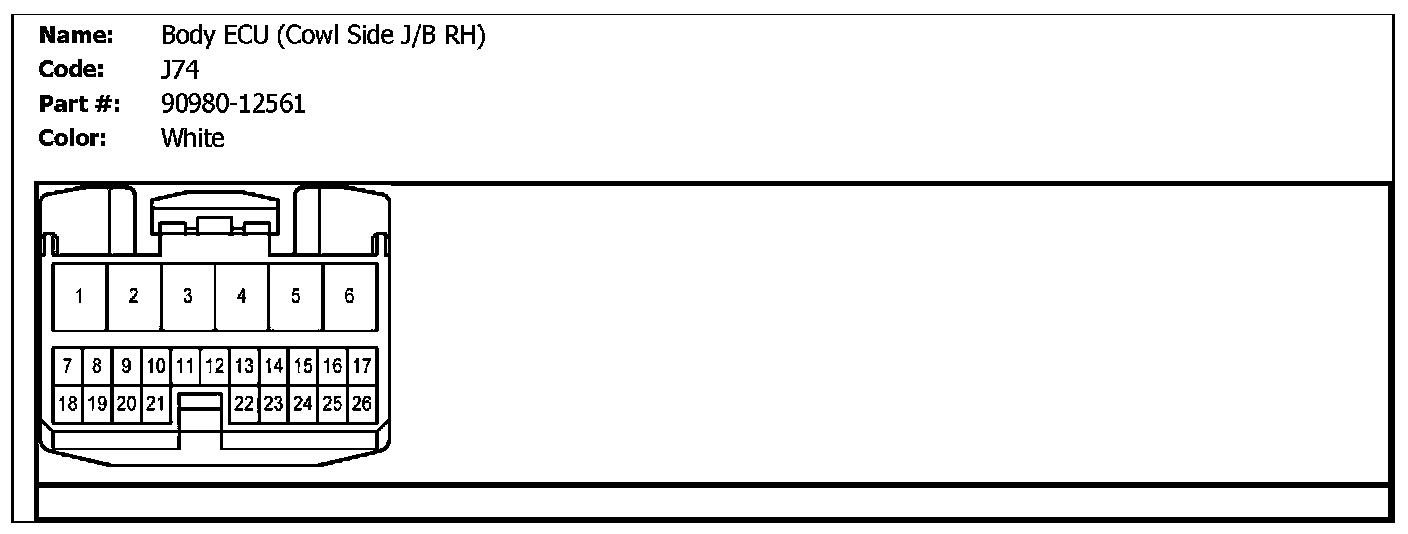

J74 (Body ECU (Cowl Side J/B RH)):

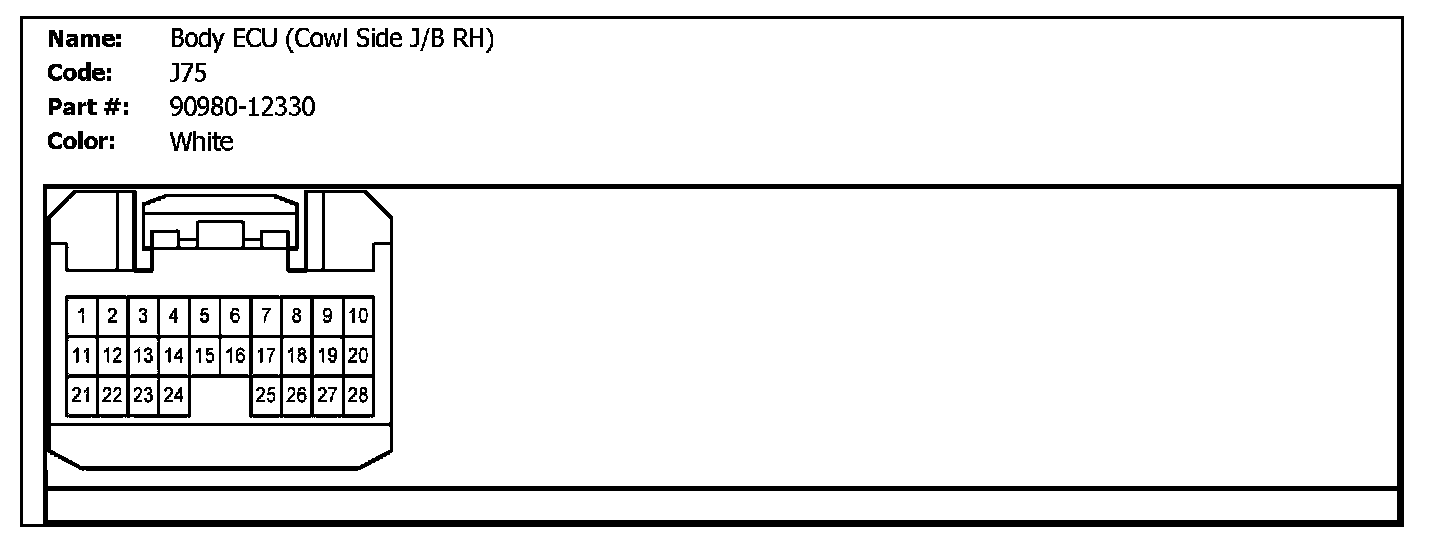

J75 (Body ECU (Cowl Side J/B RH)):

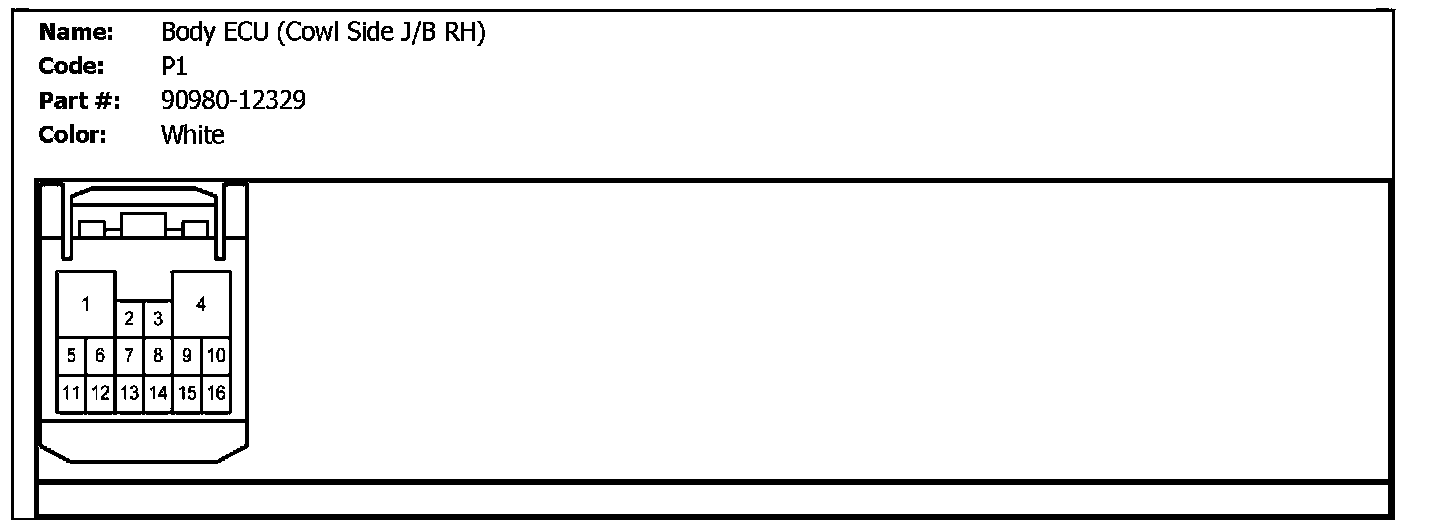

P1 (Body ECU (Cowl Side J/B RH)):

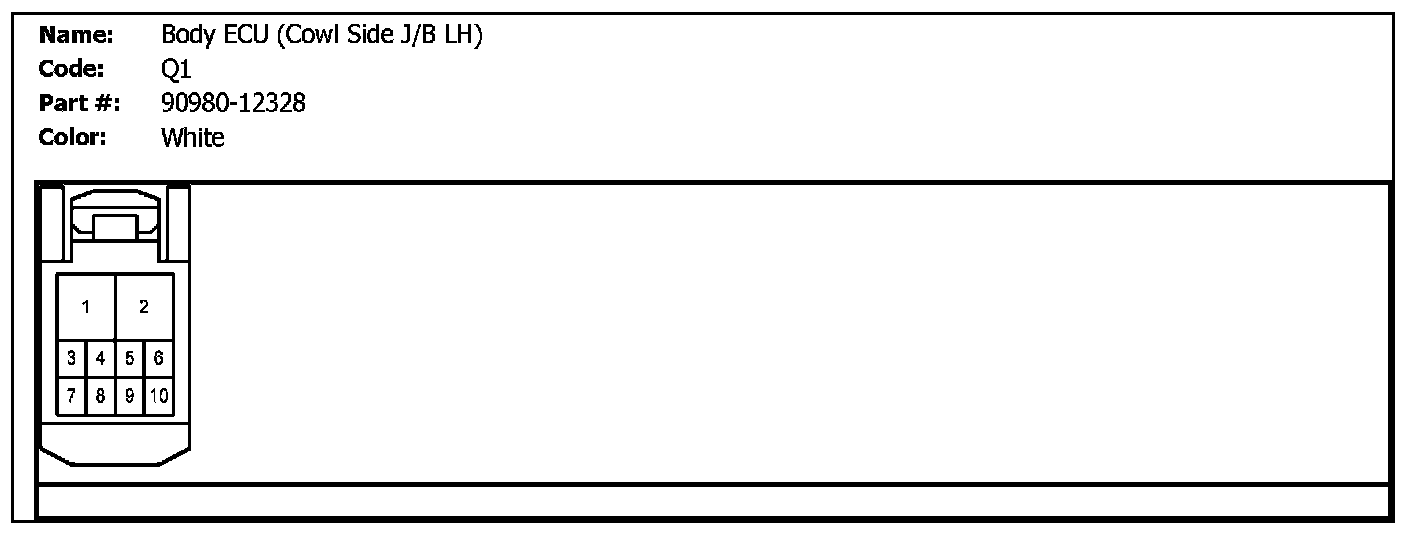

Q1 (Body ECU (Cowl Side J/B LH)):

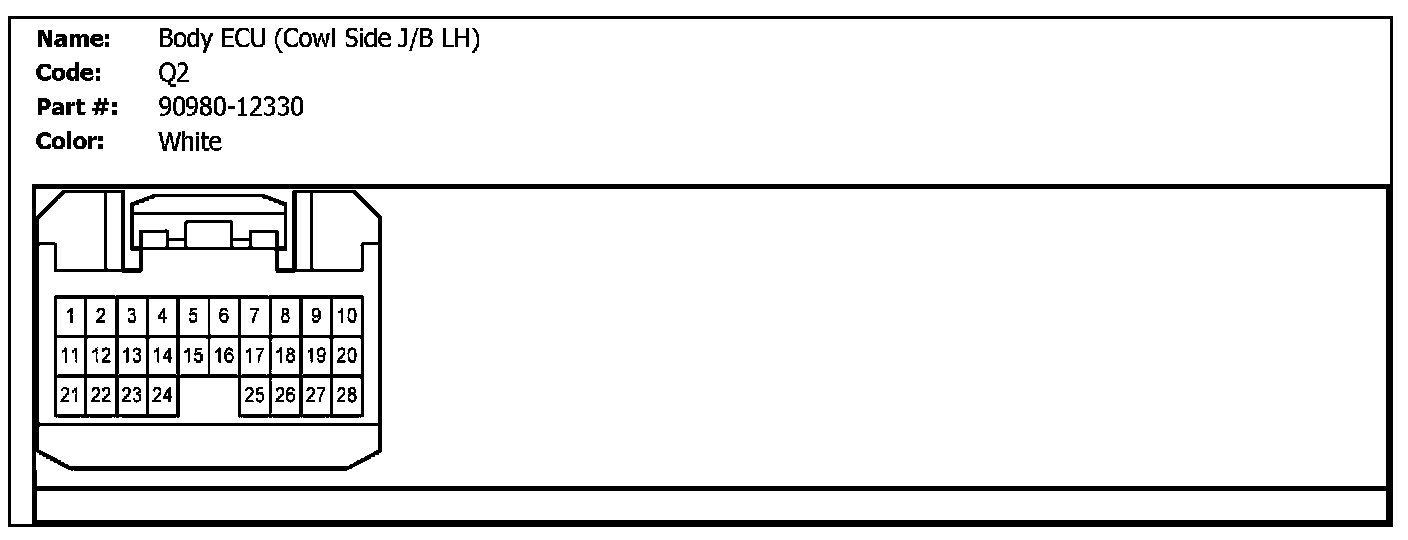

Q2 (Body ECU (Cowl Side J/B LH)):

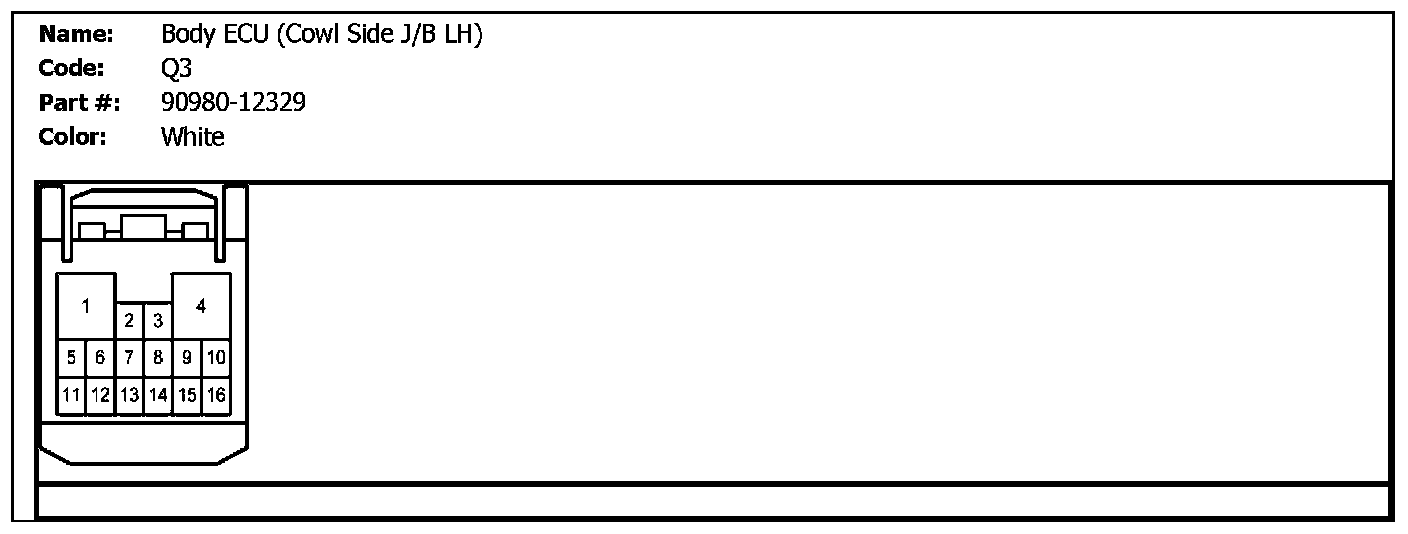

Q3 (Body ECU (Cowl Side J/B LH)):
