Installation

4GR-FSE IGNITION: IGNITION COIL:

INSTALLATION

1. INSTALL IGNITION COIL ASSEMBLY

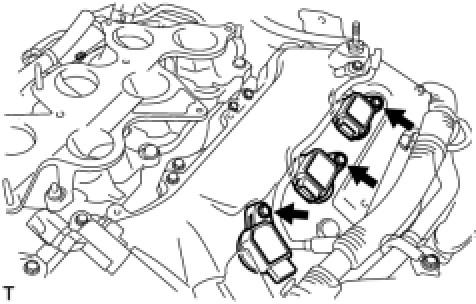

(a) Install the 6 ignition coils with the 6 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the 6 ignition coil connectors.
2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

3. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
4. INSTALL NO. 2 VENTILATION HOSE

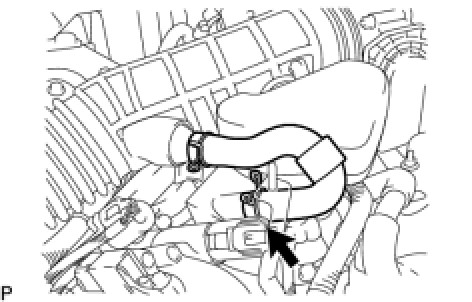

(a) Connect the ventilation hose to the cylinder head cover with the clamp.
5. INSTALL ENGINE ROOM SIDE COVER LH Installation

6. INSTALL ENGINE ROOM SIDE COVER RH Installation

7. INSTALL COOL AIR INTAKE DUCT SEAL Installation

8. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

9. CONNECT BATTERY NEGATIVE TERMINAL Installation

10. PERFORM INITIALIZATION
(a) Perform initialization Service Precautions.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
