Variable Induction System: Description and Operation








4GR-FSE INTAKE: INTAKE SYSTEM:

SYSTEM DIAGRAM

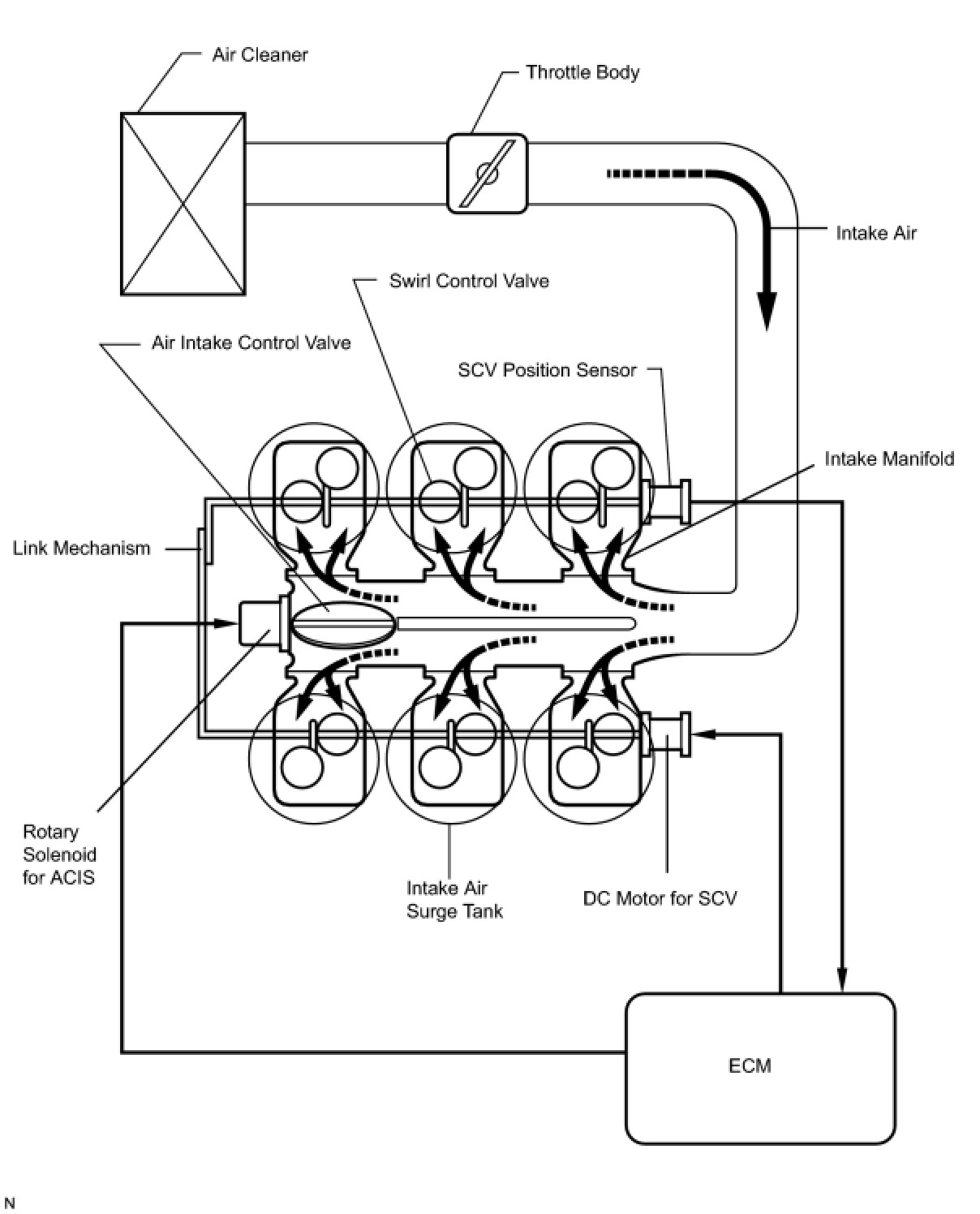

1. INTAKE CONTROL SYSTEM VALVE DIAGRAM

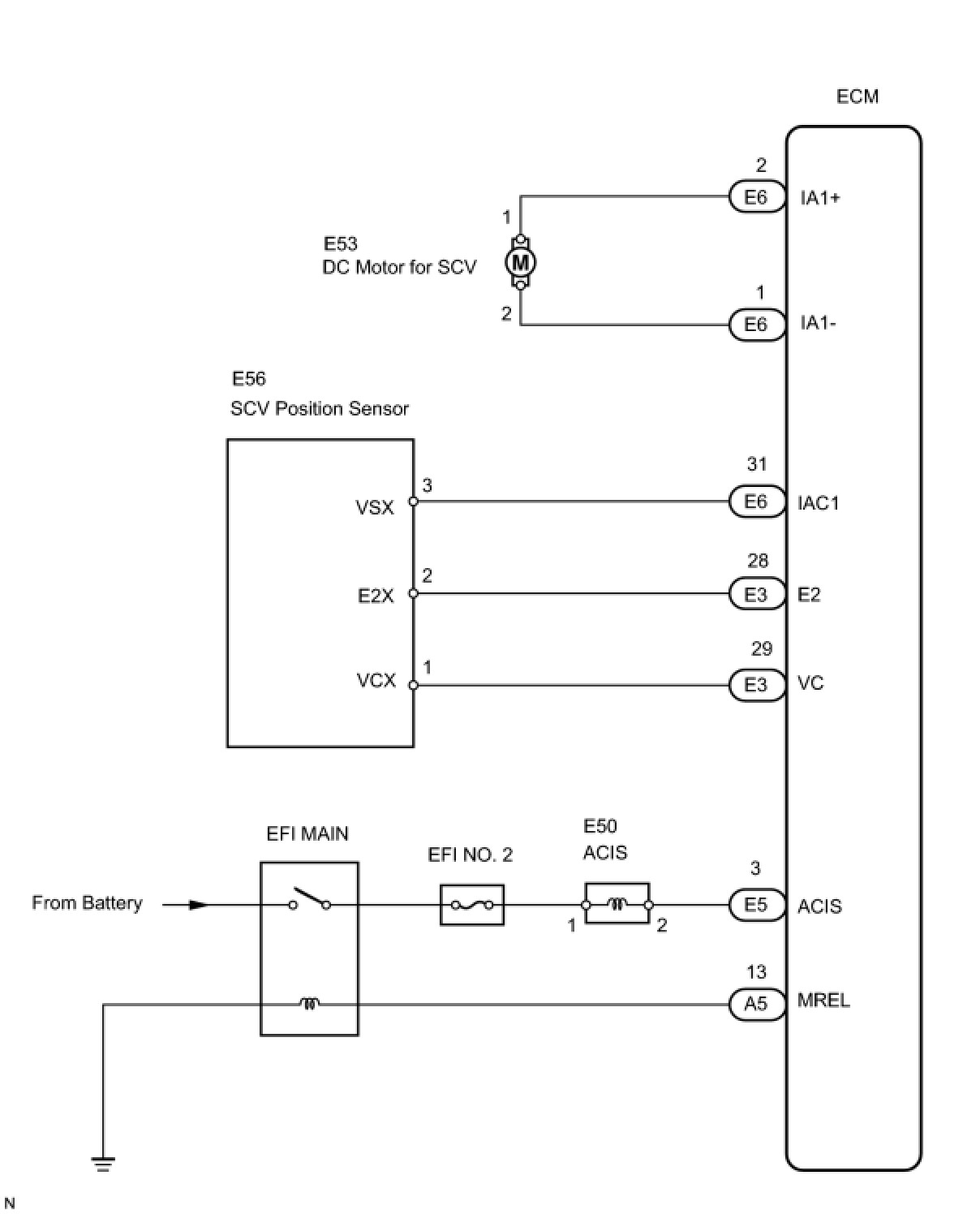

2. ELECTRICAL WIRING DIAGRAM
