Installation

4GR-FSE FUEL: FUEL PRESSURE SENSOR:

INSTALLATION

1. INSTALL FUEL PRESSURE SENSOR
(a) Install a new gasket to the fuel pressure sensor.

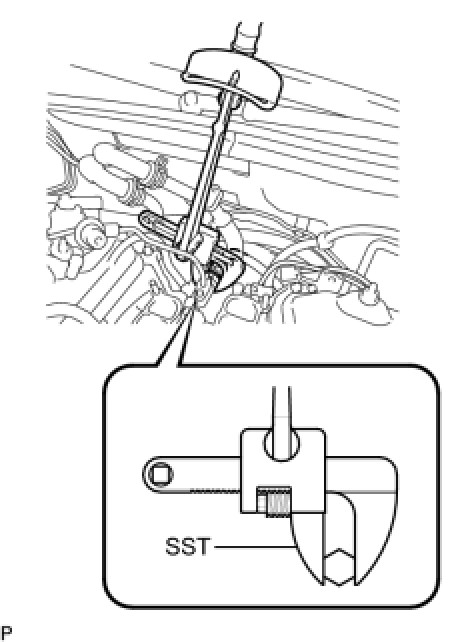

(b) Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.
SST: 09922-10010
For Use With SST - Torque: 24 Nm (240 kgf-cm, 18 ft-lbf)
For Use Without SST - Torque: 31 Nm (316 kgf-cm, 23 ft-lbf)
HINT: The torque for use with SST is the torque when SST is used at the position shown in the illustration.





(c) Connect the connector with the clamp.
2. INSTALL NO. 1 FUEL PIPE Installation

3. CONNECT WATER HOSE JOINT Installation

4. INSTALL INTAKE MANIFOLD Installation

5. INSTALL INTAKE AIR SURGE TANK Installation

6. INSTALL COLD START INJECTOR Installation

7. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY Installation

8. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation

9. CONNECT NO. 2 VENTILATION HOSE Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

11. ADD ENGINE COOLANT Testing and Inspection

12. INSPECT FOR COOLANT LEAK Testing and Inspection

13. INSPECT FOR FUEL LEAK Testing and Inspection

14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation

16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation

17. INSTALL FRONT WIPER ARM HEAD CAP Installation

18. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
19. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
20. INSTALL FRONT UPPER FENDER PROTECTOR LH Installation

21. INSTALL FRONT UPPER FENDER PROTECTOR RH
HINT: Installation procedure of the RH side is the same as that of the LH side.

22. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

23. INSTALL ENGINE ROOM SIDE COVER LH Installation

24. INSTALL ENGINE ROOM SIDE COVER RH Installation

25. INSTALL COOL AIR INTAKE DUCT SEAL Installation

26. CHECK FUNCTION OF THROTTLE WITH MOTOR BODY ASSEMBLY On-Vehicle Inspection

27. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
HINT: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
