Removal

4GR-FSE FUEL: COLD START INJECTOR:

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE
HINT: Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

4. REMOVE COLD START INJECTOR
(a) Disconnect the cold start injector connector.

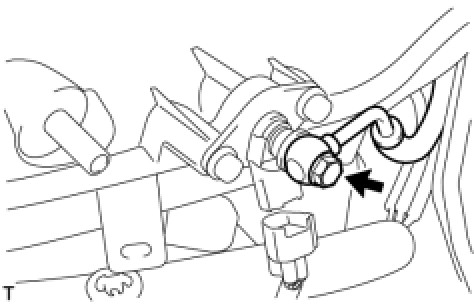

(b) Remove the bolt and 2 gaskets, and disconnect the fuel tube from the cold start injector.
NOTE: Do not fold or bend the hose.

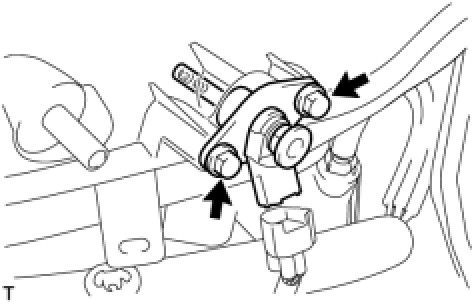

(c) Remove the 2 bolts, gasket and cold start injector from the surge tank.
