Installation

4GR-FSE FUEL: COLD START INJECTOR:

INSTALLATION

1. INSTALL COLD START INJECTOR

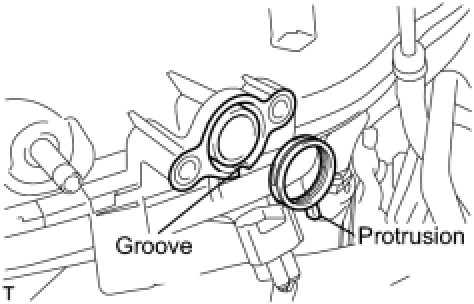

(a) Install a new gasket to the intake air surge tank.
HINT: Align the protrusion of the gasket on the intake air surge tank.





(b) Install the cold start injector with the 2 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)






(c) Install 2 new gaskets and the hose to the cold start injector with the bolt.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
- Be careful not to damage the gasket.
- Do not fold or bend the hose.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

3. INSPECT FOR FUEL LEAK Testing and Inspection

4. INSTALL V-BANK COVER SUB-ASSEMBLY Testing and Inspection

5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
HINT: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
