Installation

4GR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL:

INSTALLATION
NOTICE:
- Avoid physical shock to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.

1. INSTALL ACCELERATOR PEDAL






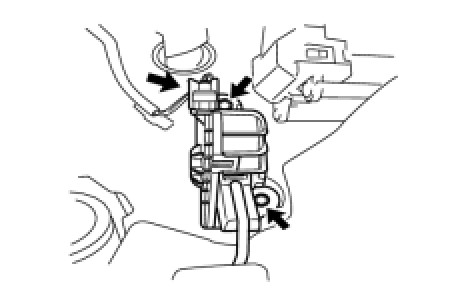

(a) Install the accelerator pedal with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
