Emission Control Systems: Description and Operation

4GR-FSE EMISSION CONTROL: EMISSION CONTROL SYSTEM:

SYSTEM DIAGRAM

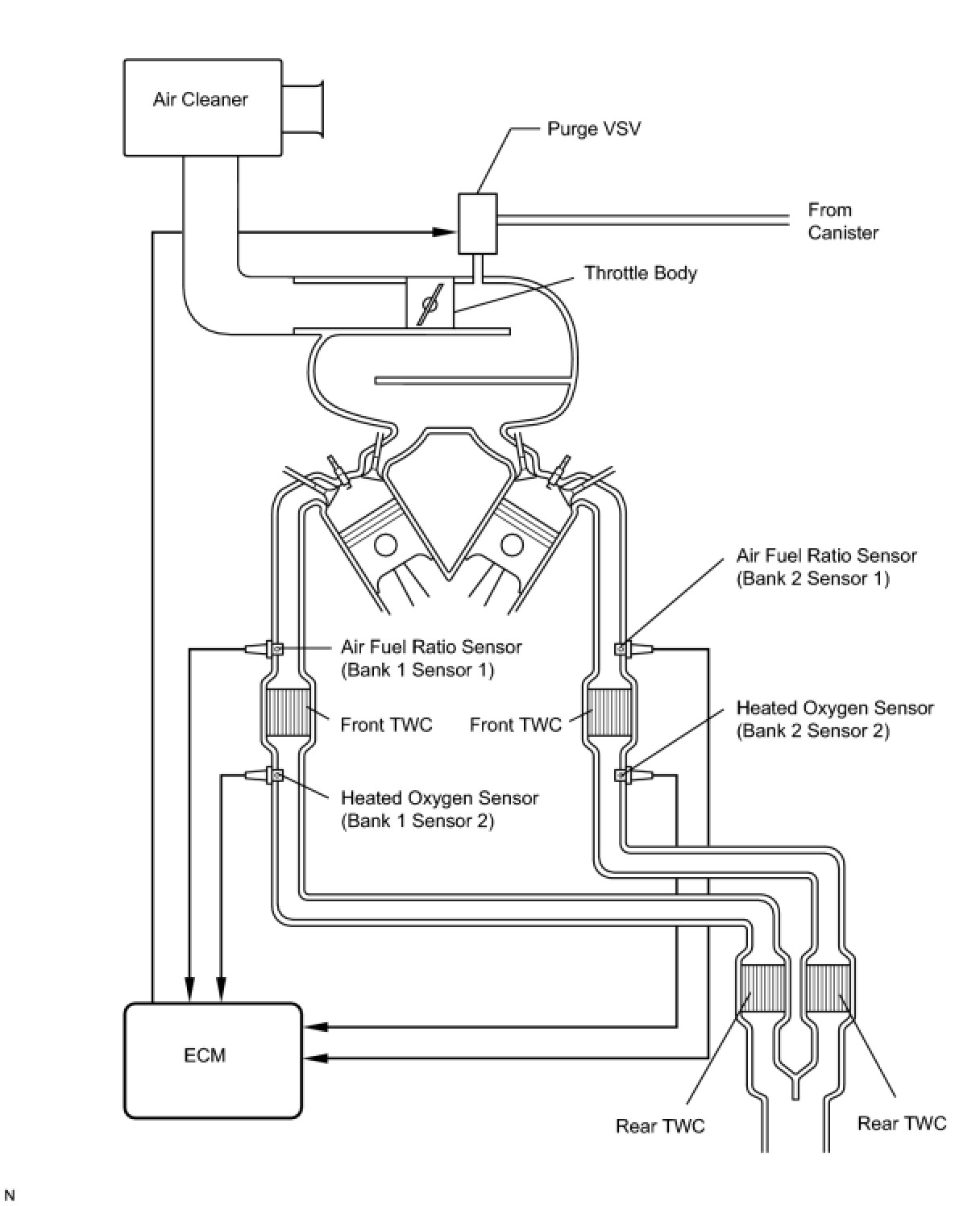

1. EMISSION CONTROL SYSTEM DIAGRAM

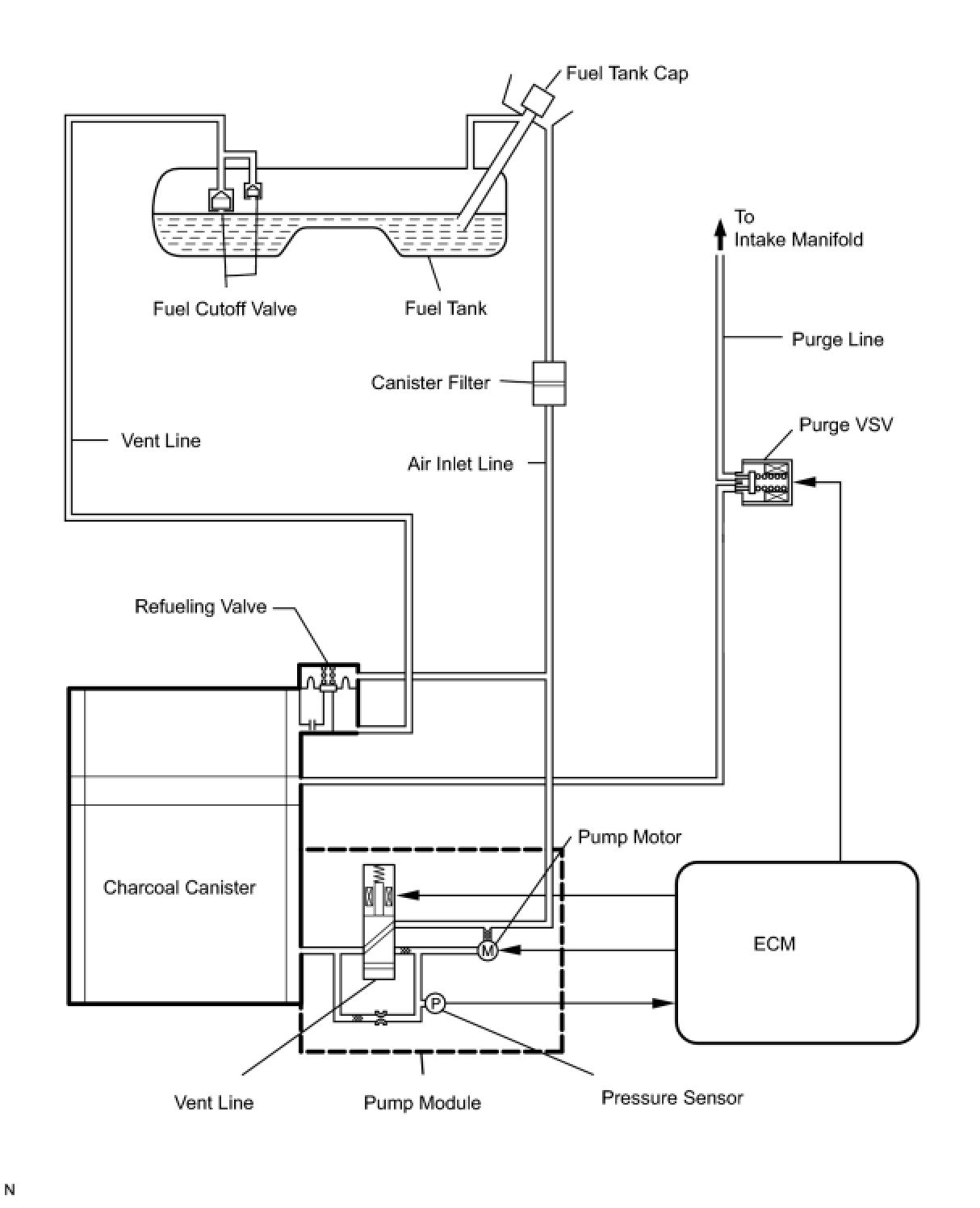

2. EVAP CONTROL SYSTEM DIAGRAM





3. EVAP SYSTEM WIRING DIAGRAM

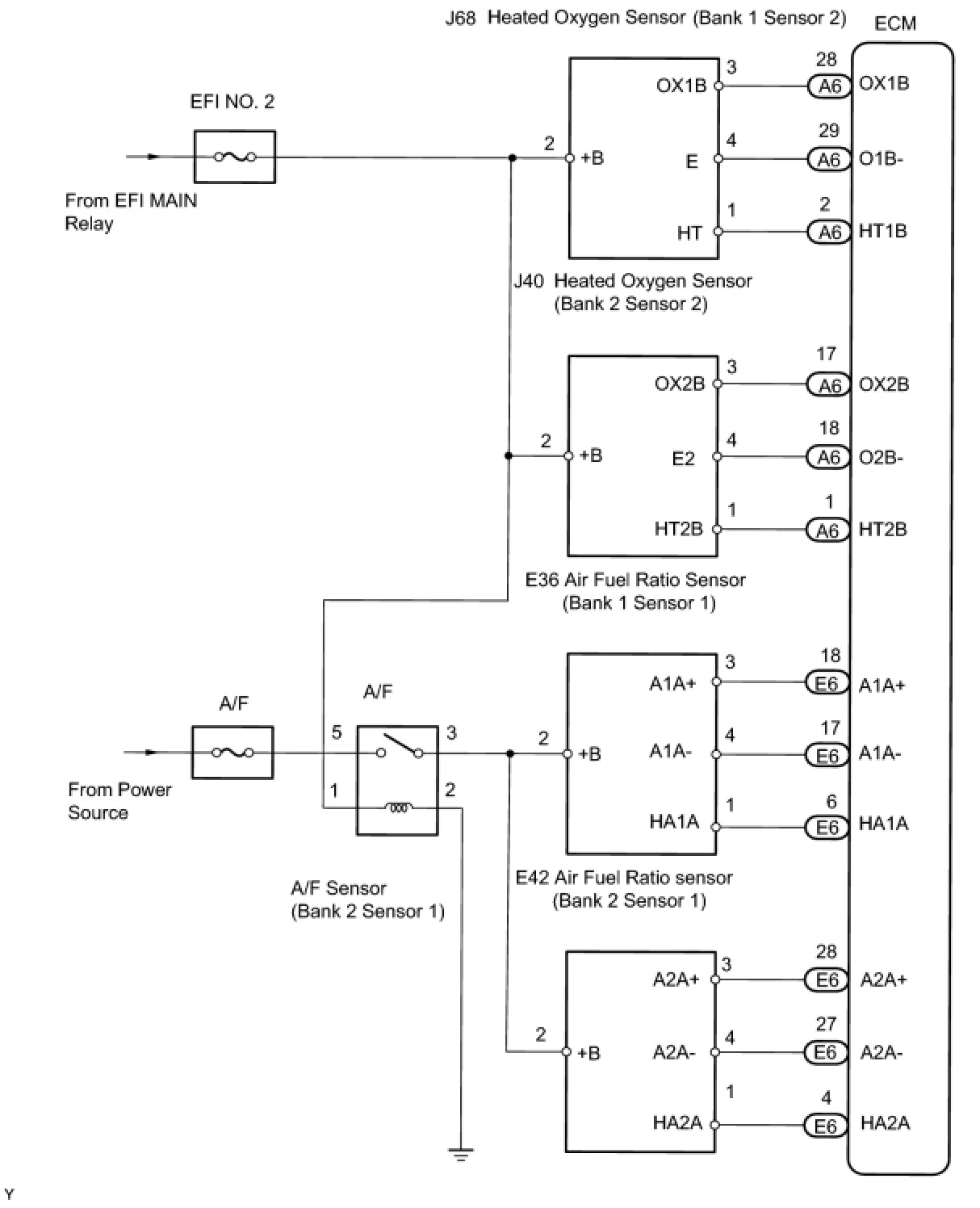

4. EMISSION CONTROL SYSTEM WIRING DIAGRAM
