CAN Communication System

CAN COMMUNICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU
HINT: This section describes the standard CAN values for all CAN related components.

1. CAN J/C (CAN LH J/C, CAN RH J/C)
HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the junction connector.
- The connectors can be connected to any terminals on the same side.

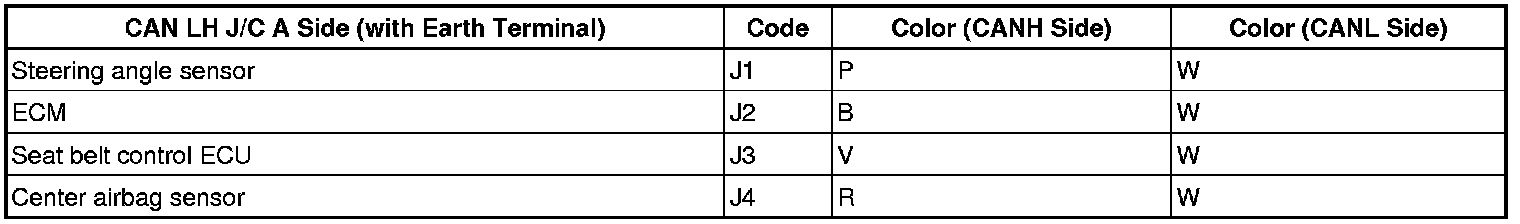

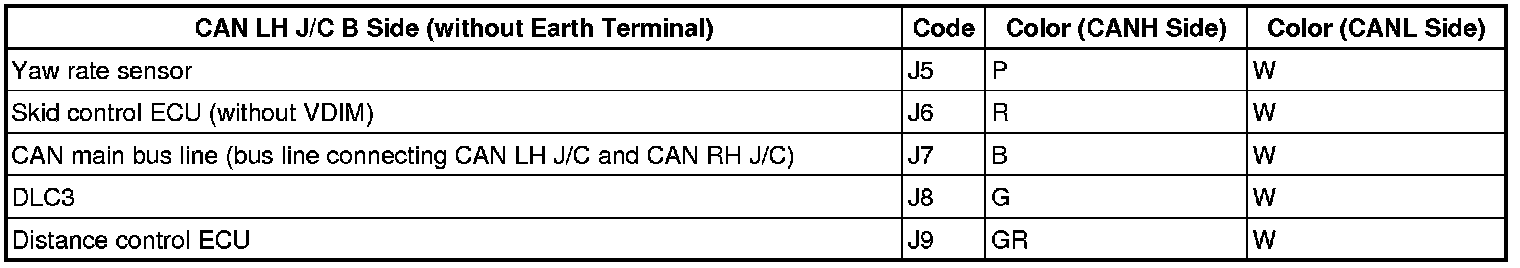

(a) CAN LH J/C





Wiring color:





Wiring color:

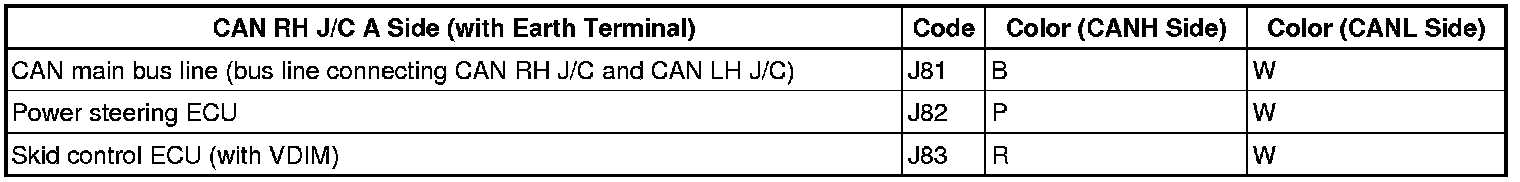

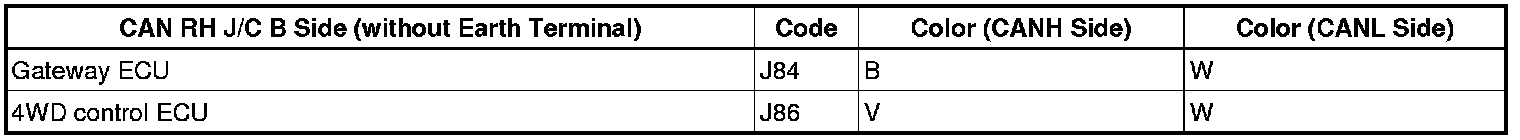

(b) CAN RH J/C





Wiring color:





Wiring color:

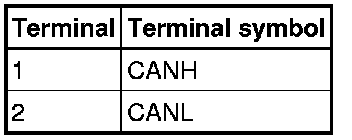

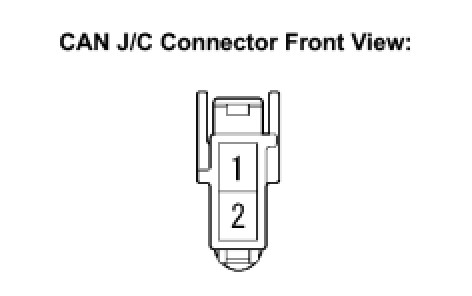

(c) The terminals on connectors for the CAN J/C






(d) Wiring diagram for identifying CAN J/C connectors

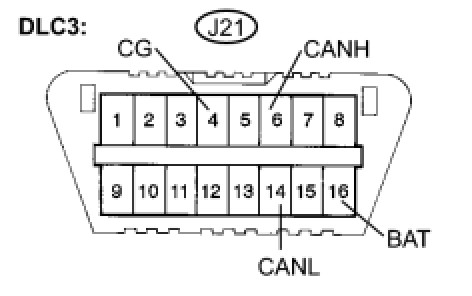

2. DLC3

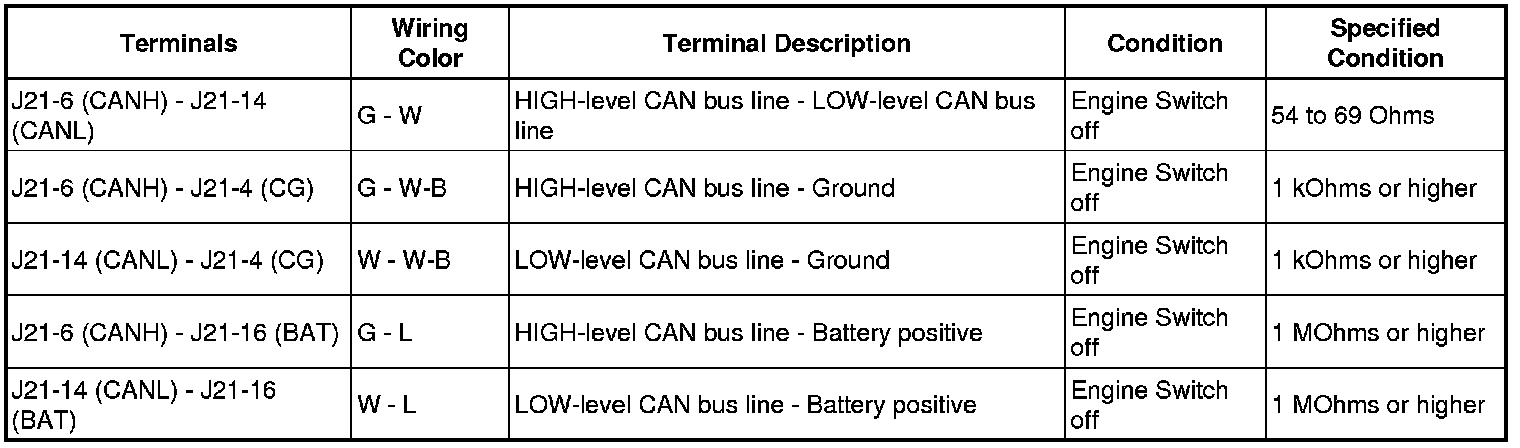

(a) Measure the resistance according to the value(s) in the table below.

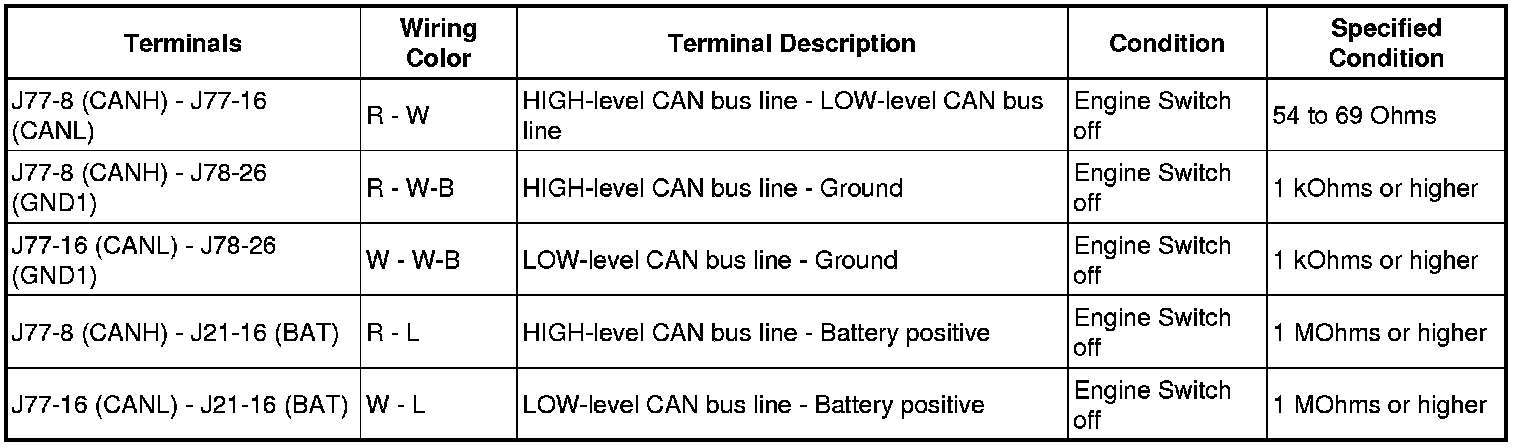

Standard resistance:

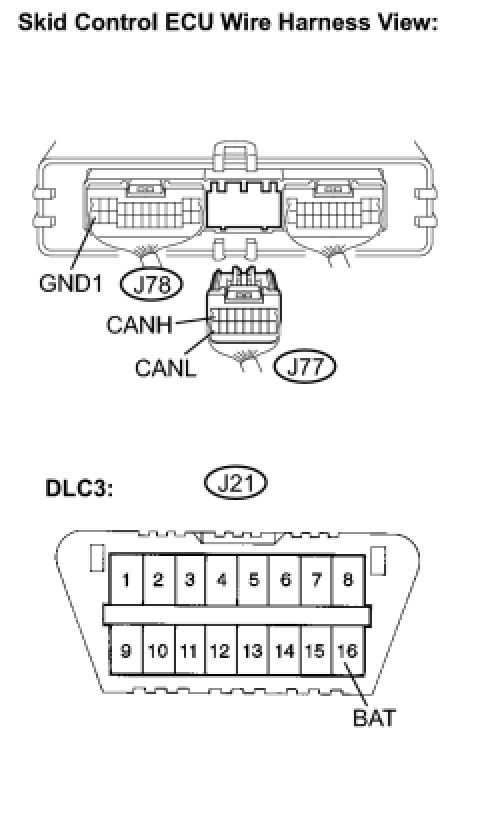

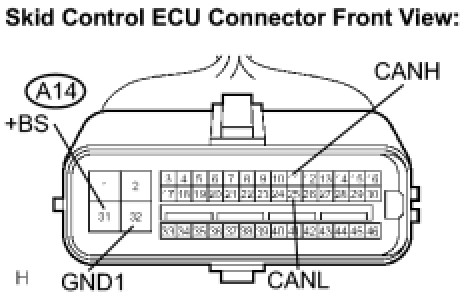

3. SKID CONTROL ECU (with VDIM)

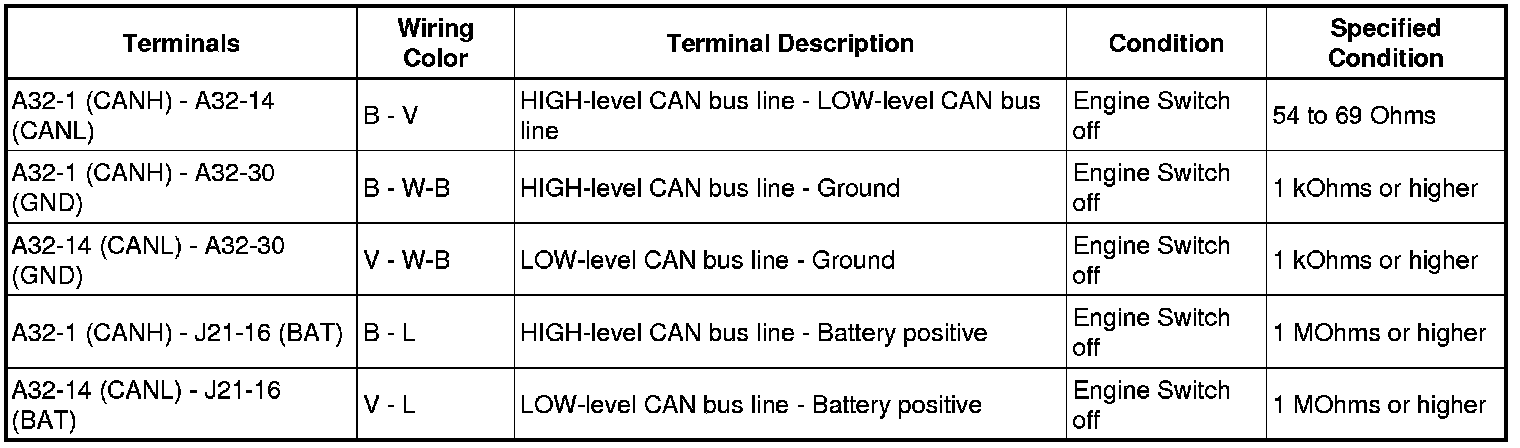

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






4. SKID CONTROL ECU WITH ACTUATOR (without VDIM)






(a) Measure the resistance according to the value(s) in the table below.

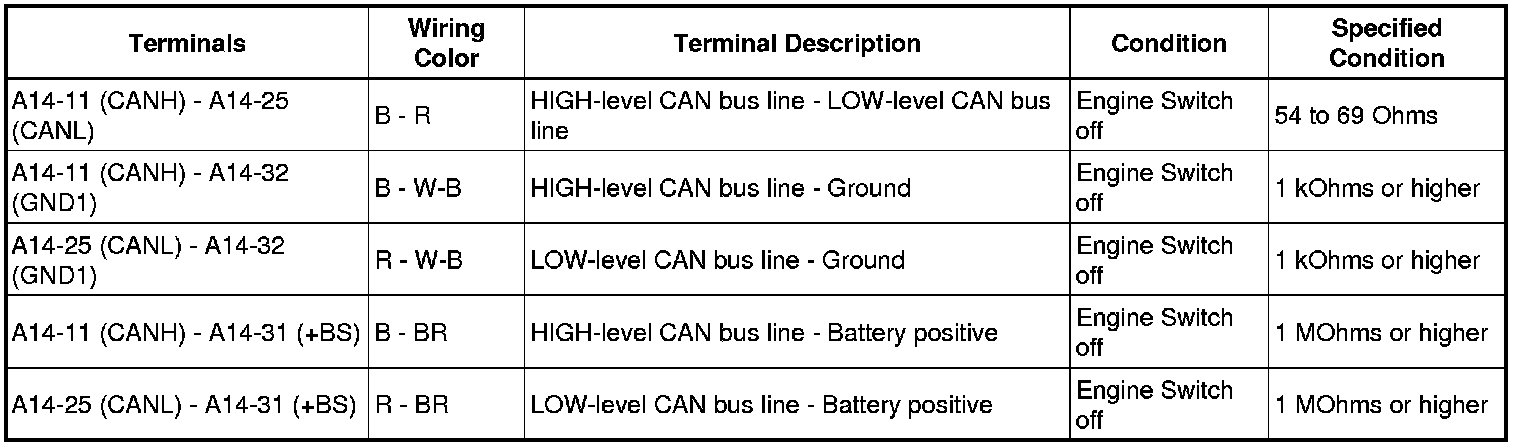

Standard resistance:

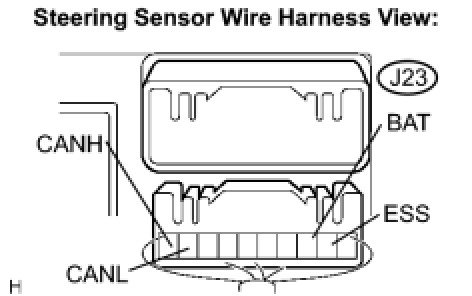

5. STEERING ANGLE SENSOR

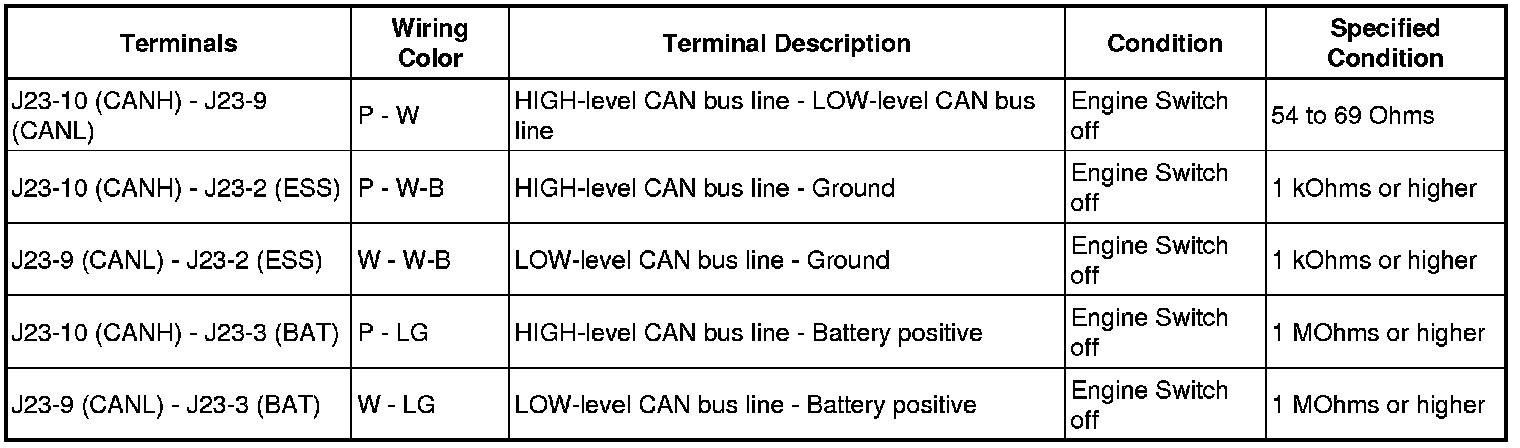

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

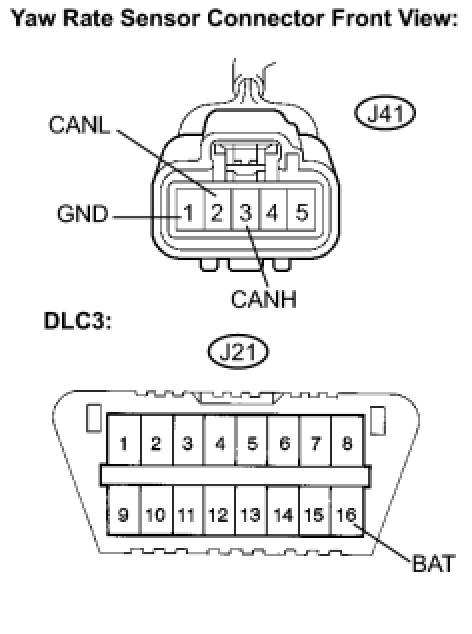

6. YAW RATE SENSOR






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

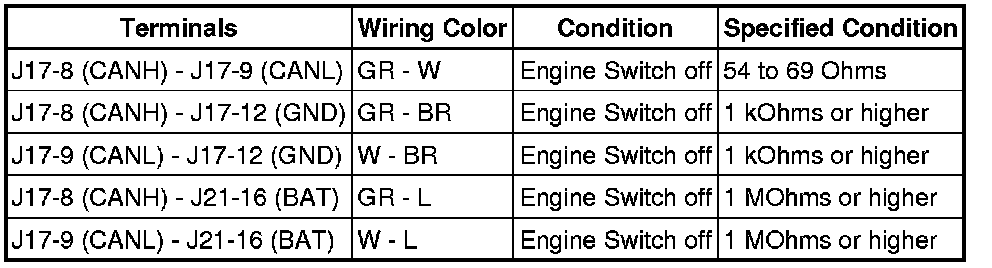

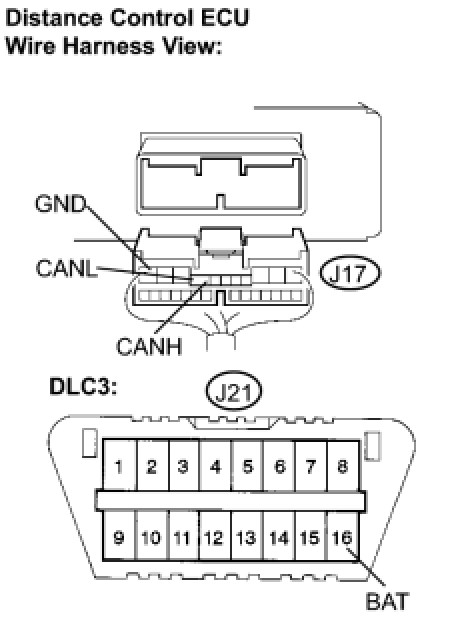

7. DISTANCE CONTROL ECU






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






8. SEAT BELT CONTROL ECU






(a) Measure the resistance according to the value(s) in the table below.

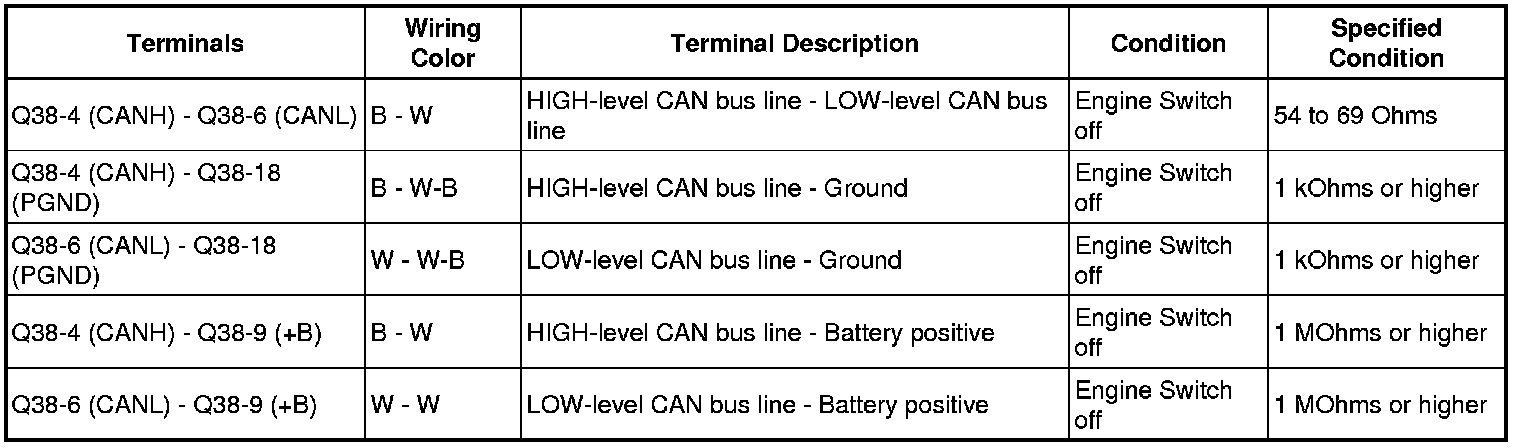

Standard resistance:

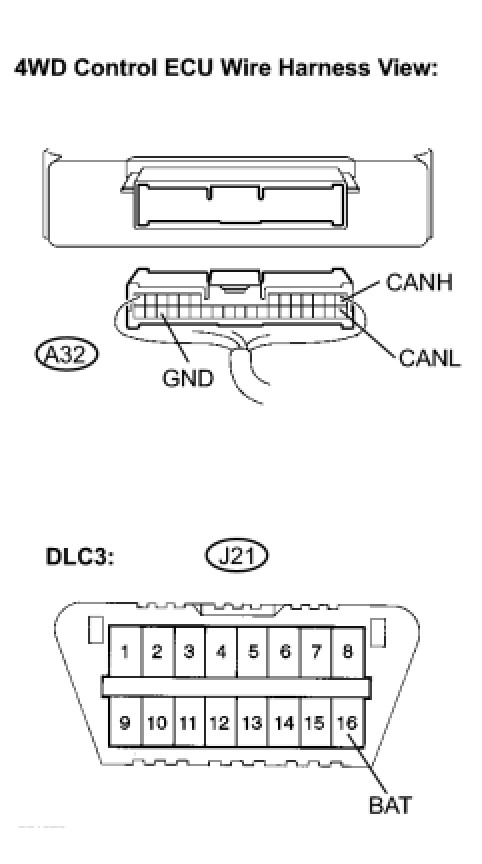

9. 4WD CONTROL ECU






(a) Measure the resistance according to the value(s) in the table below.

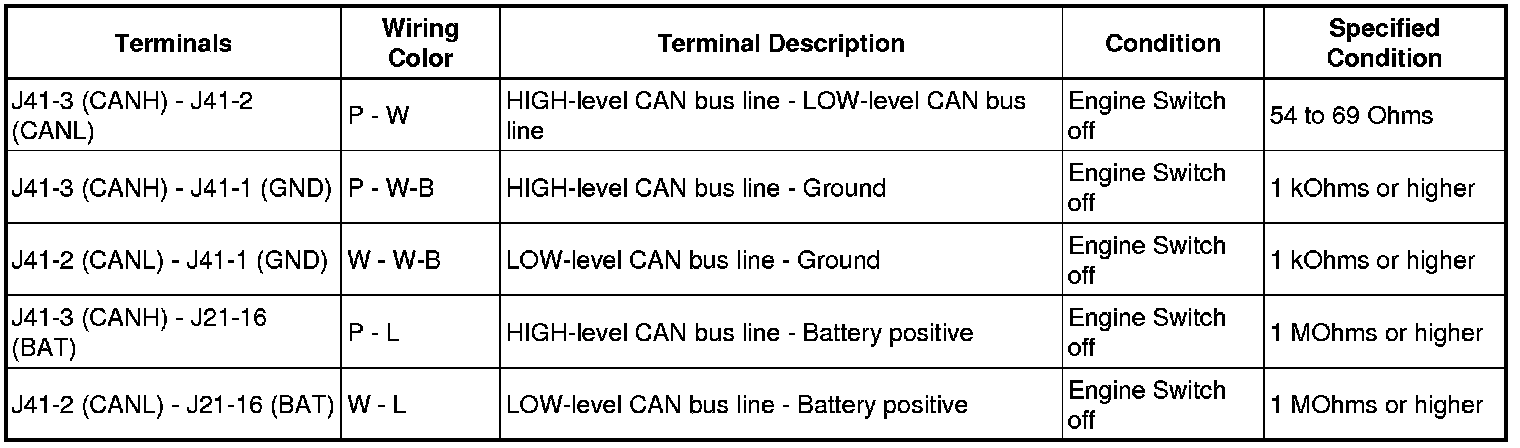

Standard resistance:

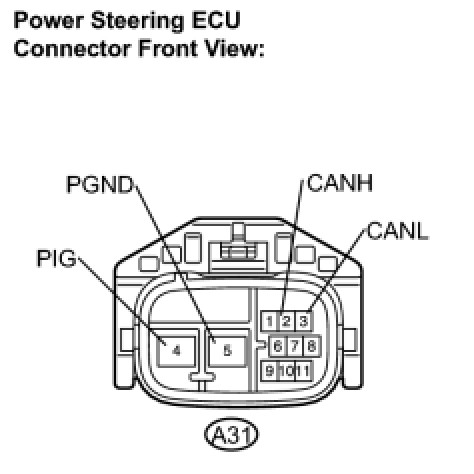

10. POWER STEERING ECU






(a) Measure the resistance according to the value(s) in the table below.

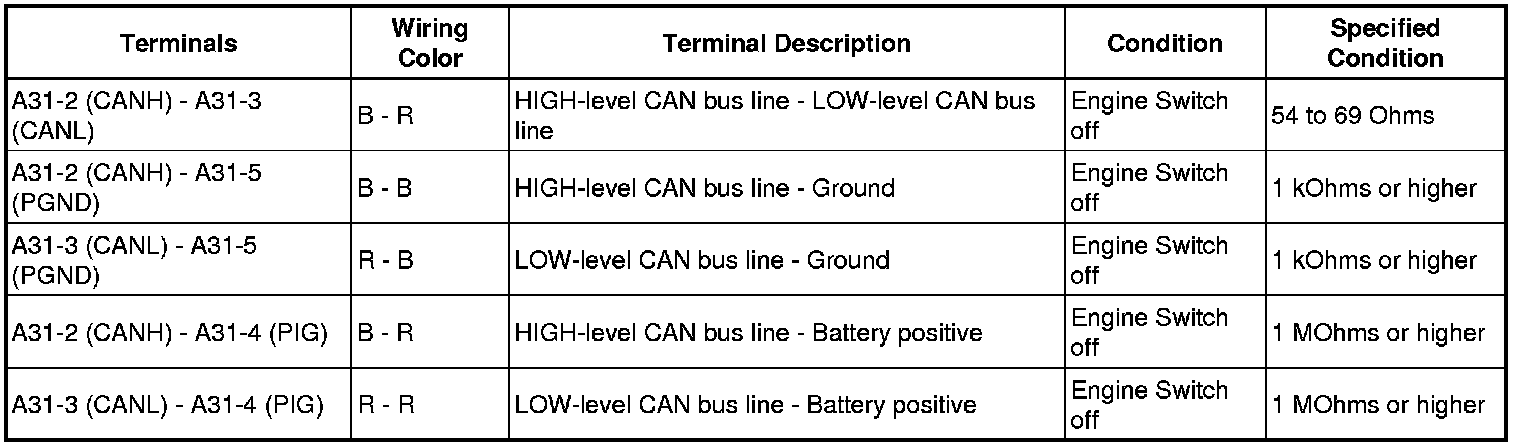

Standard resistance:

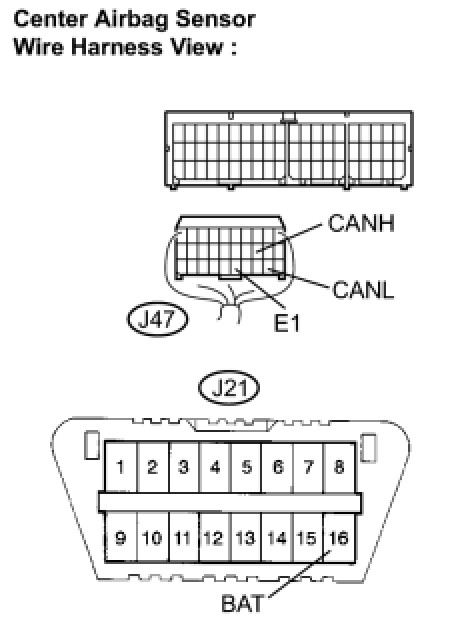

11. CENTER AIRBAG SENSOR






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

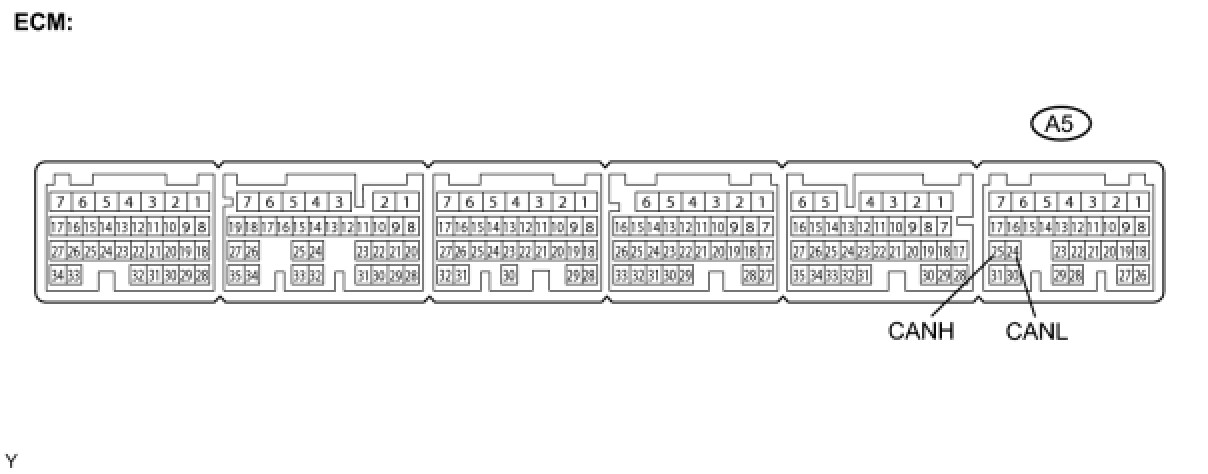

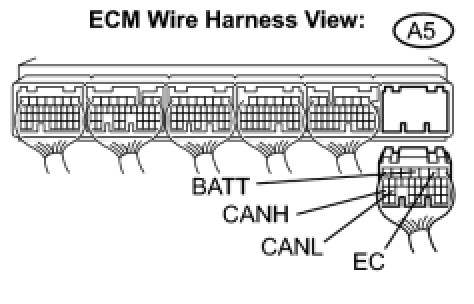

12. ECM
(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:










(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:

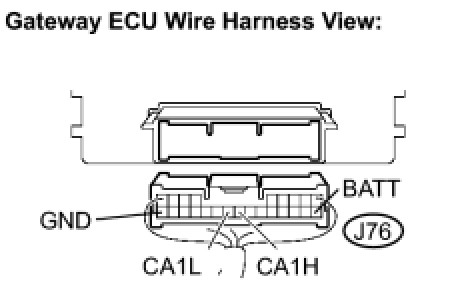

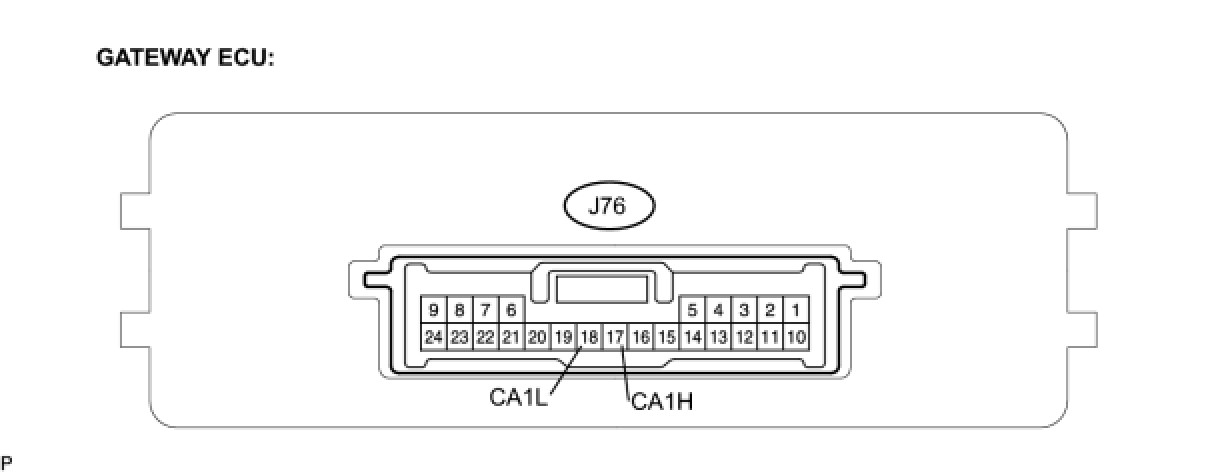

13. GATEWAY ECU
(a) Measure the resistance according to the value(s) in the table below.

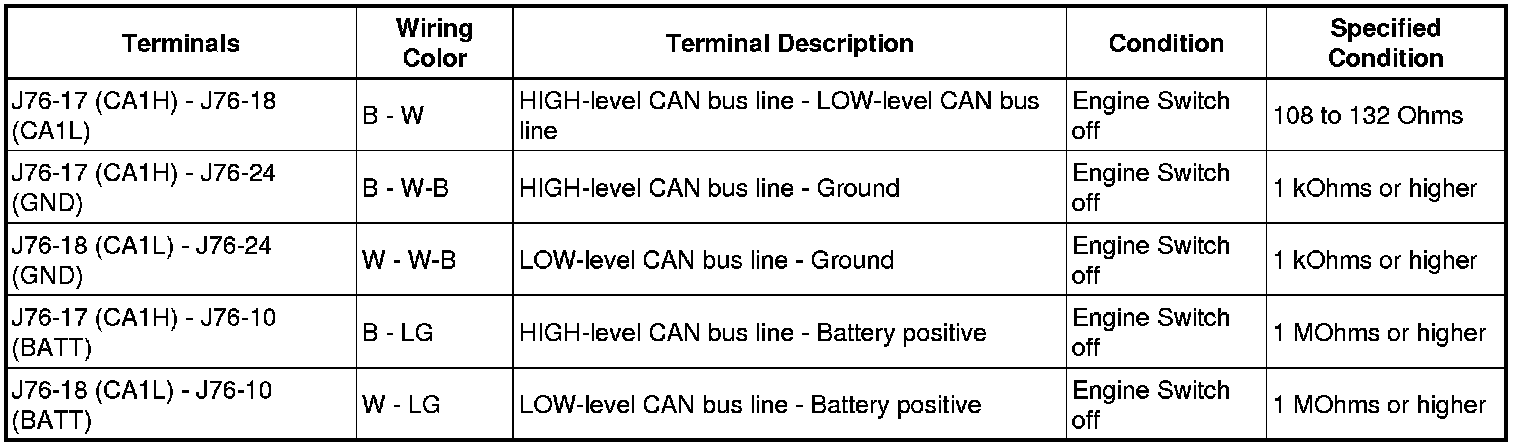

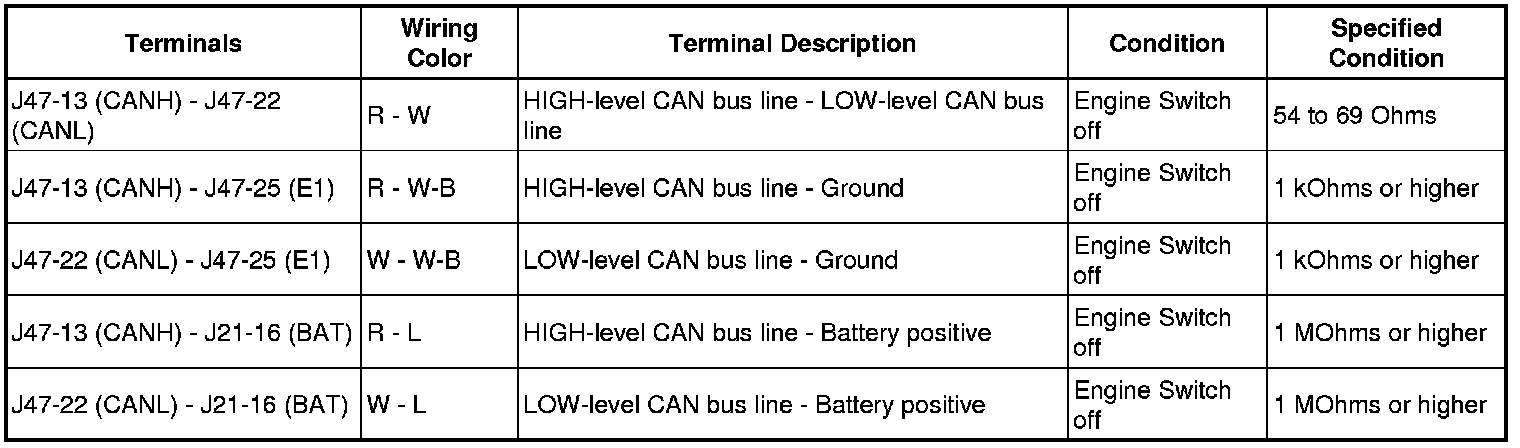

Standard resistance:










(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
