Center Airbag Sensor Communication Stop Mode

CAN COMMUNICATION SYSTEM: Center Airbag Sensor Communication Stop Mode

Center Airbag Sensor Communication Stop Mode

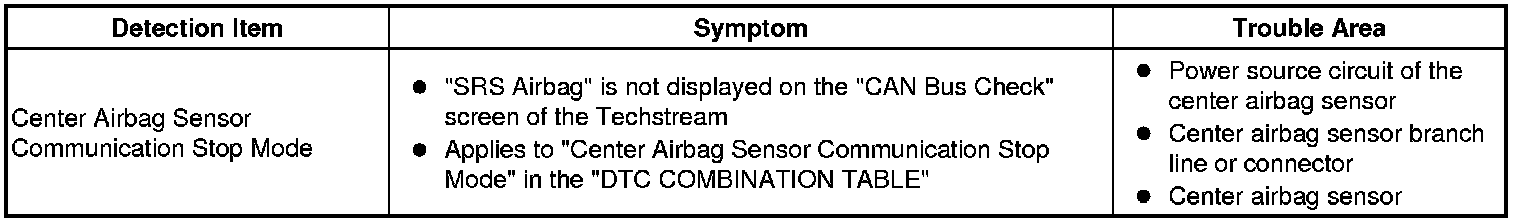

DESCRIPTION

HINT: "SRS Airbag" refers to the circuit that includes the center airbag sensor.

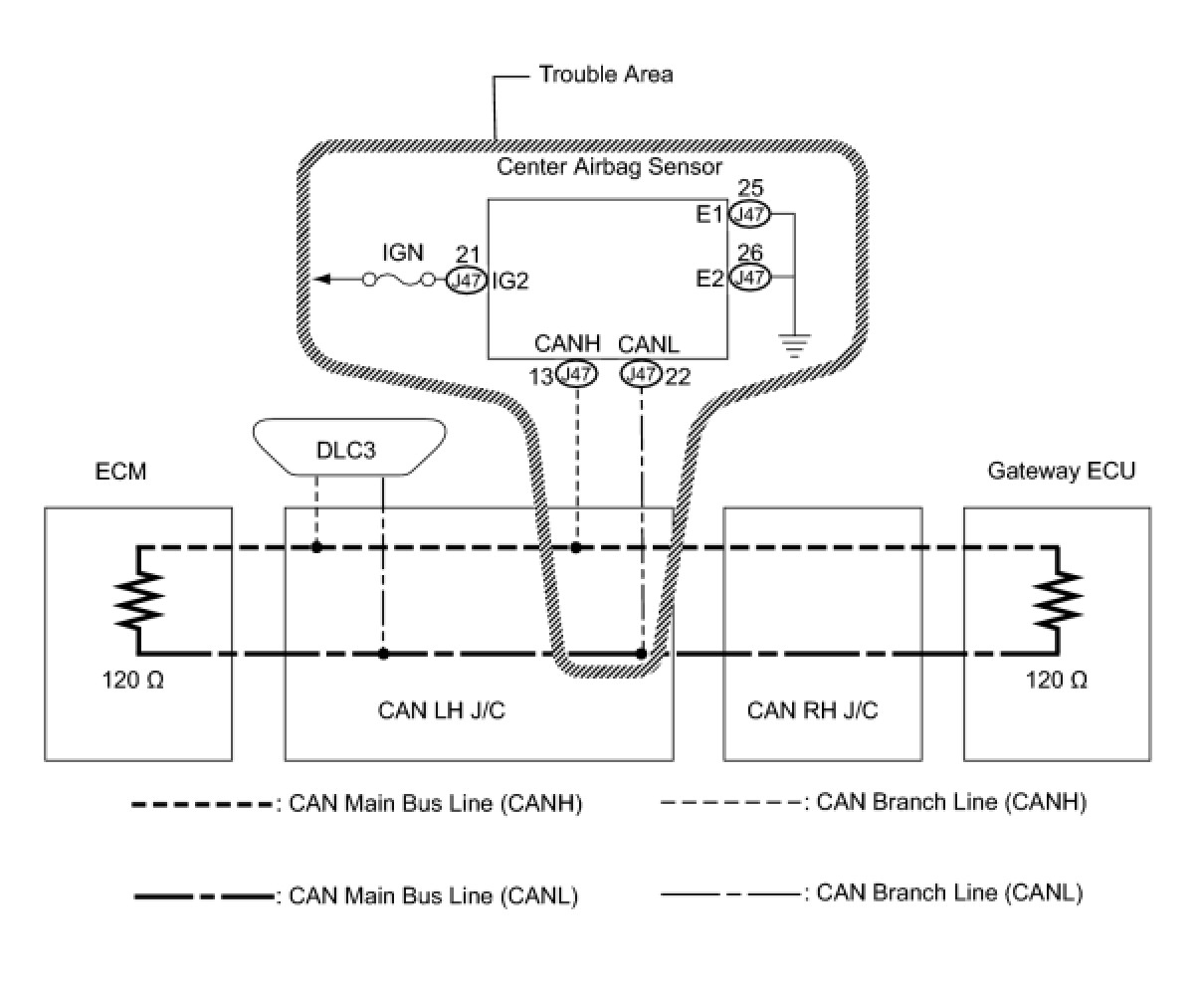

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK OPEN IN CAN BUS WIRE (CENTER AIRBAG SENSOR BRANCH LINE)
(a) Turn the engine switch off.

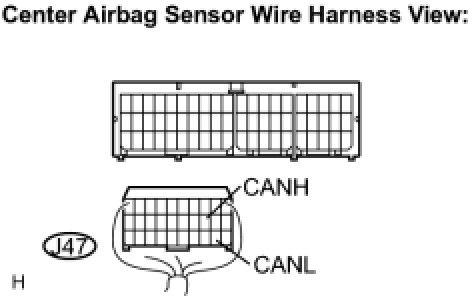

(b) Disconnect the center airbag sensor connector (J47).

NG -- REPAIR OR REPLACE CENTER AIRBAG SENSOR BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK -- Continue to next step.

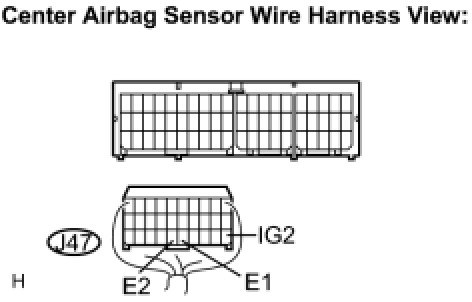

2. CHECK WIRE HARNESS (IG2, E1, E2)

(a) Measure the resistance according to the value(s) in the table below.

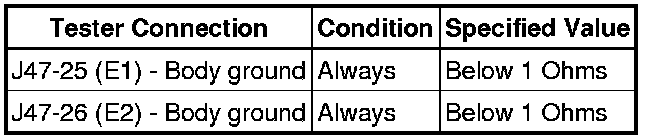

Standard resistance:

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
