Home >> Lexus >> 2008 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection

Turn Signals: Testing and Inspection








LIGHTING SYSTEM:

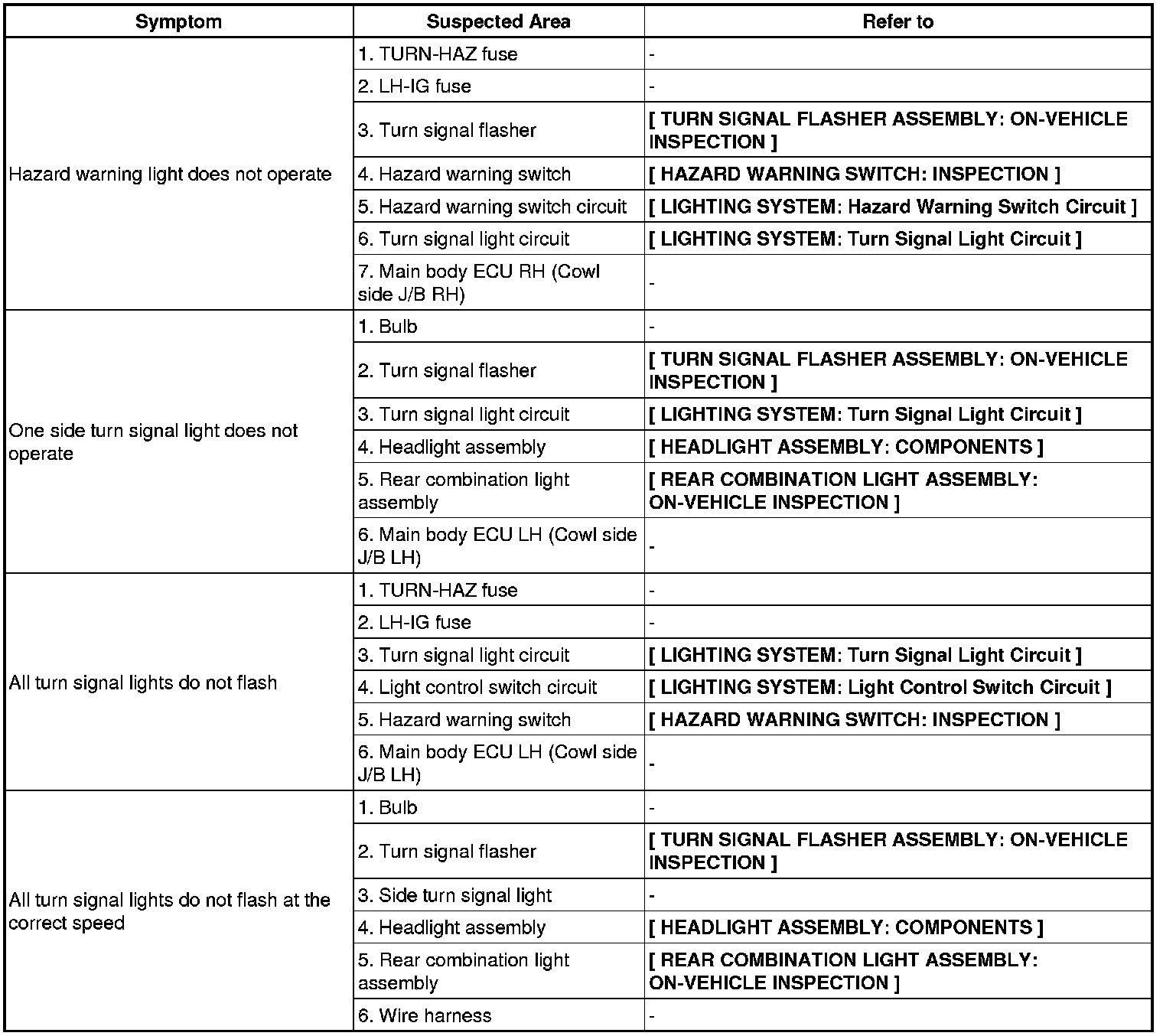

PROBLEM SYMPTOMS TABLE

Turn signal light system:
