Reassembly

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY:

REASSEMBLY

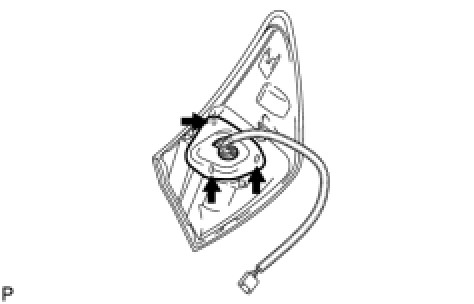

1. INSTALL REAR LIGHT LENS

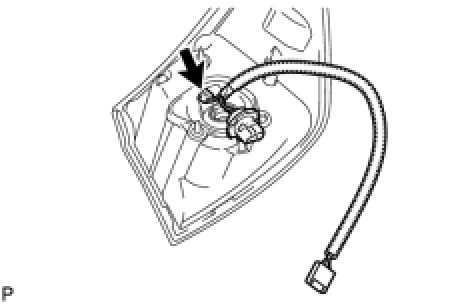

2. INSTALL REAR LIGHT SOCKET AND WIRE






(a) Connect the connector.
(b) Install the rear light socket and wire.
3. INSTALL BACK UP LIGHT BULB
(a) Install the back up light bulb.
4. INSTALL REAR COMBINATION LIGHT BODY GASKET






(a) Remove the release paper from a new rear combination light body gasket.
- Be sure to remove all the traces of the old gasket from the body.
- Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.

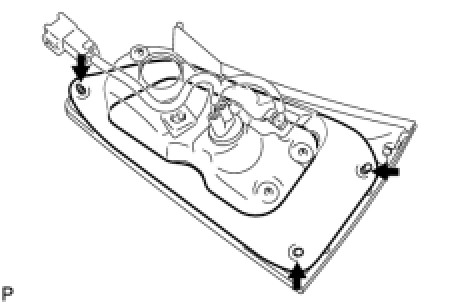

(b) Align the rear combination light body gasket with the 3 stud bolts and install the gasket as shown in the illustration.
5. INSTALL REAR COMBINATION LIGHT LENS AND BODY

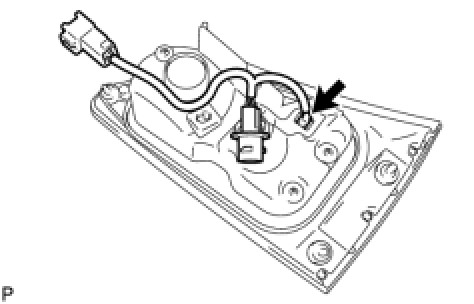

6. INSTALL REAR LIGHT SOCKET AND WIRE






(a) Connect the connector and install the rear light socket and wire.
7. INSTALL REAR TURN SIGNAL LIGHT BULB
(a) Install the rear turn signal light bulb.
8. INSTALL REAR COMBINATION LIGHT BODY GASKET
(a) Remove the release paper from a new rear combination light body gasket.
NOTICE:
- Be sure to remove all the traces of the old gasket from the body.
- Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.





(b) Align the rear combination light body gasket with the 3 stud bolts and install the gasket as shown in the illustration.
