Headlamp Alignment Switch: Testing and Inspection

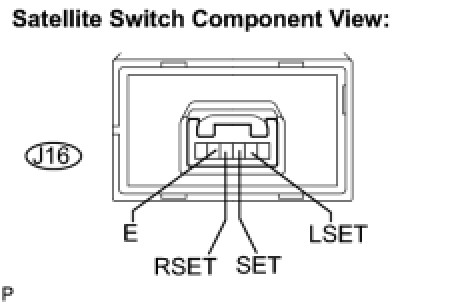

METER: SATELLITE SWITCH:

INSPECTION

1. INSPECT SATELLITE SWITCH






(a) Disconnect the connector from the satellite switch.

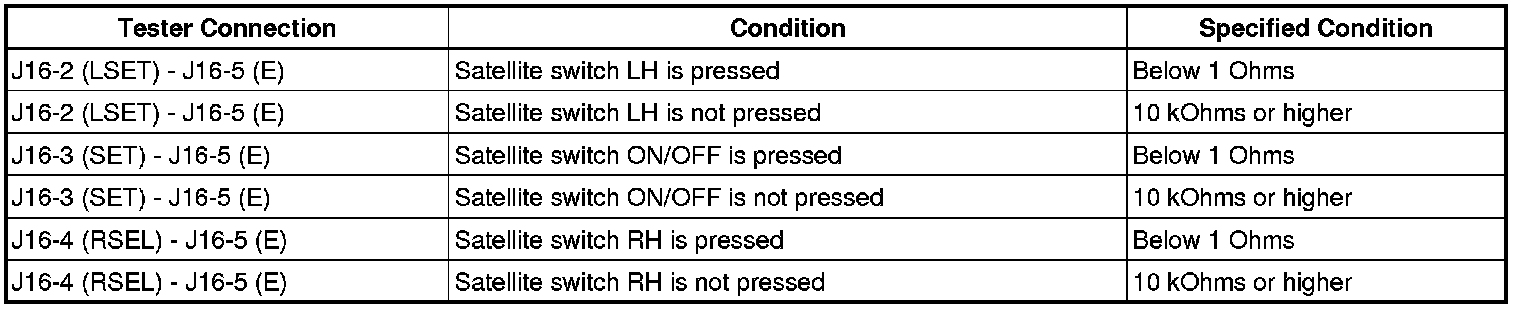

(b) Measure the resistance between the terminals according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, replace the satellite switch.
