Procedures

LIGHTING: HEADLIGHT ASSEMBLY: REPAIR

REPAIR

1. INSTALL HEADLIGHT PROTECTOR RETAINER
HINT:
- If the installation area of the headlight assembly is damaged, use the supply retainer for low-cost repair.
- Ensure that the headlight assembly is not damaged.

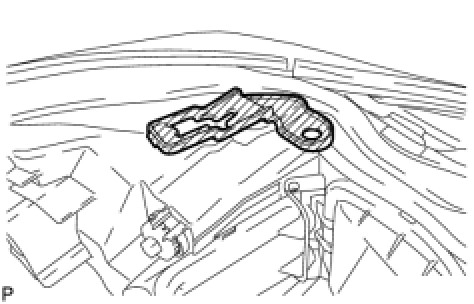

(a) Cut off the part shaded in the illustration and sand smooth with sandpaper.
NOTE: After cutting off the part, place the headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.

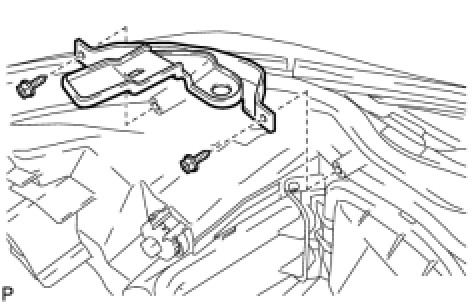

(b) Install the headlight protector retainer with the 2 screws.
