Footwell Light

LIGHTING: FOOTWELL LIGHT:

INSPECTION

1. INSPECT FOOTWELL LIGHT

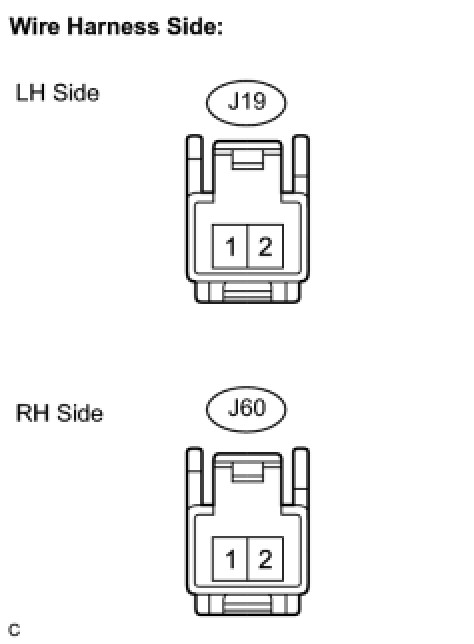

(a) Disconnect the connector from the footwell light.
(b) Measure the voltage according to the value(s) in the tables below.

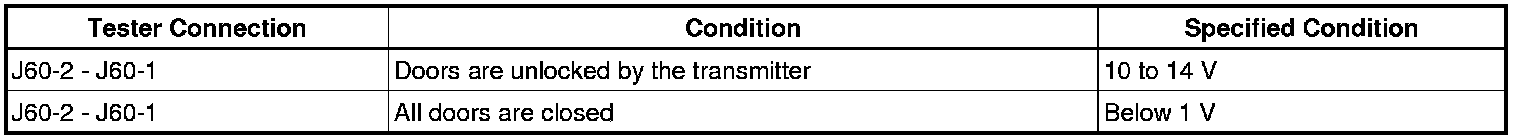

Standard voltage:

LH Side:





RH Side:





If the result is not as specified, repair or replace the wire harness or connector.

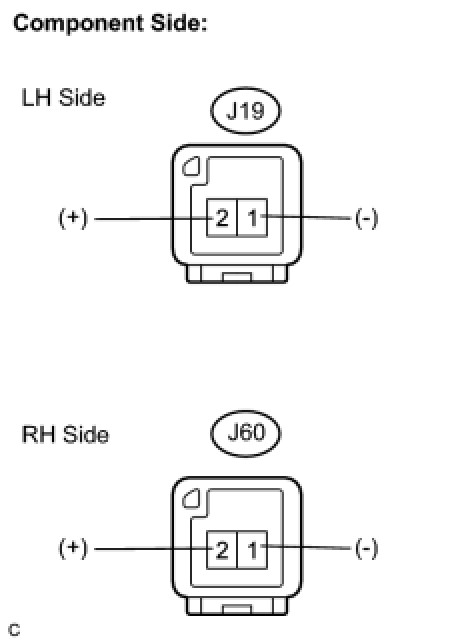

(c) Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1.
(d) Check that the footwell light comes on.
OK:
Comes on
If the result is not as specified, replace the footwell light.
