Installation

LIGHTING: REGISTER ILLUMINATION:

INSTALLATION

1. INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

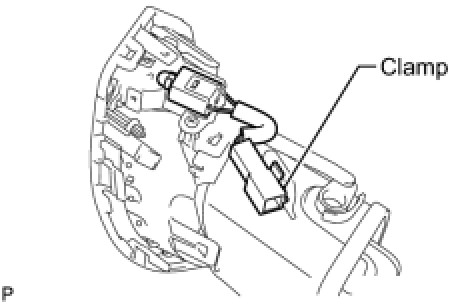

(a) Install the No. 2 interior illumination light assembly with the clamp.
2. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

3. INSTALL SIDE INSTRUMENT PANEL RH Installation

4. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

5. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
6. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
7. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

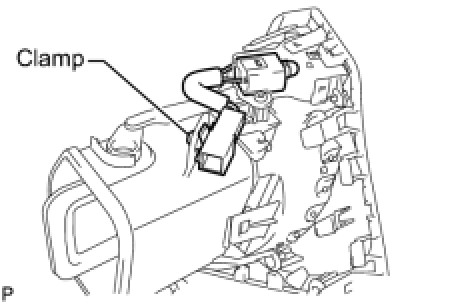

(a) Install the No. 1 interior illumination light assembly with the clamp.
8. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

9. INSTALL SIDE INSTRUMENT PANEL LH Installation

10. REMOVE FRONT DOOR OPENING TRIM COVER LH Installation

11. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation

12. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
