Installation

LIGHTING: FOOTWELL LIGHT:

INSTALLATION

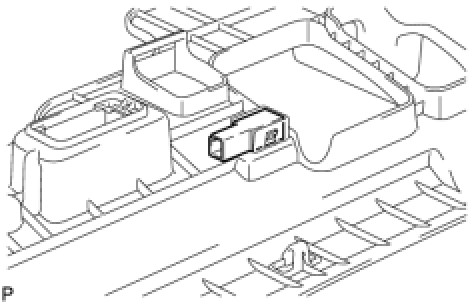

1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH






(a) Install the No. 1 interior illumination light assembly RH.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

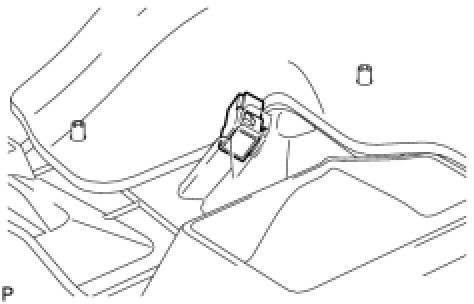

3. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH






(a) Install the No. 1 interior illumination light assembly LH.
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
