Pinout Values and Diagnostic Parameters

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

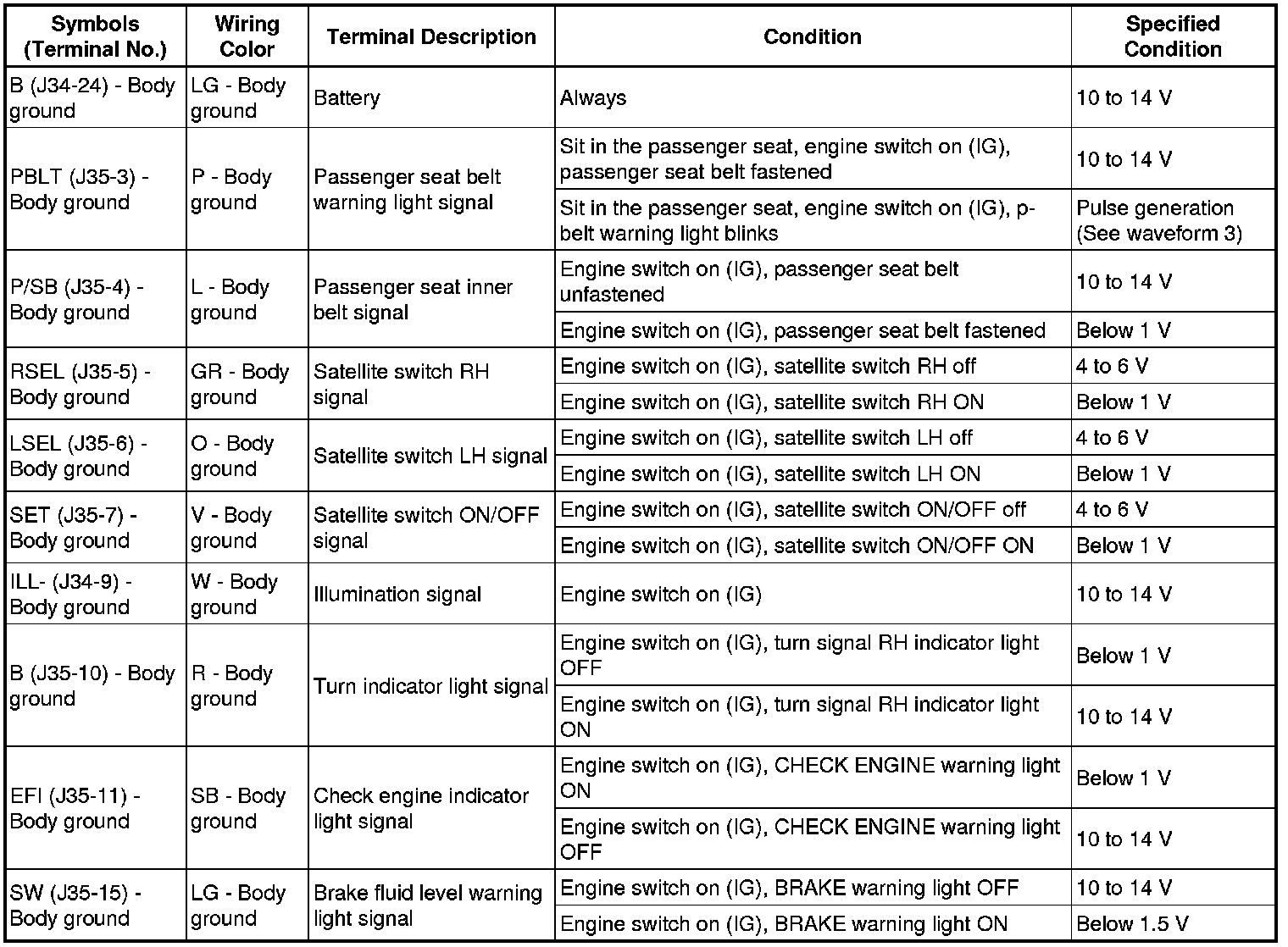

TERMINALS OF ECU

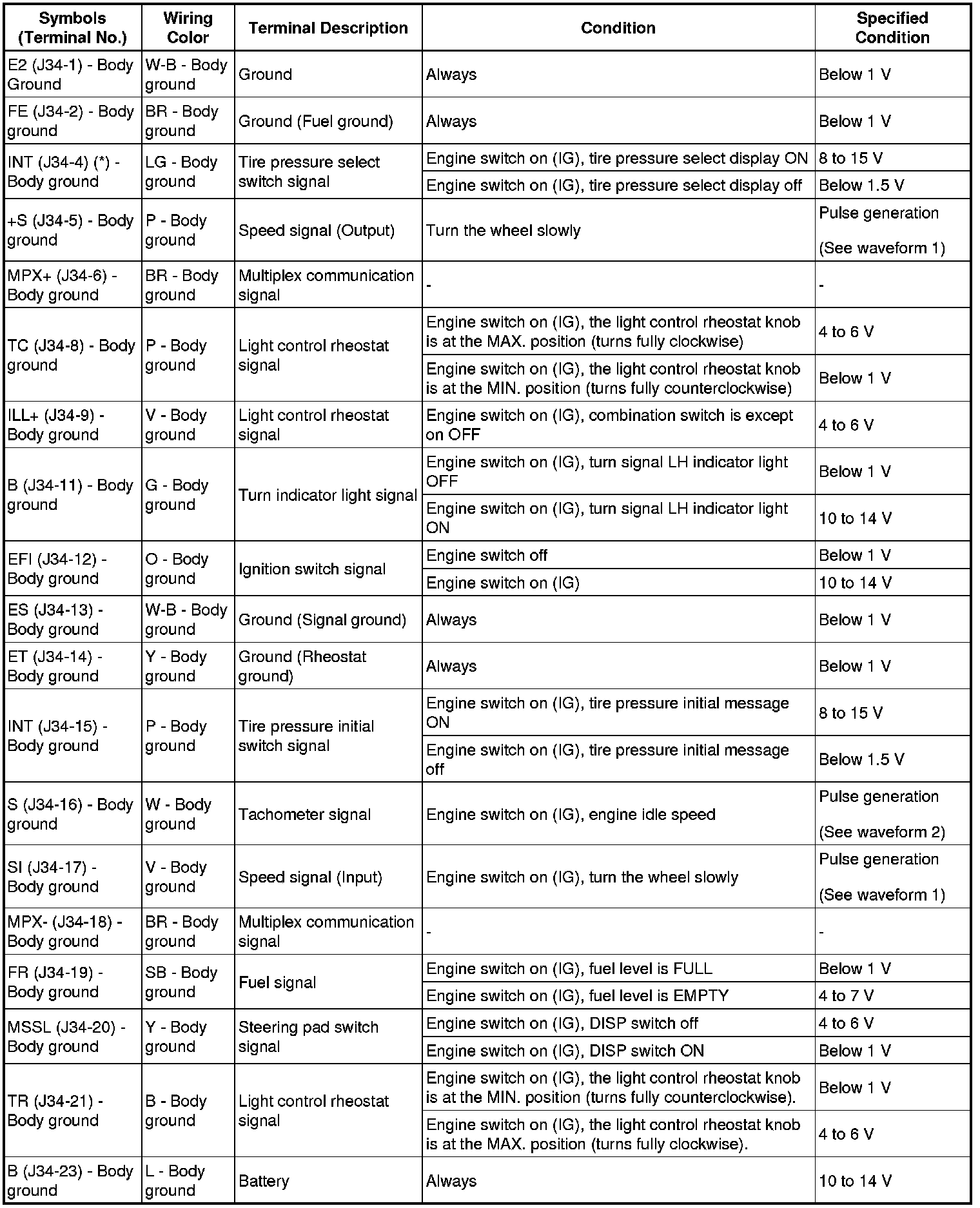

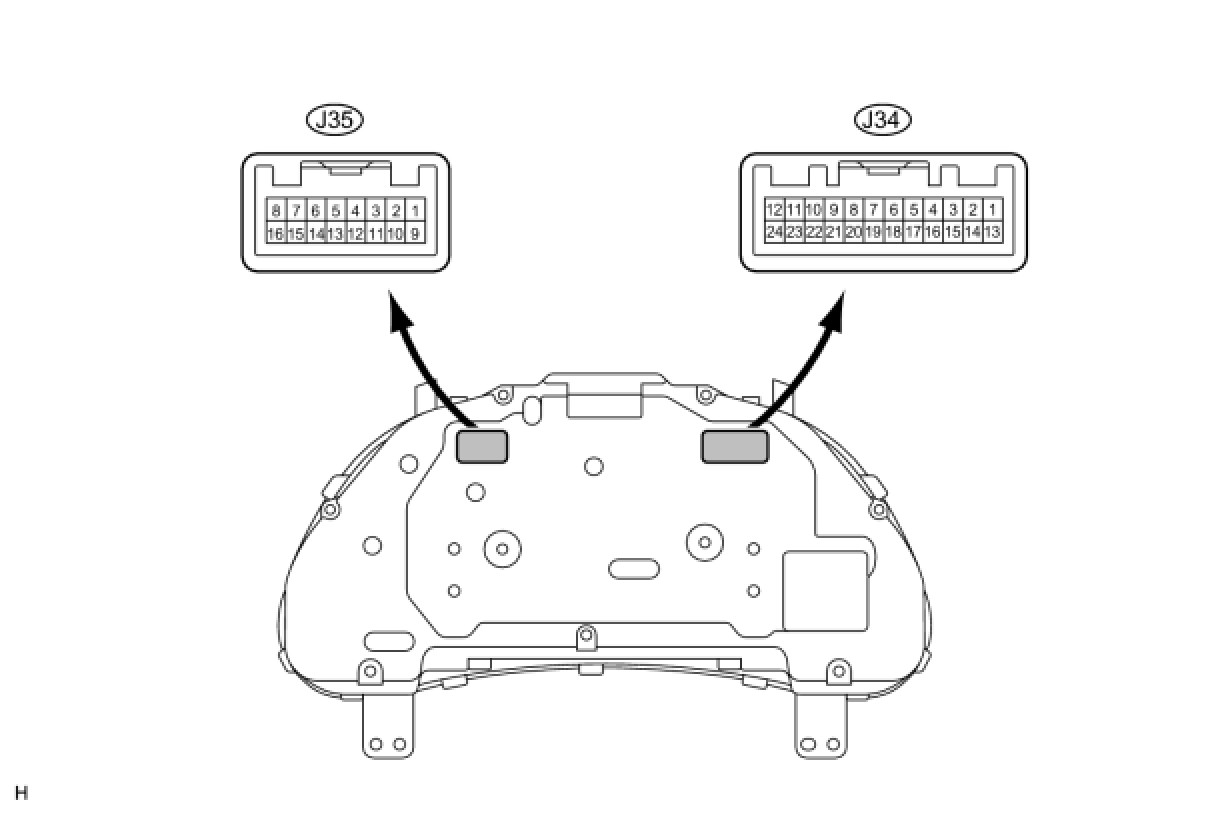

1. Combination Meter Assembly

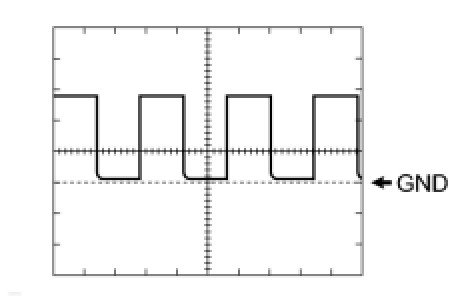

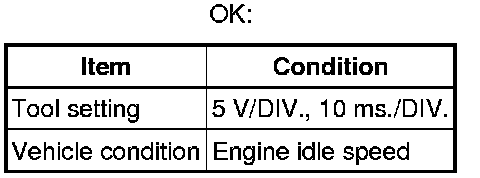

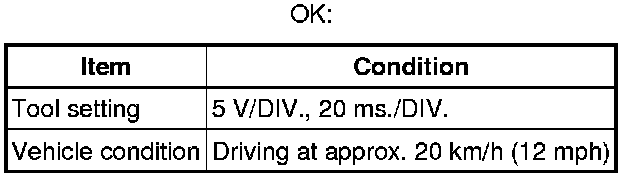

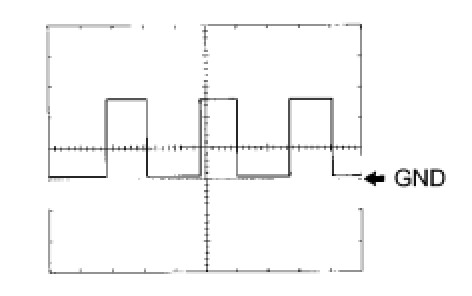

(a) Waveform 1 (Reference) : Using an oscilloscope:

HINT: As vehicle speed increases, the cycle of the signal waveform narrows.

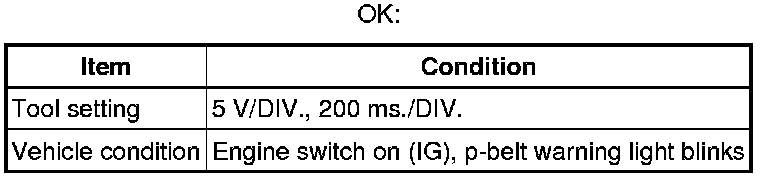

(b) Waveform 2 (Reference) : Using an oscilloscope:

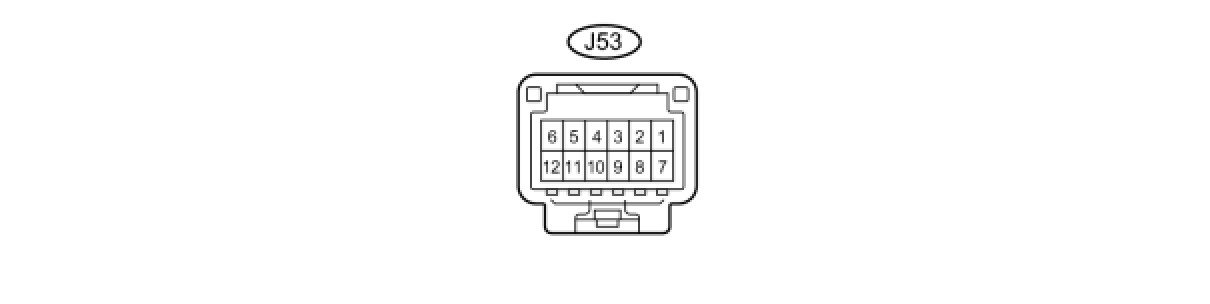

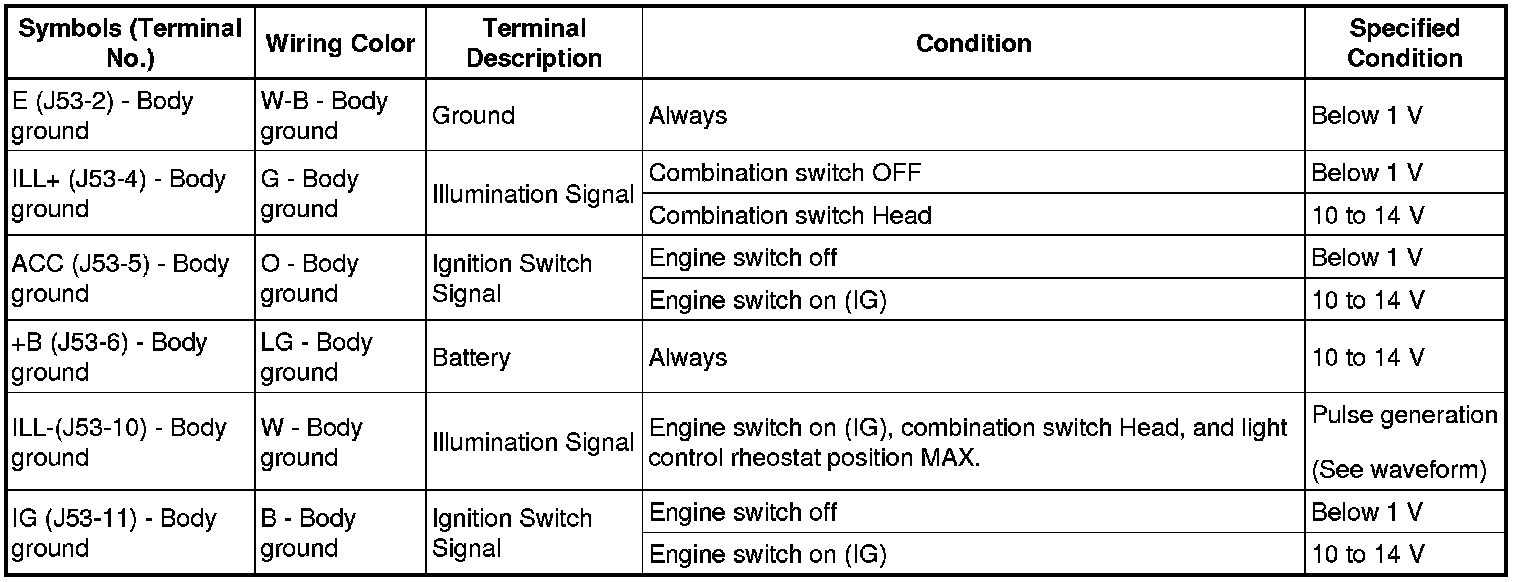

2. CLOCK ASSEMBLY (without NAVIGATION SYSTEM)

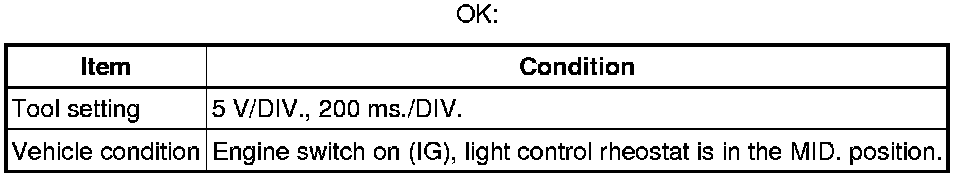

(a) Waveform (Reference) : Using an oscilloscope:

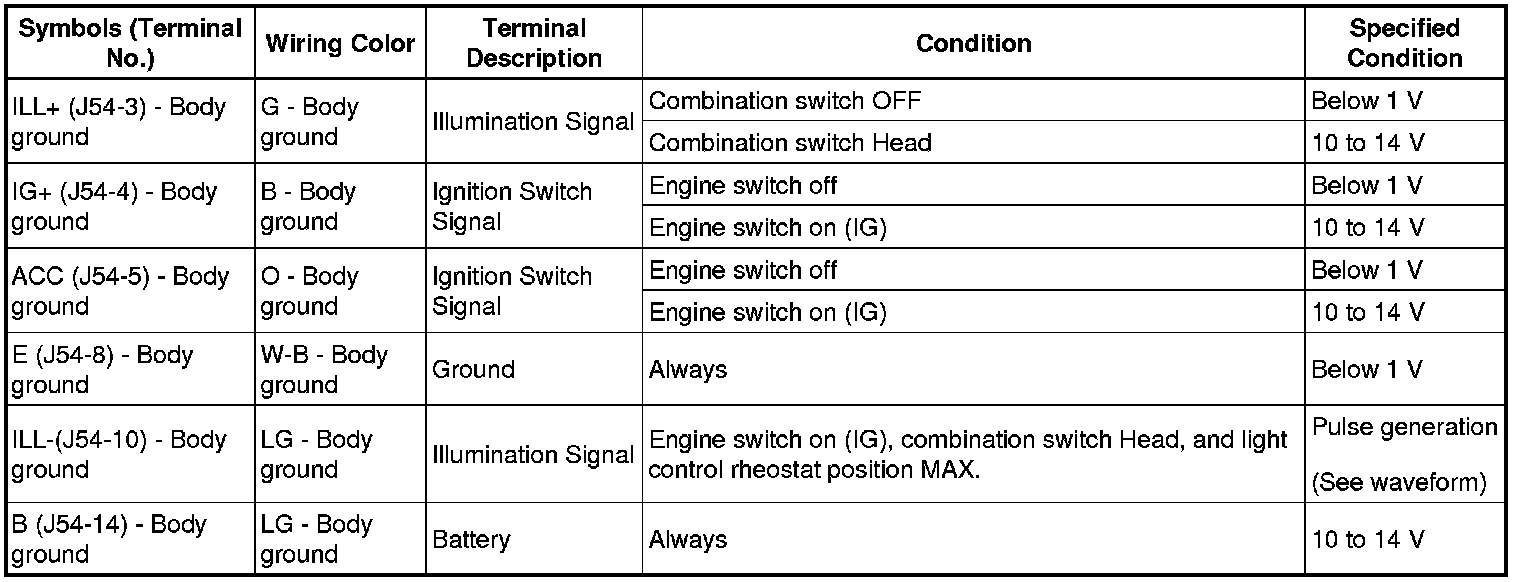

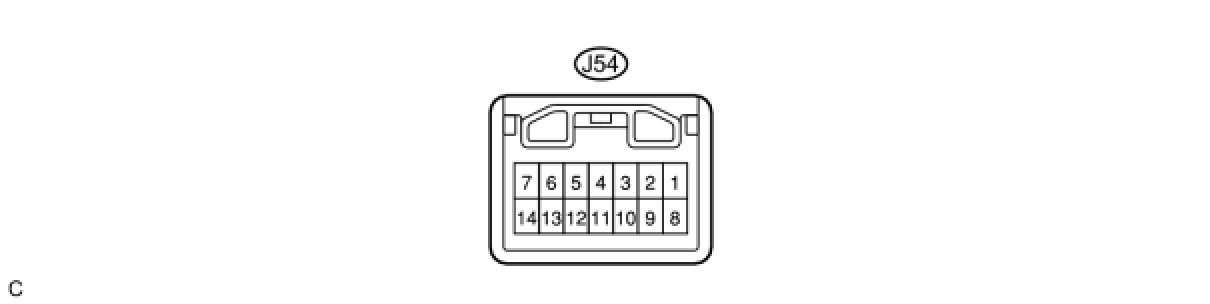

3. CLOCK ASSEMBLY (with NAVIGATION SYSTEM)

(a) Waveform (Reference) : Using an oscilloscope:

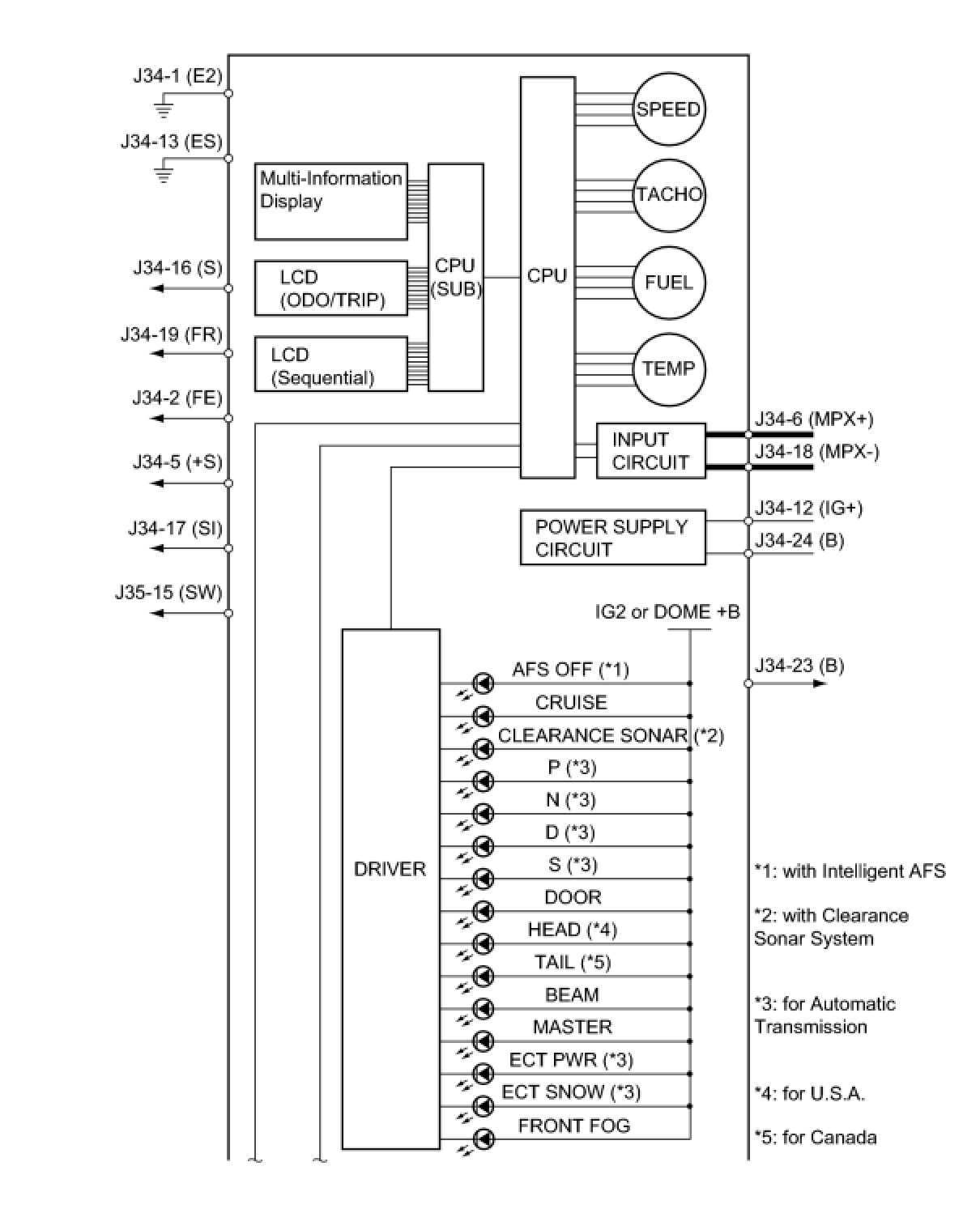

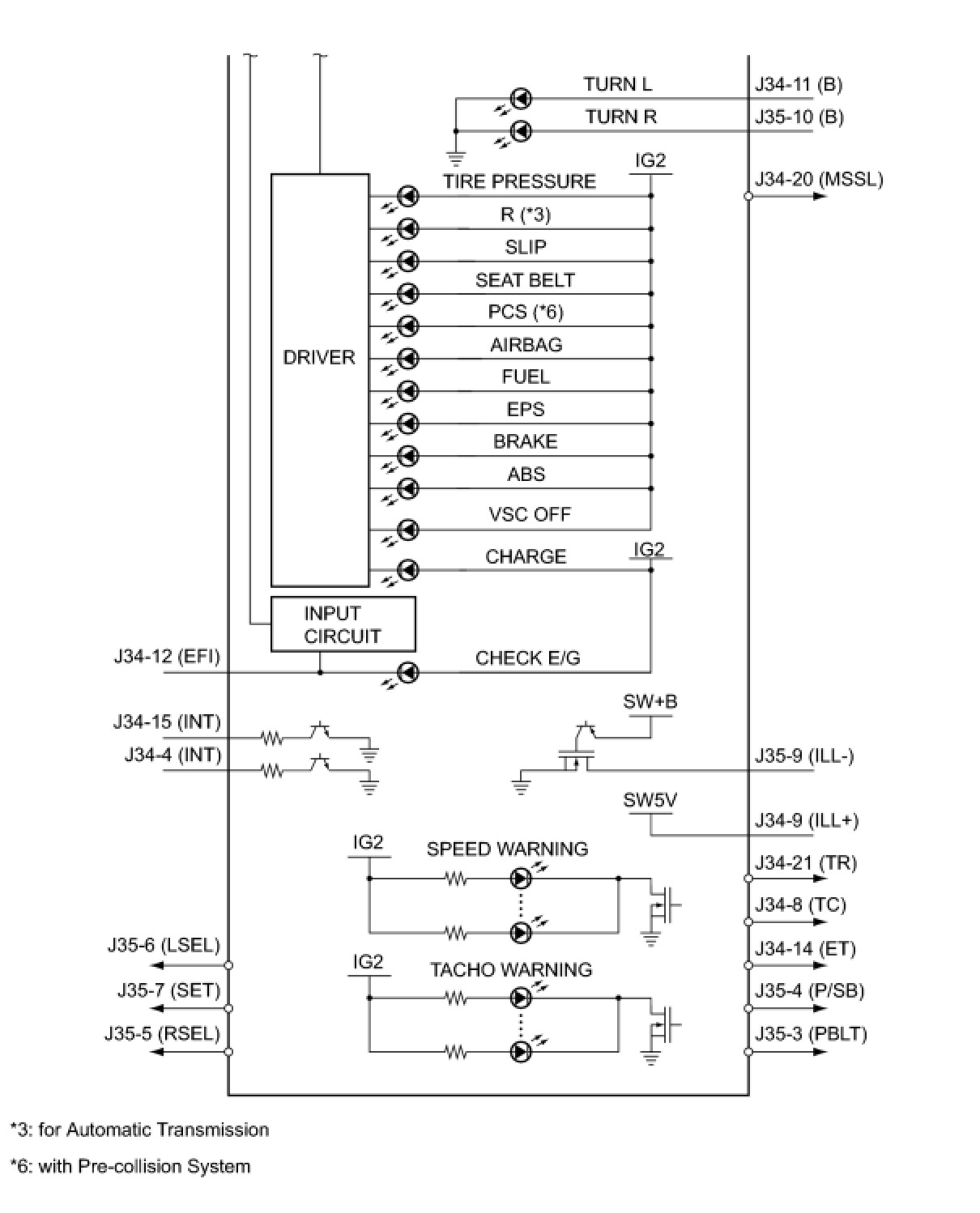

4. COMBINATION METER INNER CIRCUIT

*1: without VDIM
*2: with VDIM
*3: without Navigation System
*4: with Navigation System
