Instruments - Compass Calibration Procedure

PRE-DELIVERY SERVICE
PD027-07

Title:
INITIAL CALIBRATION OF COMPASS
DURING PDS

Models:
'08 IS 250/350

August 8, 2007

Introduction





2008 model year IS 250/350 vehicles are equipped with a compass in the rear view mirror. Use the following procedure to complete initial calibration of the compass during Pre-Delivery Service (PDS).

Applicable Vehicles

^ 2008 model year IS 250/350 vehicles.

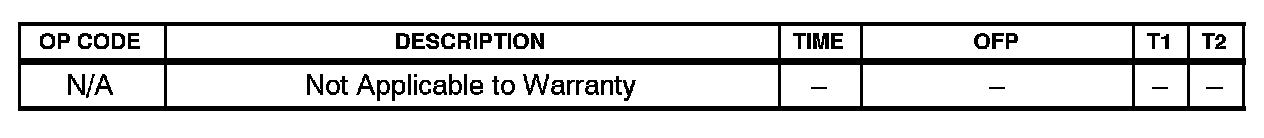

Warranty Information

Compass Calibration Procedure

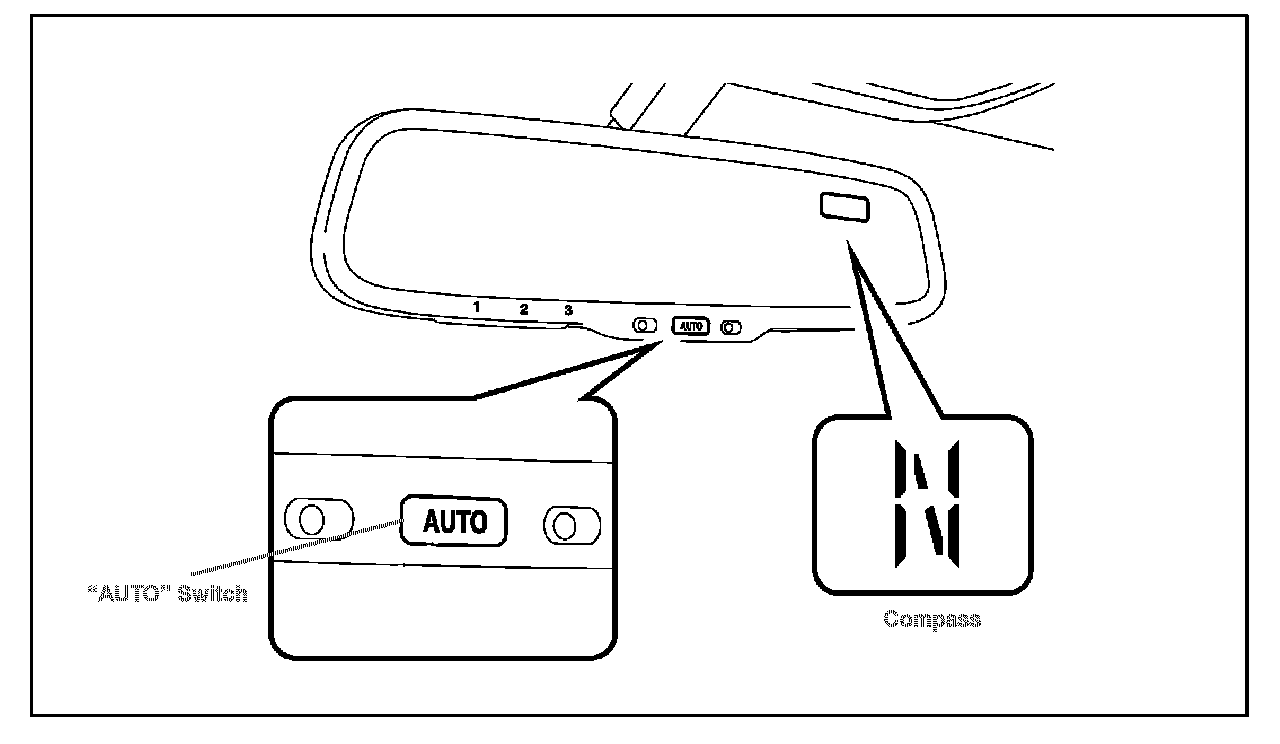

1. Turn the ignition switch to the "ON" position and check that the direction (N, NE, E, SE, S, SW, W, NW) appears on the compass display.

NOTE:
Pushing the "AUTO" switch turns the compass display ON or OFF.

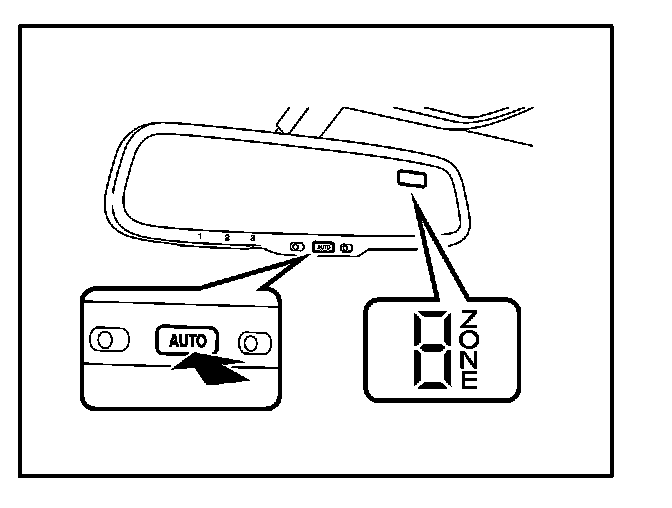

2. Push the AUTO" switch for approximately 6 seconds until the zone number (1 - 15) appears on the display. Then push the switch to select the number of the zone where the vehicle is located.

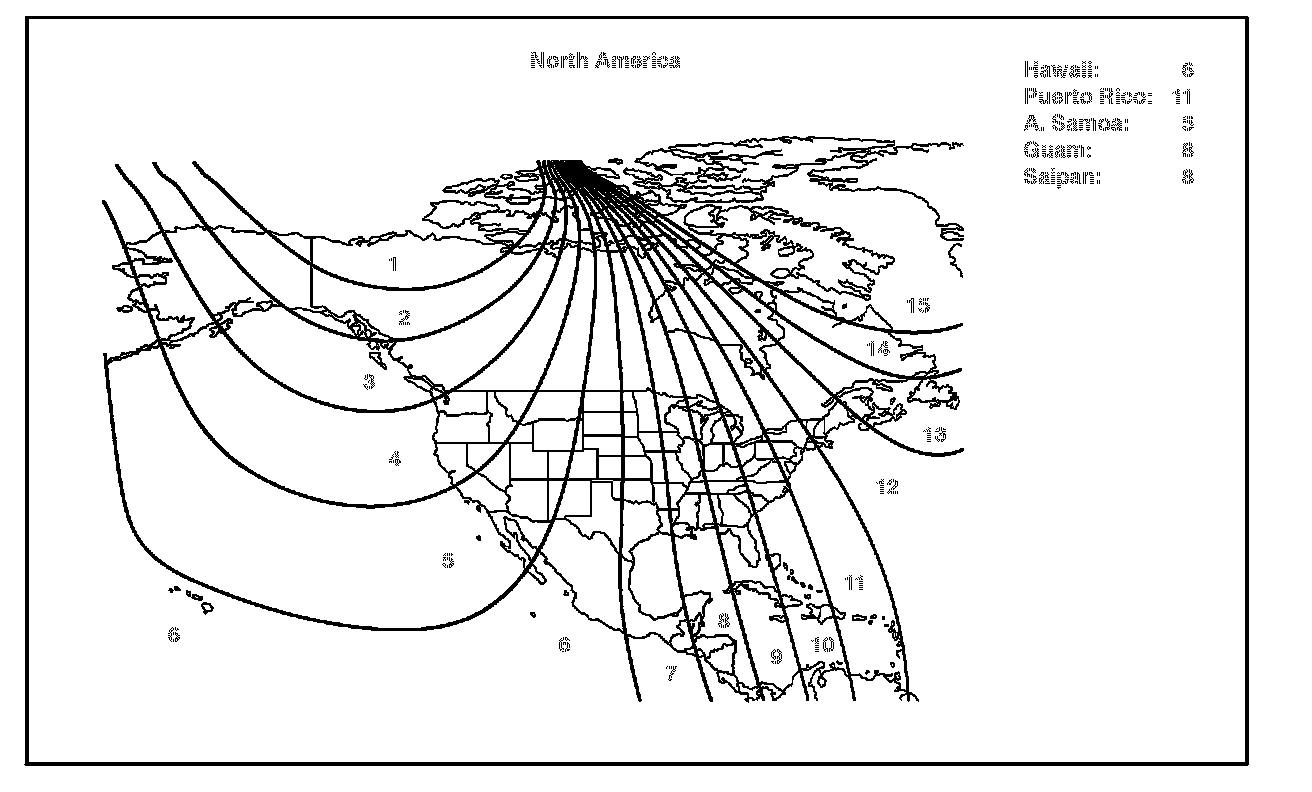

See the map for zone reference.

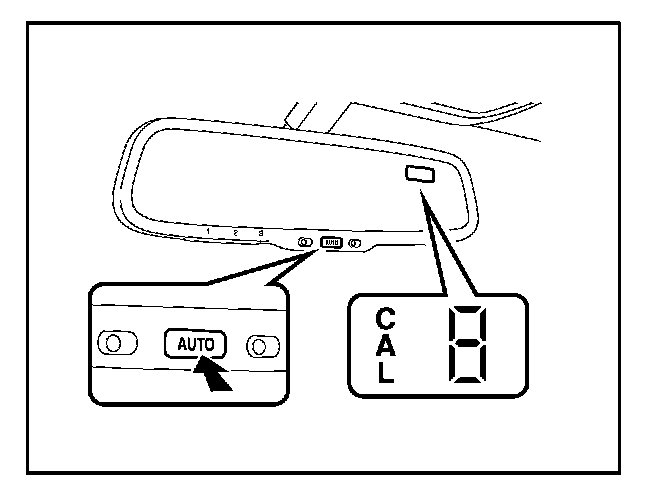

3. Start the engine and push the AUTO" switch for about 12 seconds until "CAL" appears on the display.

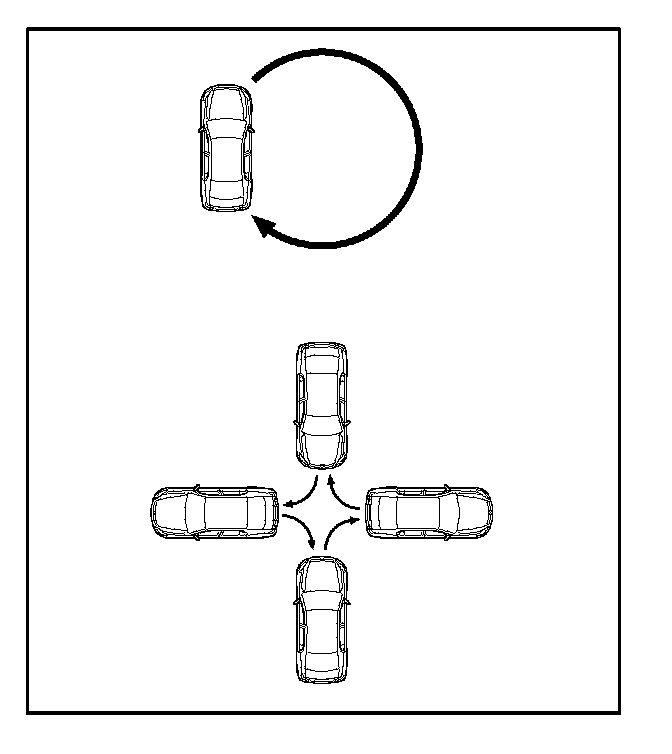

4. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.

After driving in circles 1 to 3 times, calibration is complete and the direction will show on the display.

NOTE:
^ Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)

^ During calibration, do NOT operate electric systems (sliding roof, power windows, etc.) as they may interfere with the calibration.
