Removal

BRAKE CONTROL: SKID CONTROL BUZZER:

REMOVAL

1. PRECAUTION
CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Repair Instruction - Initialization

3. REMOVE SIDE INSTRUMENT PANEL LH Removal

4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

5. REMOVE LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY Removal

6. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

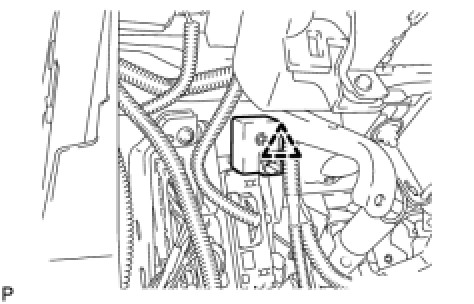

7. REMOVE SKID CONTROL BUZZER ASSEMBLY






(a) Remove the clip and skid control buzzer assembly.
