Timing Component Alignment Marks: Locations

The manufacturer does not provide an on-vehicle service procedure for this component. Please refer to the Engine Overhaul procedure for service information relating to this component. [1][2]Overhaul


CHAIN SUB-ASSEMBLY

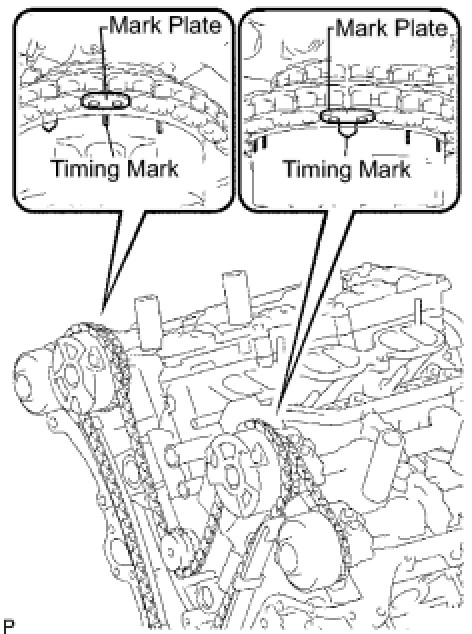

(a) Align the mark plate and timing mark as shown in the illustration and install the chain.

HINT: The camshaft mark plate is orange.

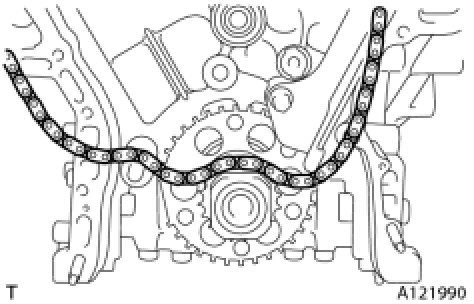

(b) Rest the chain on top of the crankshaft.

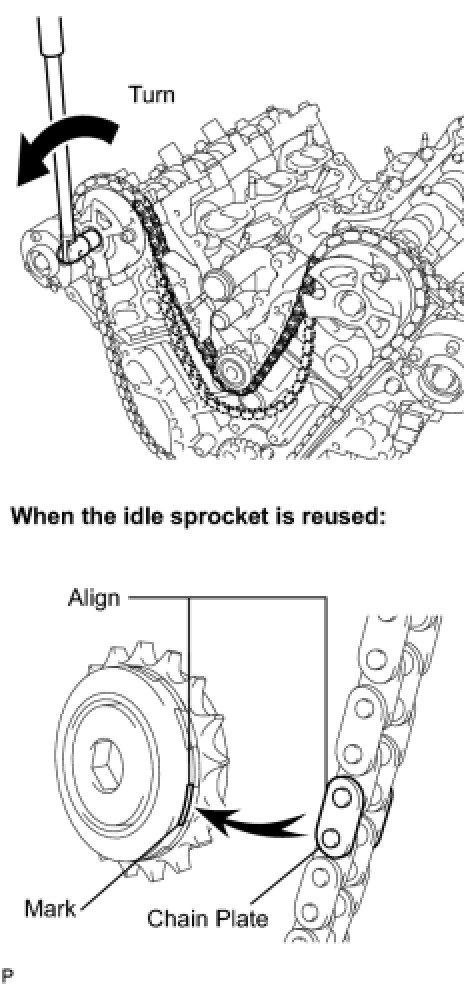

(c) Turn the camshaft timing gear assembly on the RH bank counterclockwise to tighten the chain between the banks.
NOTE: When the idle sprocket is reused, align the chain plate with the mark where the plate had been in order to tighten the chain between the banks.

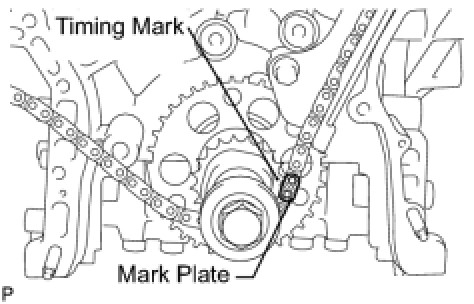

(d) Align the mark plate and timing mark as shown in the illustration and install the chain onto the crankshaft timing sprocket.

HINT: The crankshaft mark plate is yellow.

(e) Temporarily tighten the pulley set bolt.

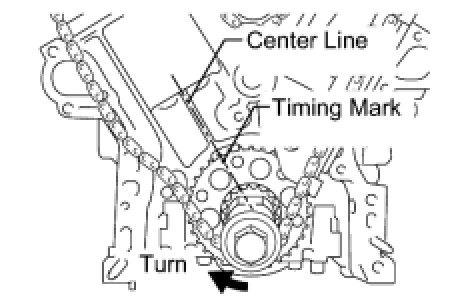

(f) Turn the crankshaft clockwise to set it to the RH block bore center line (TDC / compression).
