System Diagram

NOTE: Lexus uses a magnetic clutch type compressor as well as a flow control valve type. Both are contained within the diagram. Follow the portion of the digram applicable to the vehicle.

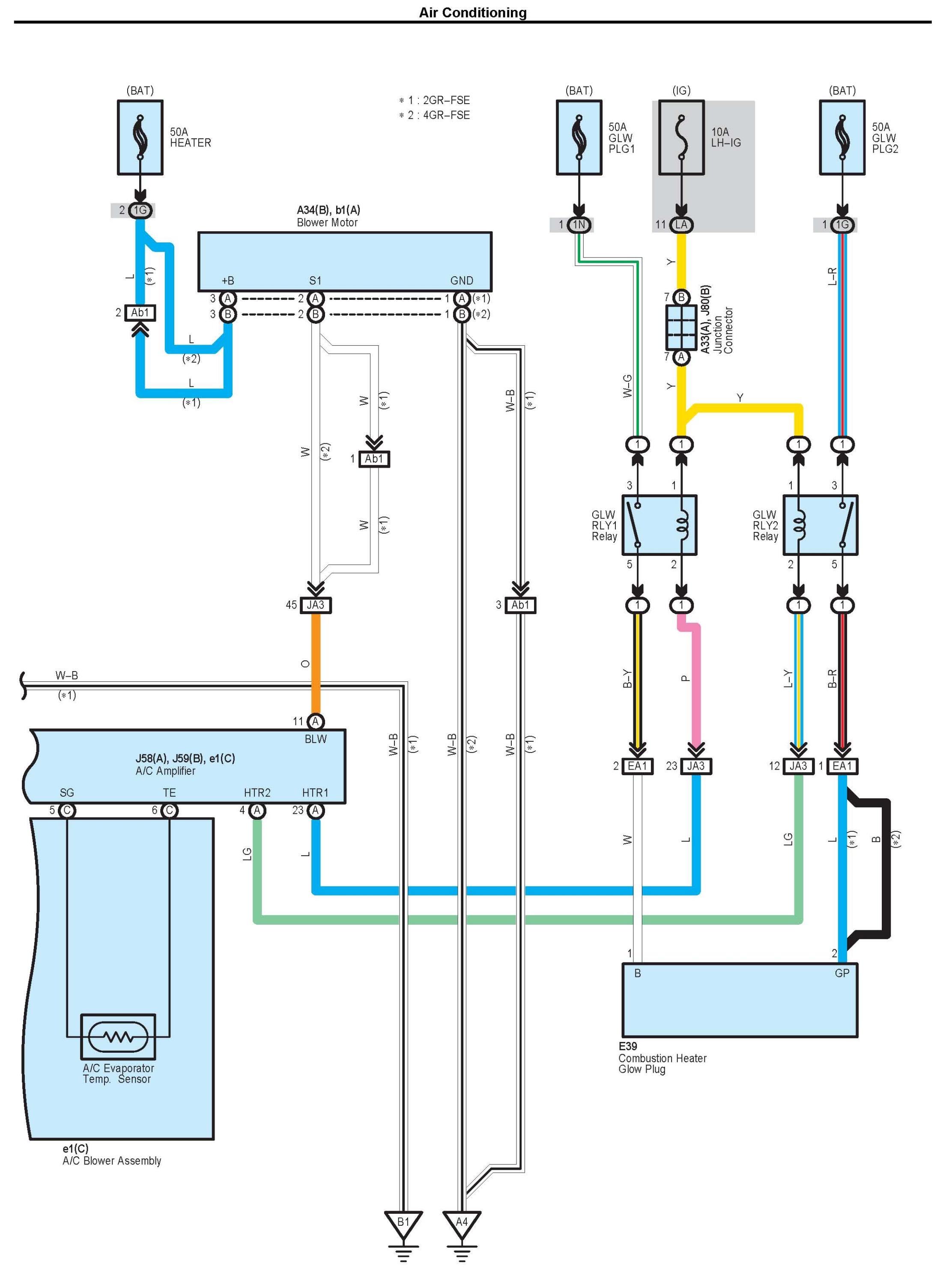

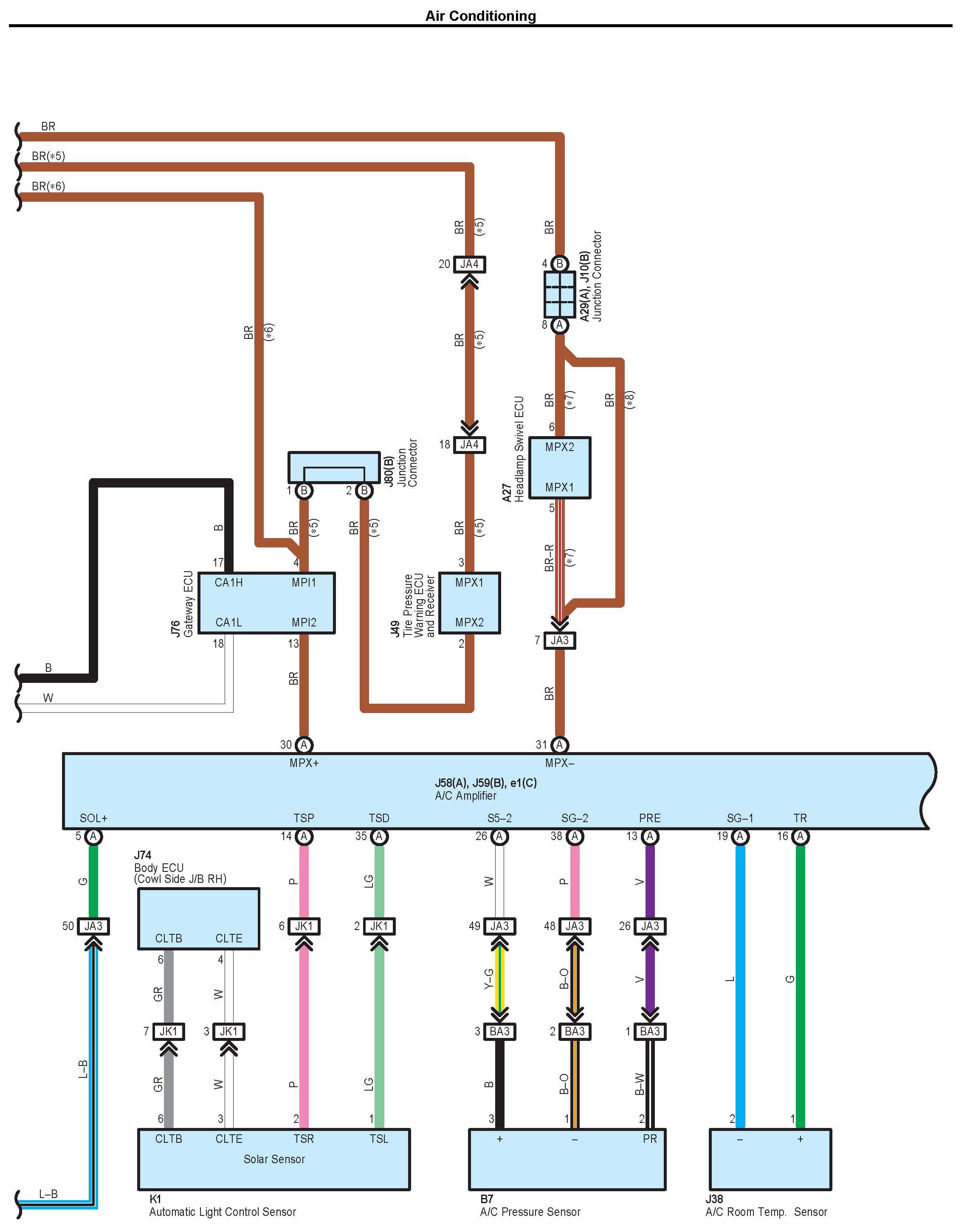

Air Conditioning Part 1:

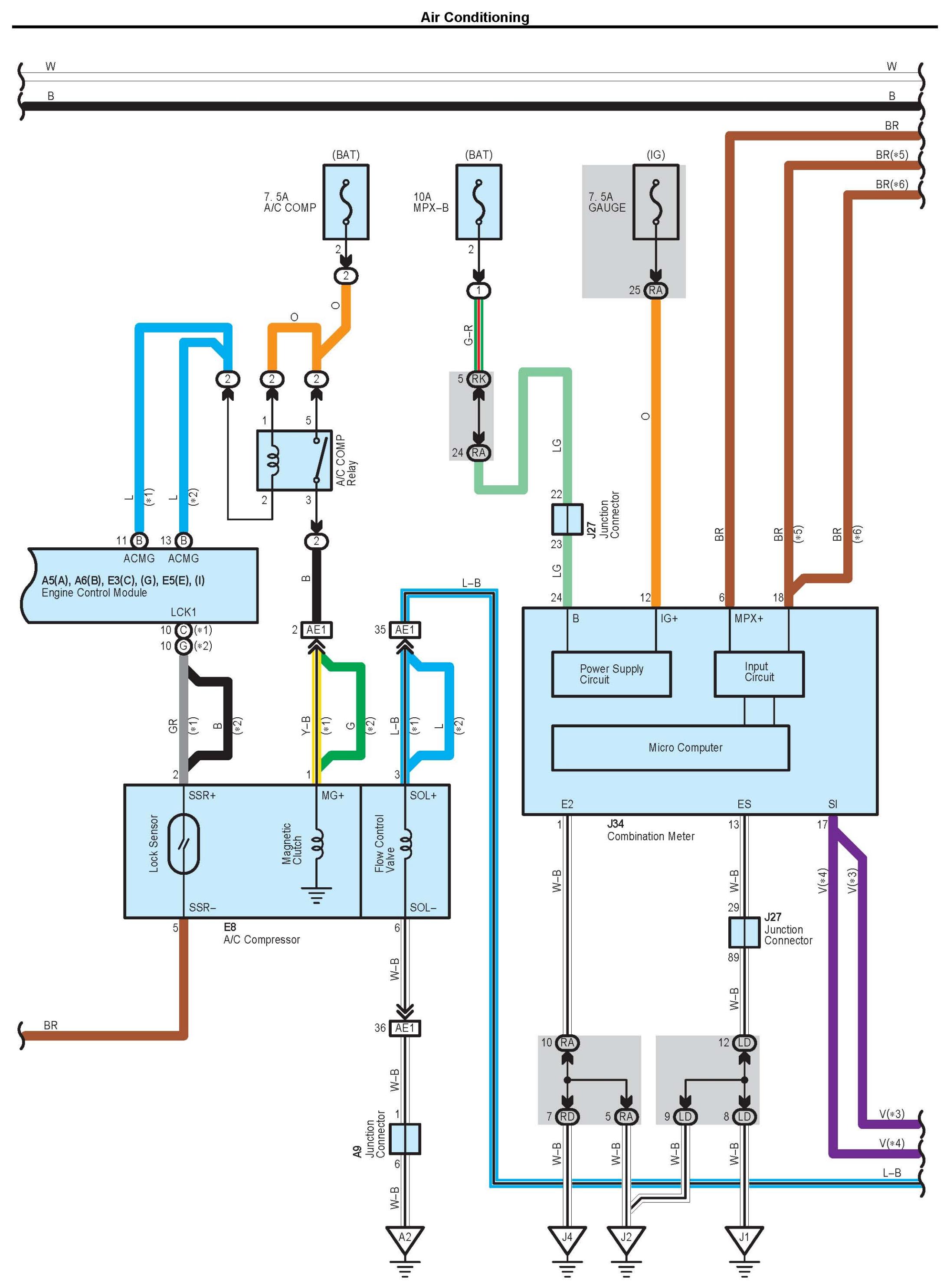

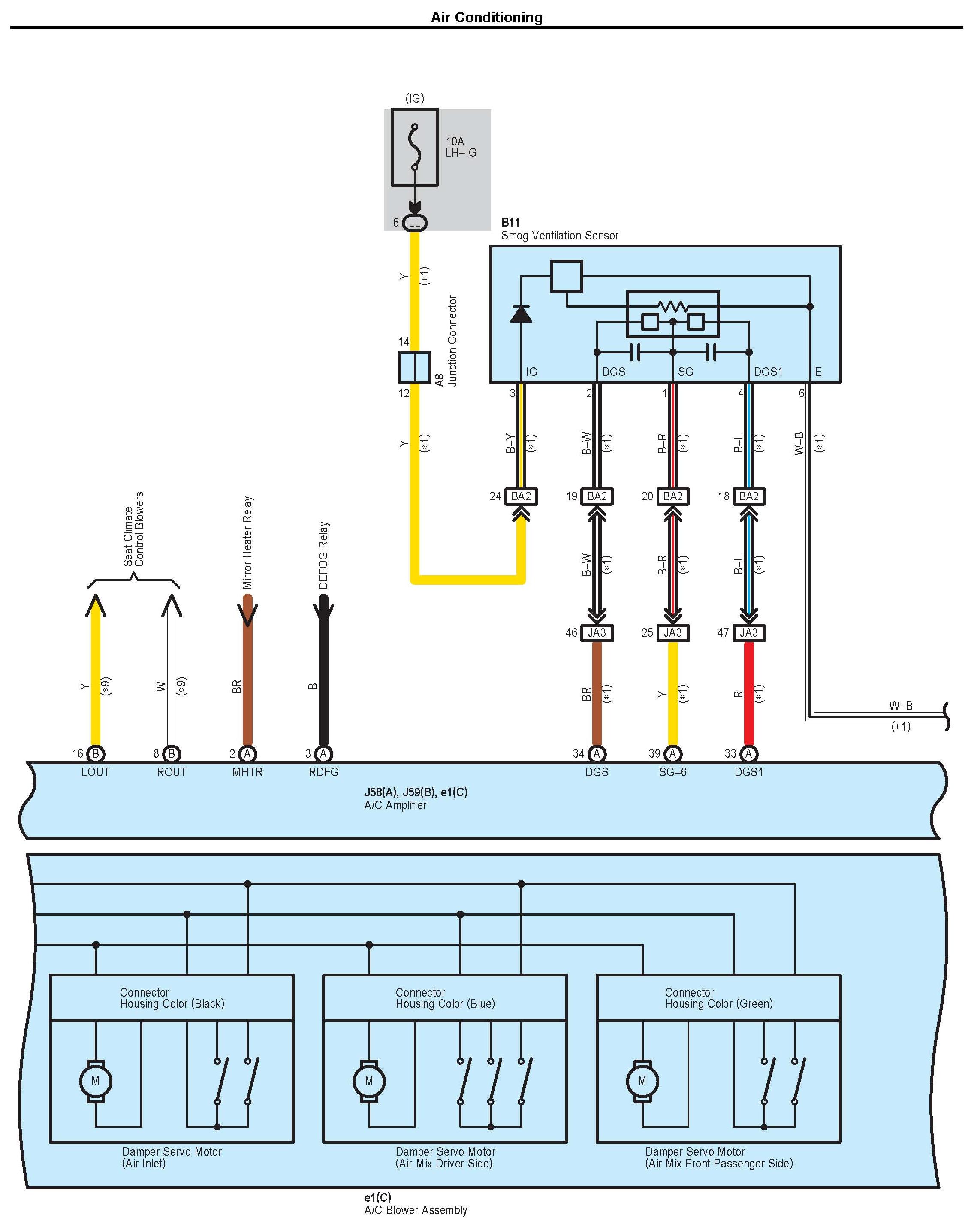

Air Conditioning Part 2:

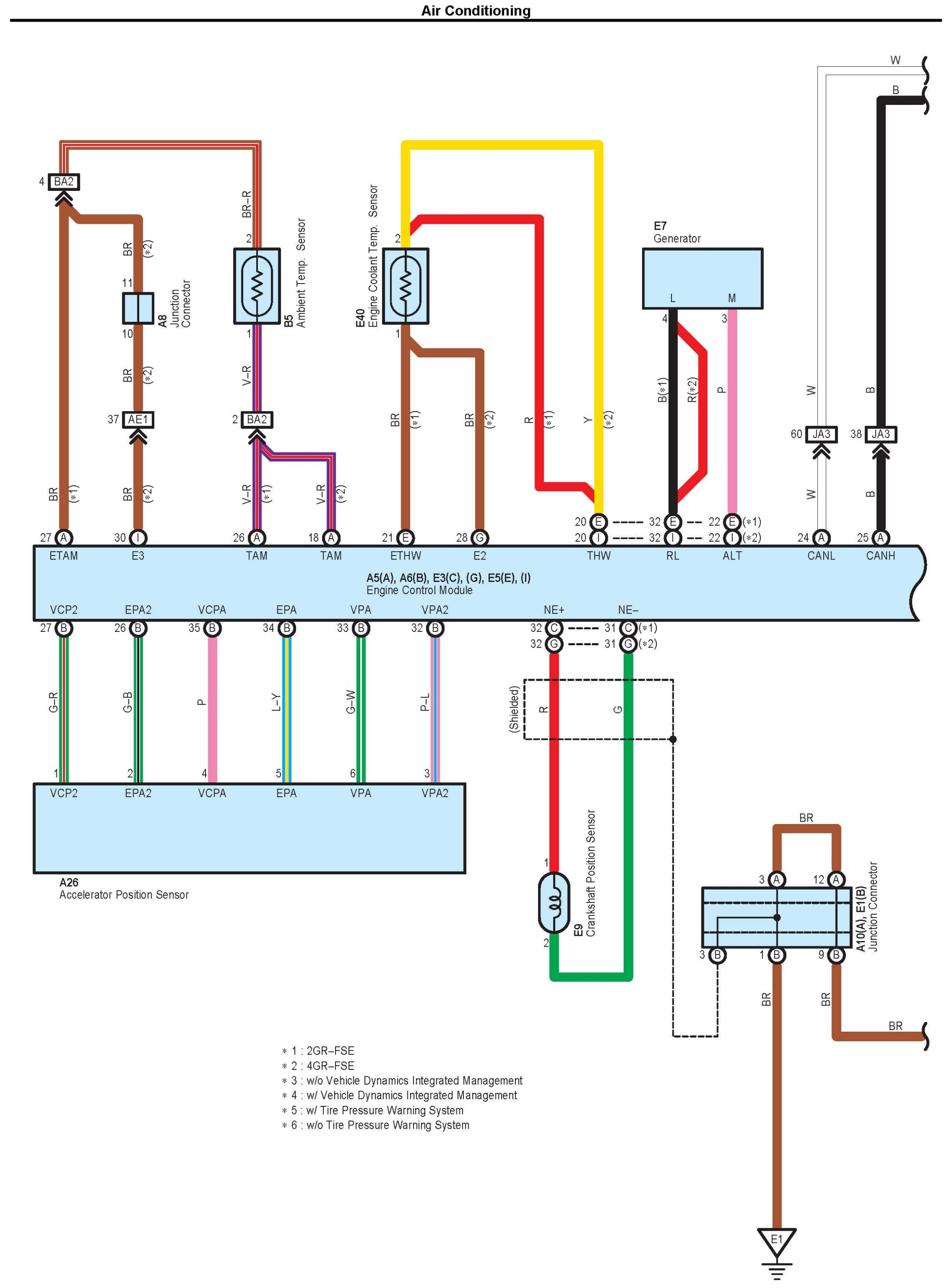

Air Conditioning Part 3:

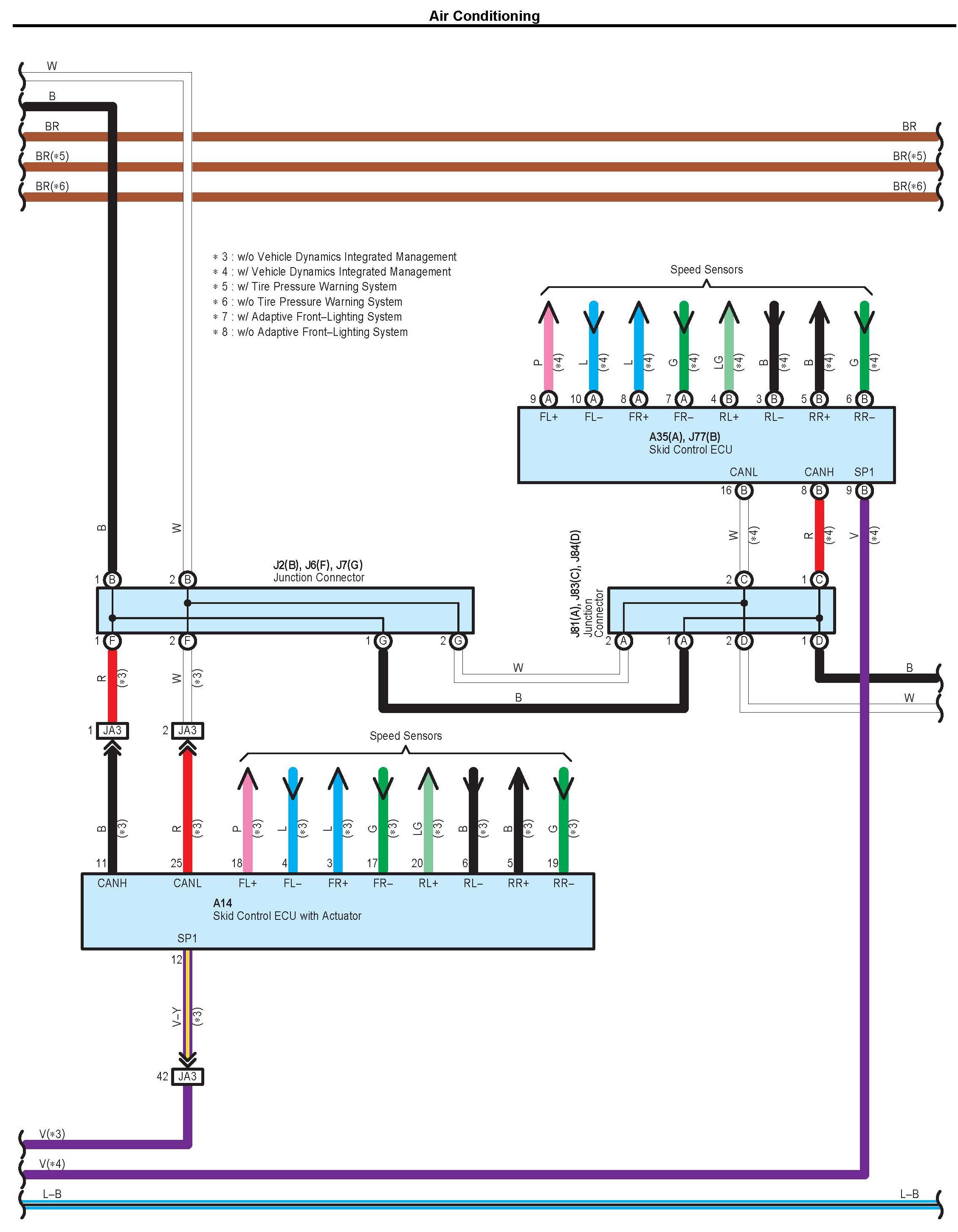

Air Conditioning Part 4:

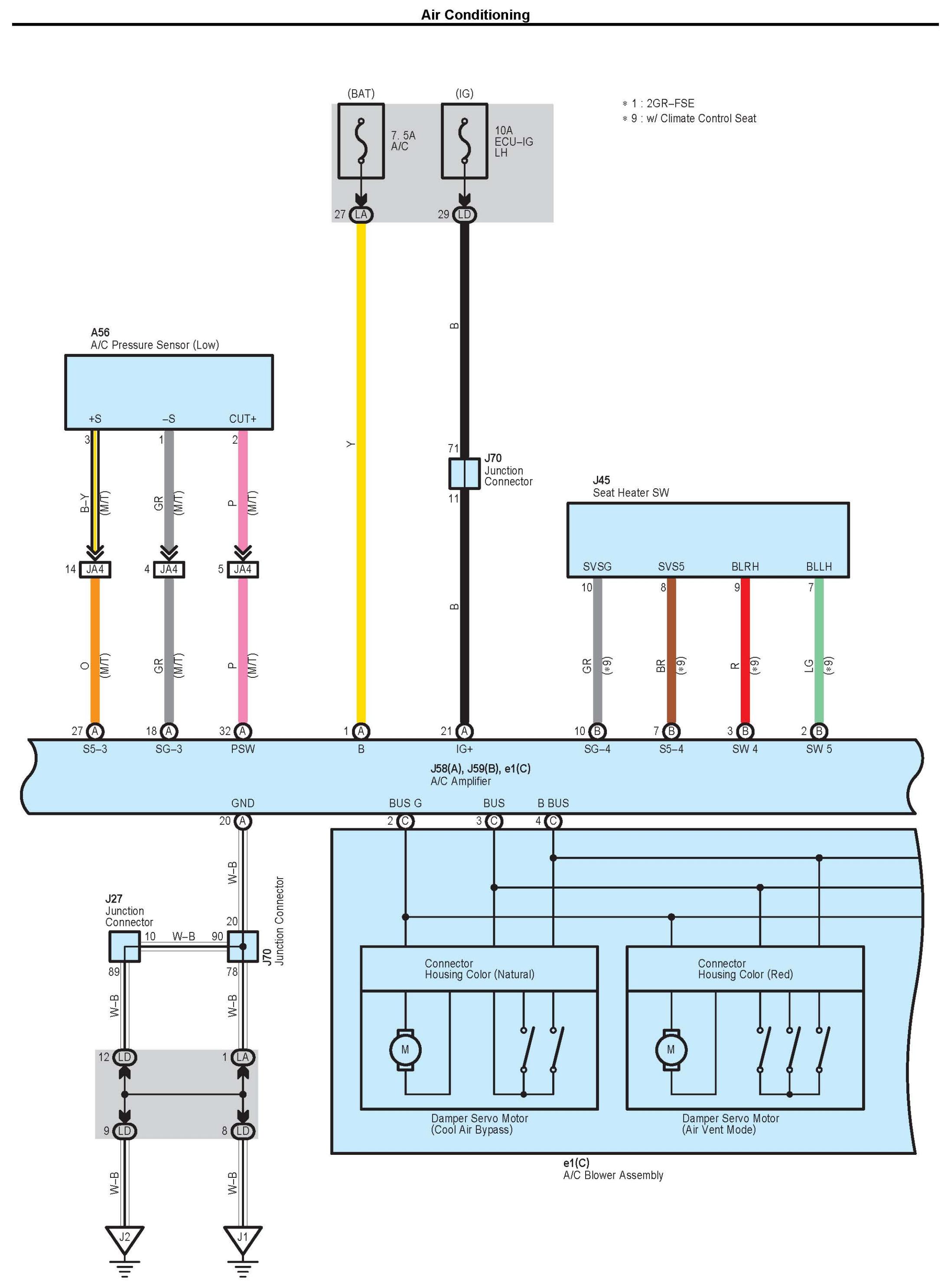

Air Conditioning Part 5:

Air Conditioning Part 6:

Air Conditioning Part 7:

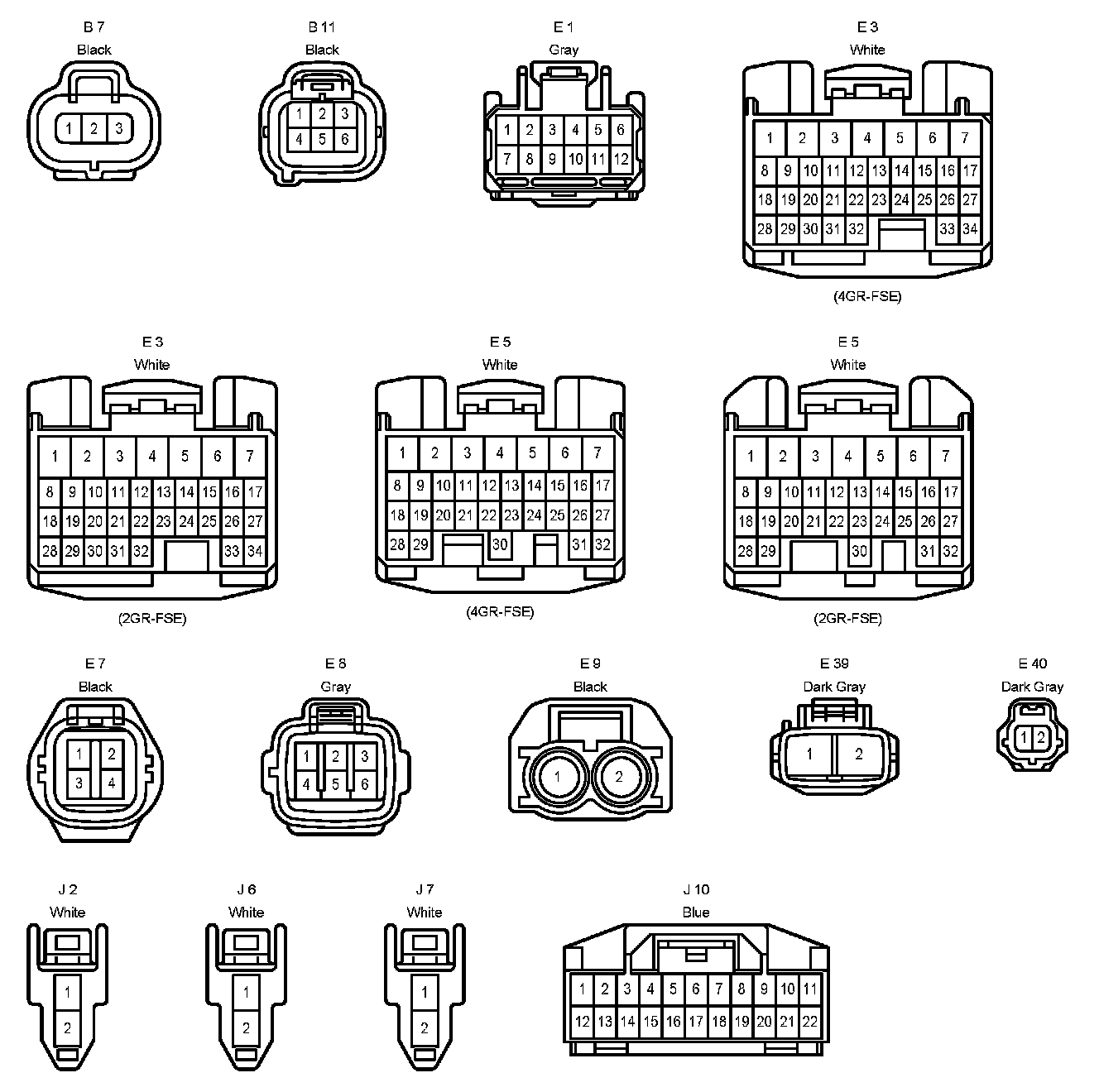

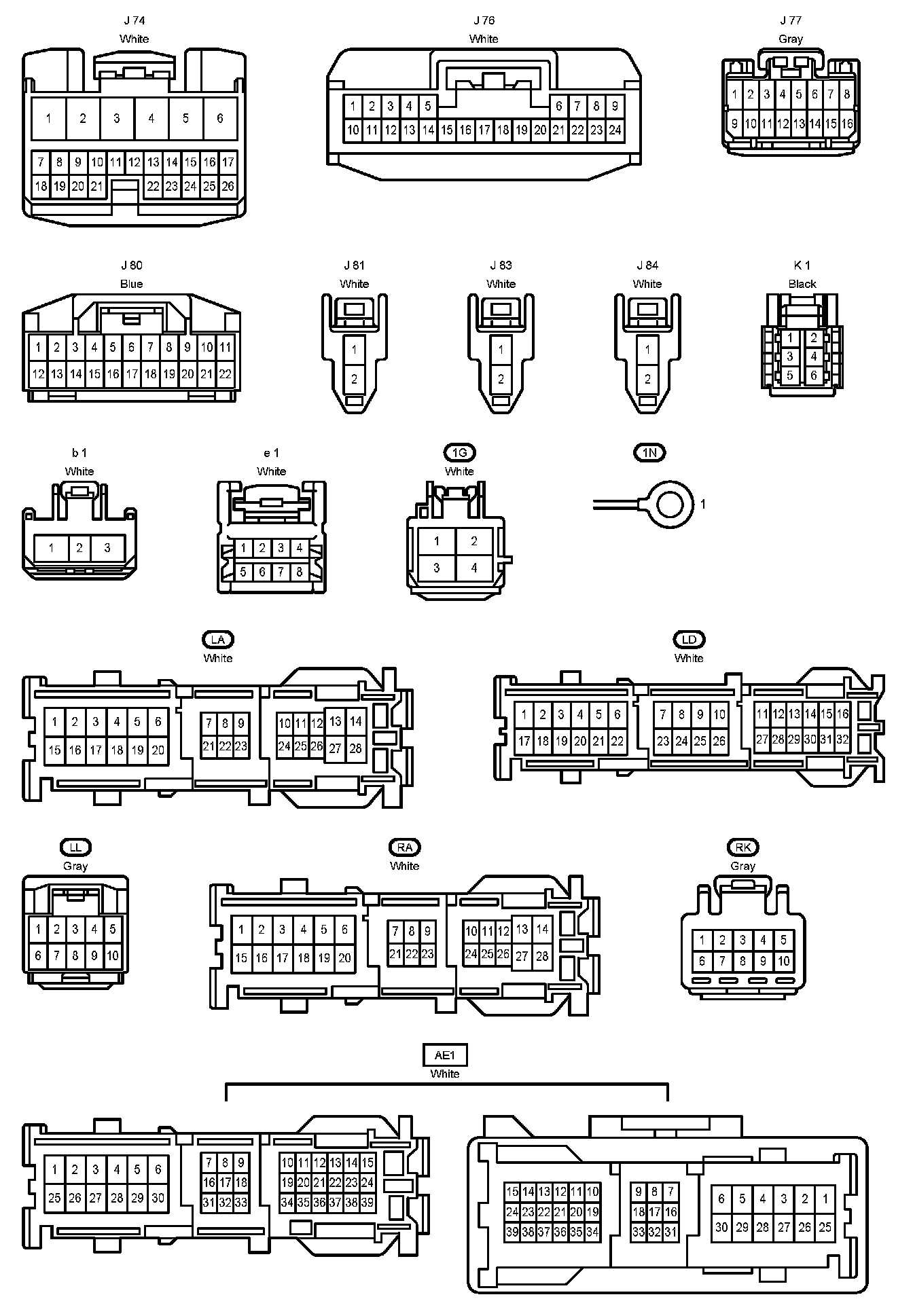

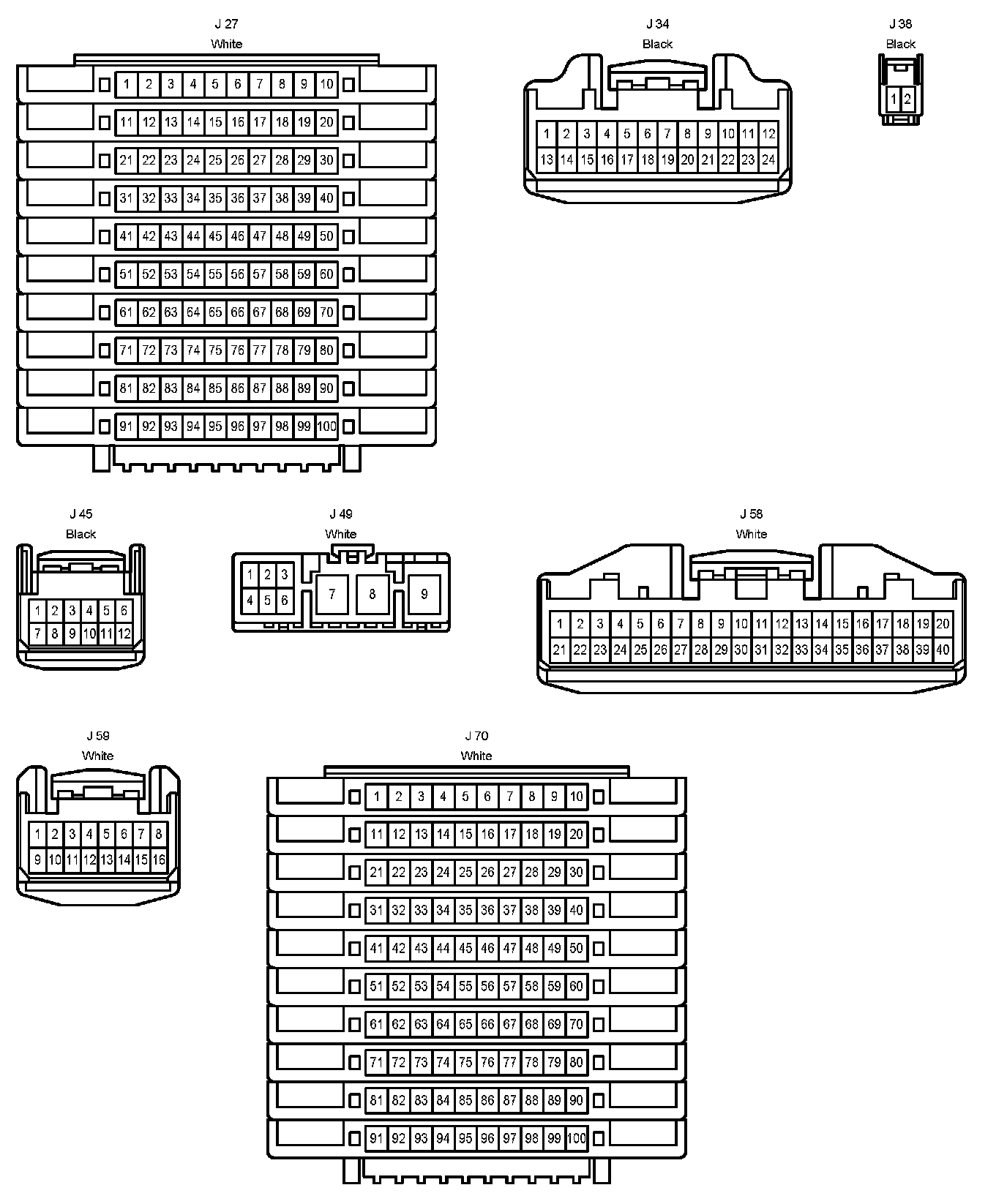

Connector Pin Outs Part 1:

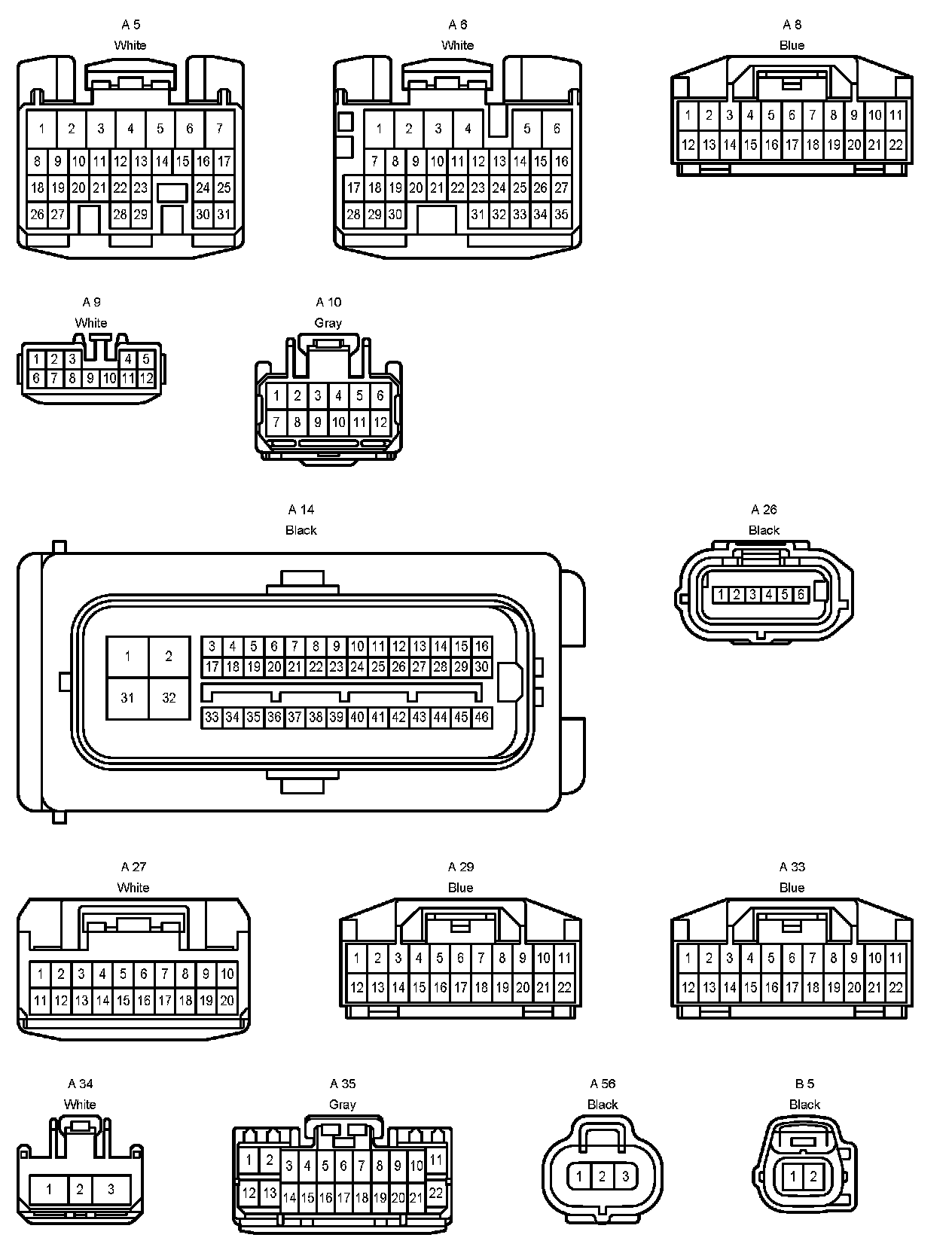

Connector Pin Outs Part 2:

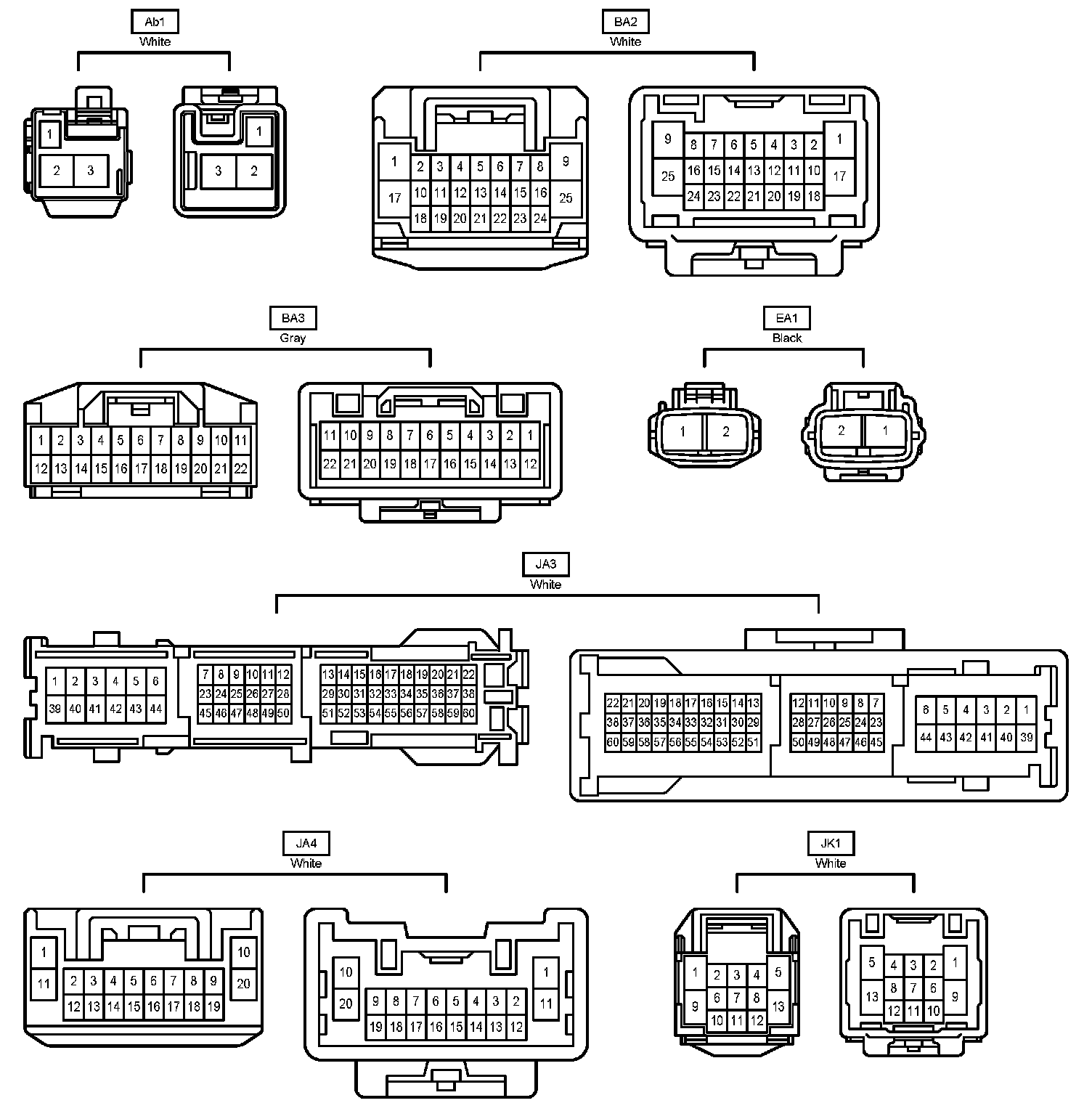

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
