Audio System, Lexus Navigation System, Parking Assist [Rear View Monitor]

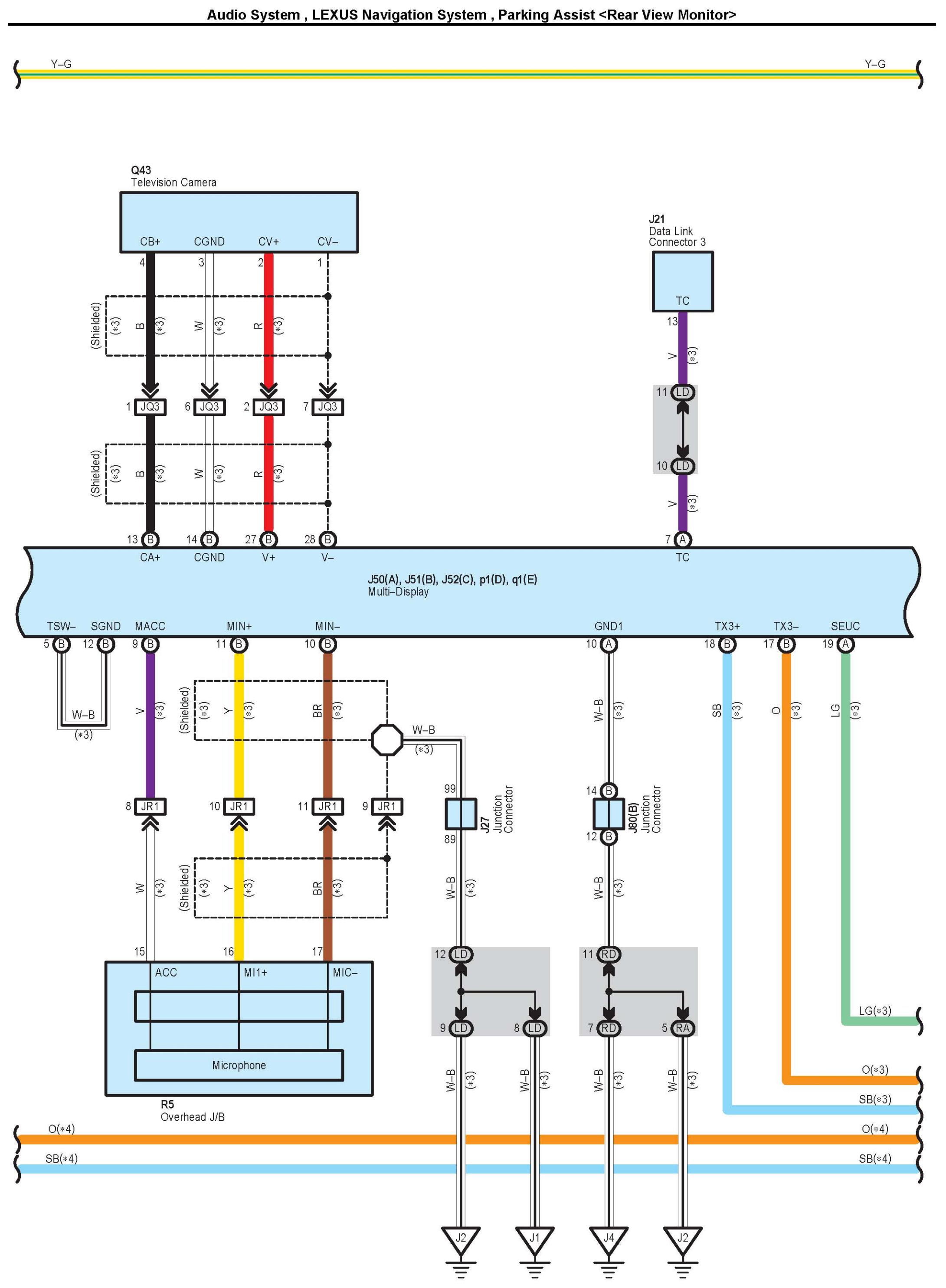

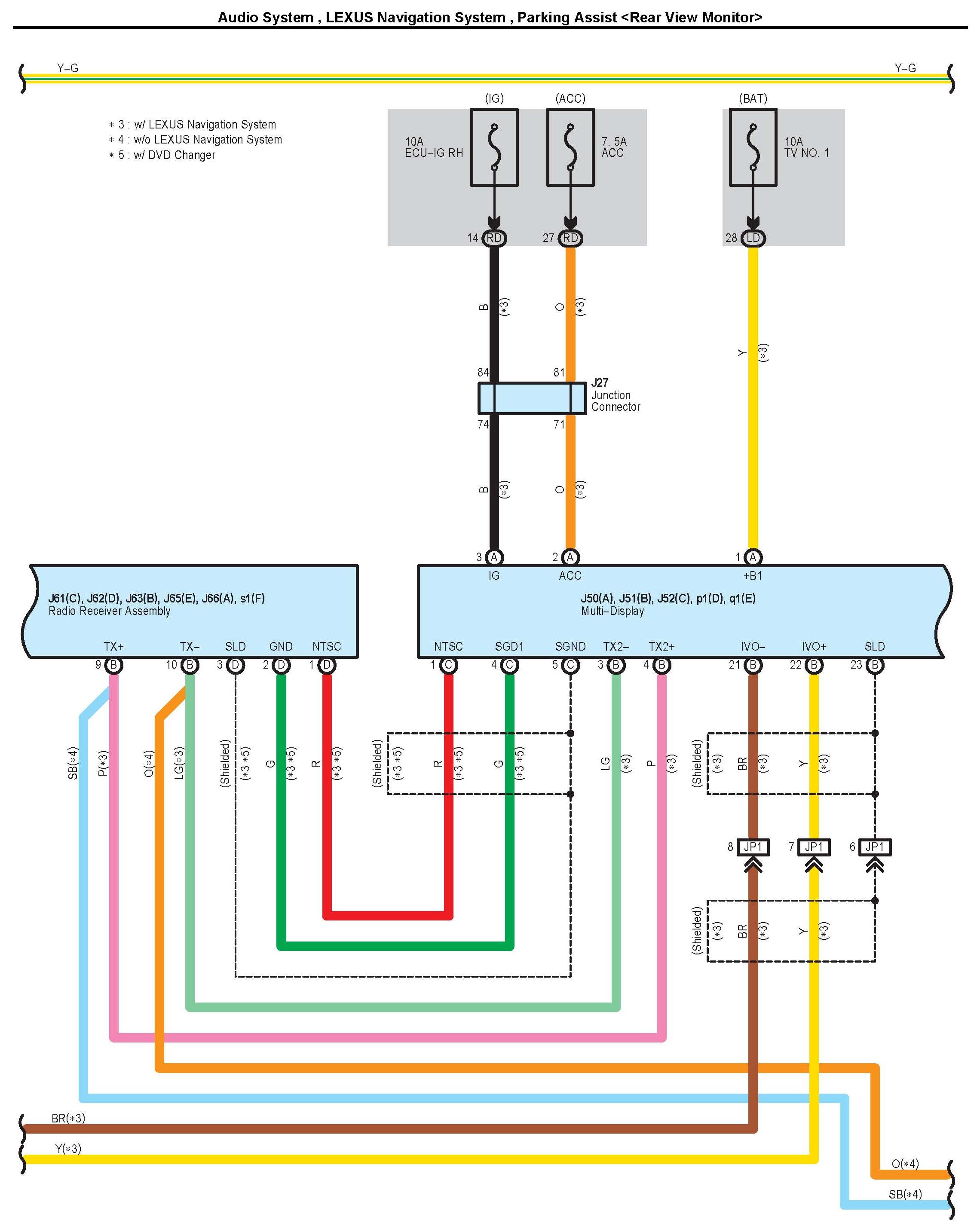

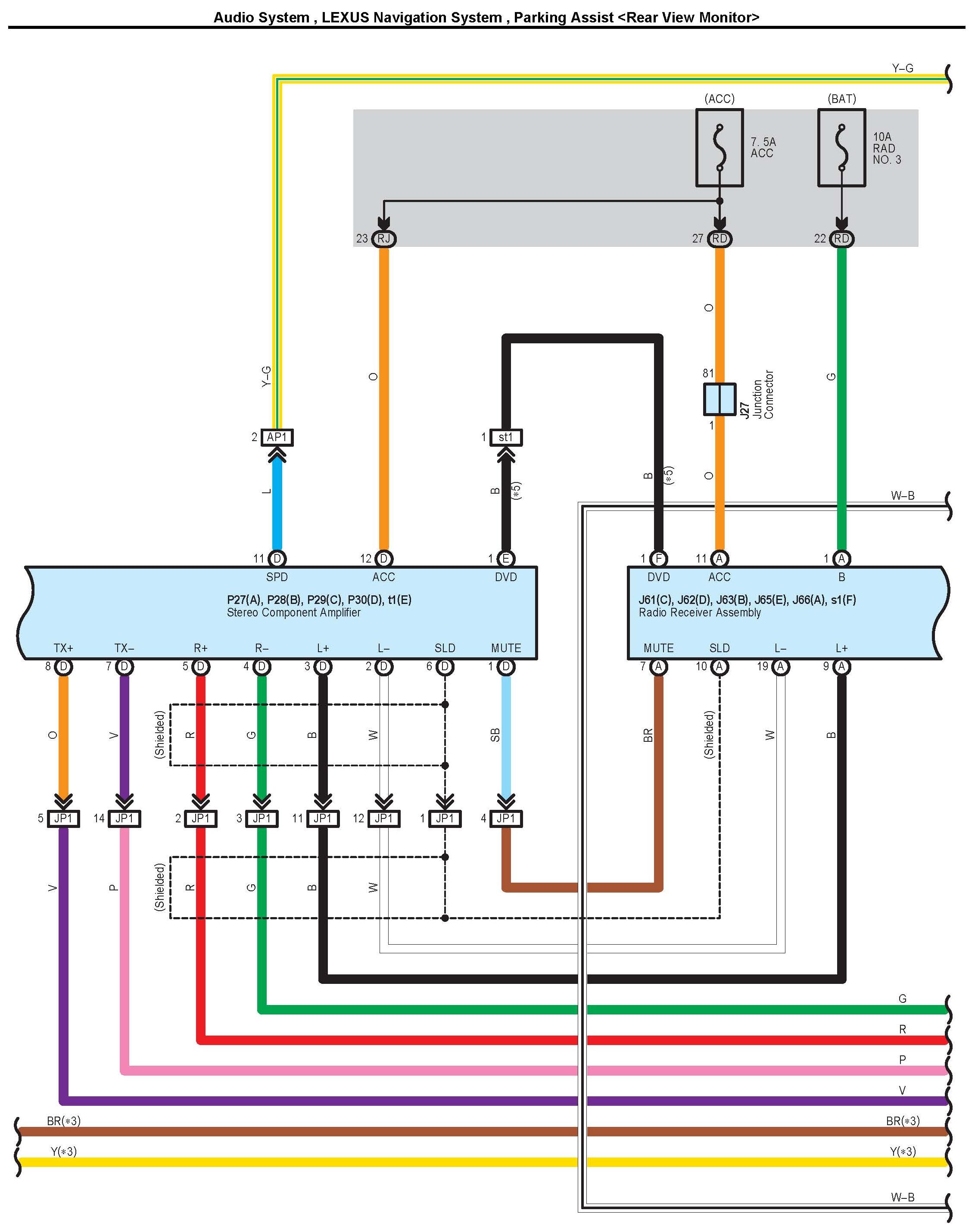

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 1:

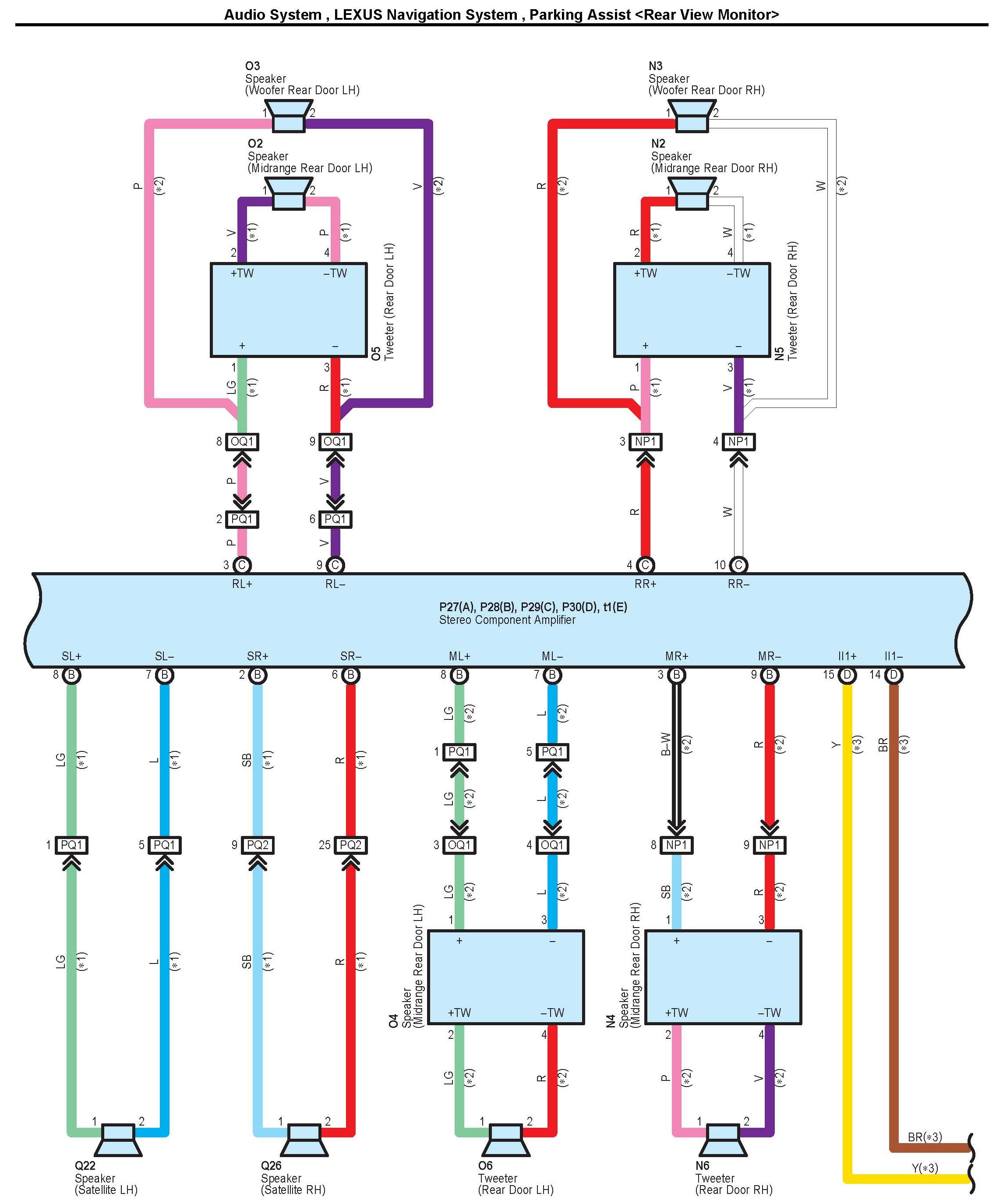

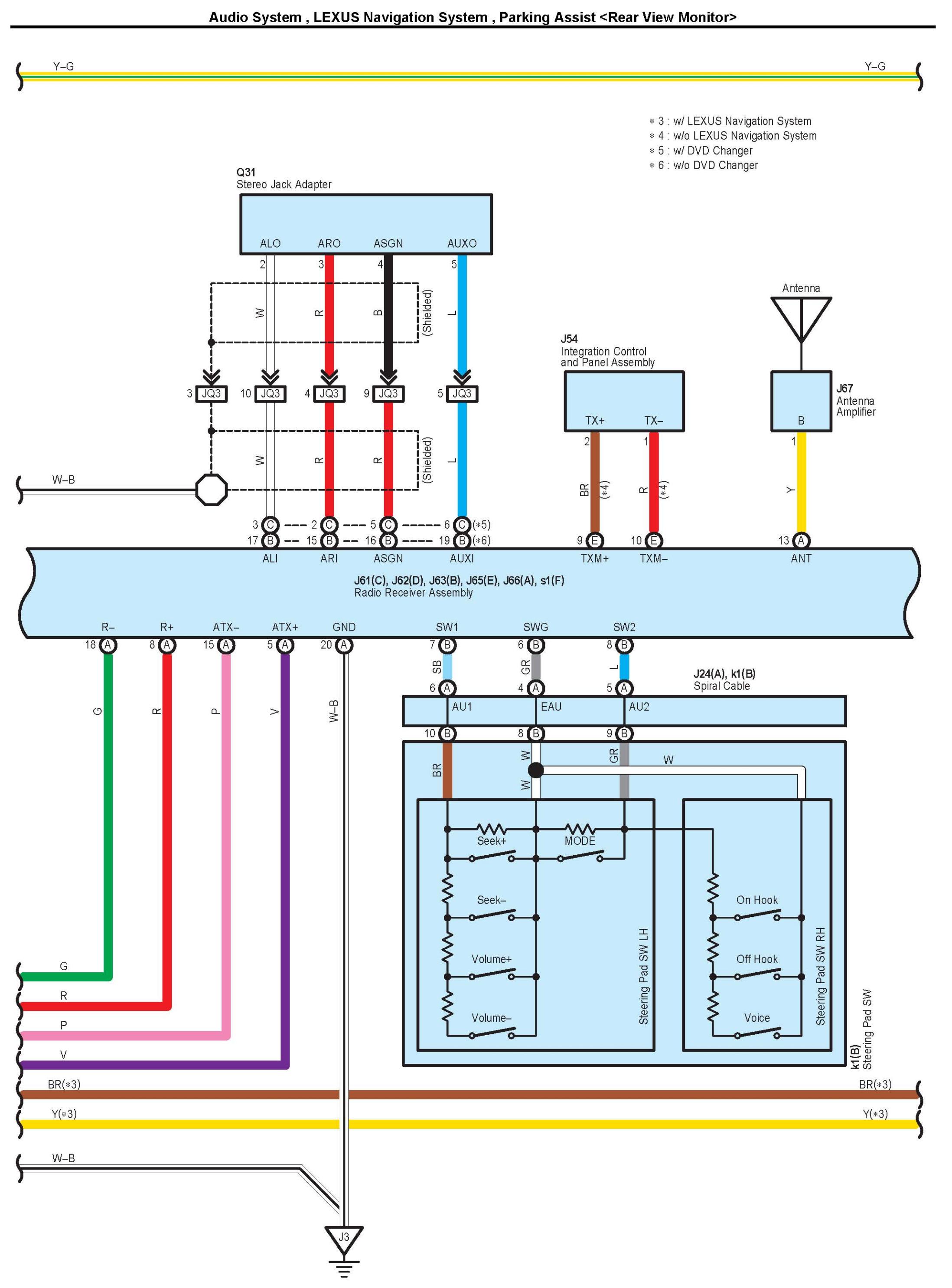

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 2:

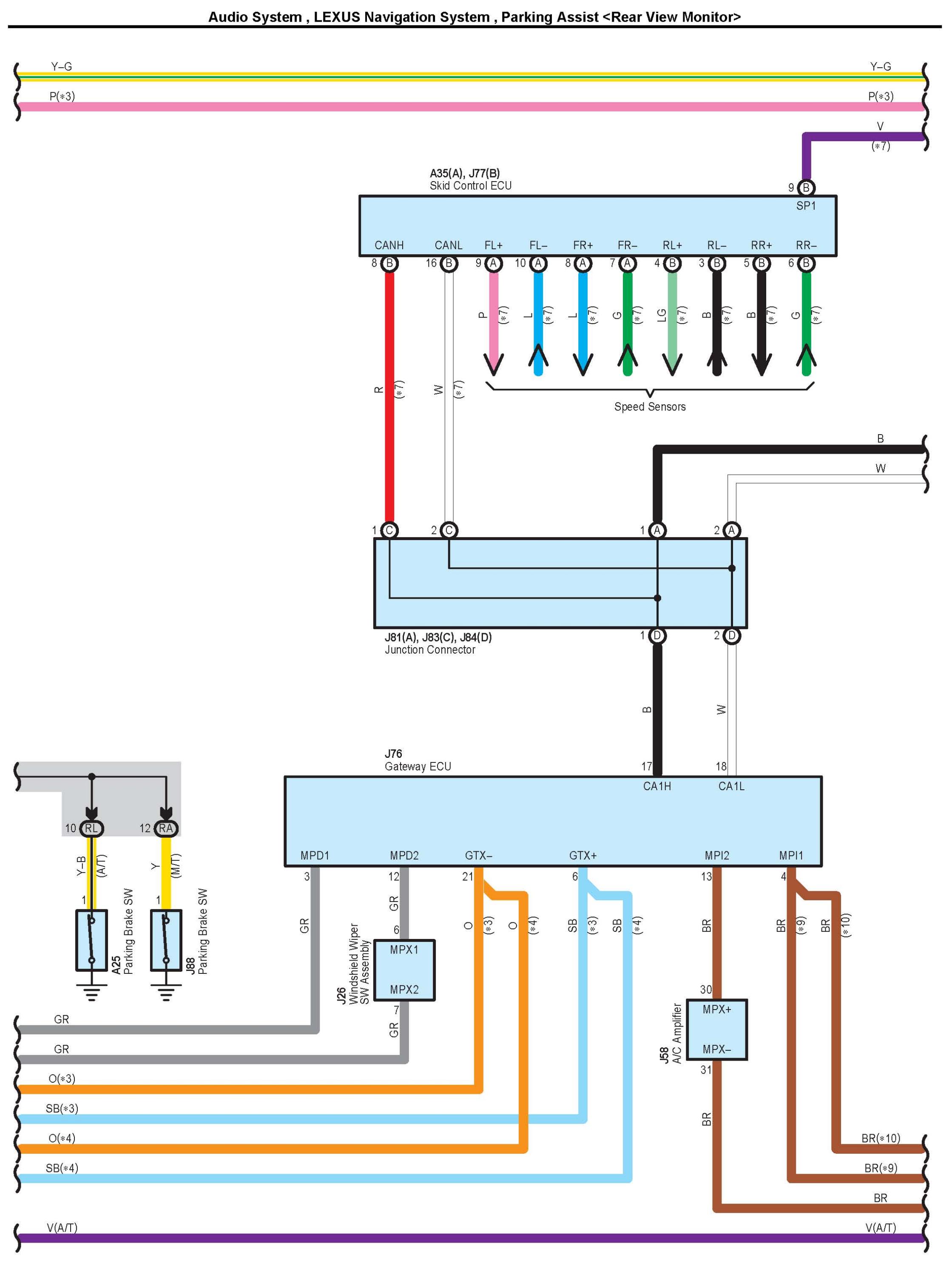

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 3:

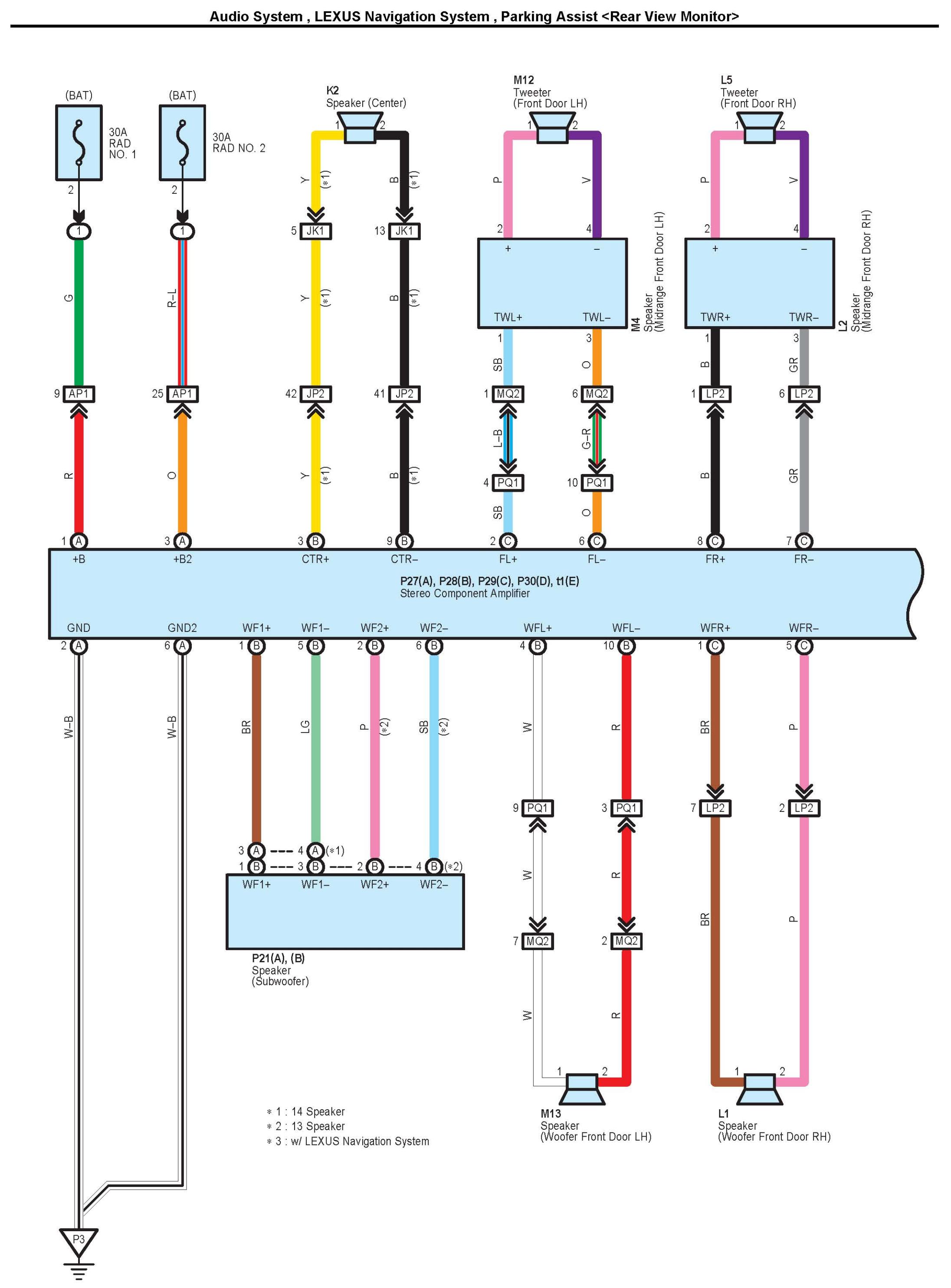

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 4:

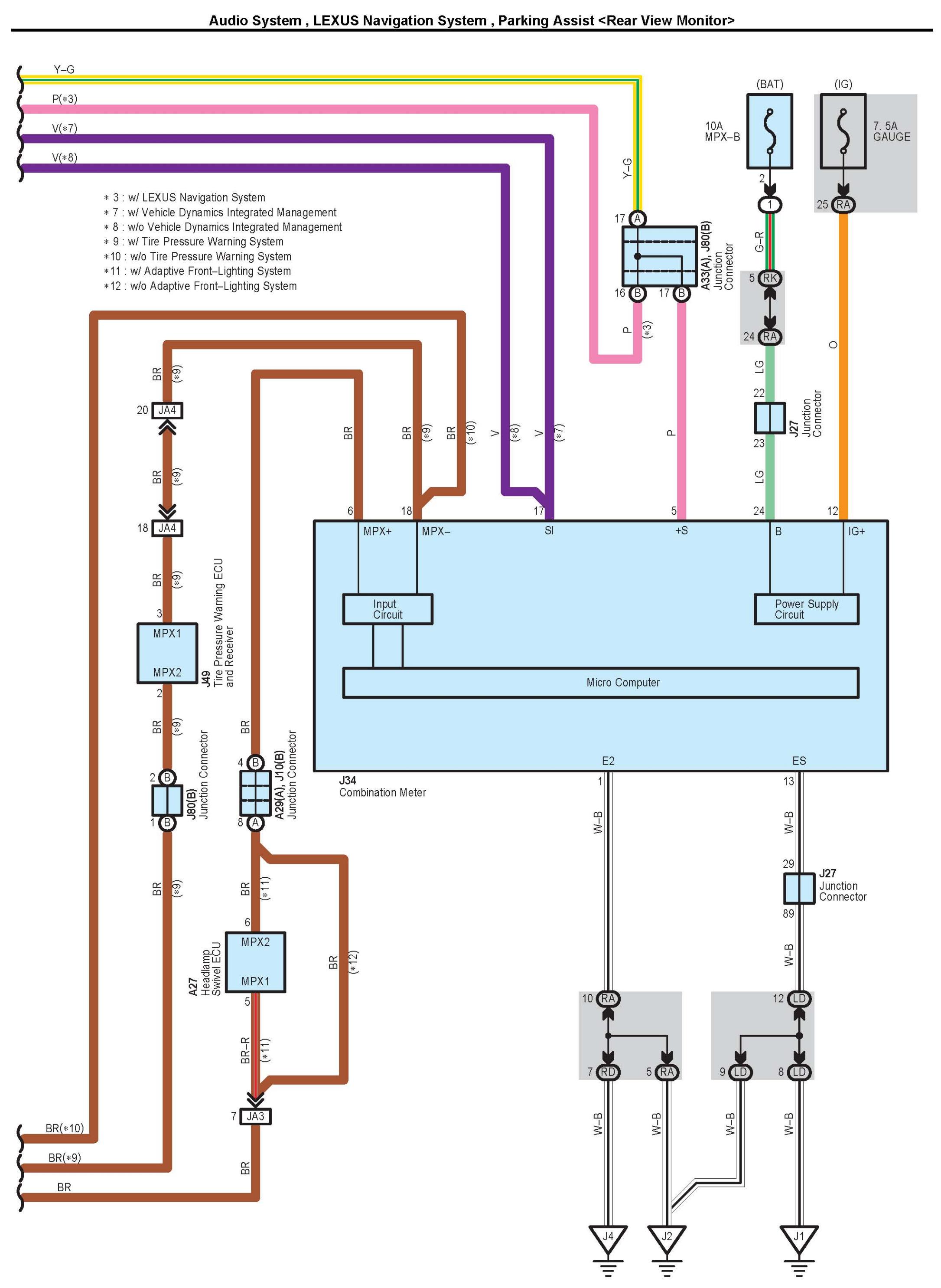

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 5:

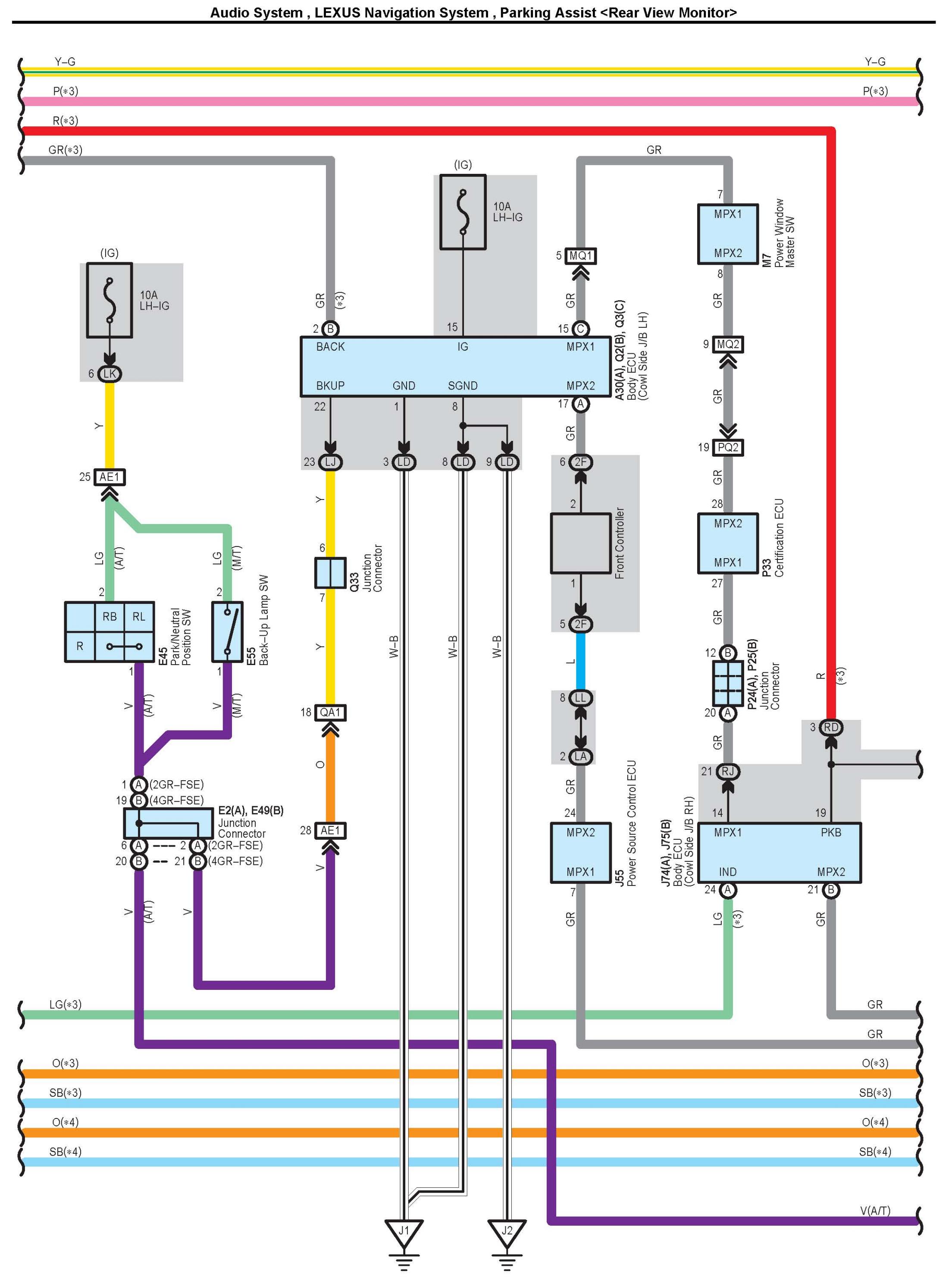

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 6:

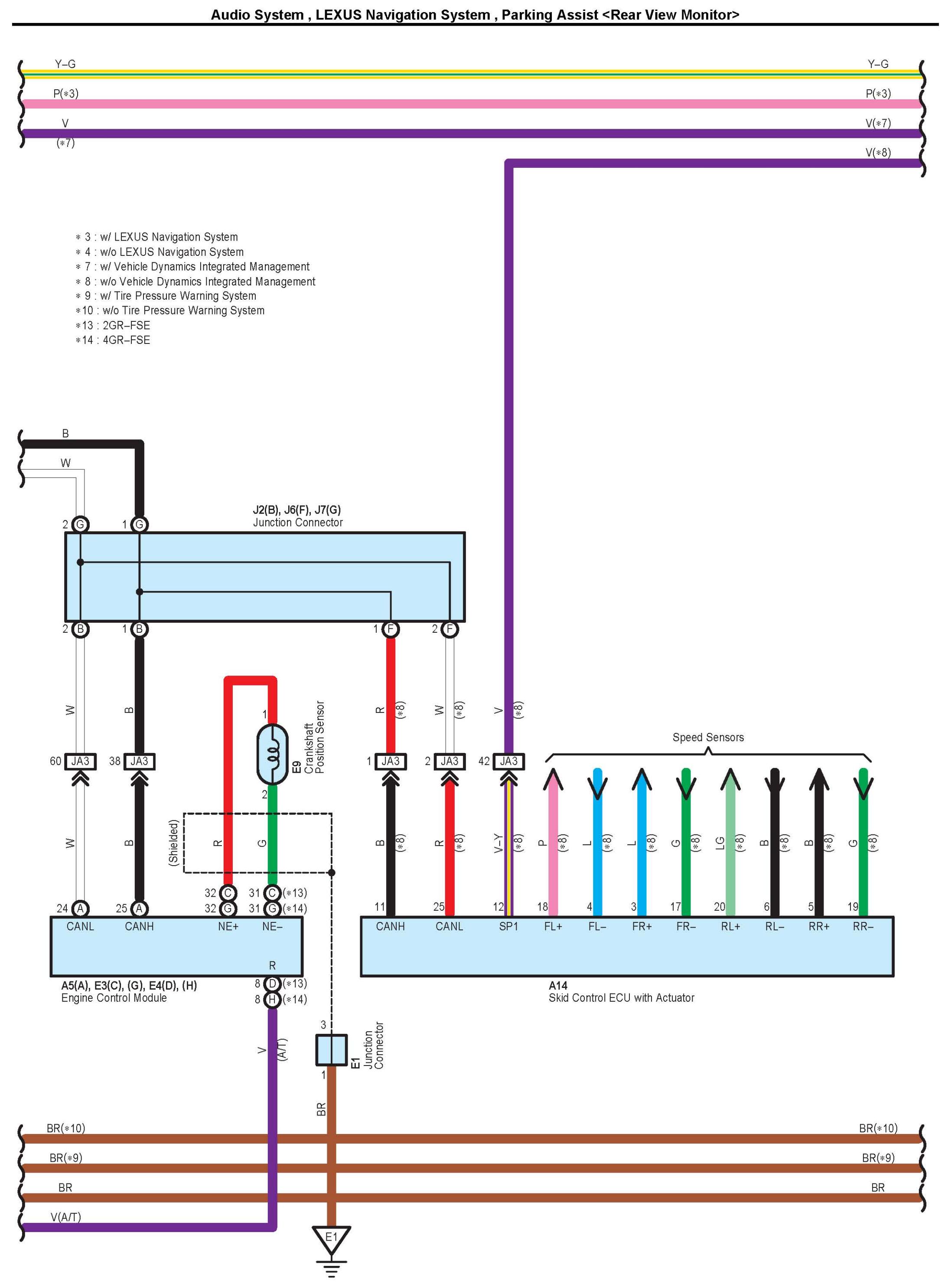

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 7:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 8:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 9:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 10:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 11:

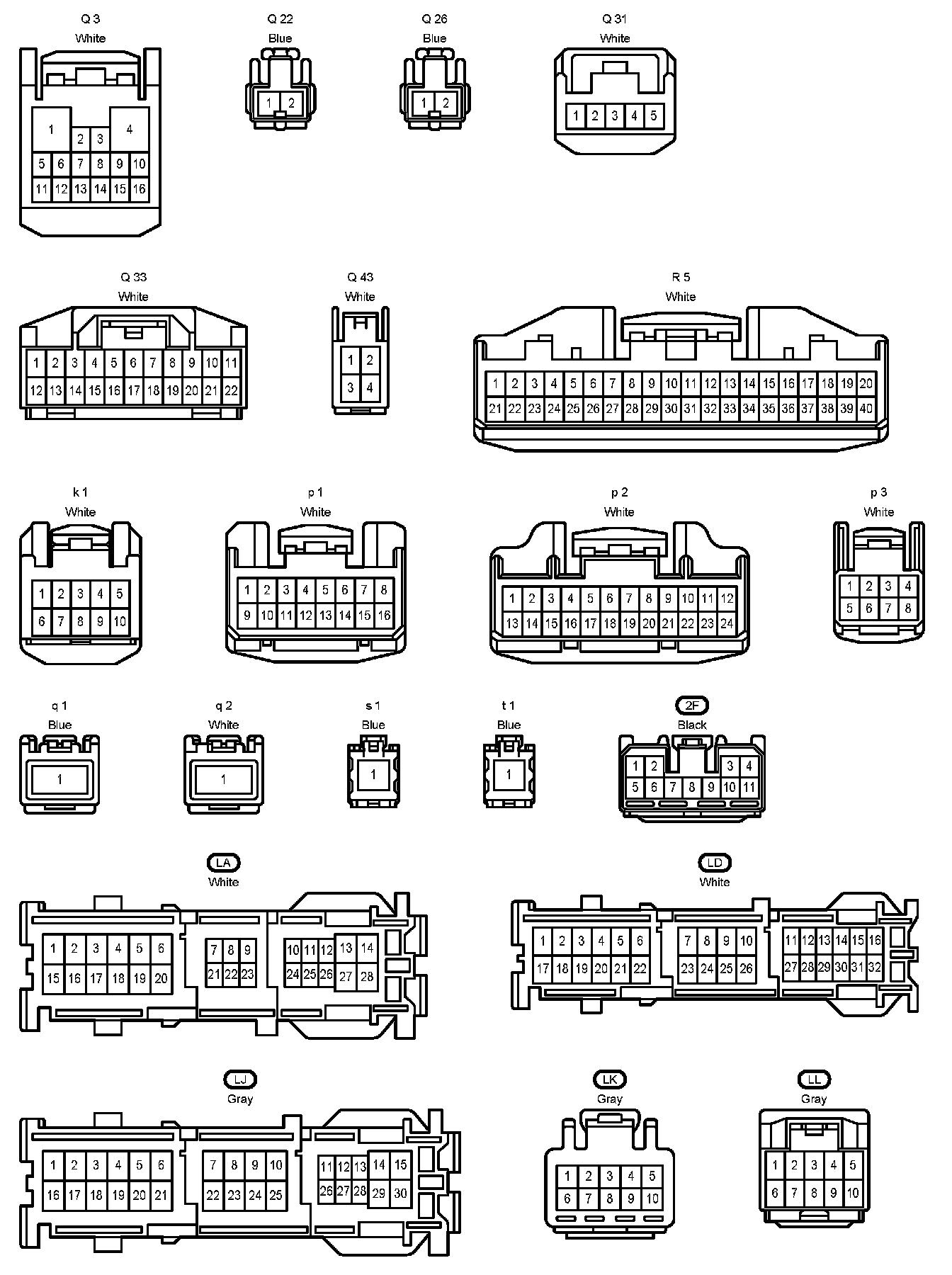

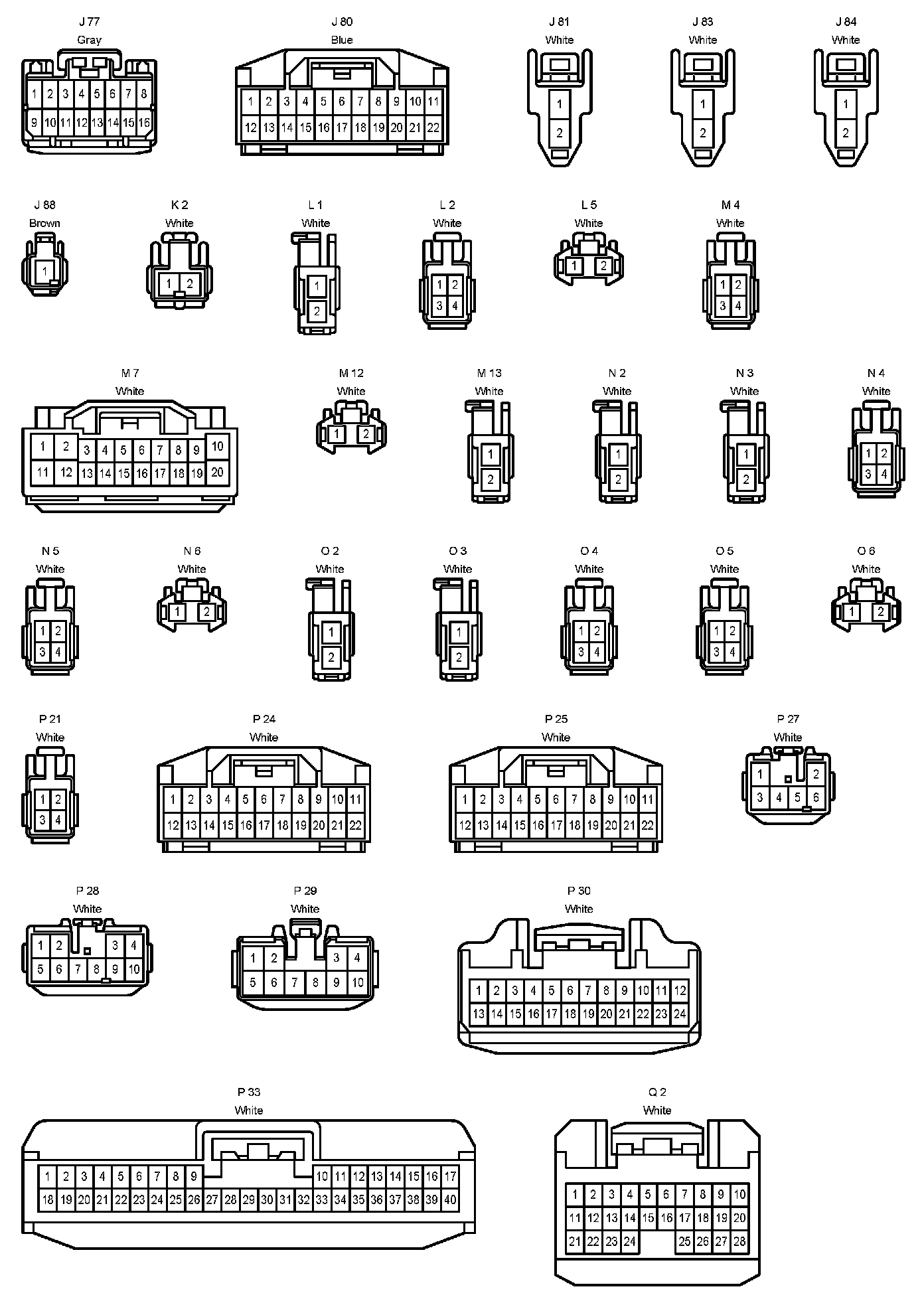

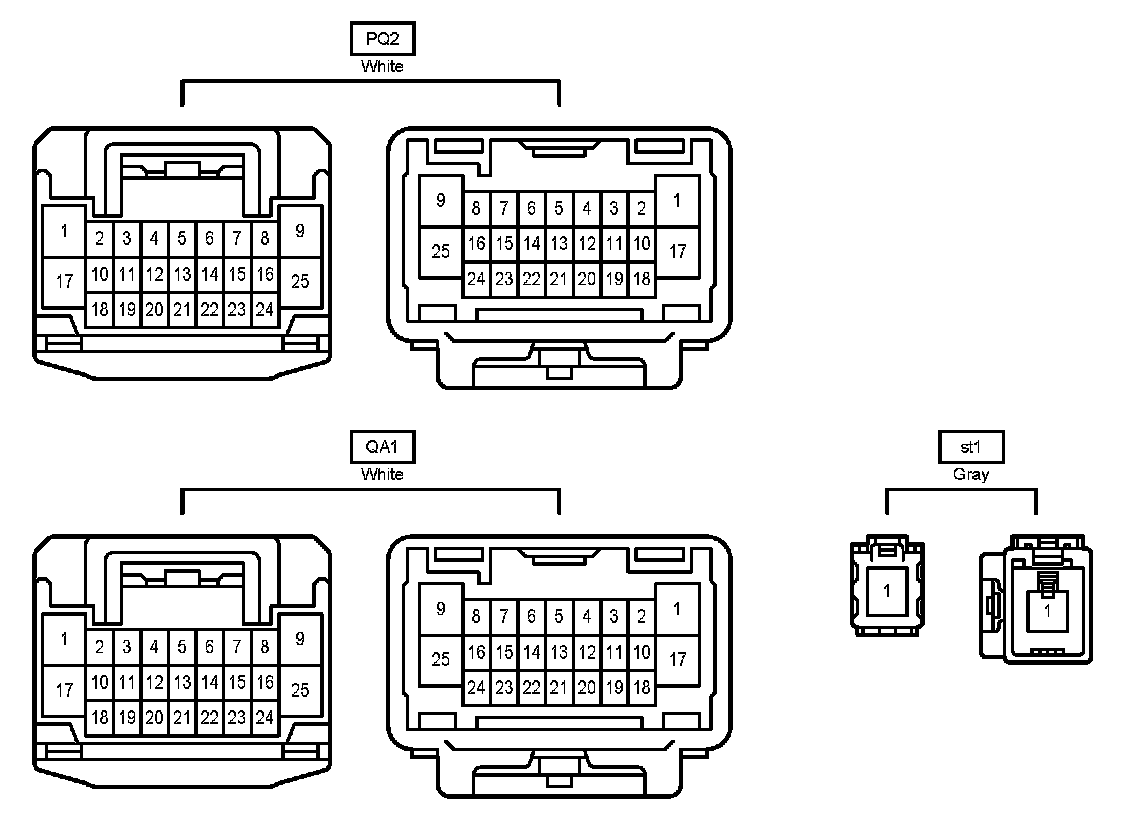

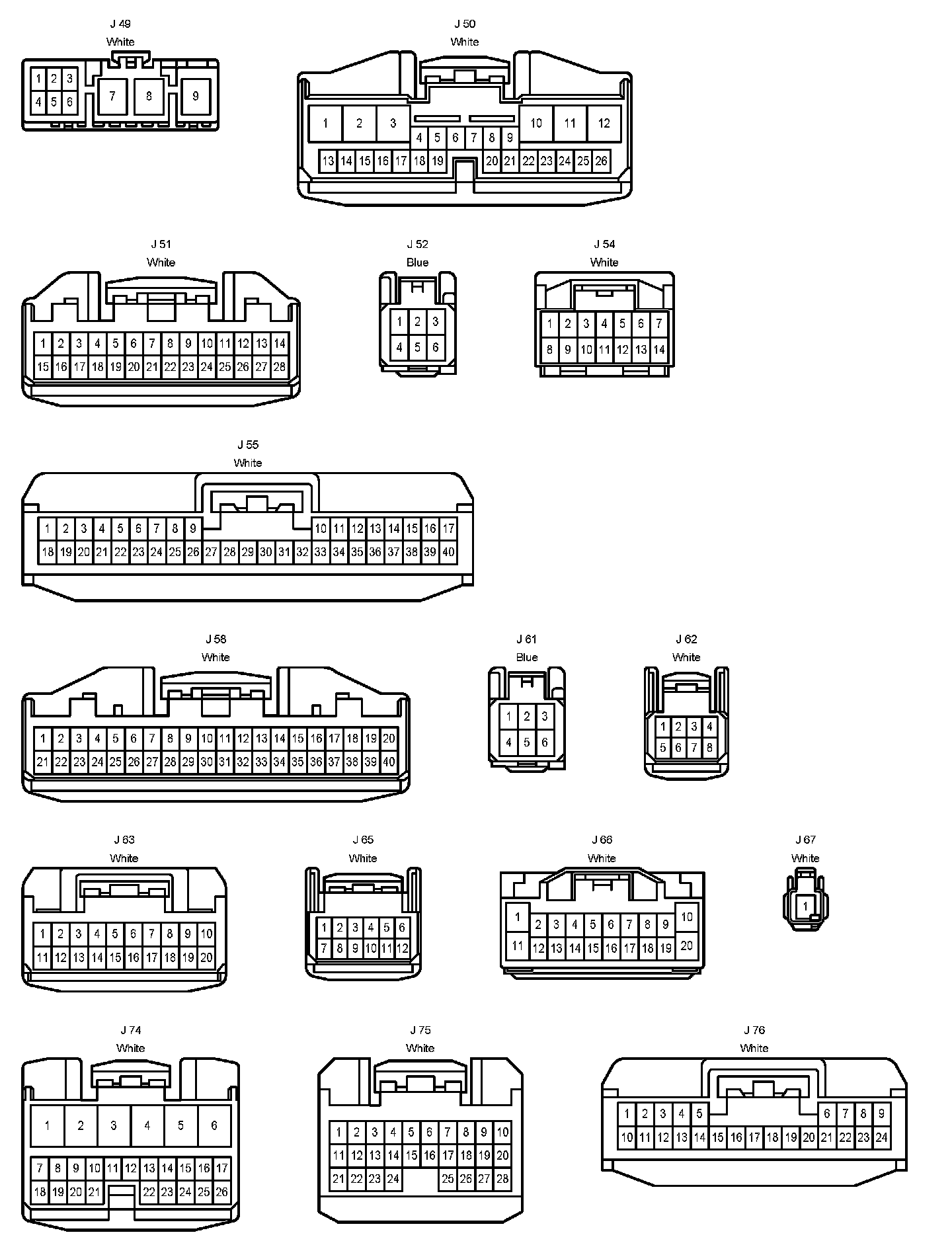

Connector Pin Outs Part 1:

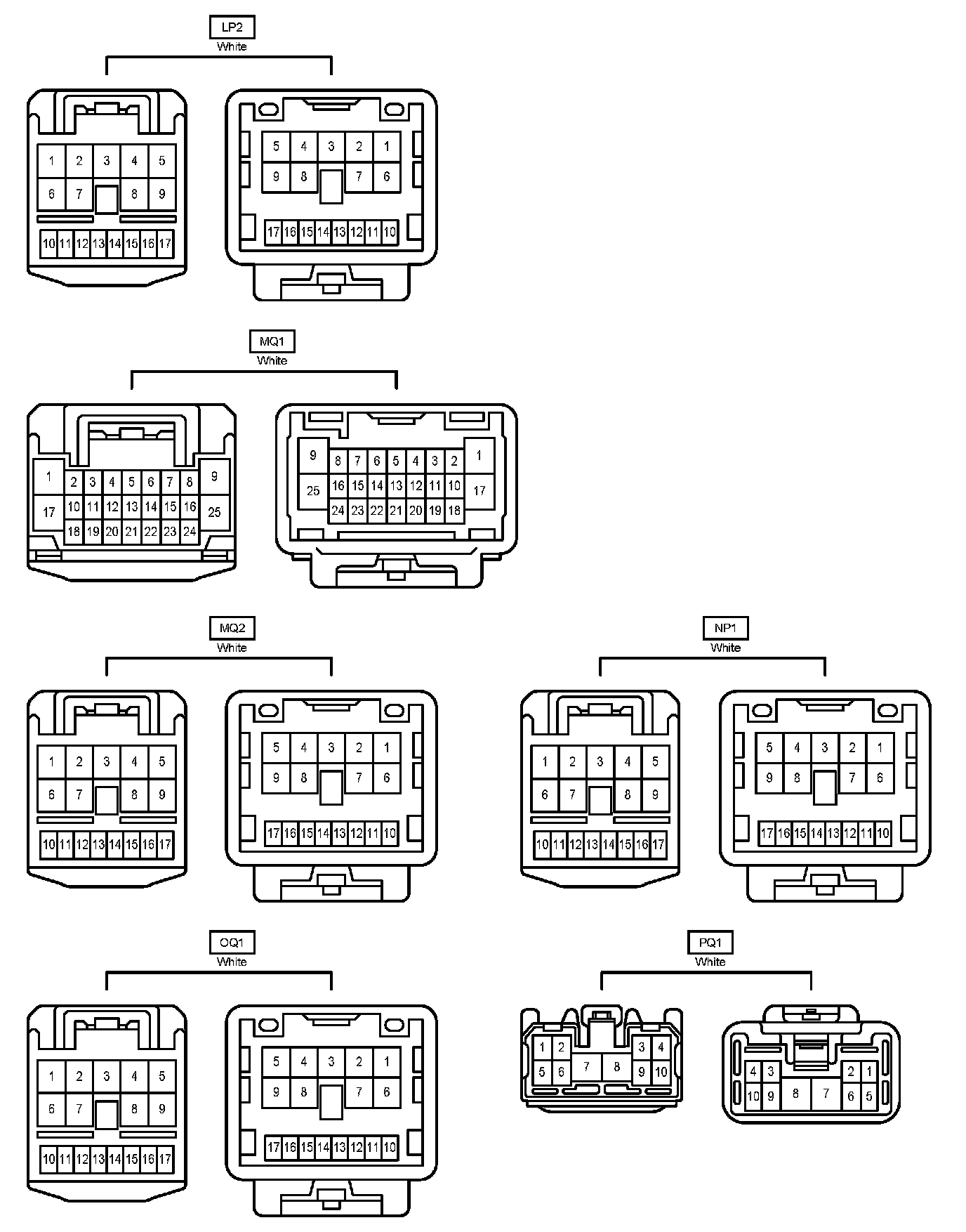

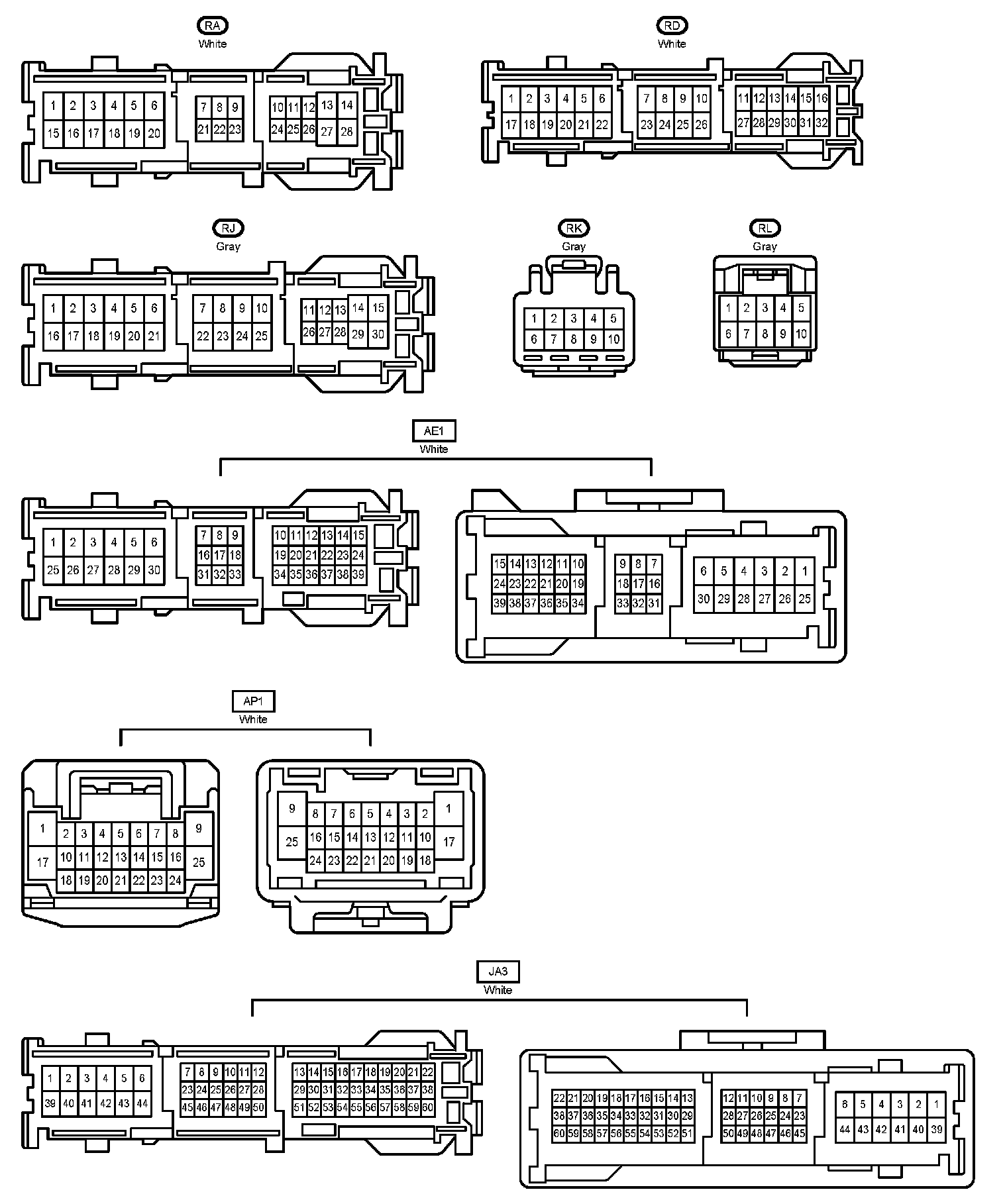

Connector Pin Outs Part 2:

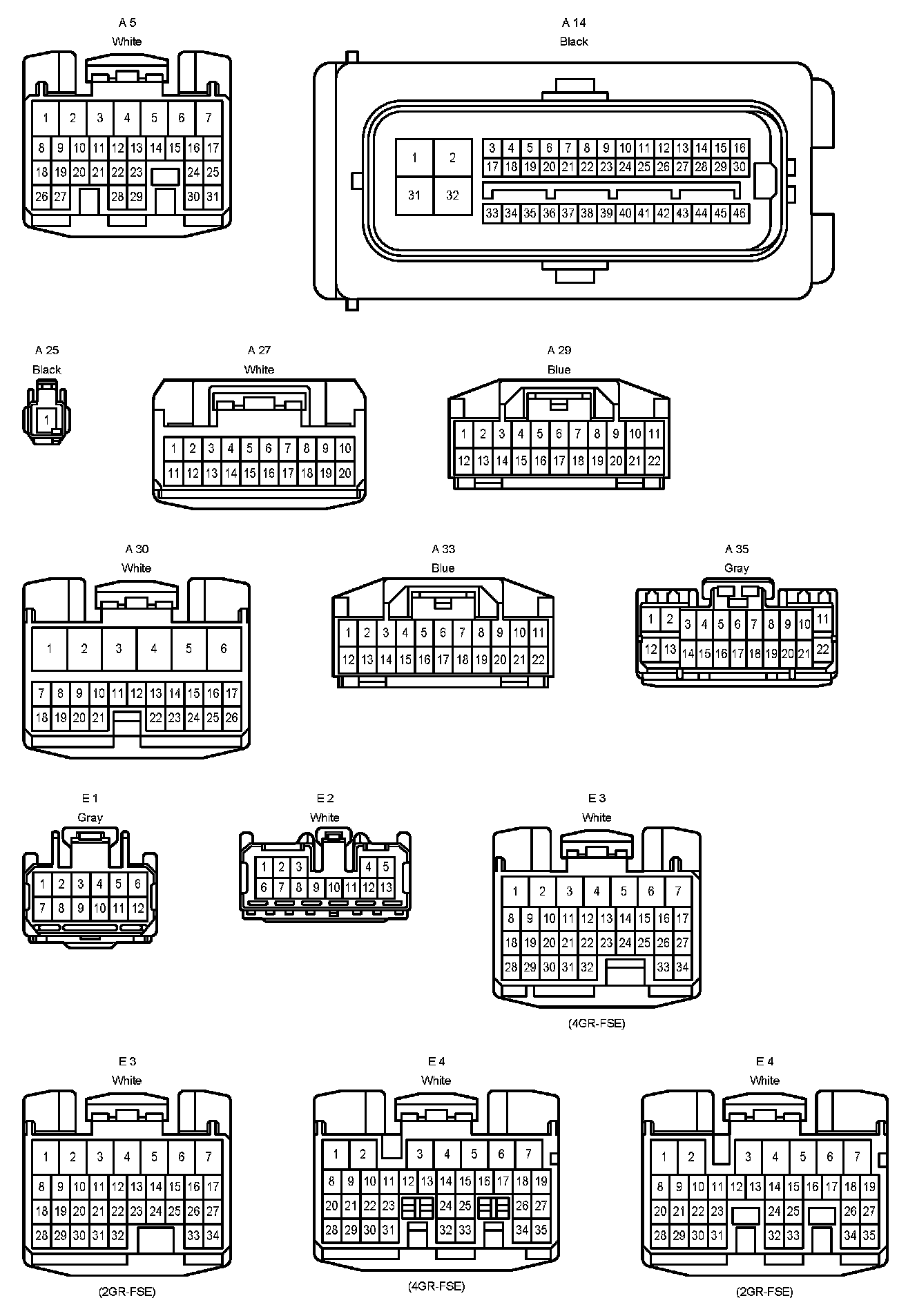

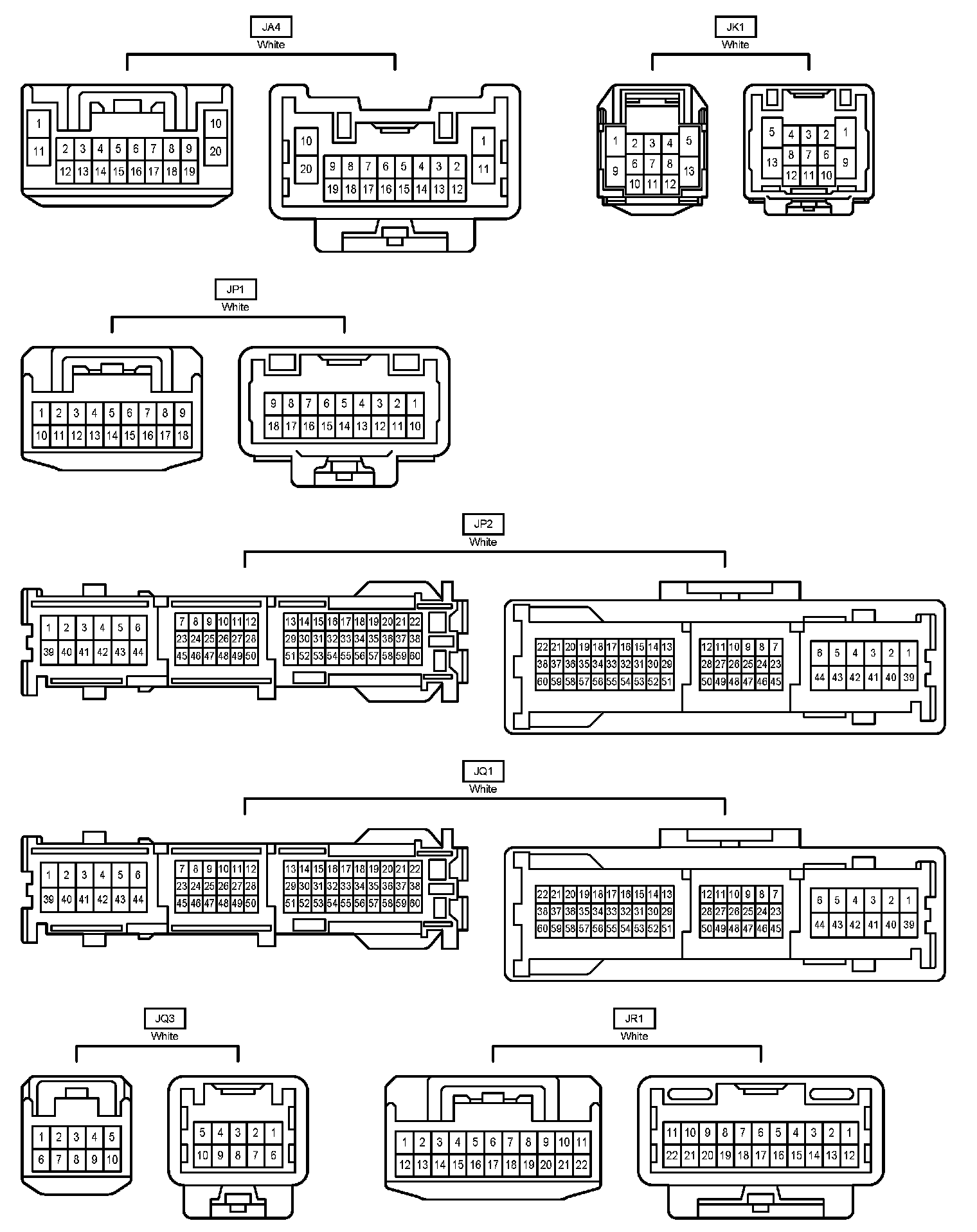

Connector Pin Outs Part 3:

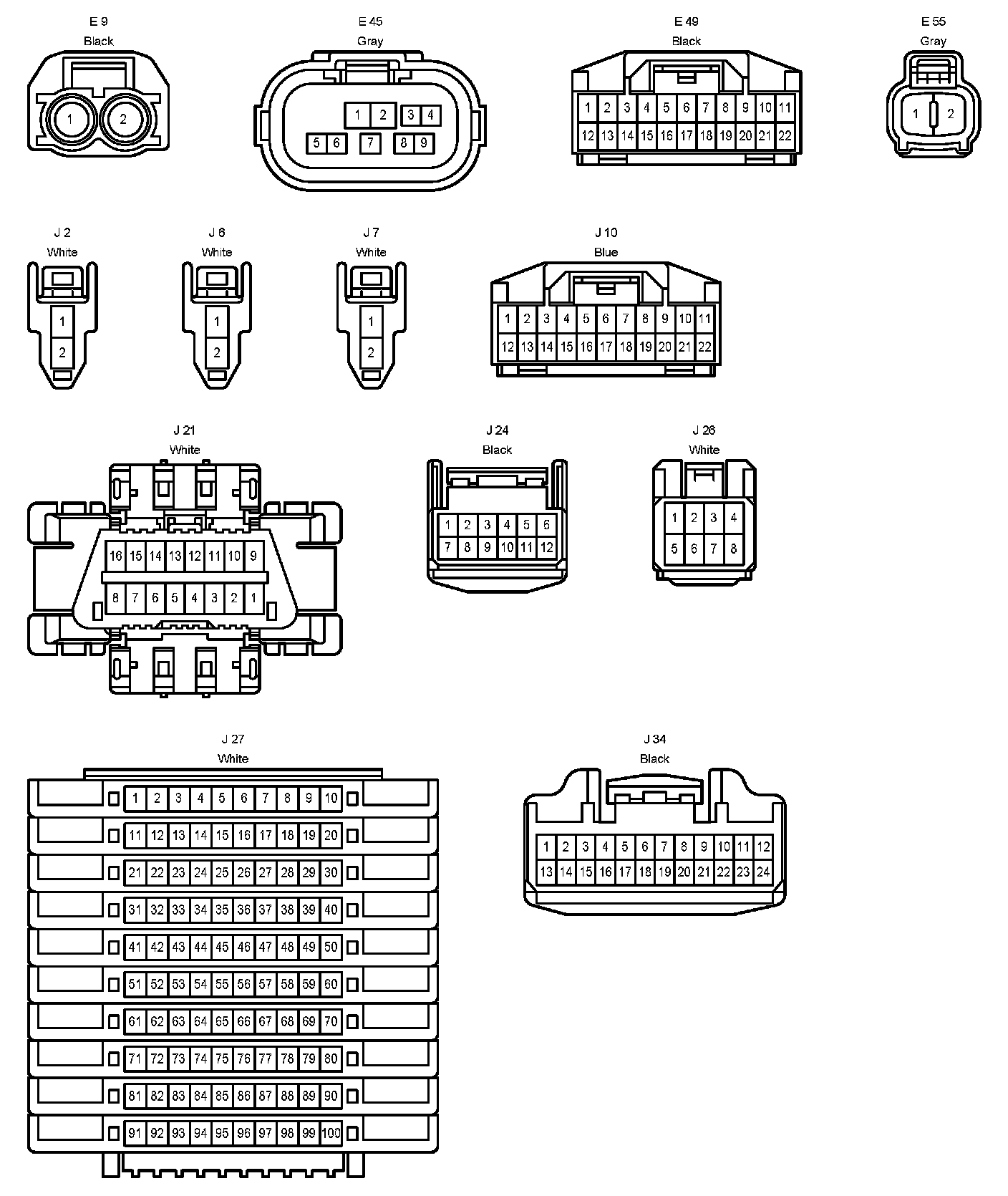

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Connector Pin Outs Part 8:

Connector Pin Outs Part 9:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
