Electronic Brake Control Module

A14 (Skid Control ECU With Actuator):

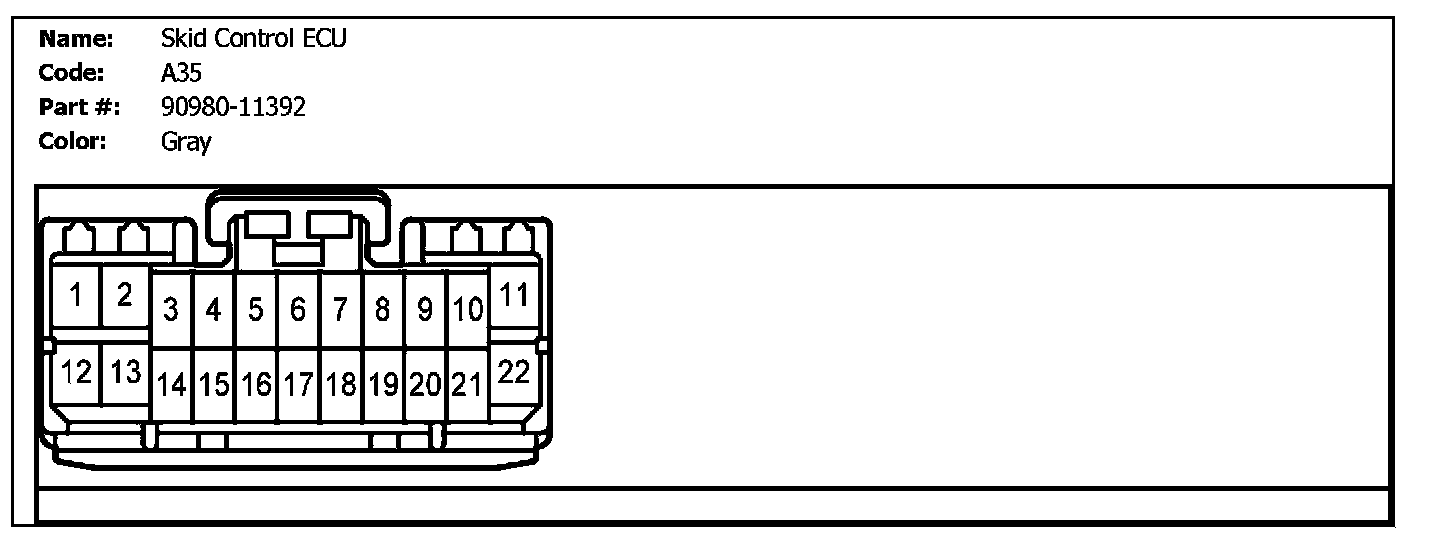

A35 (Skid Control ECU):

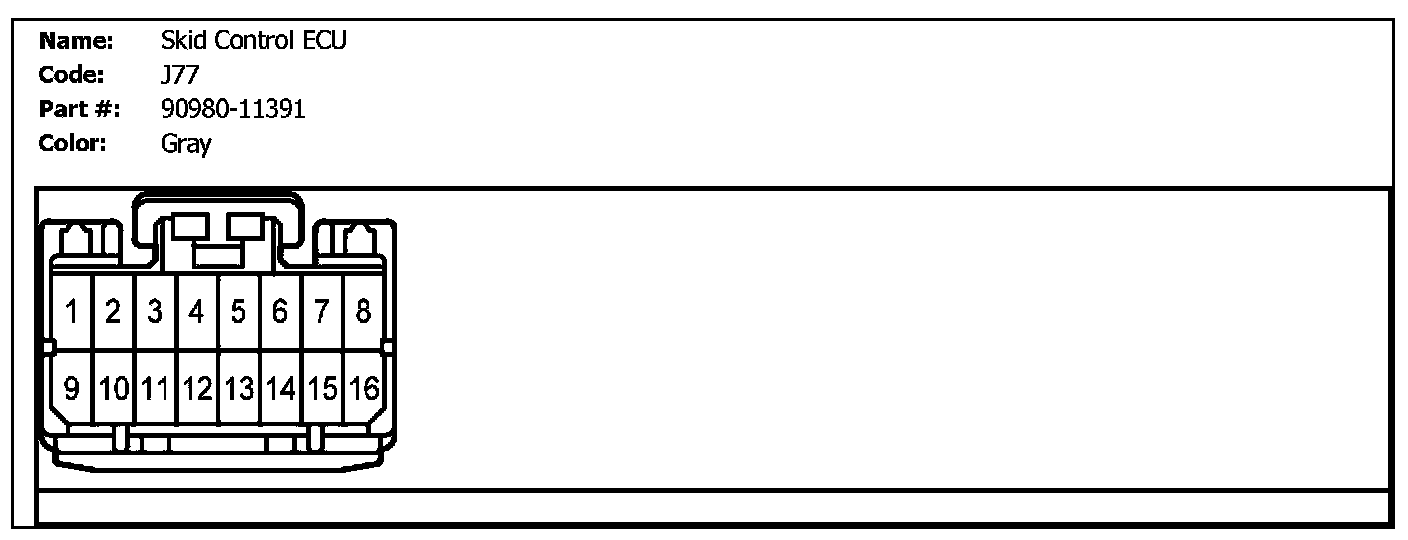

J77 (Skid Control ECU):

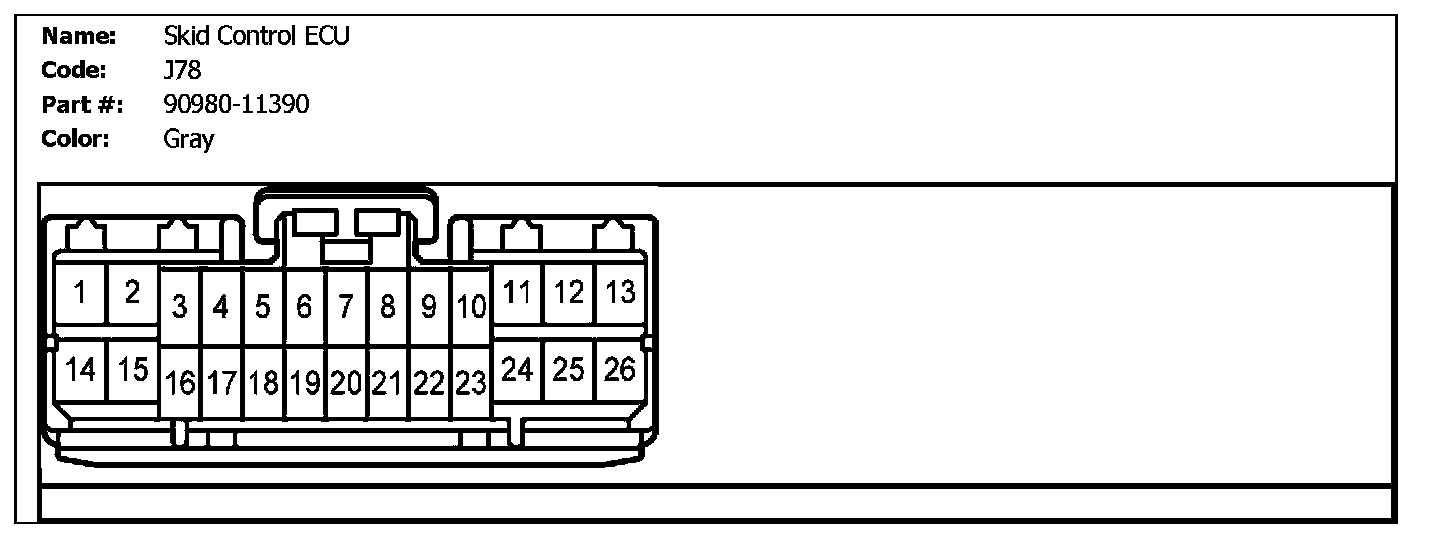

J78 (Skid Control ECU):
