Courtesy Lamp
>>
System Diagram
System Diagram

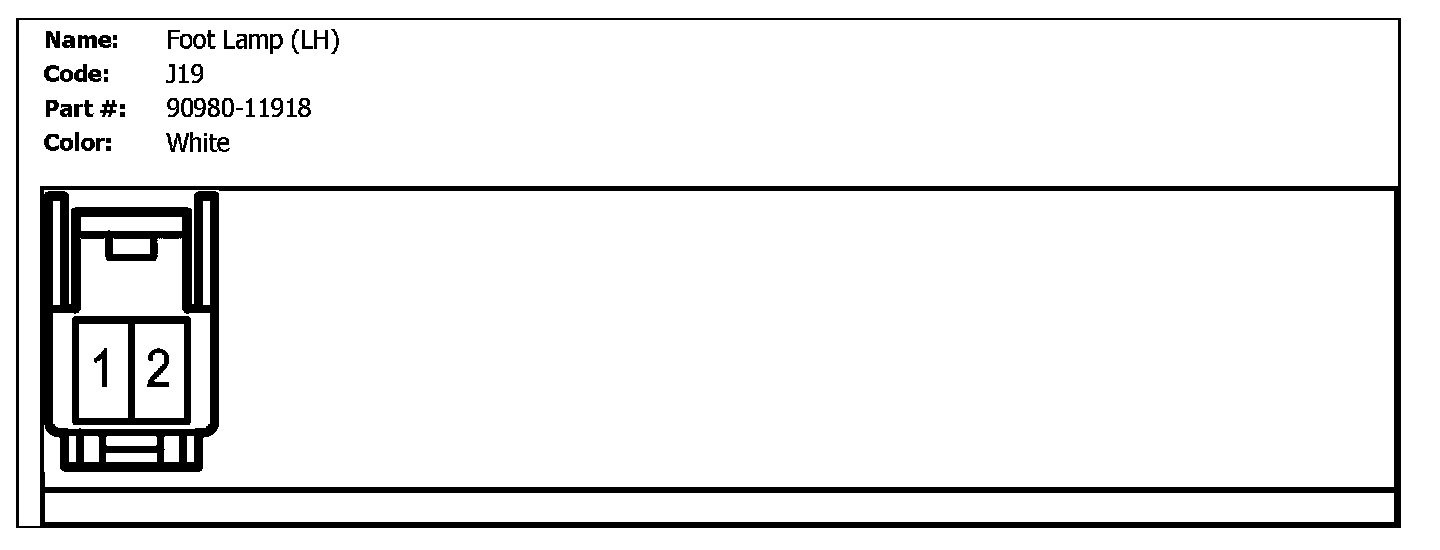

J19 (Foot Lamp (LH)):

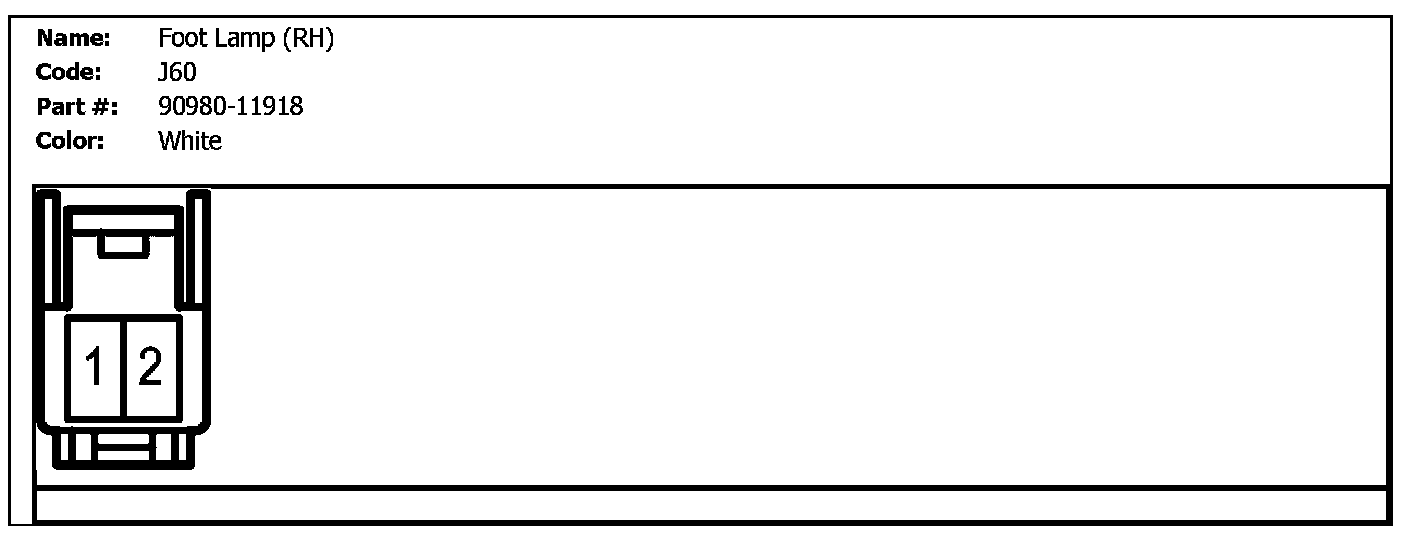

J60 (Foot Lamp (RH)):

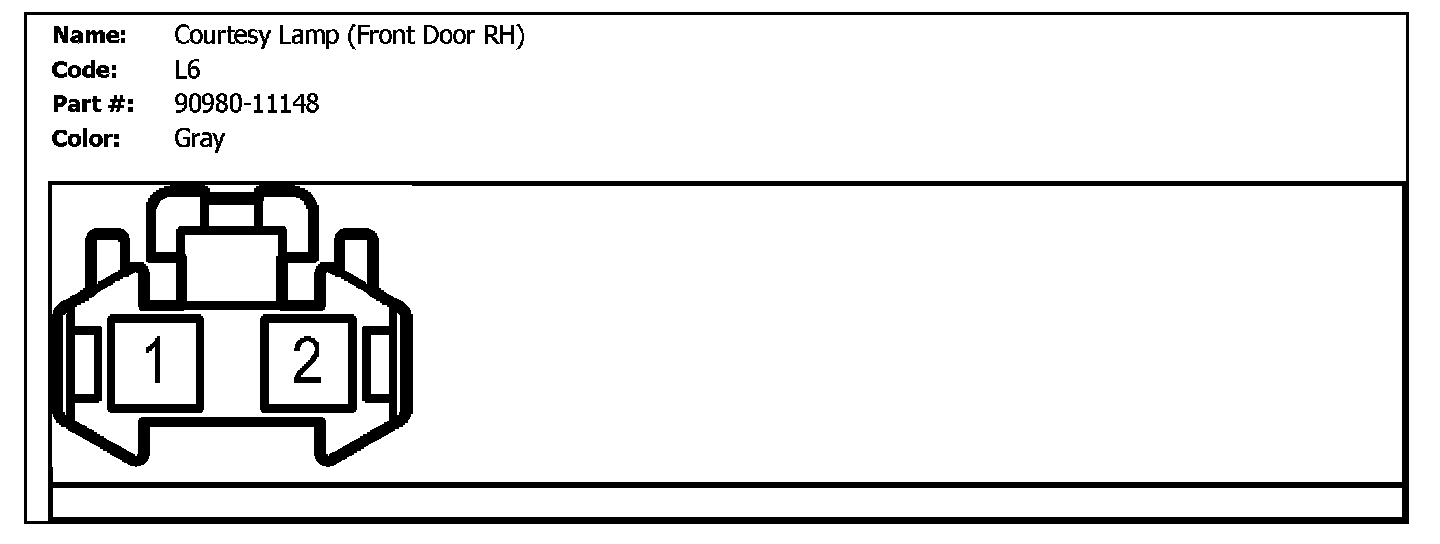

L6 (Courtesy Lamp (Front Door RH)):

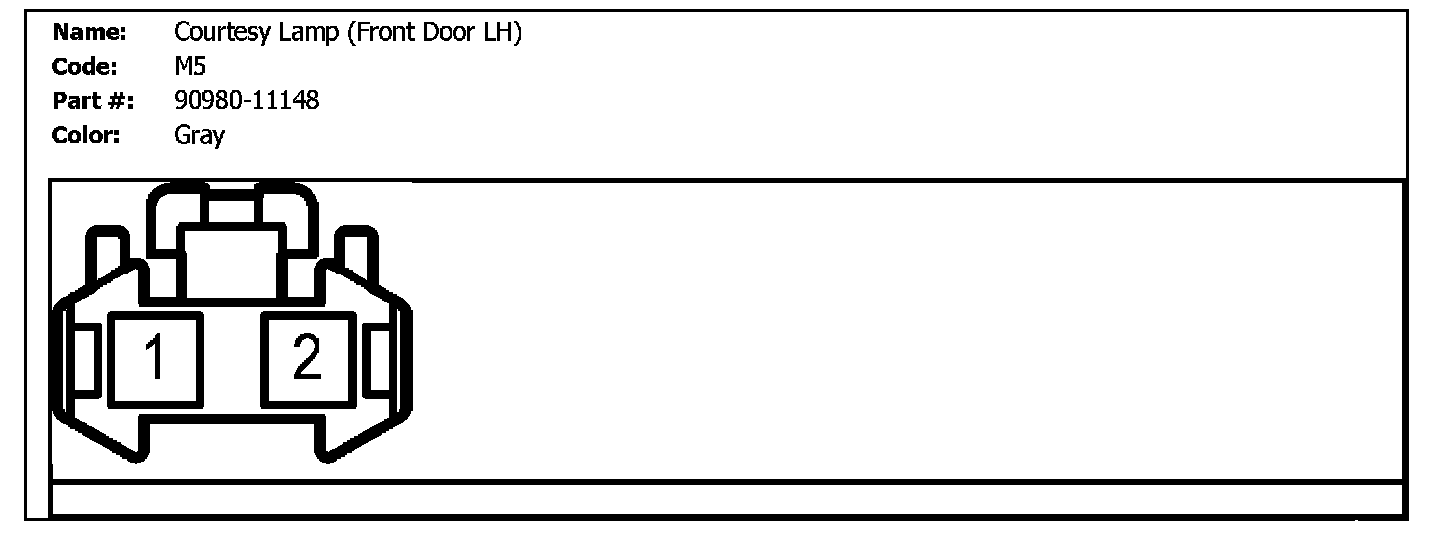

M5 (Courtesy Lamp (Front Door LH)):

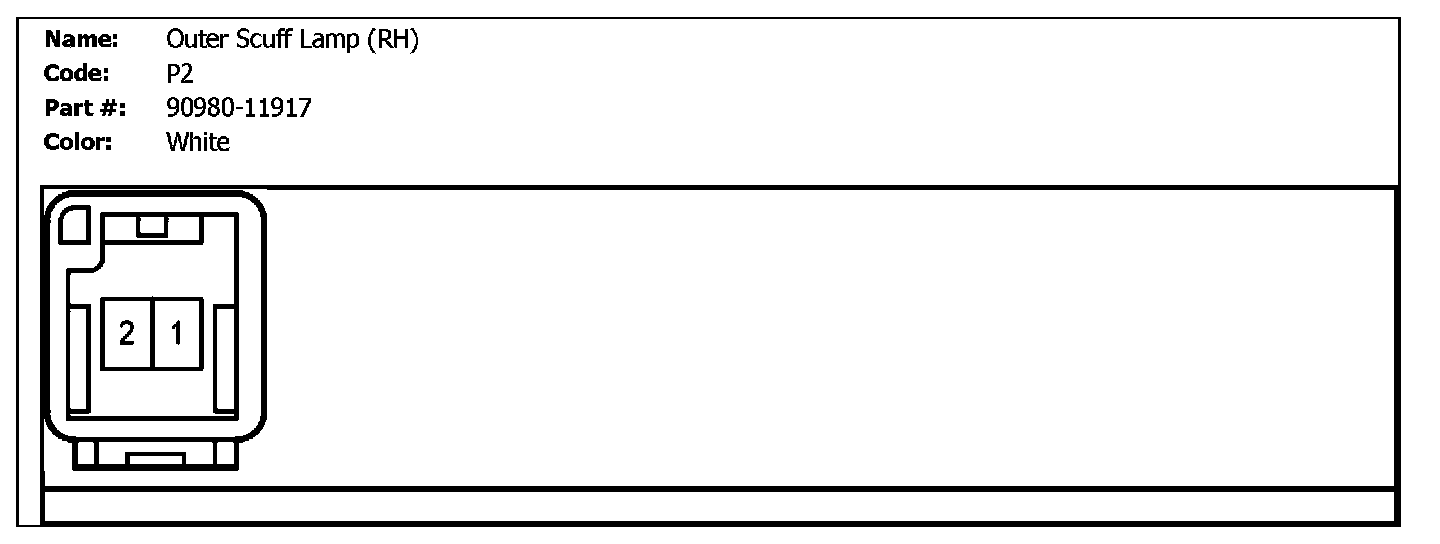

P2 (Outer Scuff Lamp (RH)):

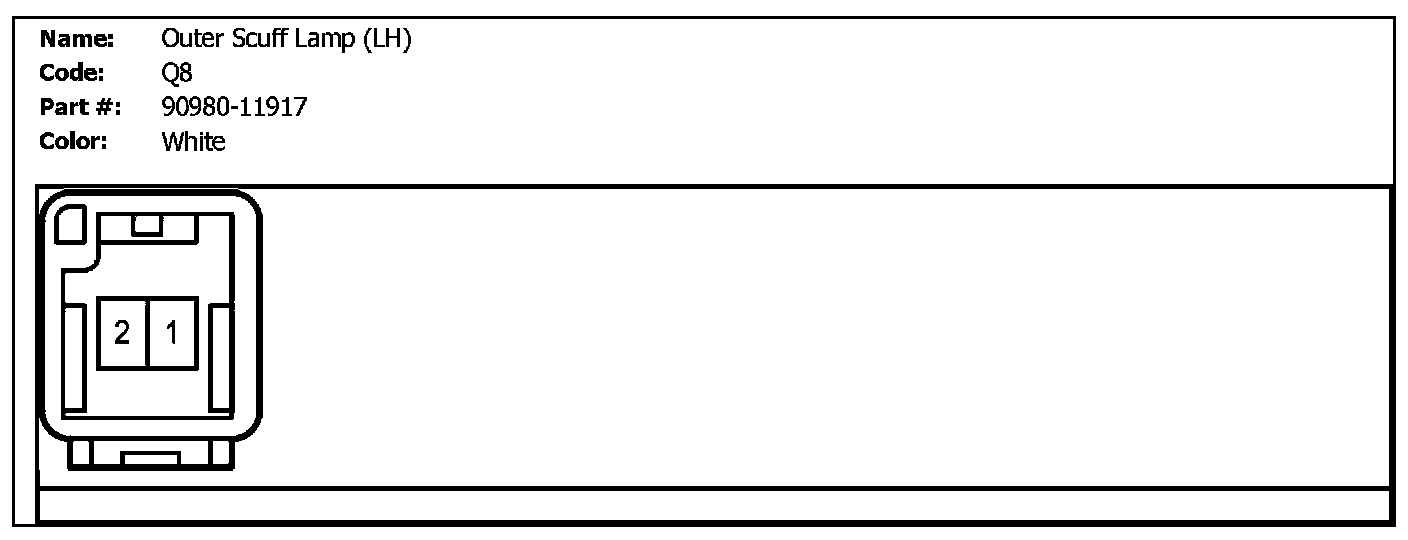

Q8 (Outer Scuff Lamp (LH)):
