Installation

BRAKE CONTROL: FRONT SPEED SENSOR (for 2WD):

INSTALLATION

1. INSTALL FRONT SPEED SENSOR
(a) Wipe off sealant attached to the front speed sensor's fitting surface with white gasoline.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

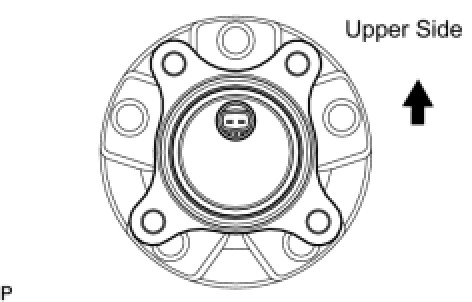

(b) Install a new front speed sensor to the hub and bearing assembly. The front speed sensor connector should be placed in the upper position.

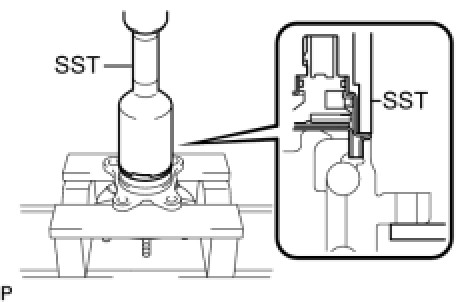

(c) Using the SST and press, install the skid control sensor onto the hub and bearing.
SST: 09214-76011
- Keep the sensor away from magnets.
- Do not use a hammer on the front speed sensor.
- Check that there is no foreign matter such as iron chips on the front speed sensor's detecting portion.
- Slowly press the front speed sensor straight.

2. INSTALL FRONT AXLE HUB SUB-ASSEMBLY Installation

3. INSPECT FRONT AXLE HUB BEARING FOR LOOSENESS Front Axle Hub

4. INSPECT FRONT AXLE HUB FOR RUNOUT Front Axle Hub

5. INSTALL FRONT DISC Reassembly

6. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Installation

7. CONNECT FRONT SPEED SENSOR

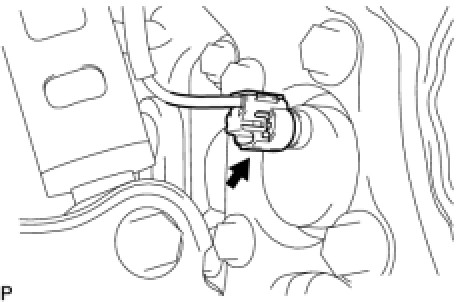

(a) Connect the speed sensor connector to the front speed sensor.
NOTE: Do not twist the sensor wire.

8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
9. INSPECT SPEED SENSOR SIGNAL Test Mode Procedure
