Brake Warning Light Does Not Come ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (w/ VDIM): Brake Warning Light does not Come ON

Brake Warning Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN and multiplex communications.

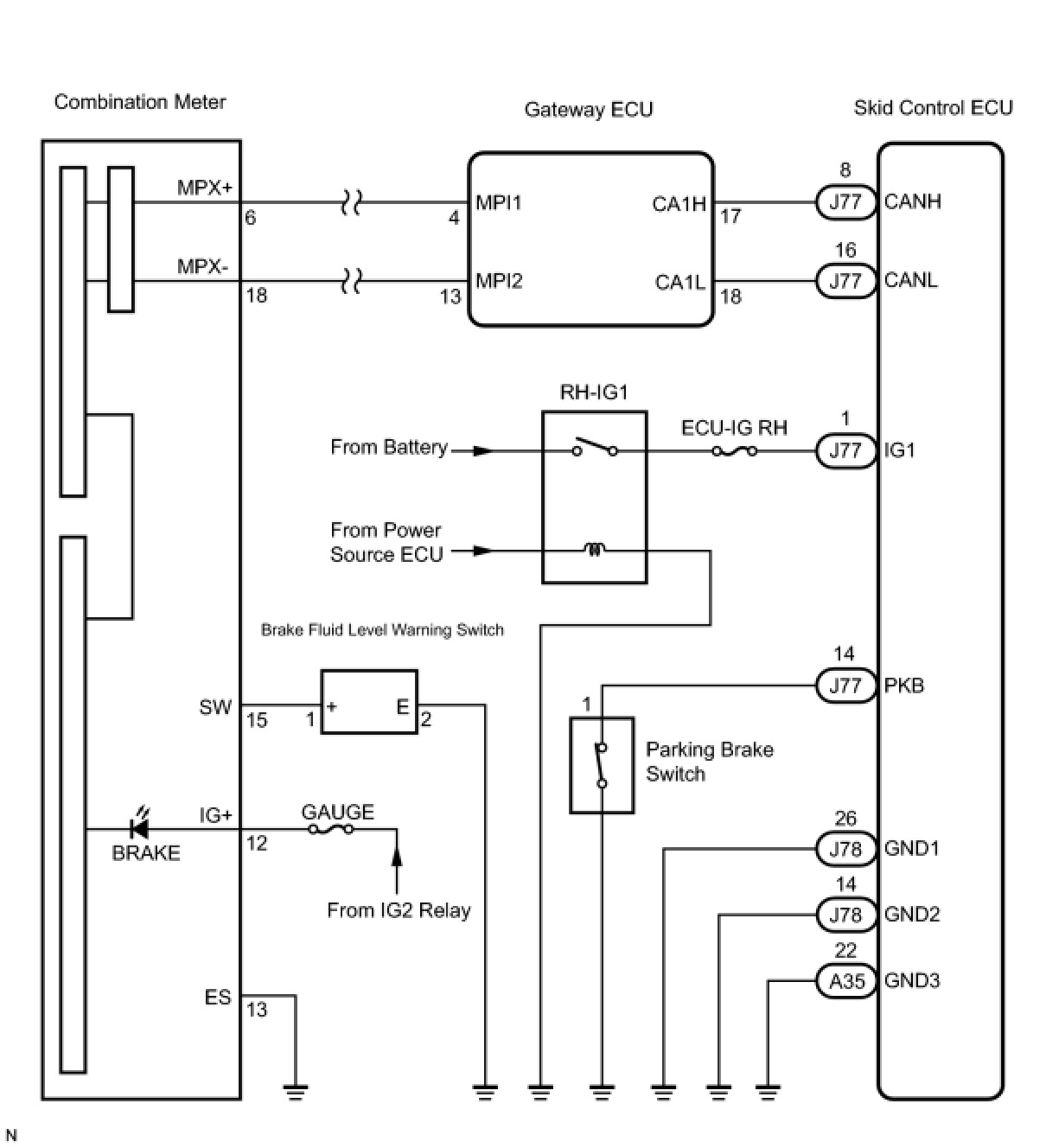

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTE: When replacing the skid control ECU, perform zero point calibration and store system information Vehicle Stability Control System (W/ VDIM).

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication system DTC is output Diagnosis System.
Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. CHECK MULTIPLEX COMMUNICATION SYSTEM
(a) Check if the multiplex communication system DTC is output Reading and Clearing Diagnostic Trouble Codes.
Result:






B -- INSPECT MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.
3. CHECK BRAKE WARNING LIGHT
(a) Disconnect the skid control ECU connector.
(b) Turn the engine switch on (IG).
(c) Check that the BRAKE warning light comes on.
OK:
BRAKE warning light comes on.
HINT: If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

OK -- REPLACE SKID CONTROL ECU
NG -- Continue to next step.
4. INSPECT COMBINATION METER ASSEMBLY
(a) Turn the engine switch off.
(b) Reconnect the skid control ECU connector.
(c) Perform Active Test of the combination meter (meter CPU) using Techstream Scan Tool Testing and Procedures.
OK:
The BRAKE warning light turns on or off in accordance with Techstream.
HINT: If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- REPLACE SKID CONTROL ECU
