Data List / Active Test

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (w/o VDIM): DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
HINT: With Techstream connected to the DLC3 and the engine switch on (IG), the ABS, TRAC and VSC data list can be displayed. Follow the prompts on the tester screen to access the DATA LIST.

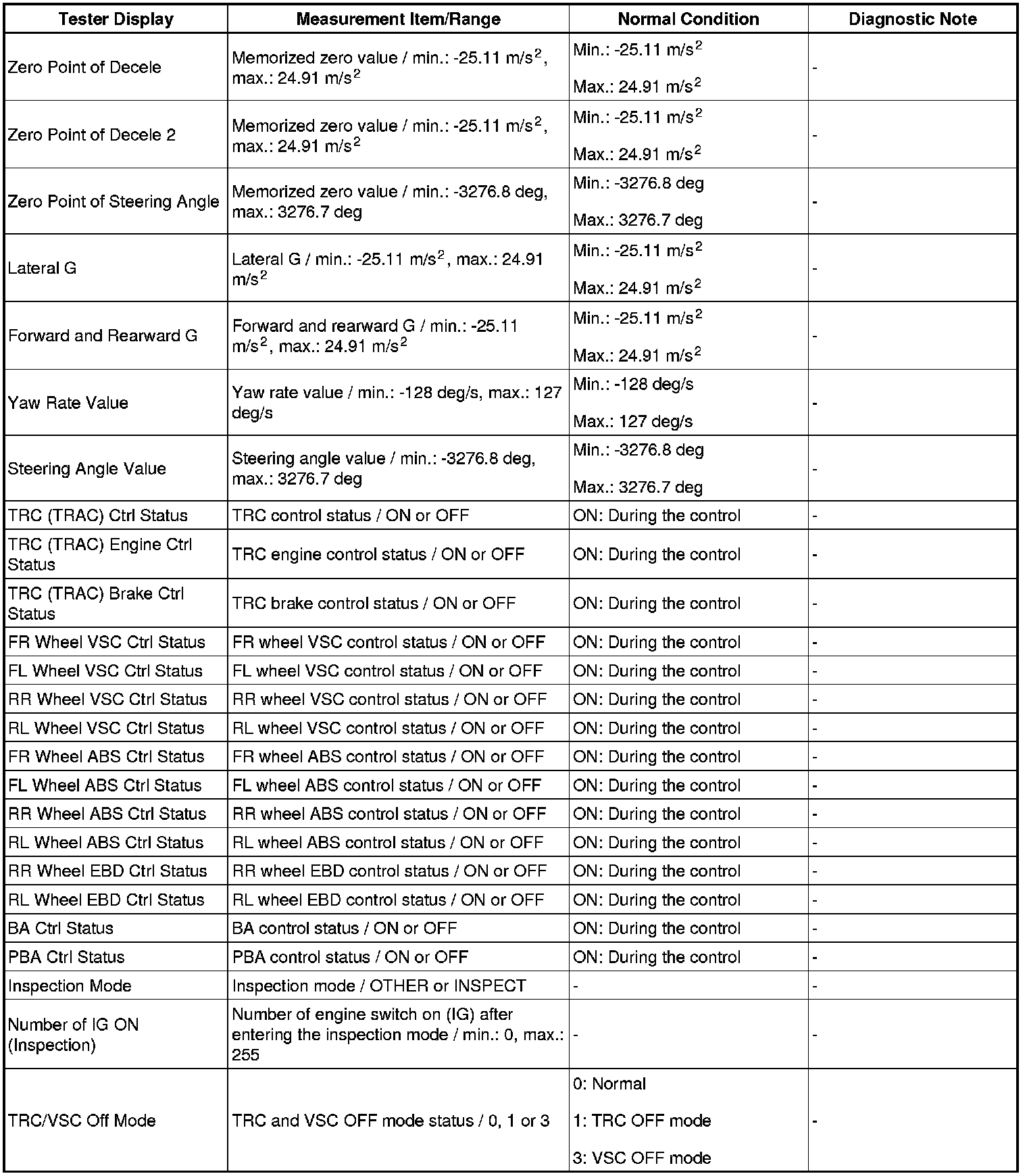

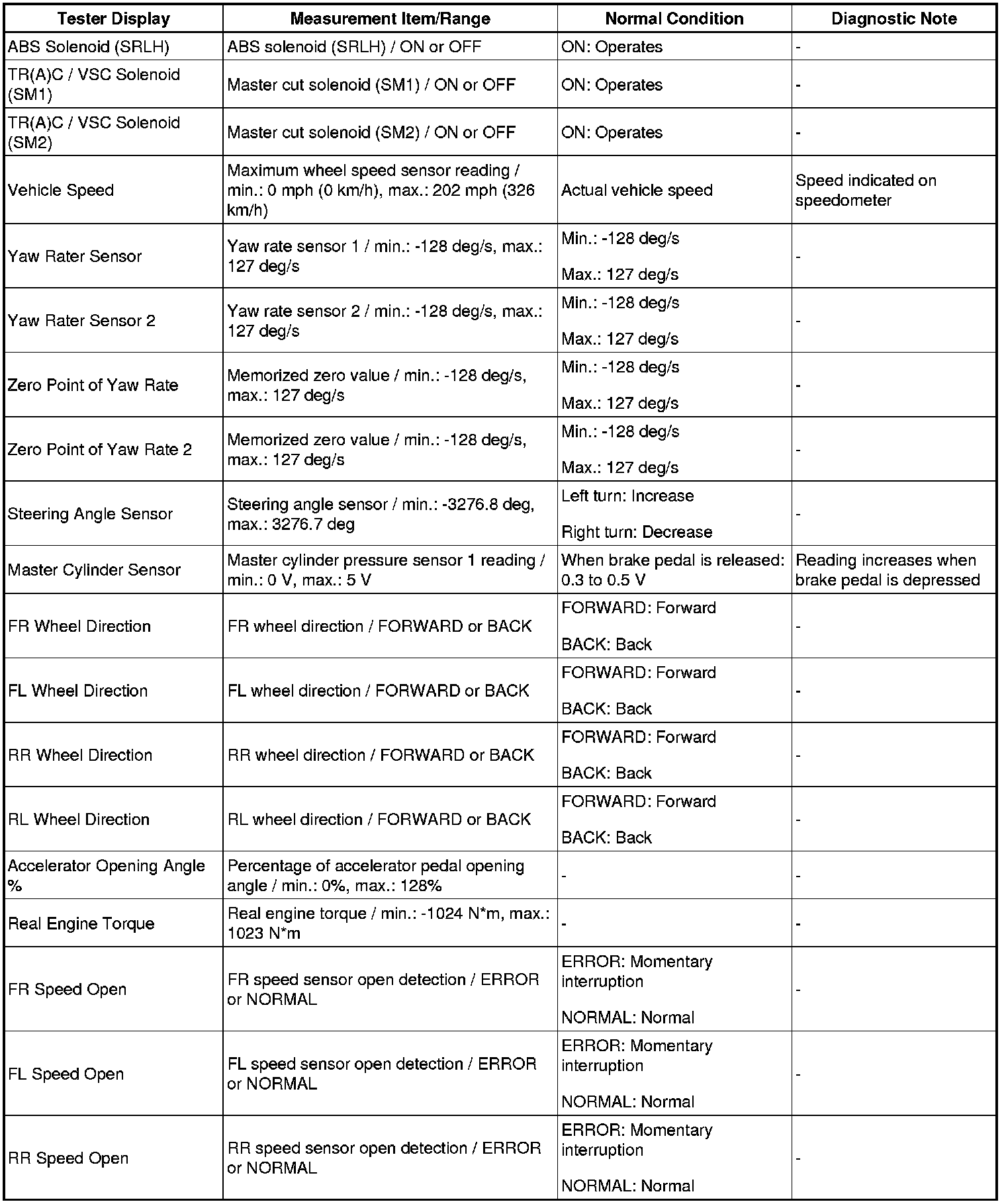

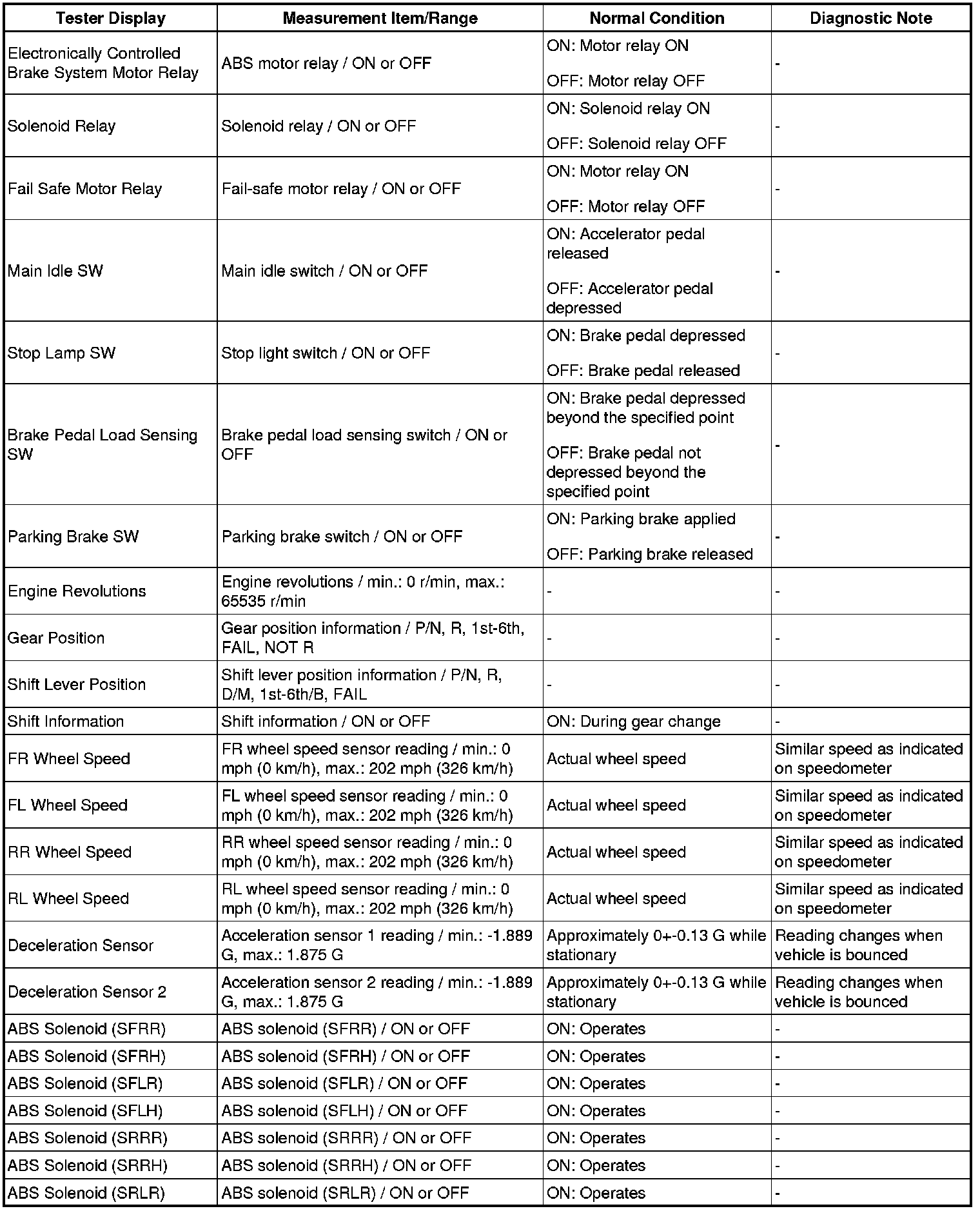

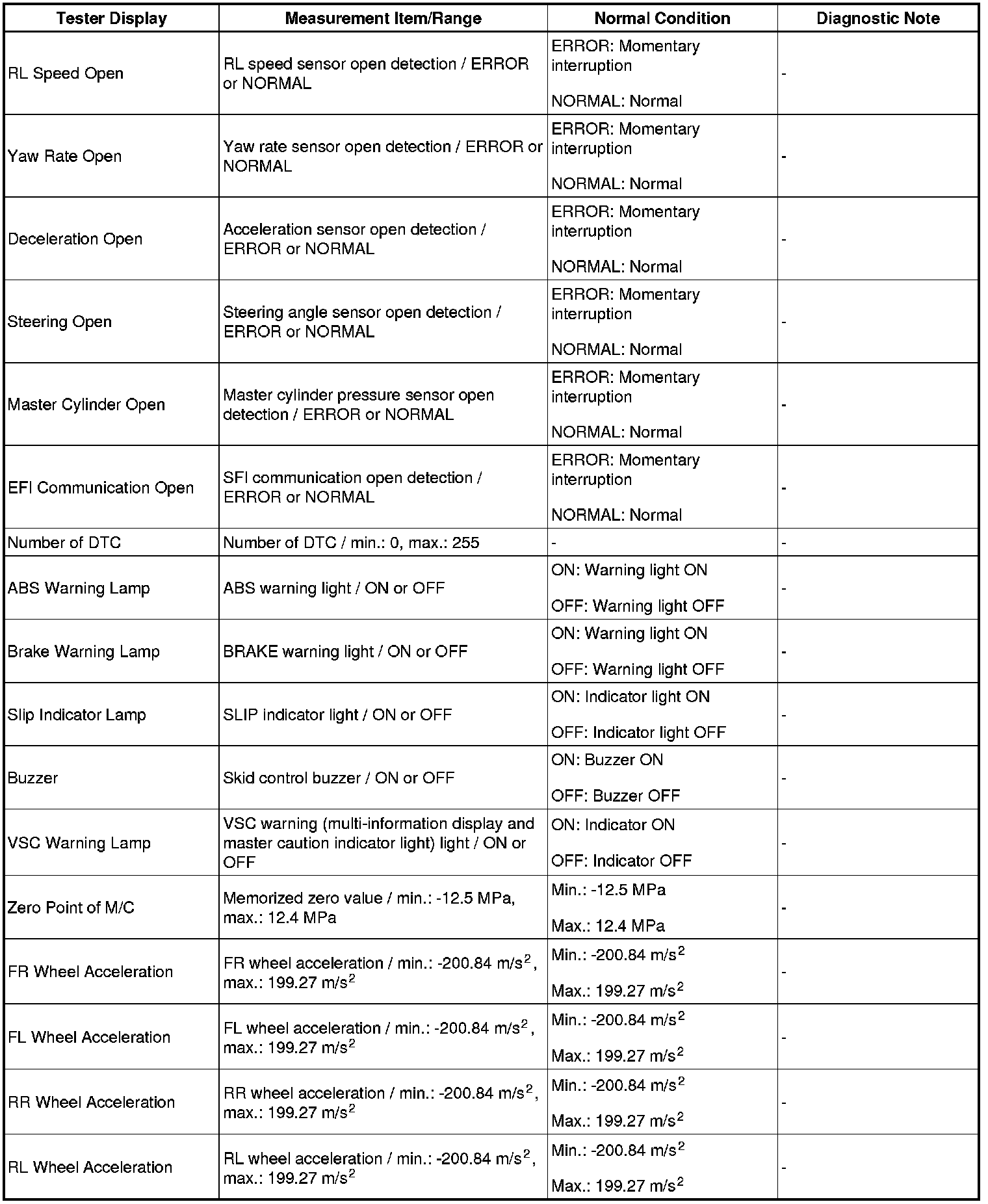

ABS / VSC / TRAC:

















2. ACTIVE TEST
HINT: Performing the Active Test using Techstream allows the relay, actuator, etc. to operate without removing any parts. Performing the Active Test as the first step of troubleshooting is one of the methods to shorten labor time.
It is possible to display the Data List during the Active Test.

(a) Connect Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) From the display on the tester, select the Active Test.
HINT: The engine switch must be turned on (IG) to proceed to the Active Test using Techstream.

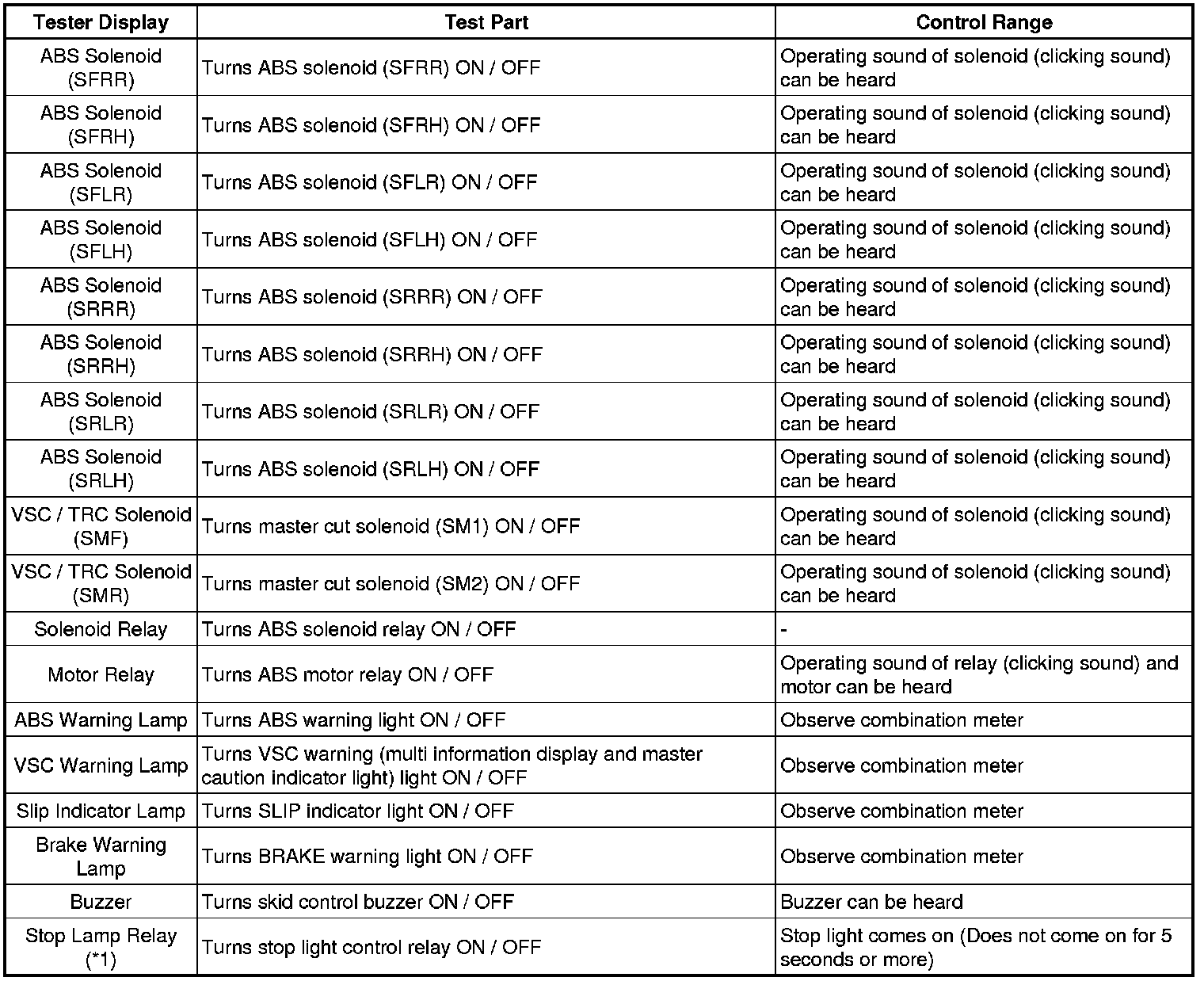

ABS / VSC / TRAC:





(*1): A/T
