Vehicle Stability Control System (w/o VDIM)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (w/o VDIM): TERMINALS OF ECU

TERMINALS OF ECU

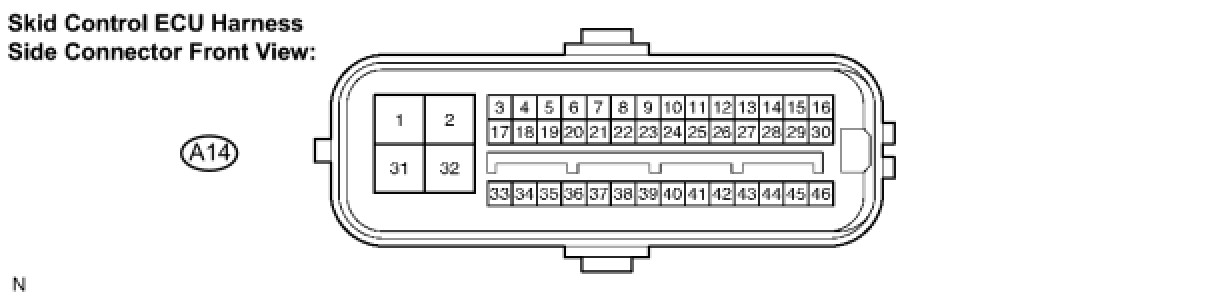

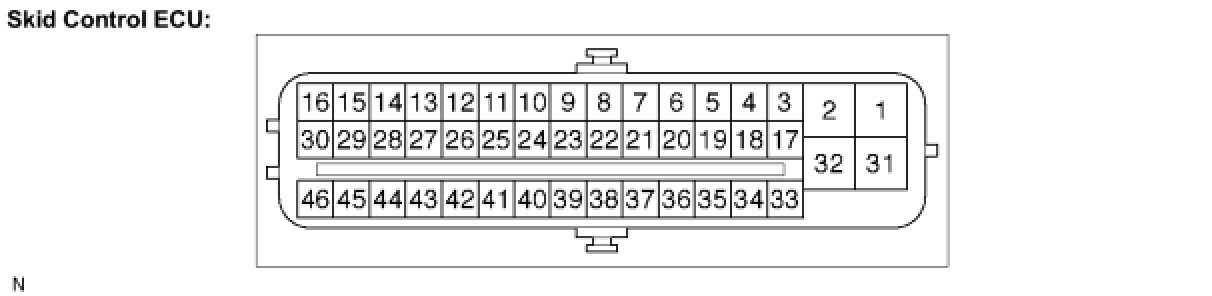

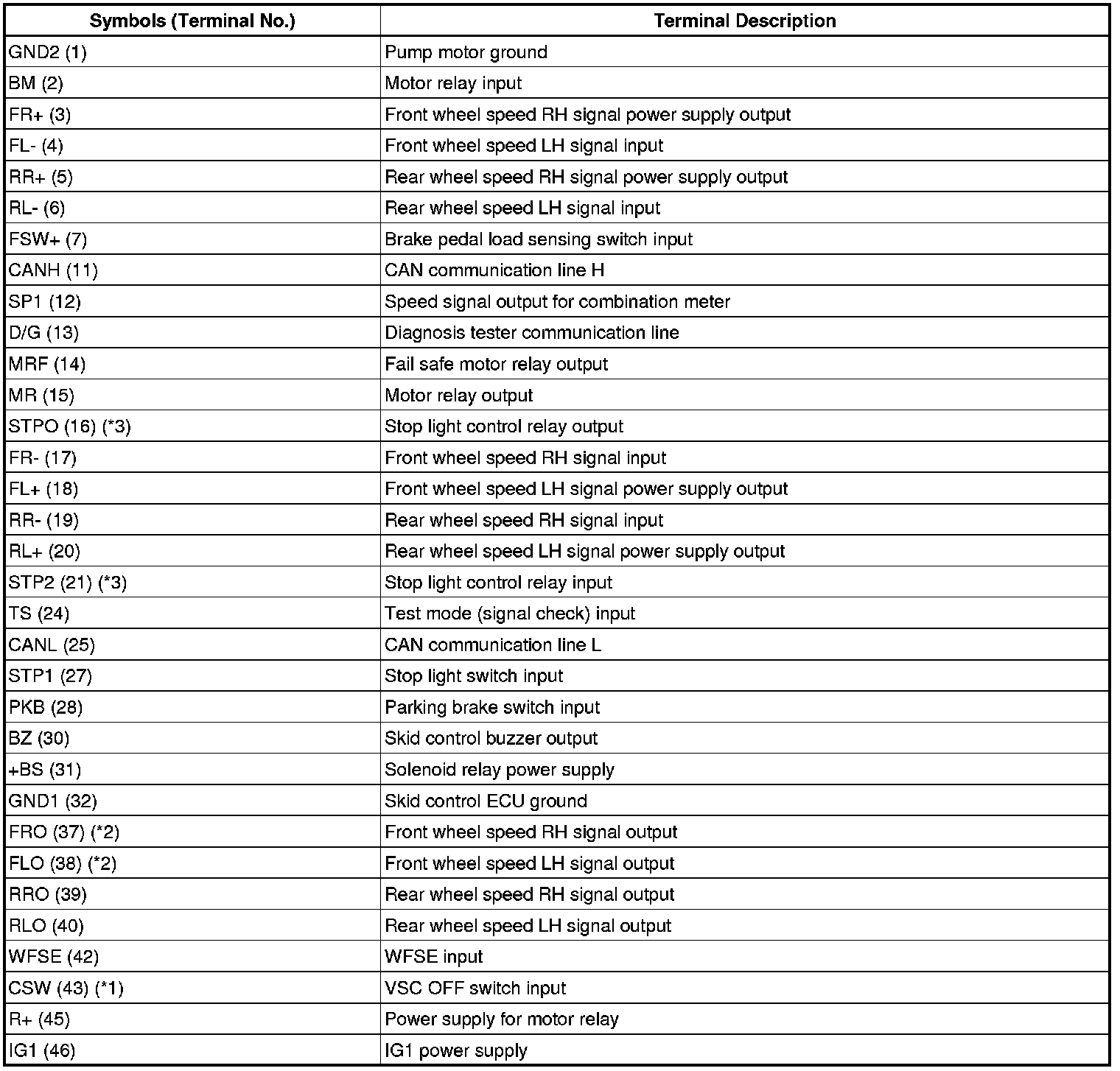

1. Terminal of ECU









(*1): 2WD
(*2): AFS
(*3): A/T
2. Terminal Inspection
(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT: Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

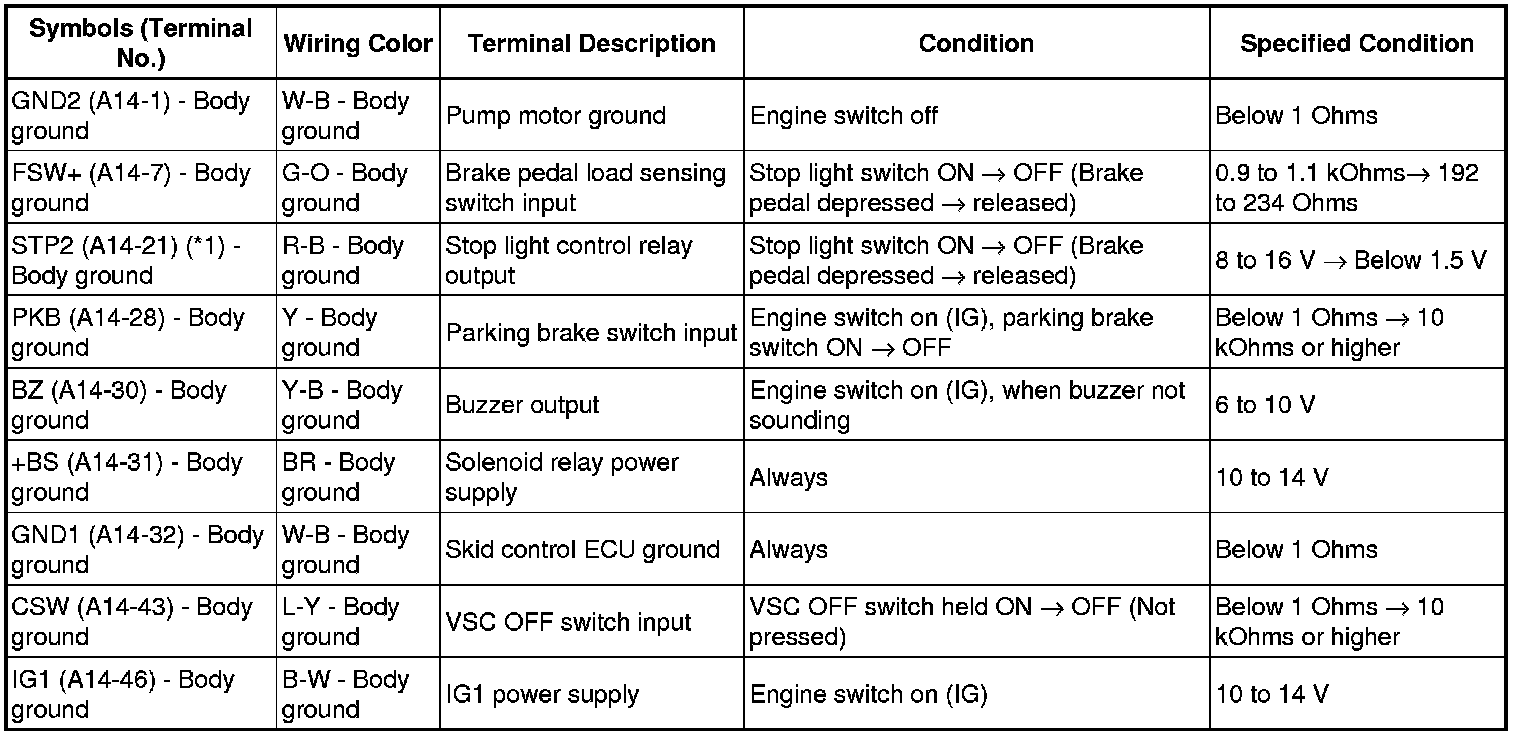

Standard:





(*1): A/T
