Luggage Compartment Door Opener Outer Switch








ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH:

INSPECTION

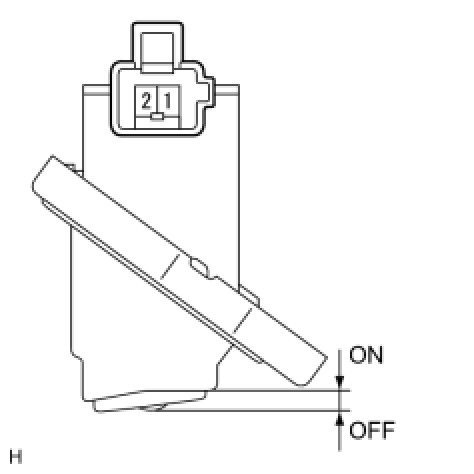

1. INSPECT LUGGAGE KEY ELECTRICAL SWITCH






(a) Disconnect the switch connector.

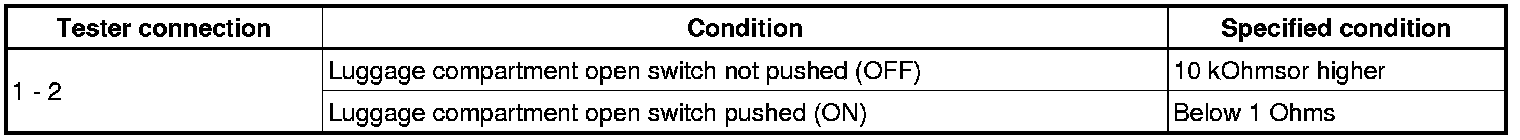

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
