Installation

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH:

INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

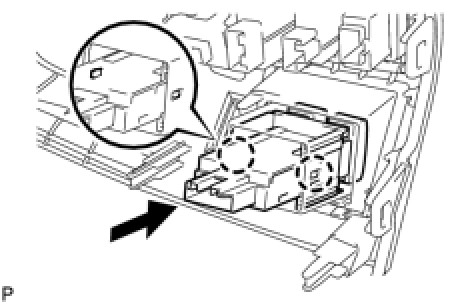

(a) Attach the 2 claws and install the luggage compartment door opener inner switch.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL SIDE INSTRUMENT PANEL LH Installation

4. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation

5. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation

6. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
