Remote Control Mirror [w/ Seat Position Memory]

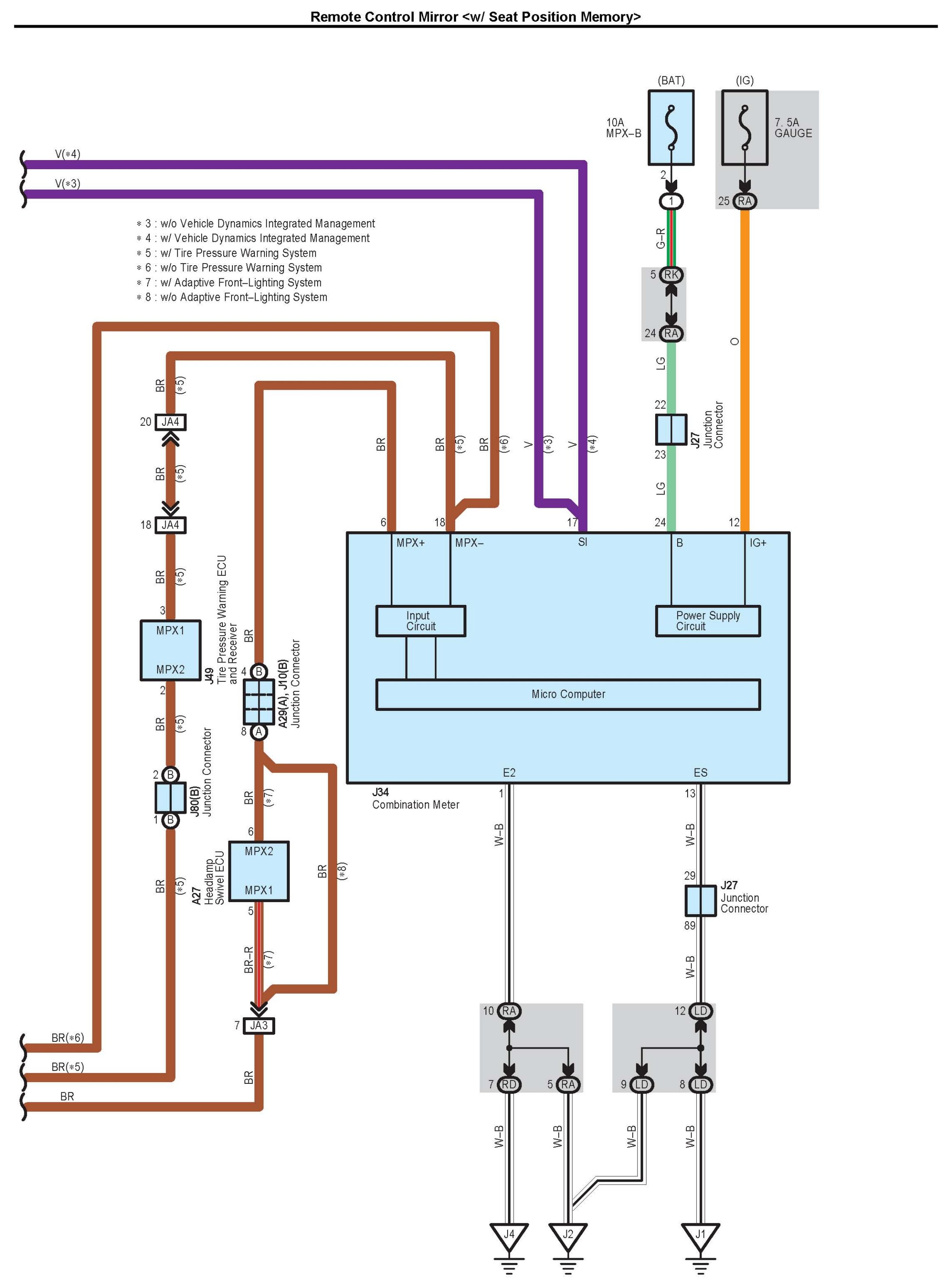

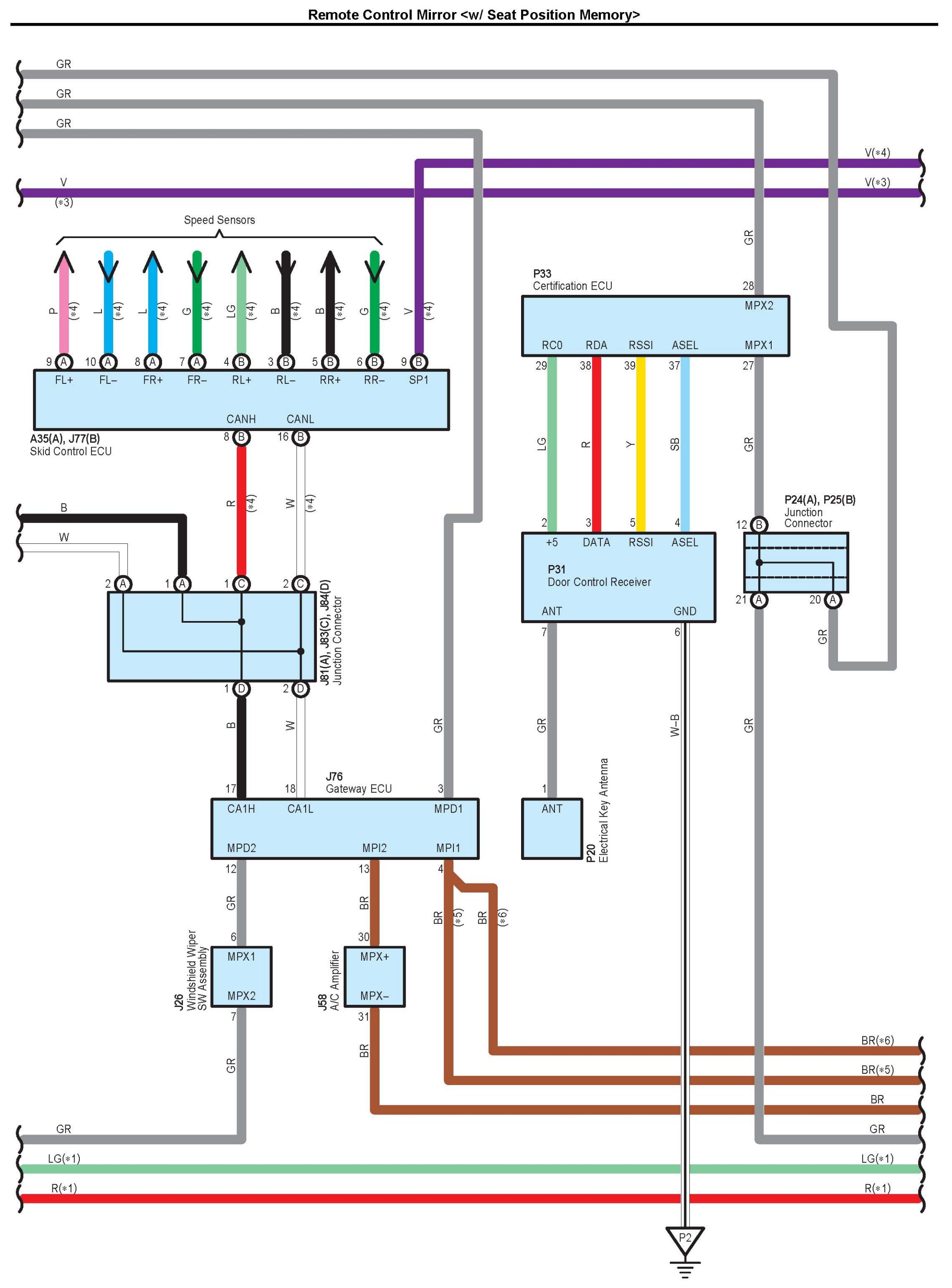

Remote Control Mirror <w/ Seat Position Memory> Part 1:

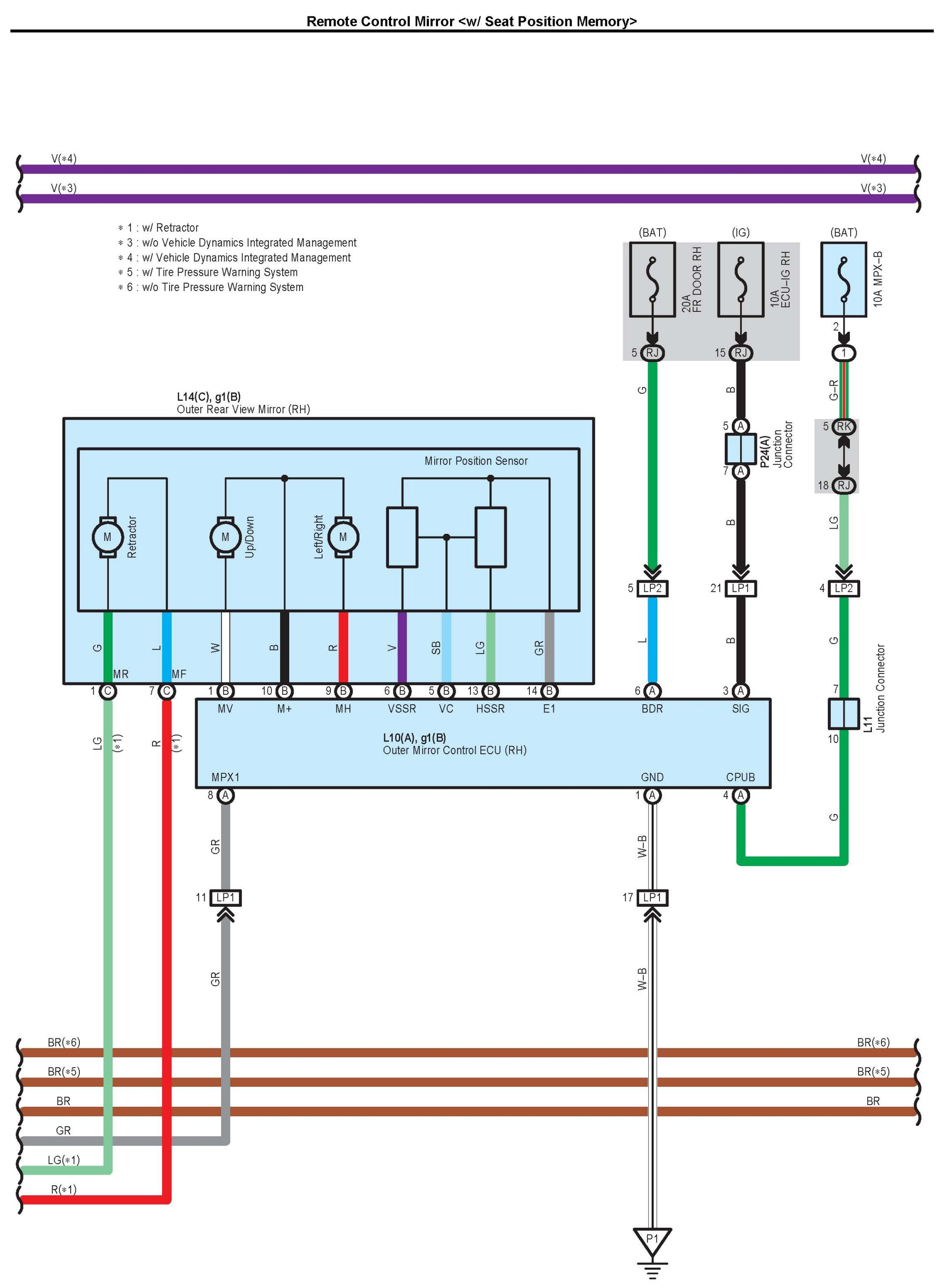

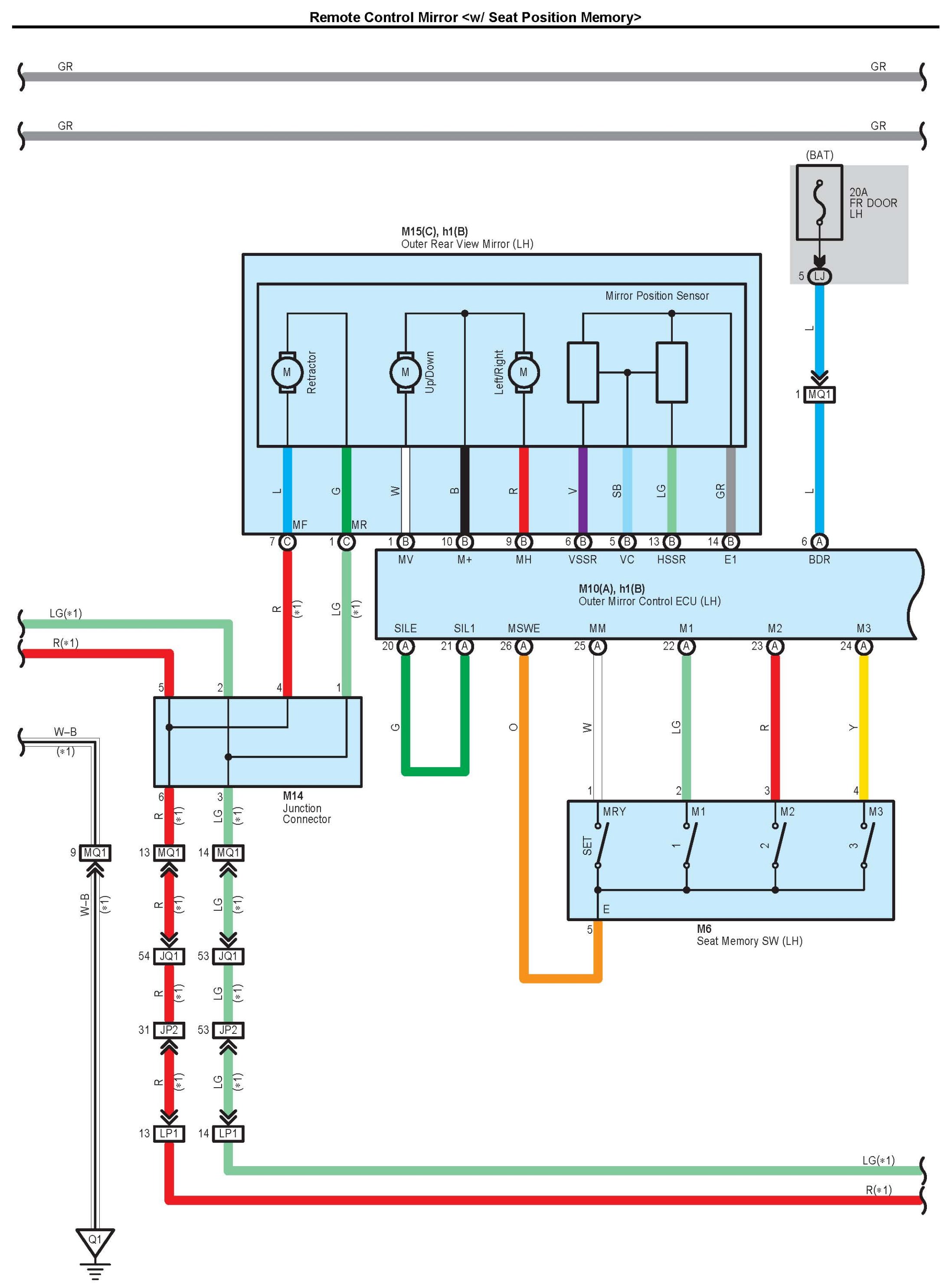

Remote Control Mirror <w/ Seat Position Memory> Part 2:

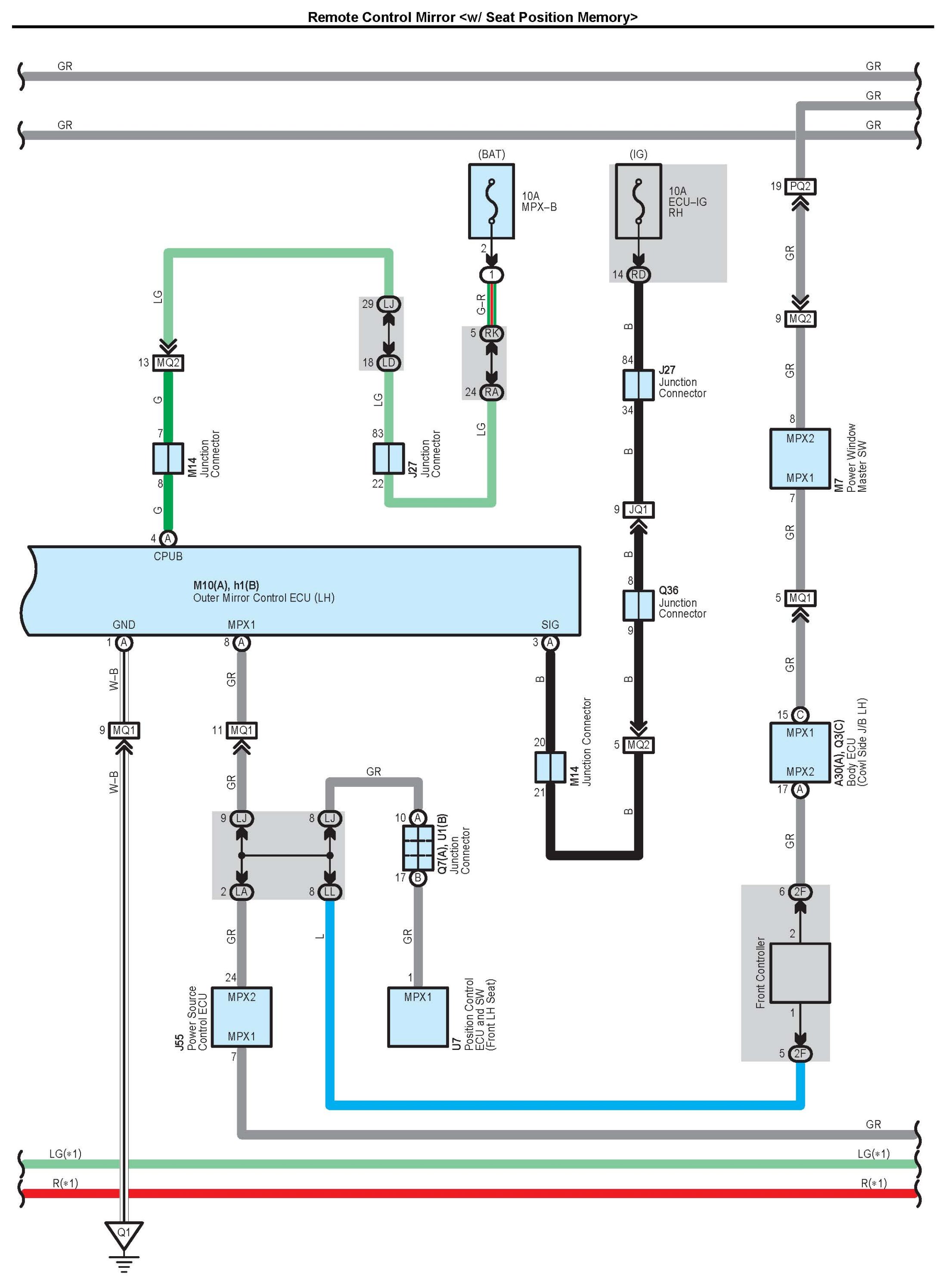

Remote Control Mirror <w/ Seat Position Memory> Part 3:

Remote Control Mirror <w/ Seat Position Memory> Part 4:

Remote Control Mirror <w/ Seat Position Memory> Part 5:

Remote Control Mirror <w/ Seat Position Memory> Part 6:

Remote Control Mirror <w/ Seat Position Memory> Part 7:

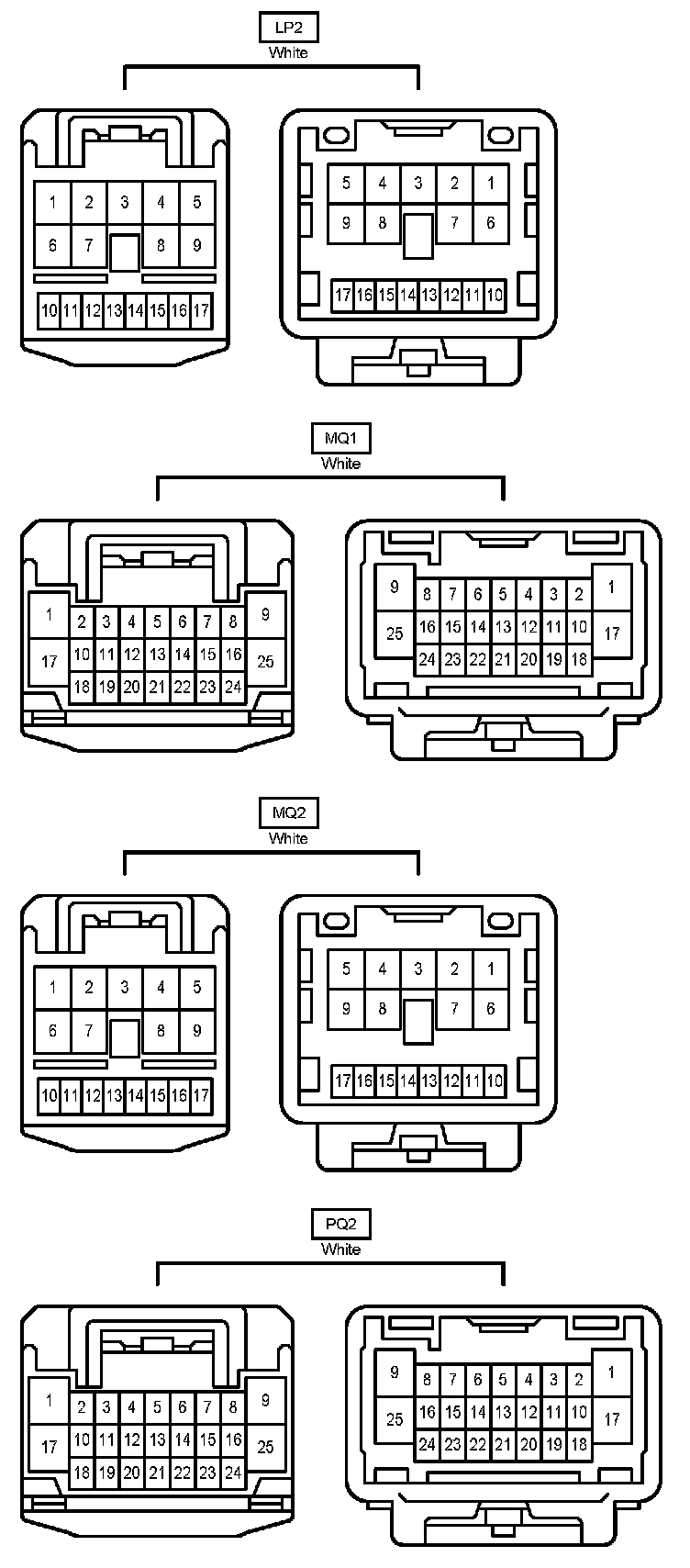

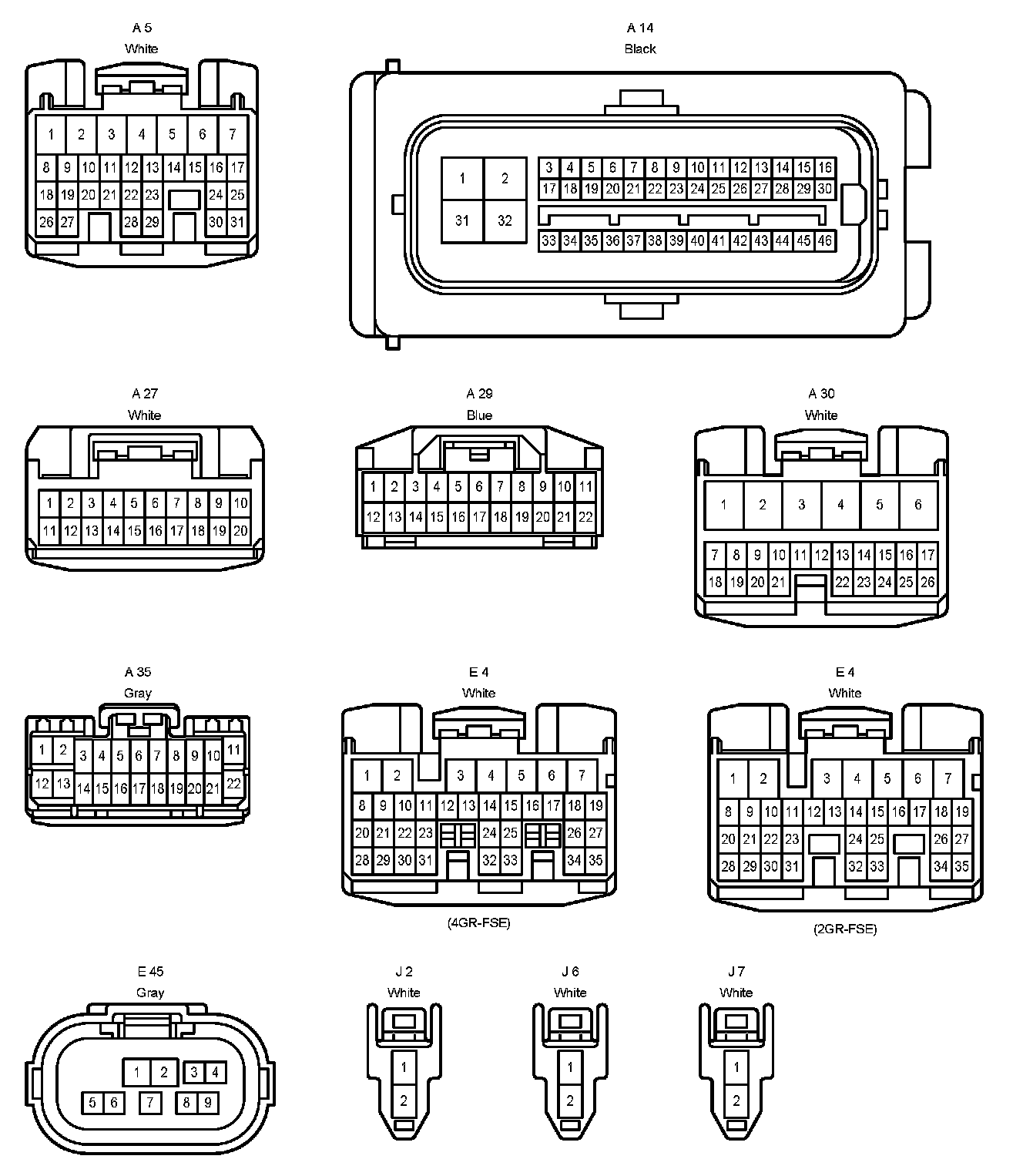

Connector Pin Outs Part 1:

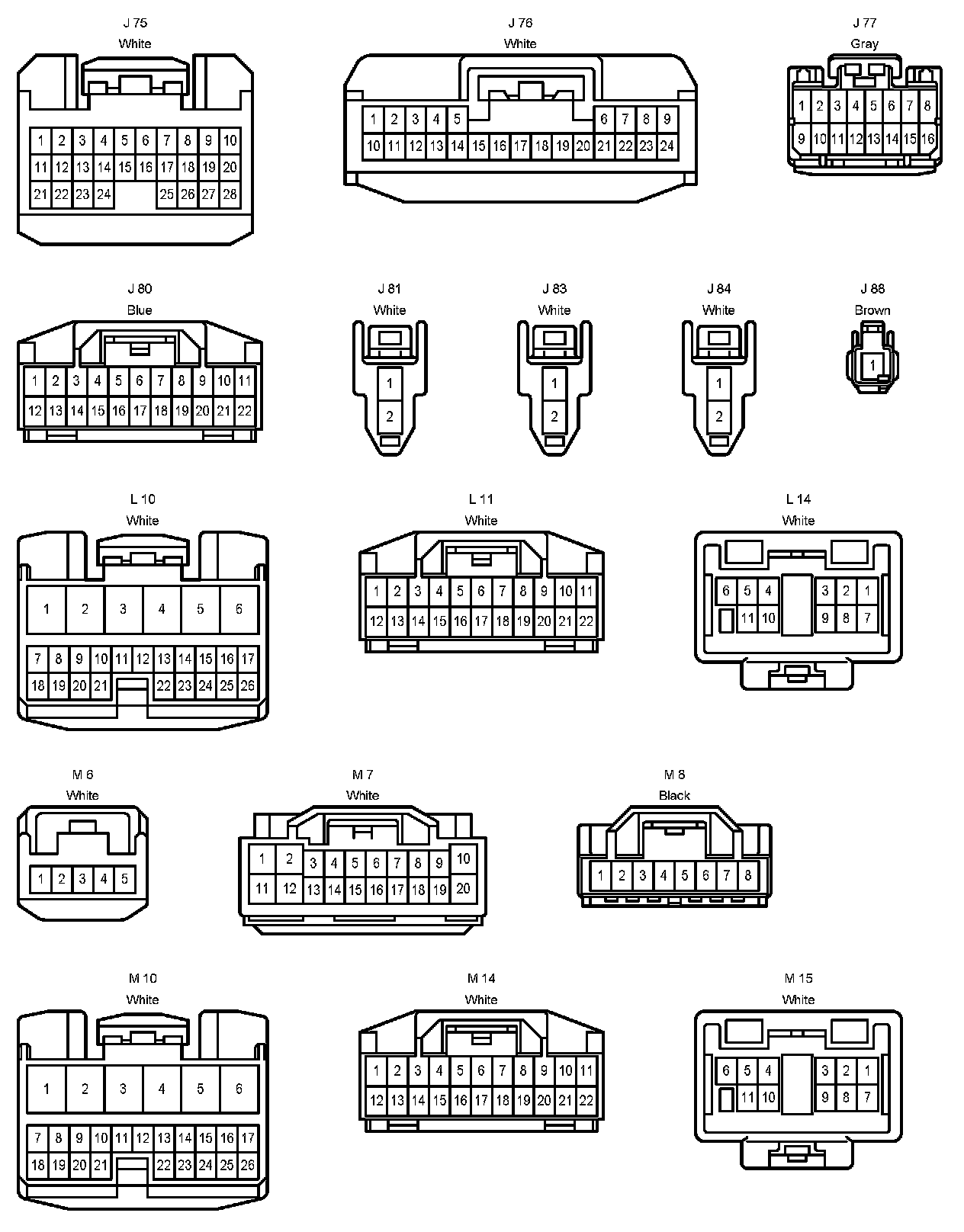

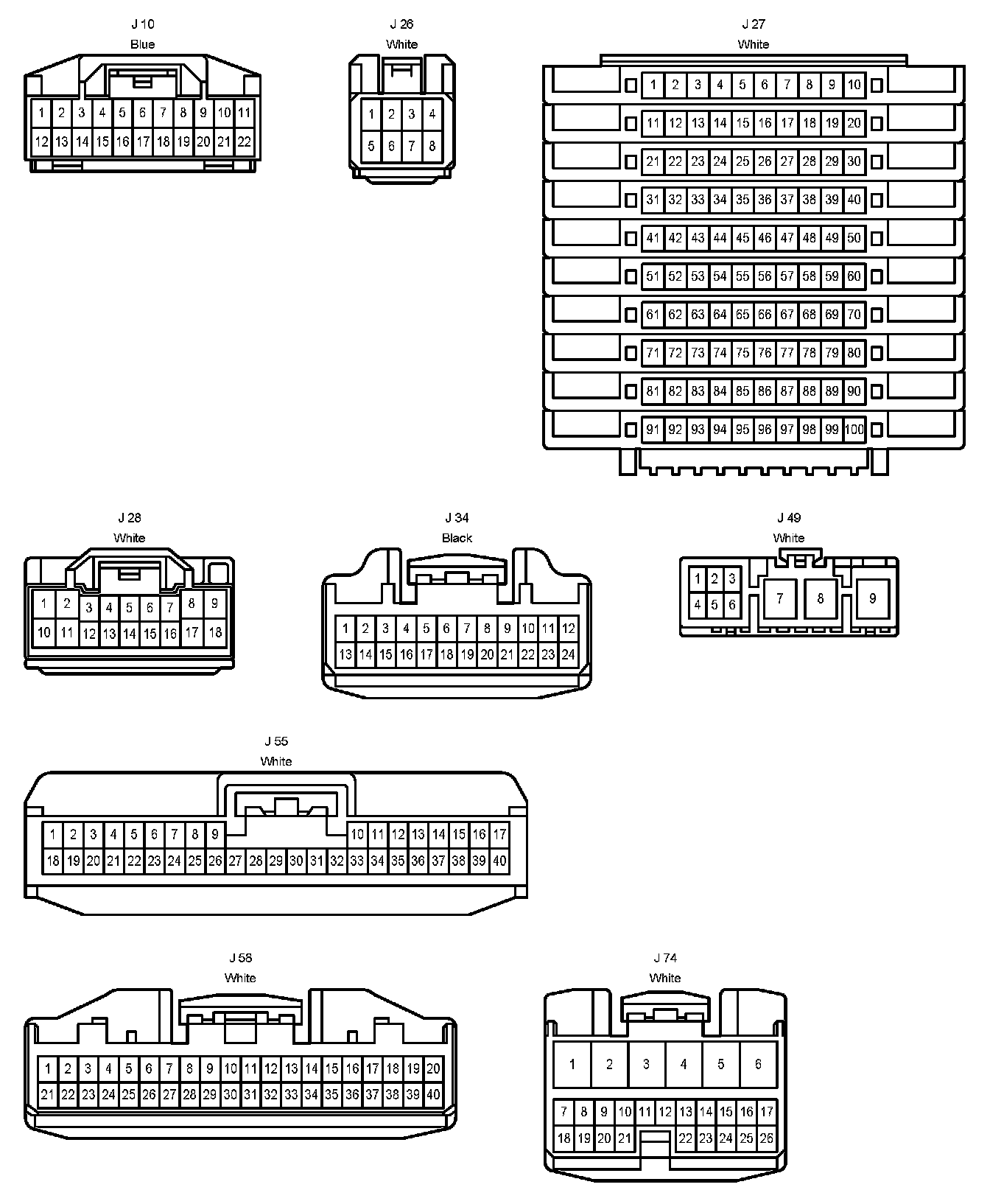

Connector Pin Outs Part 2:

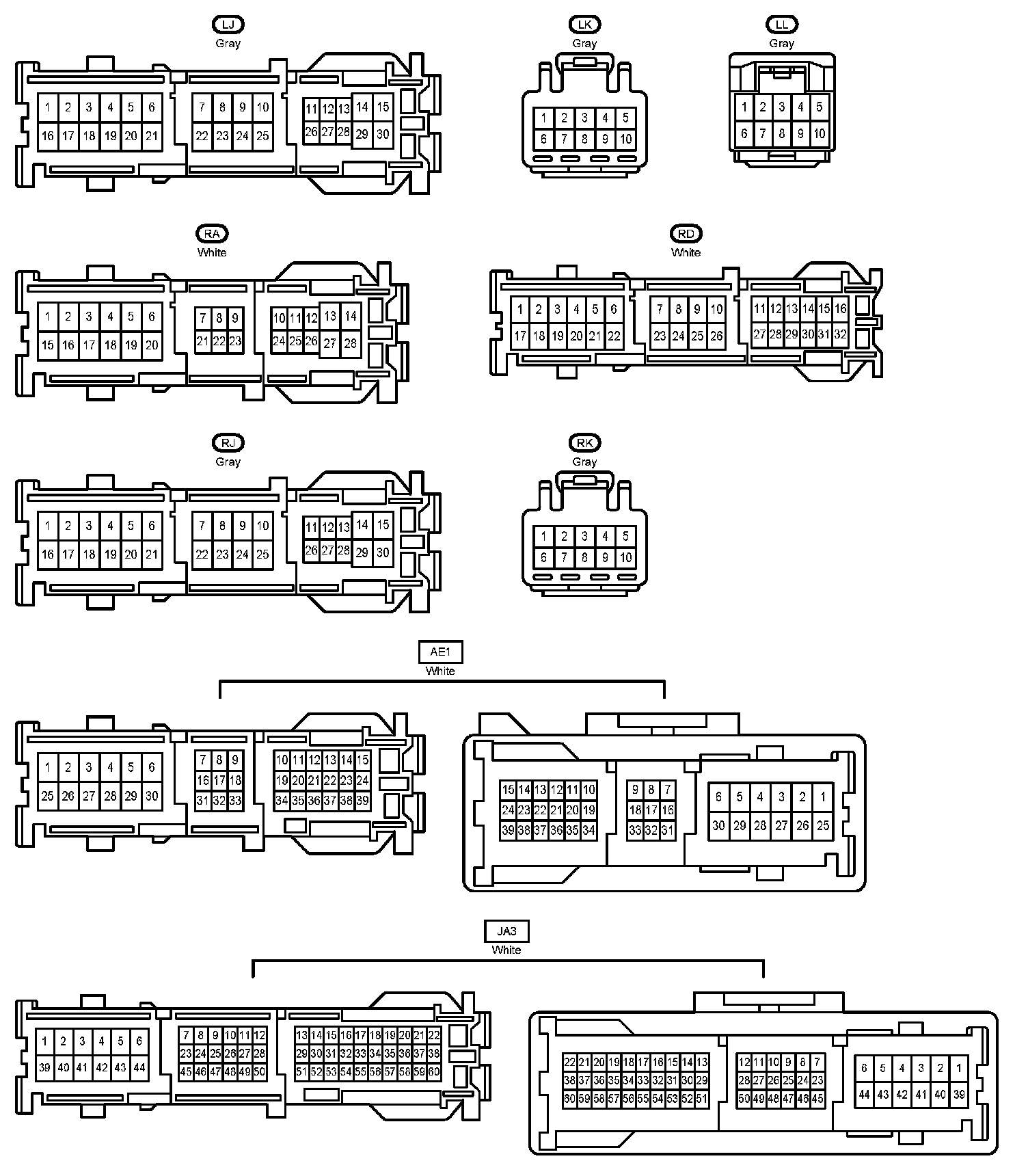

Connector Pin Outs Part 3:

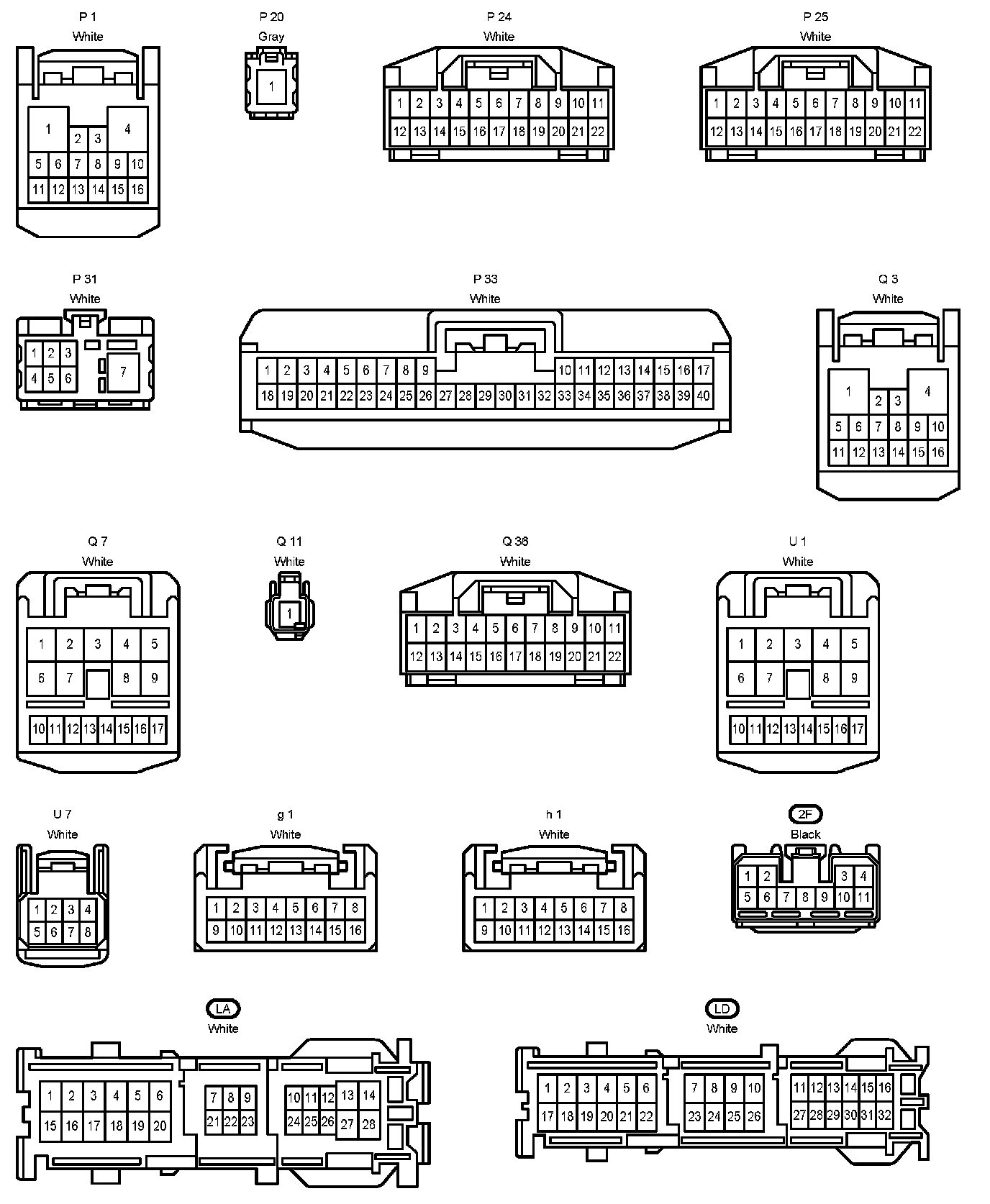

Connector Pin Outs Part 4:

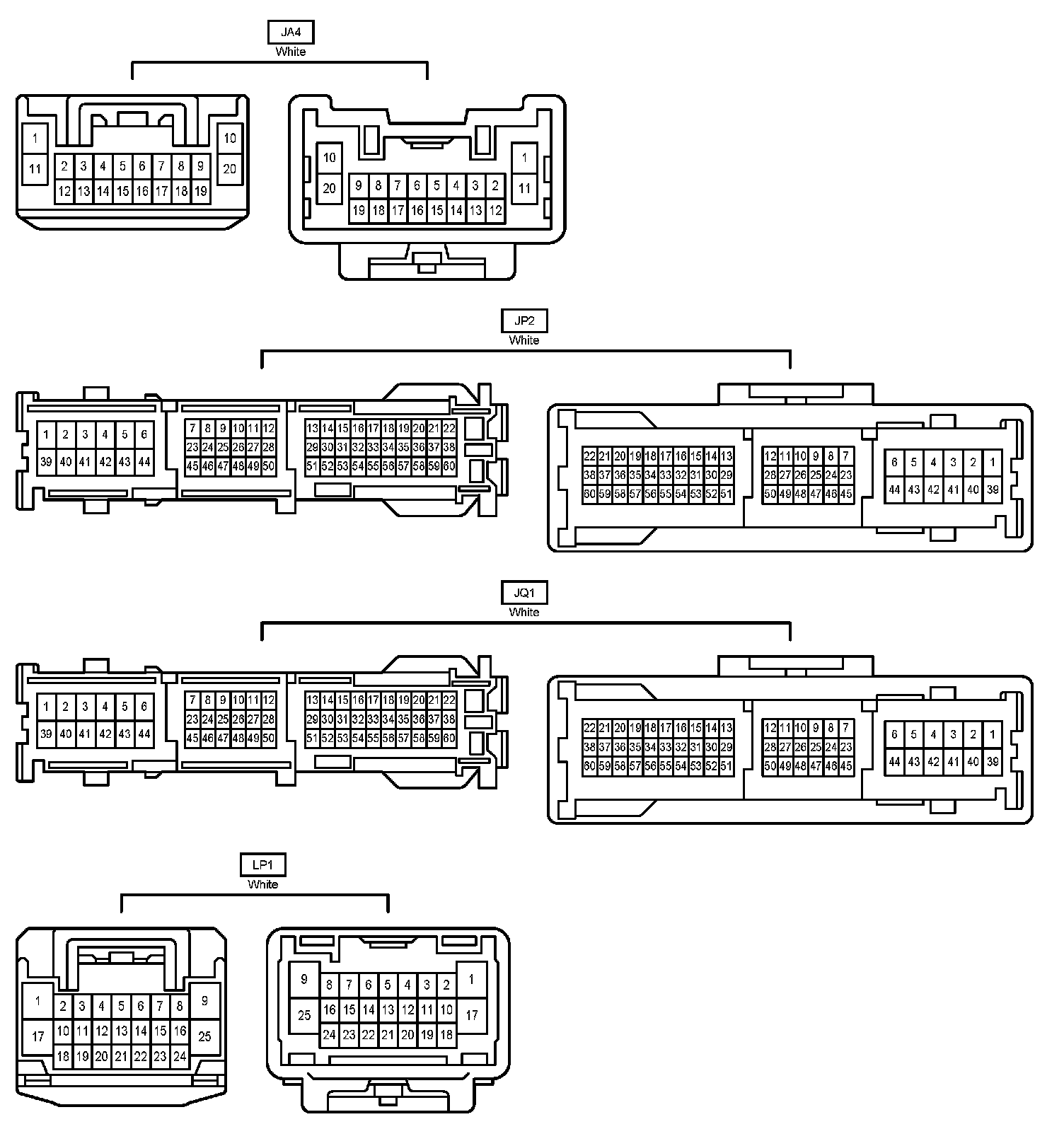

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
