Power Seat [Front Passenger's Seat w/ Seat Position Memory]

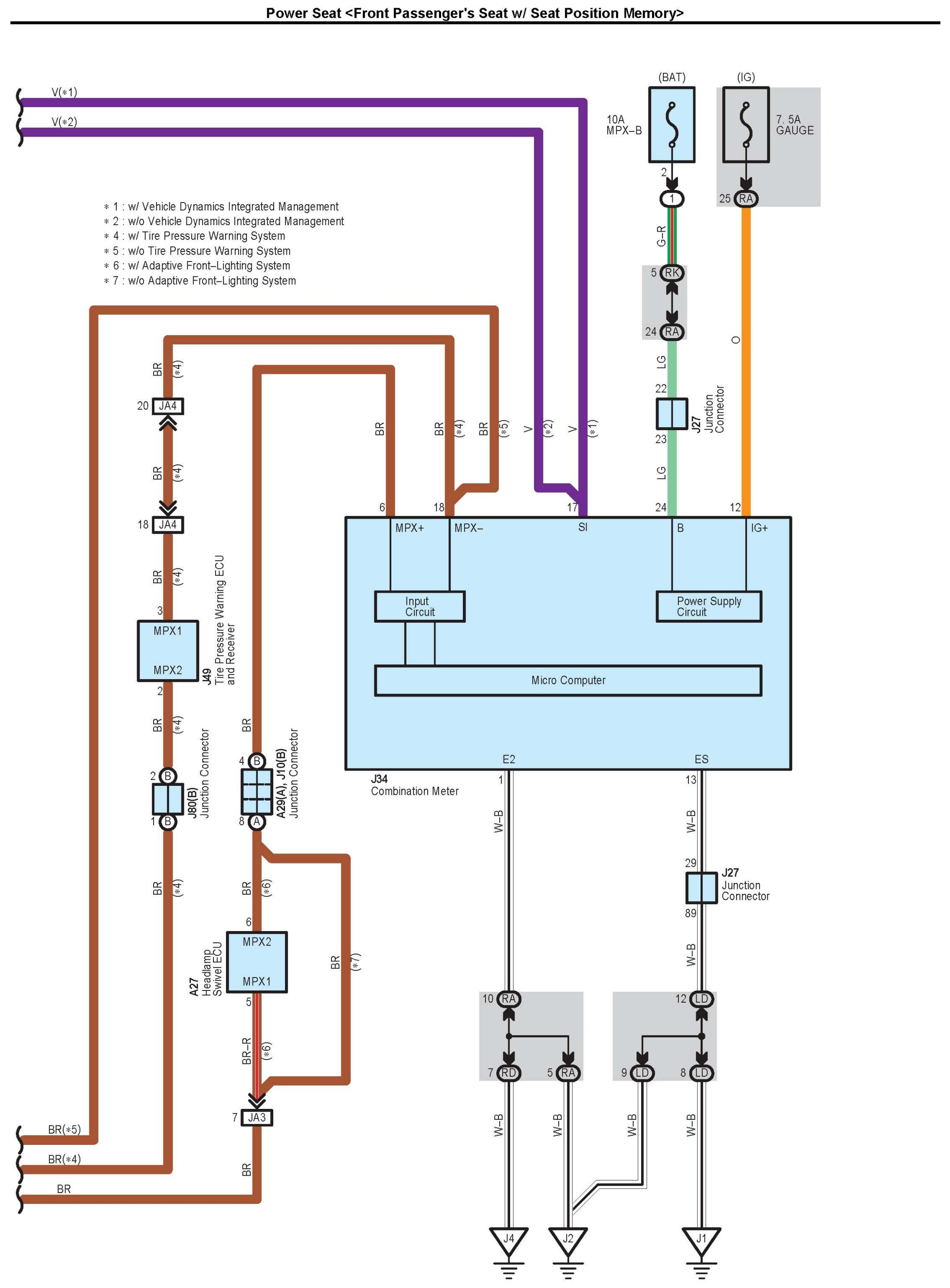

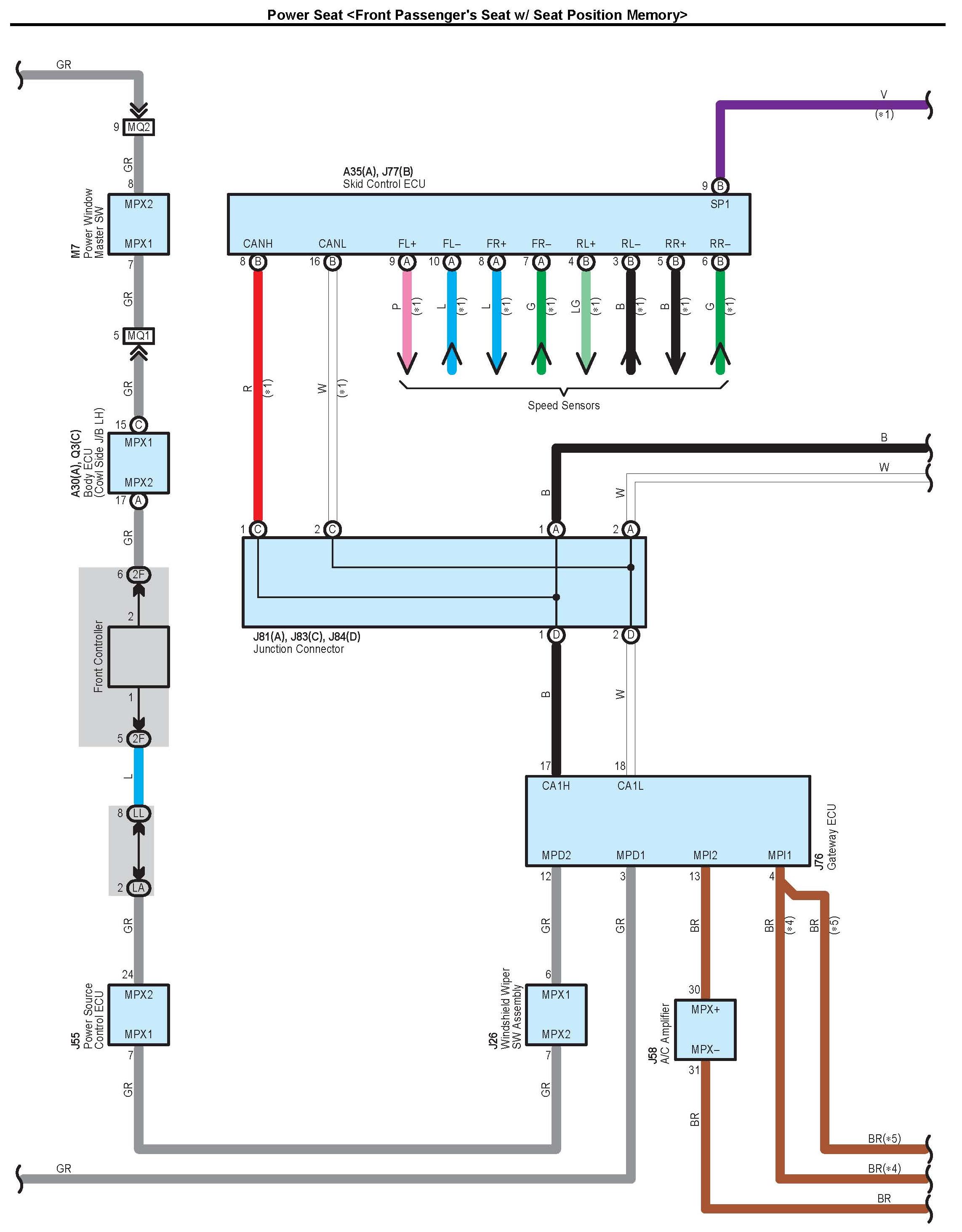

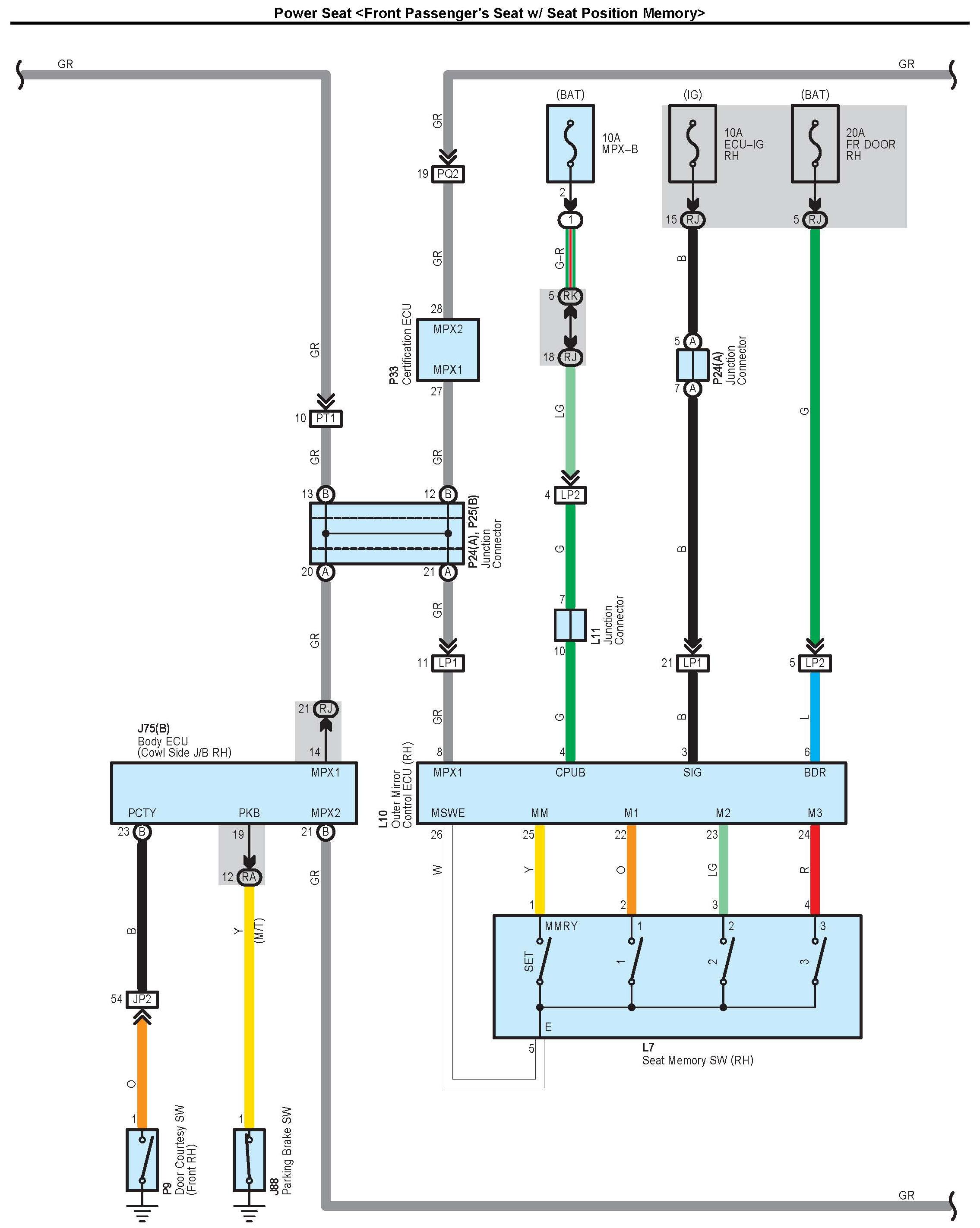

Power Seat <Front Passenger's Seat w/ Seat Position Memory> Part 1:

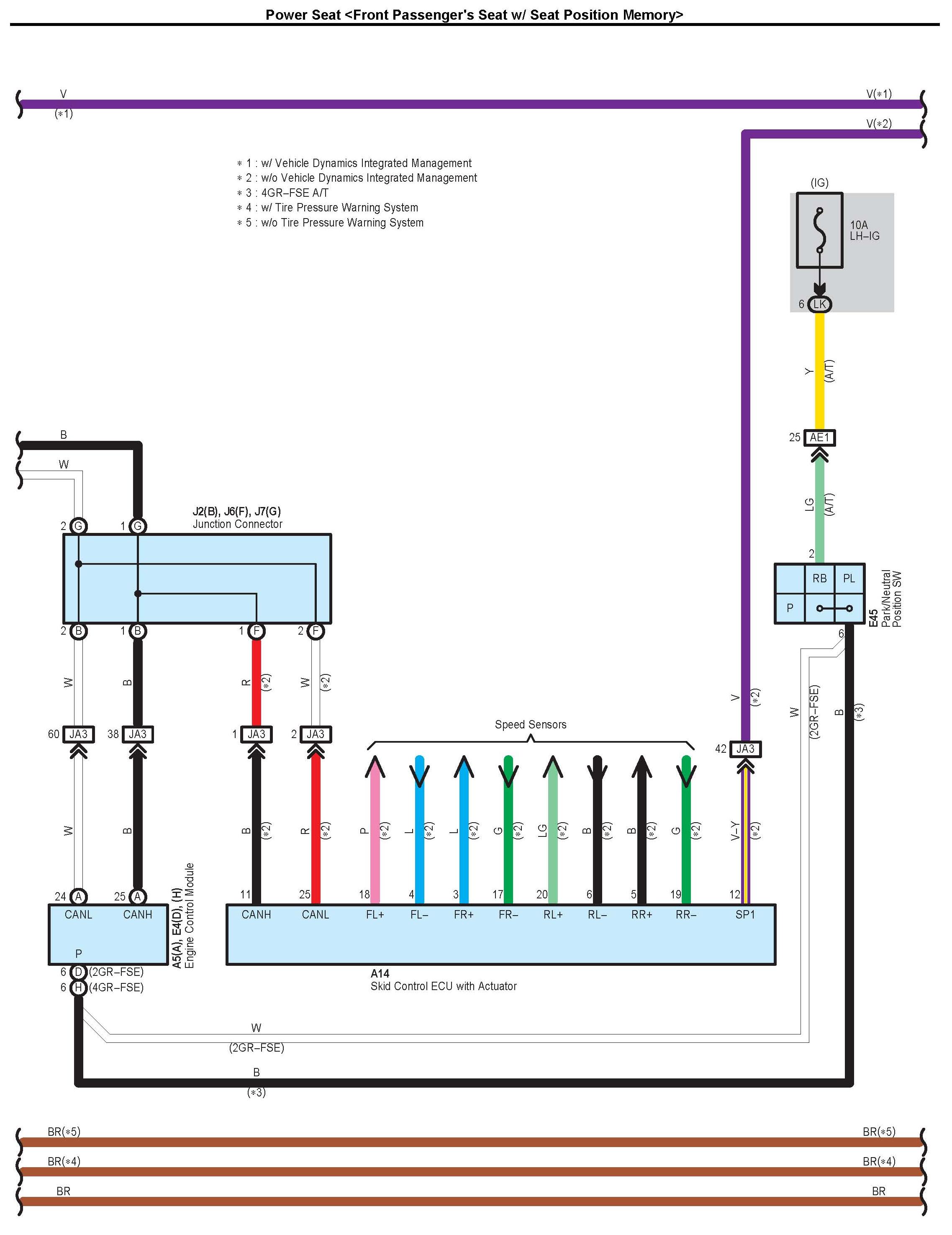

Power Seat <Front Passenger's Seat w/ Seat Position Memory> Part 2:

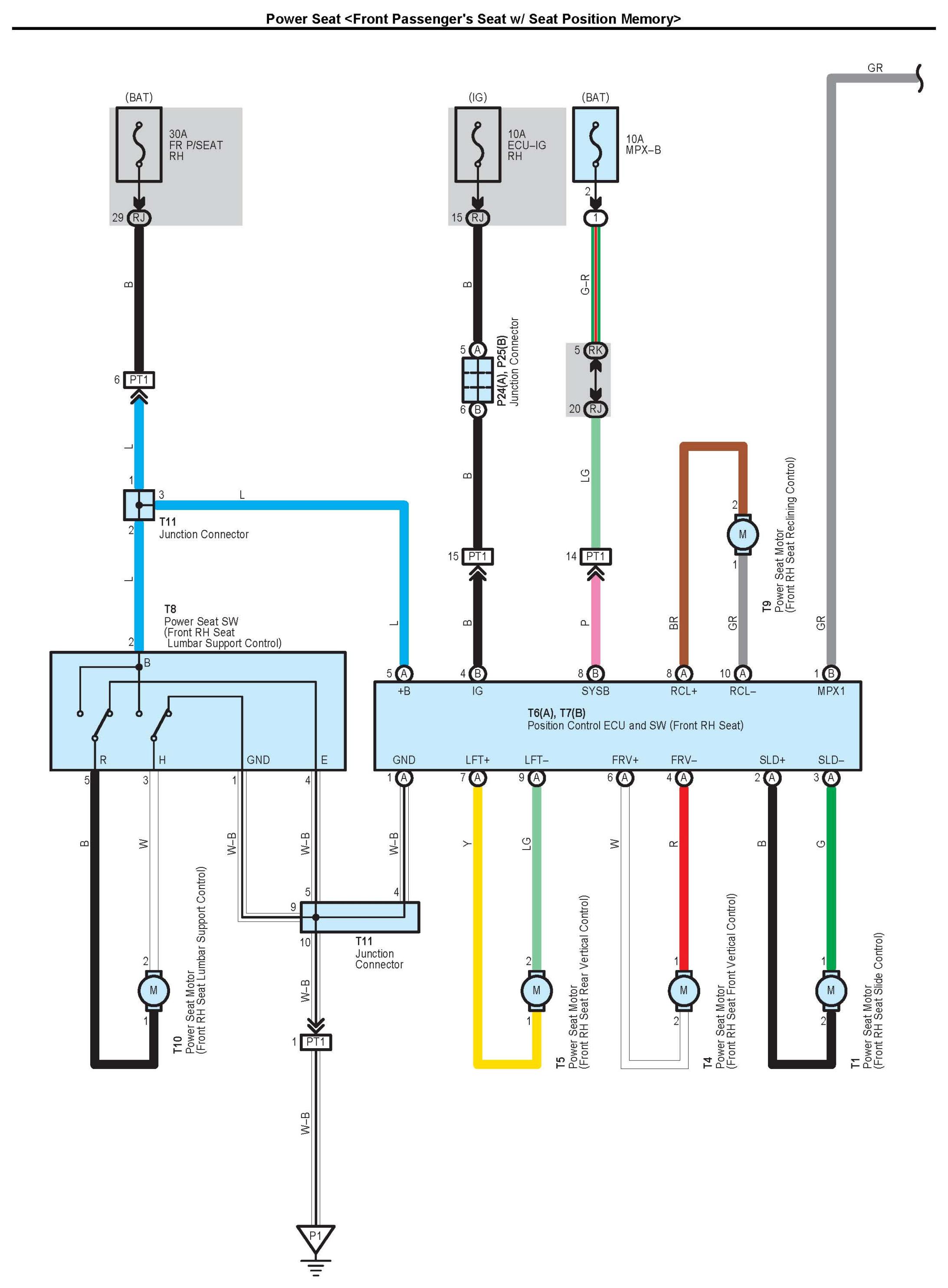

Power Seat <Front Passenger's Seat w/ Seat Position Memory> Part 3:

Power Seat <Front Passenger's Seatw/ Seat Position Memory> Part 4:

Power Seat <Front Passenger's Seatw/ Seat Position Memory> Part 5:

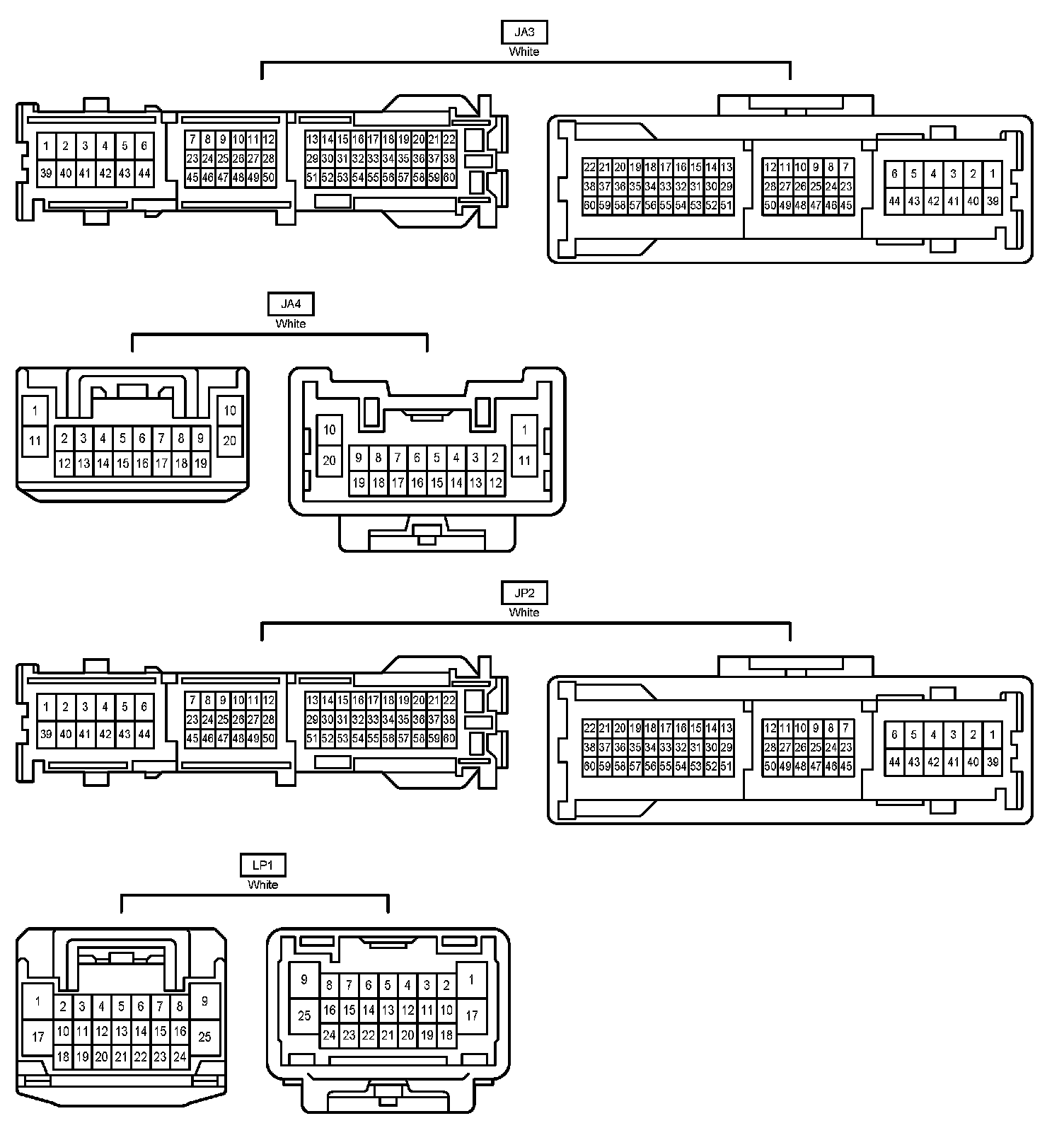

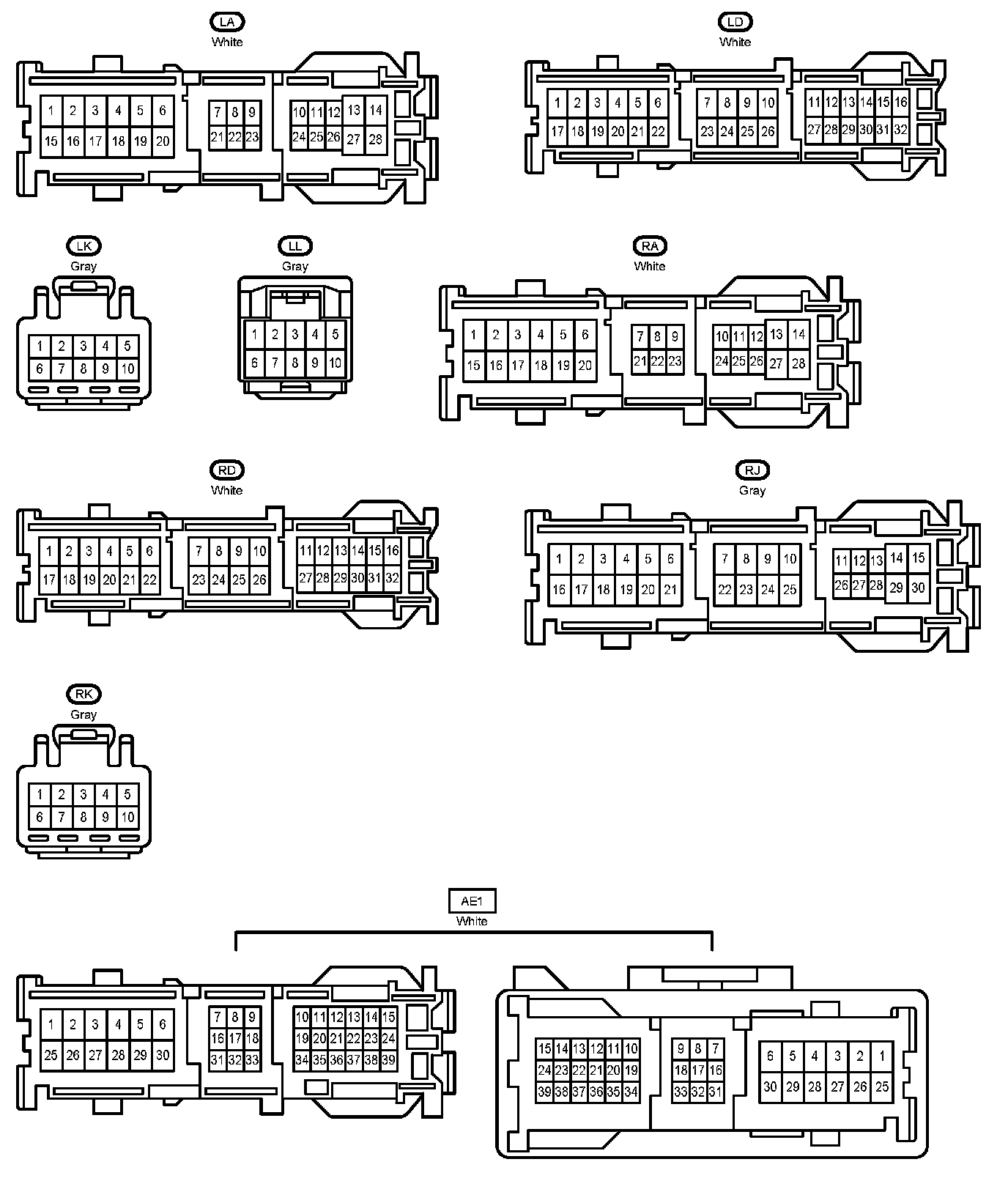

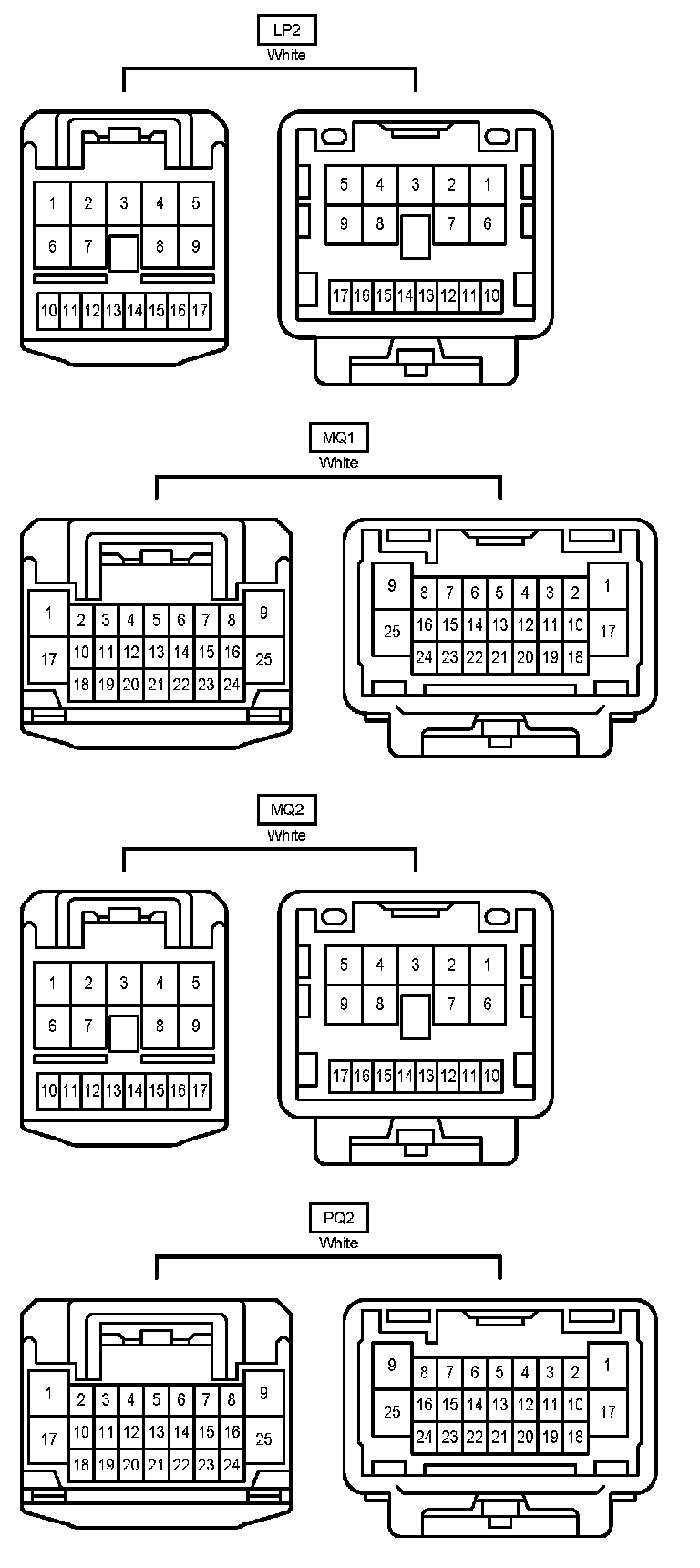

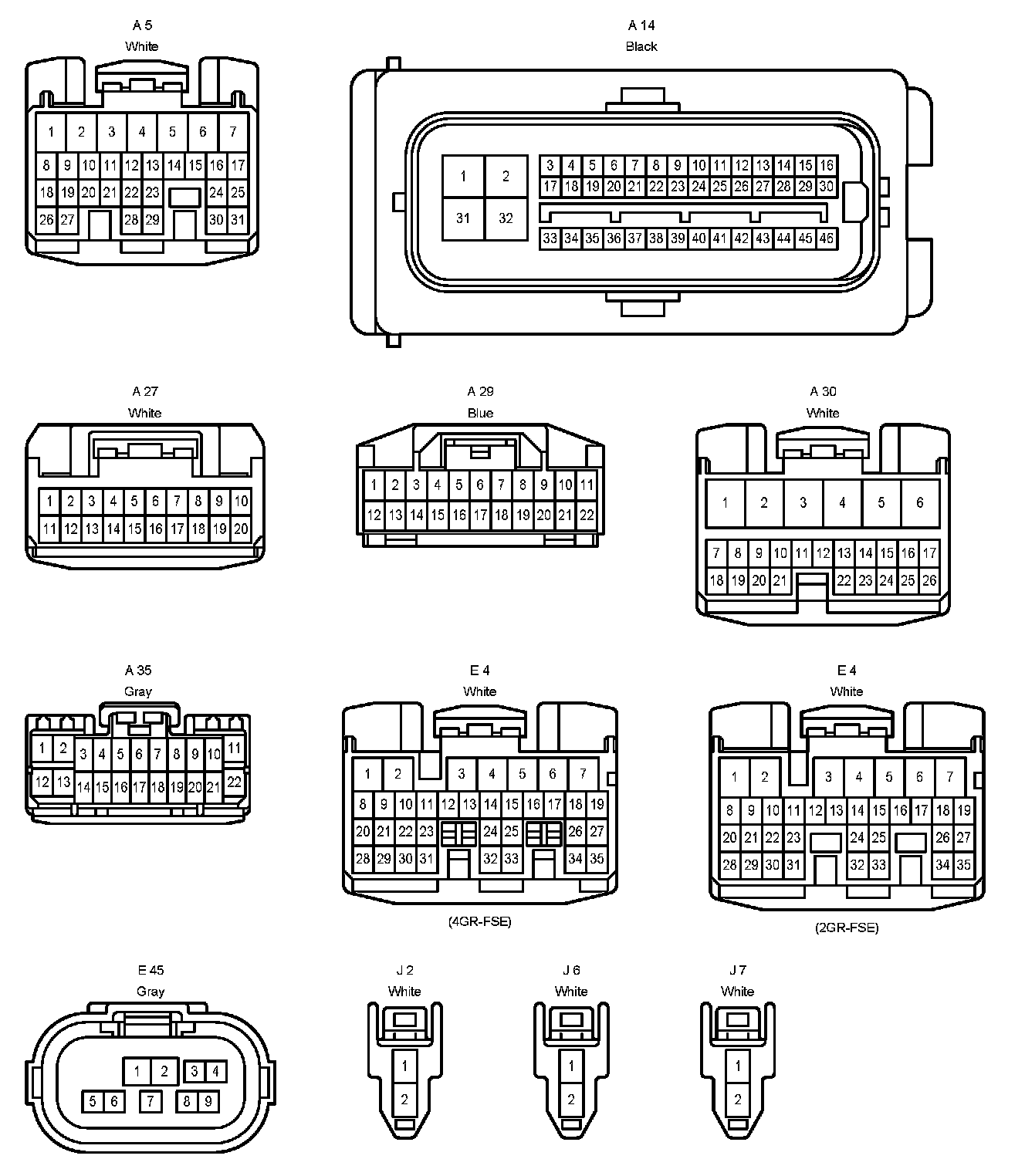

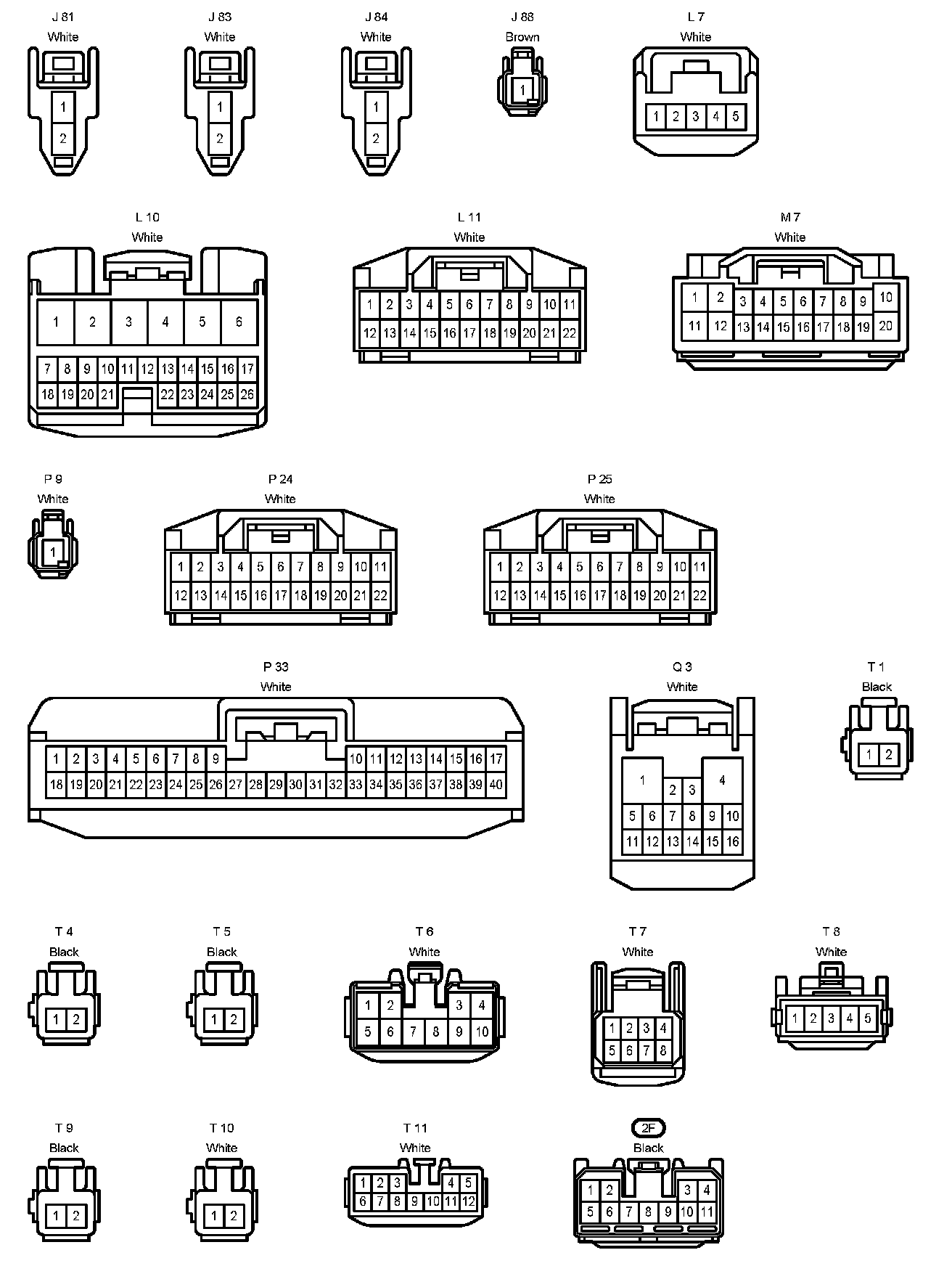

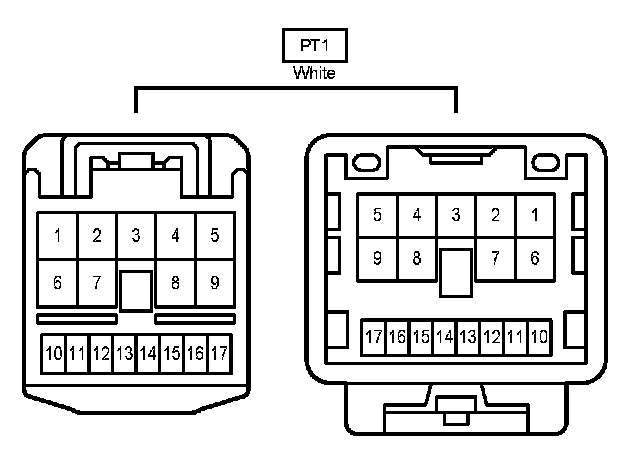

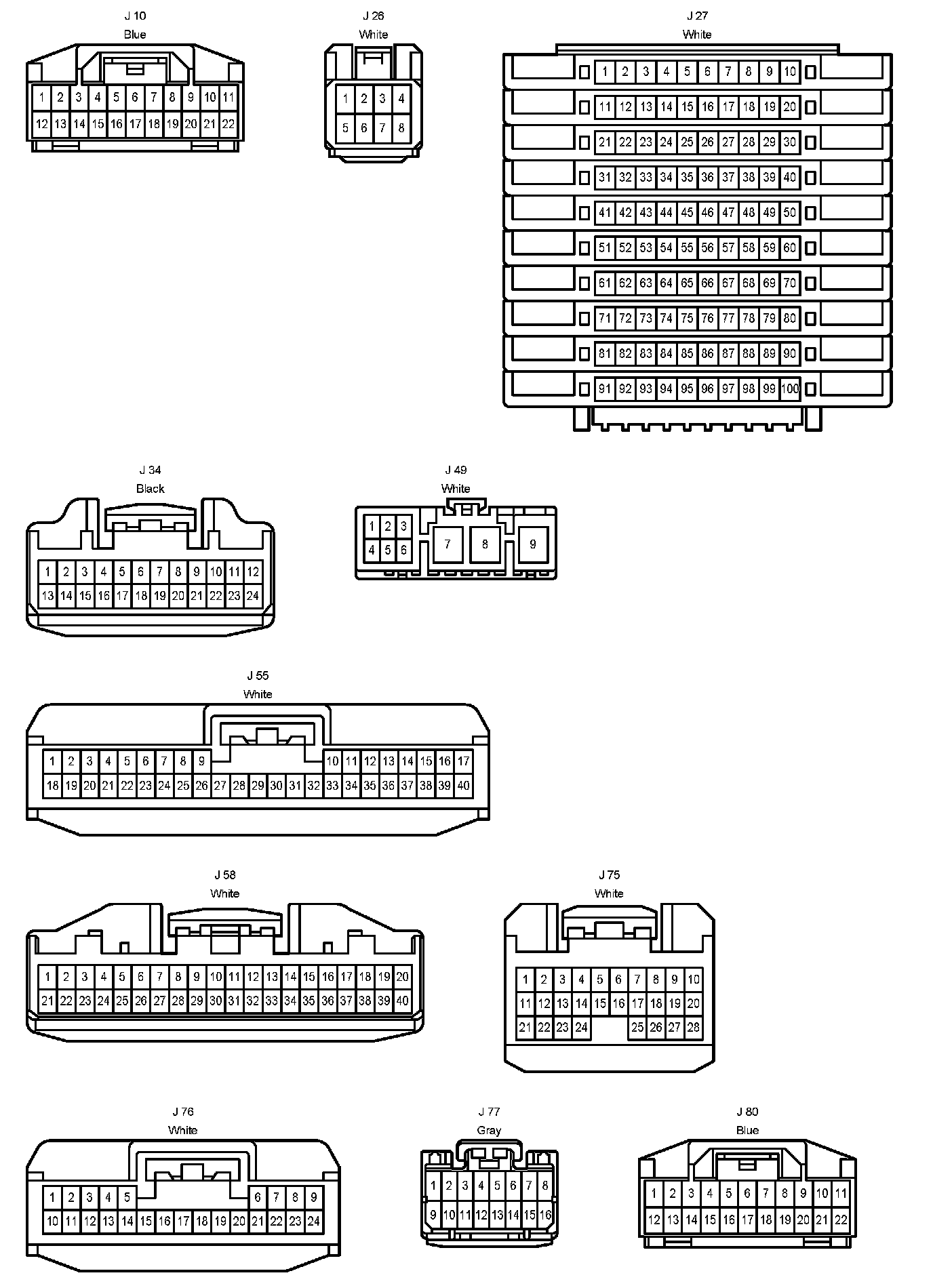

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
