Reassembly

SLIDING ROOF: SLIDING ROOF HOUSING:

REASSEMBLY

1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

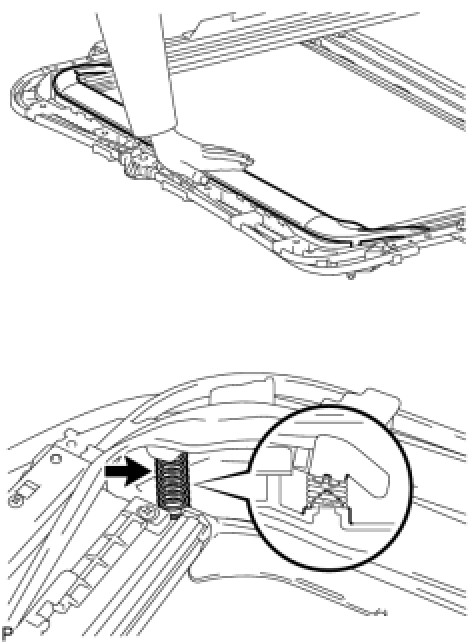

(a) Hold down the window deflector.
NOTE: Check and be sure that the spring indicated by the arrow in the illustration is securely installed.

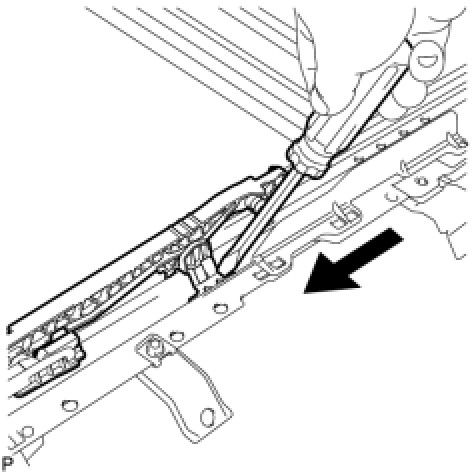

(b) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

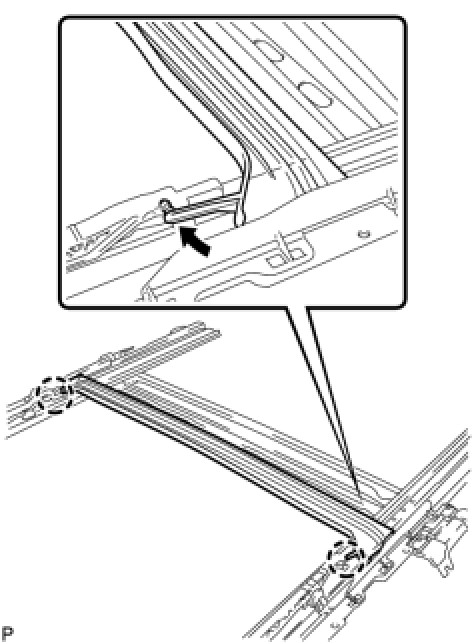

(c) Engage the 2 claws and install the sliding roof drip channel.

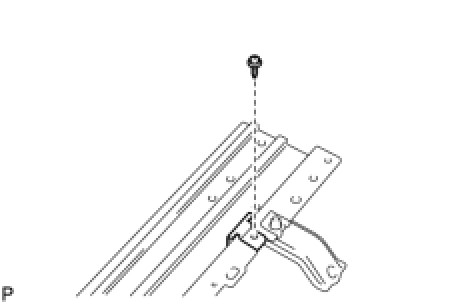

(d) Install the 2 sliding roof side stoppers with the 2 screws.
Torque: 2.0 Nm (20 kgf-cm, 18 in-lbf)
2. ADJUST FULLY CLOSED POSITION

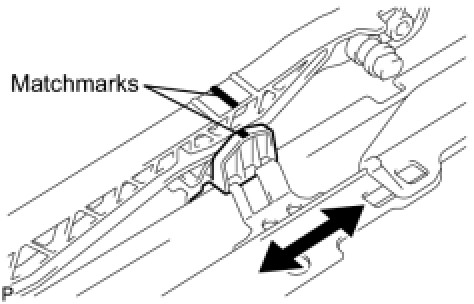

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.
HINT: Tape the screwdriver tip before use.

3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY
(a) Insert the sunshade trim into the sliding roof housing sub-assembly.

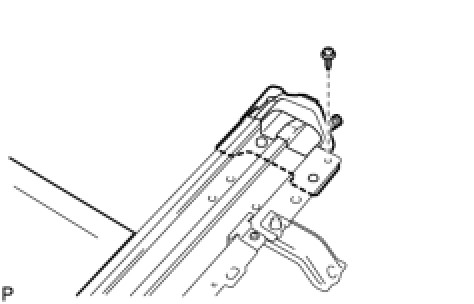

(b) Install the sliding roof piece sub-assembly LH and RH with the 2 screws.
Torque: 2.0 Nm (20 kgf-cm, 18 in-lbf)
4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

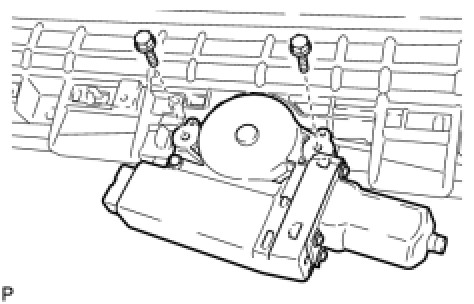

(a) Install the sliding roof drive gear sub-assembly with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

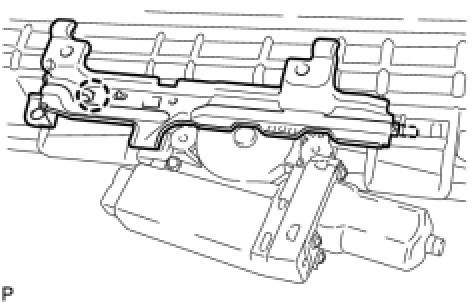

(b) Engage the claw and install the sliding roof drive gear bracket.
