Mirror Heater Does Not Operate With Rear Defogger Switch
MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): Mirror Heater does not Operate with Rear Defogger Switch
Mirror Heater does not Operate with Rear Defogger Switch
DESCRIPTION
with Navigation System:
When the mirror defogger switch, which is built into the multi-media module display assembly, is operated, the operation signals are transmitted to the A/C amplifier assembly through AVC-LAN and BEAN. When the A/C amplifier assembly receives the signals, it turns on the MIR HTR relay to operate the mirror defogger.
without Navigation System:
When the mirror defogger switch, which is built into the integration control & panel, is operated, the operation signals are transmitted to the A/C amplifier assembly through AVC-LAN and BEAN. When the A/C amplifier assembly receives the signals, it turns on the MIR HTR relay to operate the mirror defogger.

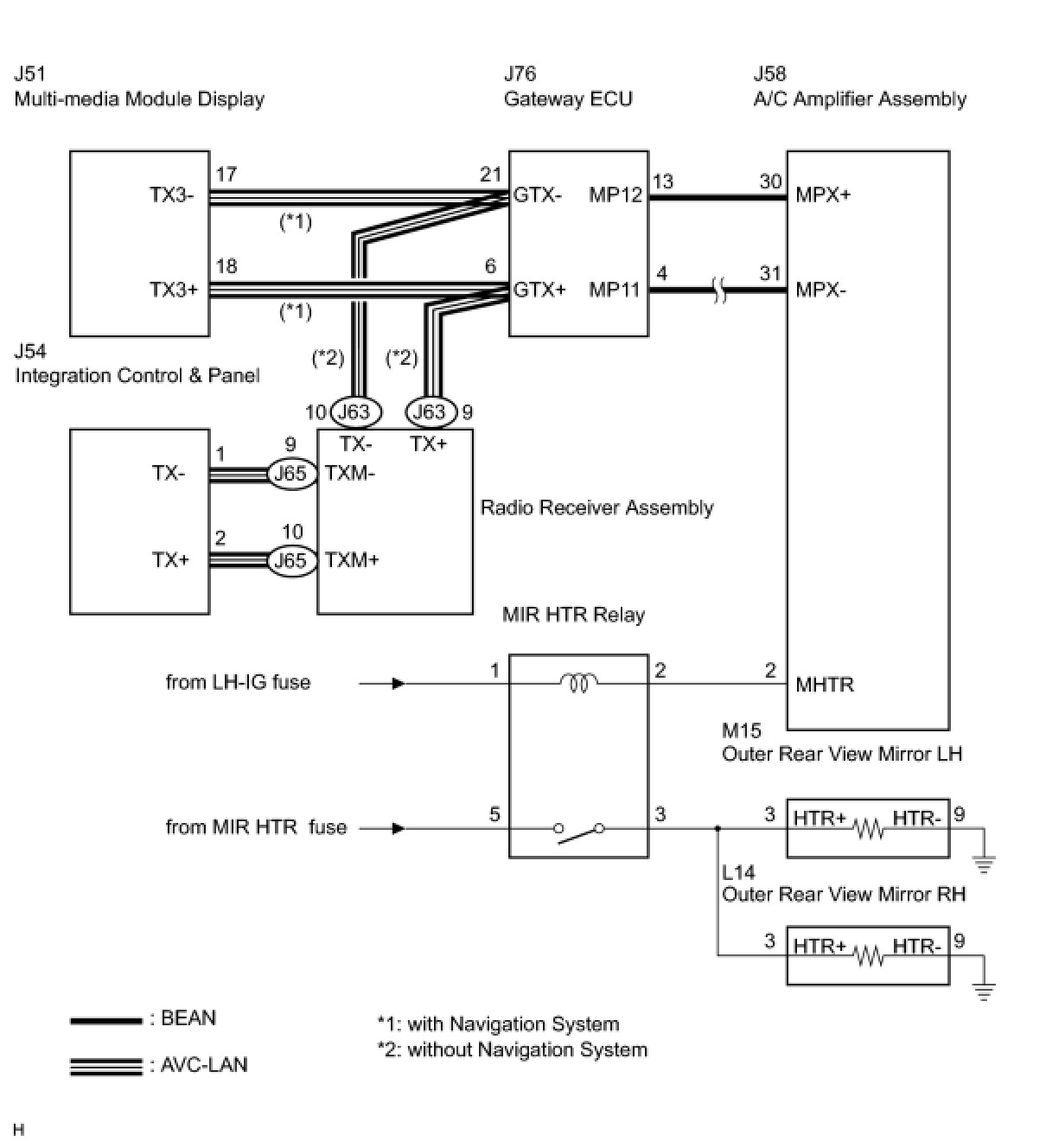

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK DTCs
(a) Select the DTC check on Techstream to check for communication errors.

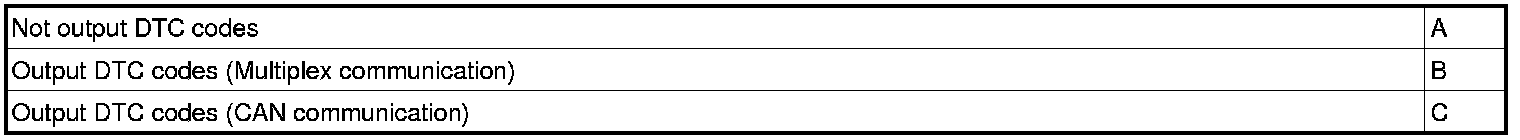

Result:
C -- GO TO CAN COMMUNICATION SYSTEM
B -- GO TO MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the ACTIVE TEST, use Techstream to issue a control command, and then check the mirror defogger operation.
Air Conditioner:

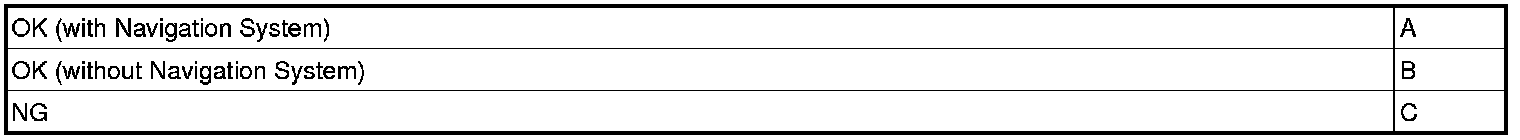

Result:
C -- PERFORM ACTIVE TEST USING TECHSTREAM
B -- REPLACE INTEGRATION CONTROL & PANEL
A -- Continue to next step.
3. REPLACE MULTI-MEDIA MODULE DISPLAY
(a) Replace the multi-media module display.
NEXT -- Continue to next step.
4. CONFIRM MIRROR DEFOGGER OPERATION
(a) Turn the engine switch on (IG), press the defogger switch, and check that mirror heater operates.
NG -- REPLACE A/C AMPLIFIER ASSEMBLY
OK -- END
5. REPLACE INTEGRATION CONTROL & PANEL
(a) Replace the integration control & panel.
NEXT -- Continue to next step.
6. CONFIRM MIRROR DEFOGGER OPERATION
(a) Turn the engine switch on (IG), press the defogger switch, and check that mirror heater operates.
OK -- END
NG -- Continue to next step.
7. REPLACE RADIO RECEIVER ASSEMBLY
(a) Replace the radio receiver assembly.
NEXT -- Continue to next step.
8. CONFIRM MIRROR DEFOGGER OPERATION
(a) Turn the engine switch on (IG), press the defogger switch, and check that mirror heater operates.
NG -- REPLACE A/C AMPLIFIER ASSEMBLY
OK -- END
9. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the ACTIVE TEST, use Techstream to issue a control command, and then check the MIR HTR relay operation.
HINT: Check that operation sound of the MIR HTR relay can be heard.
OK -- INSPECT MIR HTR RELAY
NG -- Continue to next step.
10. INSPECT MIR HTR RELAY Testing and Inspection
NG -- REPLACE MIR HTR RELAY
OK -- Continue to next step.

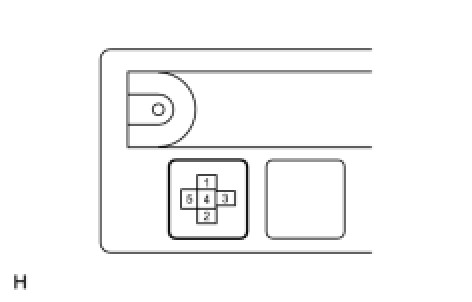

11. CHECK WIRE HARNESS (MIR HTR RELAY)
(a) Disconnect the MIR HTR relay.
(b) Measure the voltage according to the value(s) in the table below.
Voltage:
NG -- REPAIR OR REPLACE LH-IG FUSE OR HARNESS AND CONNECTOR
OK -- Continue to next step.
12. CHECK WIRE HARNESS (MIR HTR RELAY - A/C AMPLIFIER ASSEMBLY)
(a) Disconnect the MIR HTR relay and A/C amplifier assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE A/C AMPLIFIER ASSEMBLY
13. INSPECT MIR HTR RELAY Testing and Inspection
NG -- REPLACE MIR HTR RELAY
OK -- Continue to next step.
14. CHECK WIRE HARNESS (MIR HTR RELAY - BATTERY POSITIVE AND BODY GROUND)
(a) Disconnect the MIR HTR relay.
(b) Measure the voltage according to the value(s) in the table below.
Voltage:
NG -- REPAIR OR REPLACE MIR HTR FUSE OR HARNESS
OK -- Continue to next step.

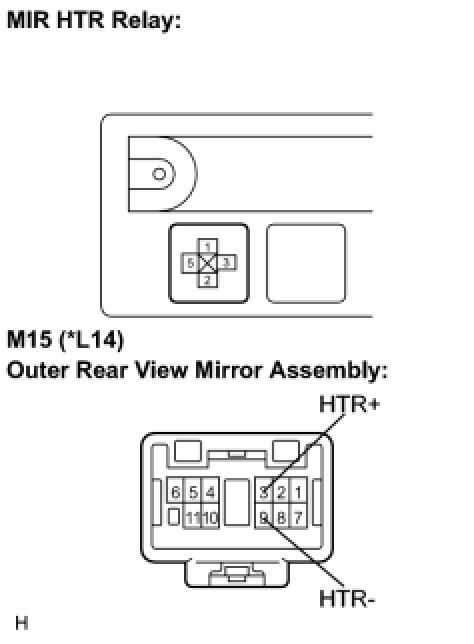

15. CHECK WIRE HARNESS (MIR HTR RELAY - OUTER MIRROR ASSEMBLY)
(a) Disconnect the MIR HTR relay and outer rear view mirror assembly connectors.
(b) Measure the resistance according to the value(s) in the table below.
(*): Outer rear view mirror assembly RH

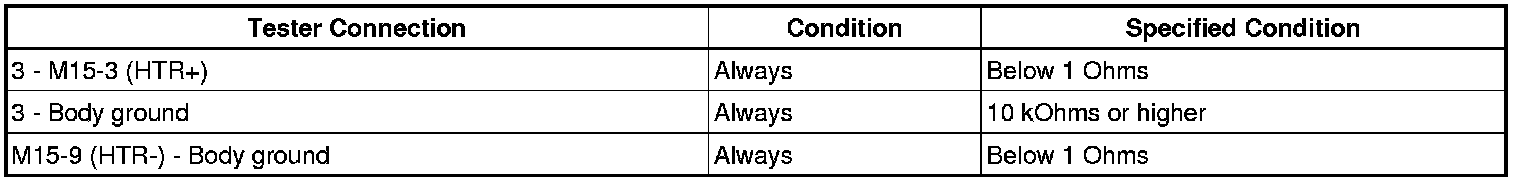

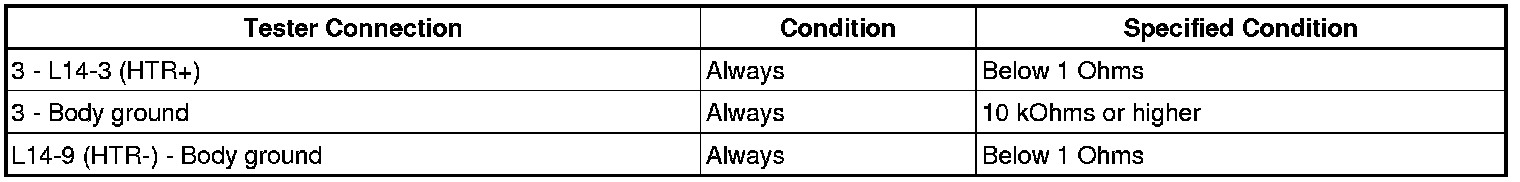

Resistance:
Outer rear view mirror assembly LH
Outer rear view mirror assembly RH
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY
