Power Source Circuit

MIRROR: POWER MIRROR CONTROL SYSTEM (w/ Memory): Power Source Circuit

Power Source Circuit

DESCRIPTION

This is the power source circuit for the outer mirror control ECU.

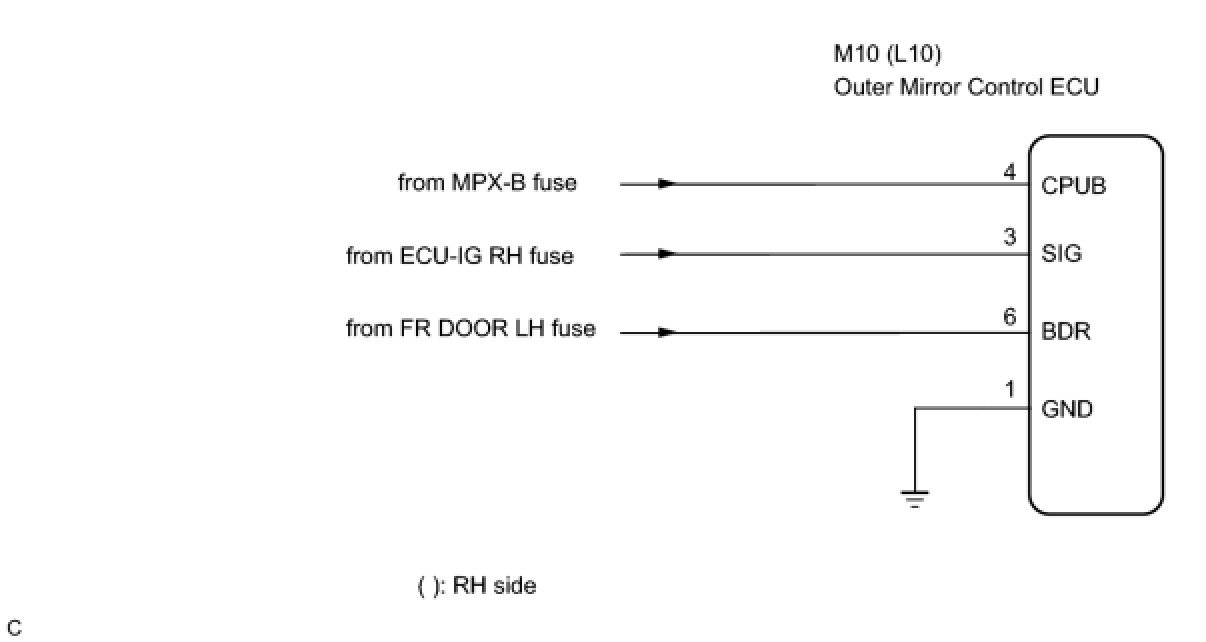

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT OUTER MIRROR CONTROL ECU (POWER SOURCE)

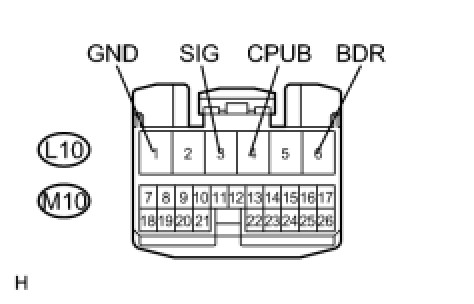

(a) Disconnect the L10 (M10) connector.
( ): RH side

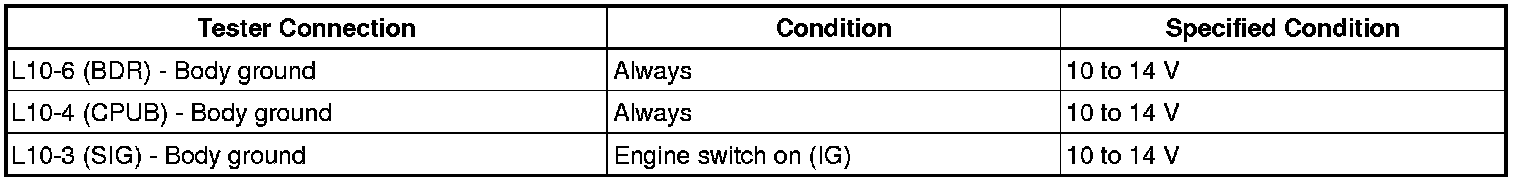

(b) Measure the voltage and resistance according to the value(s) in the table below.
Outer mirror control ECU RH:
Voltage






Resistance:






Outer mirror control ECU LH:
Voltage






Resistance:






NG -- REPAIR OR REPLACE WIRE HARNESS
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
