Symptom Related Diagnostic Procedures








DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM:

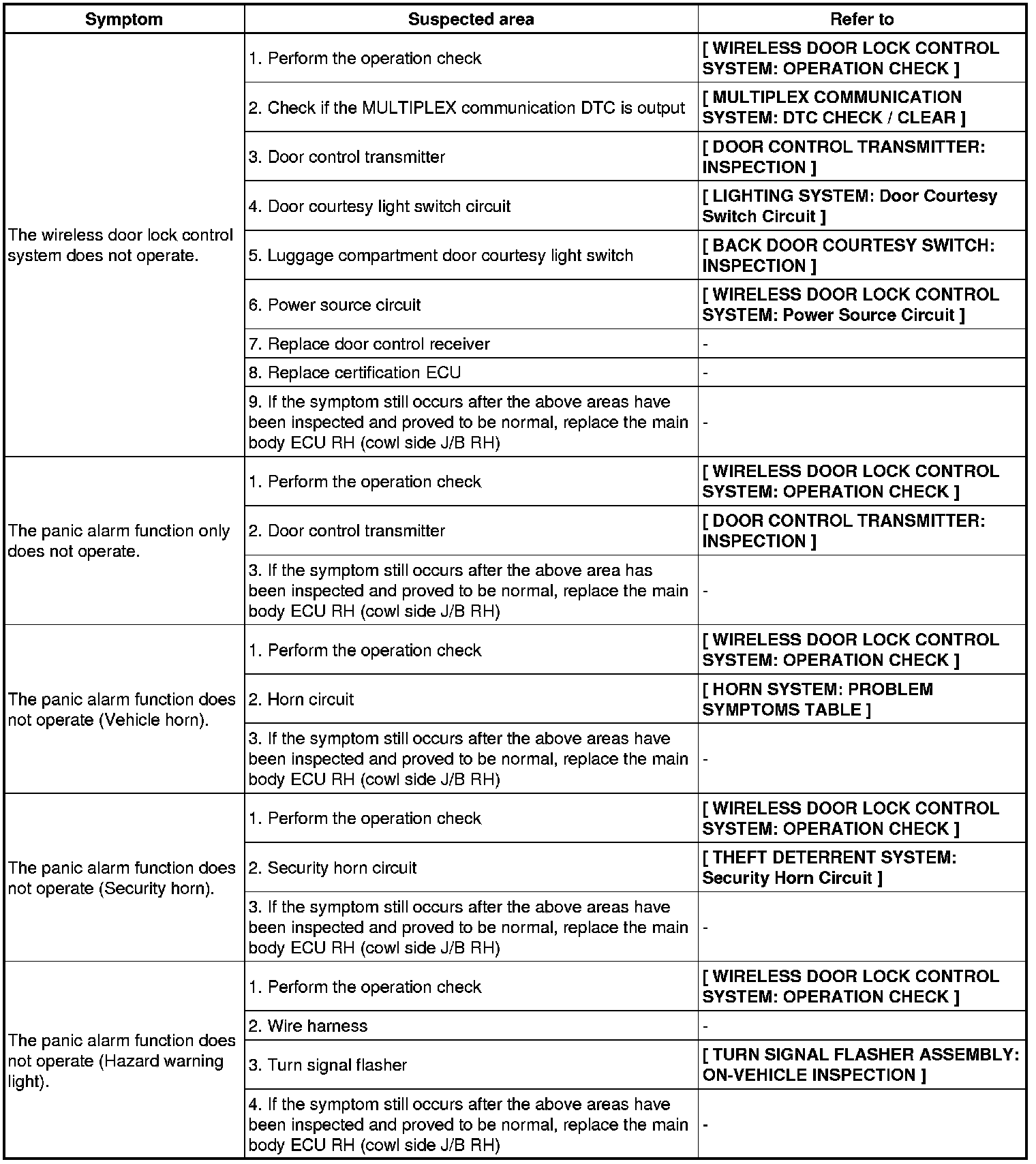

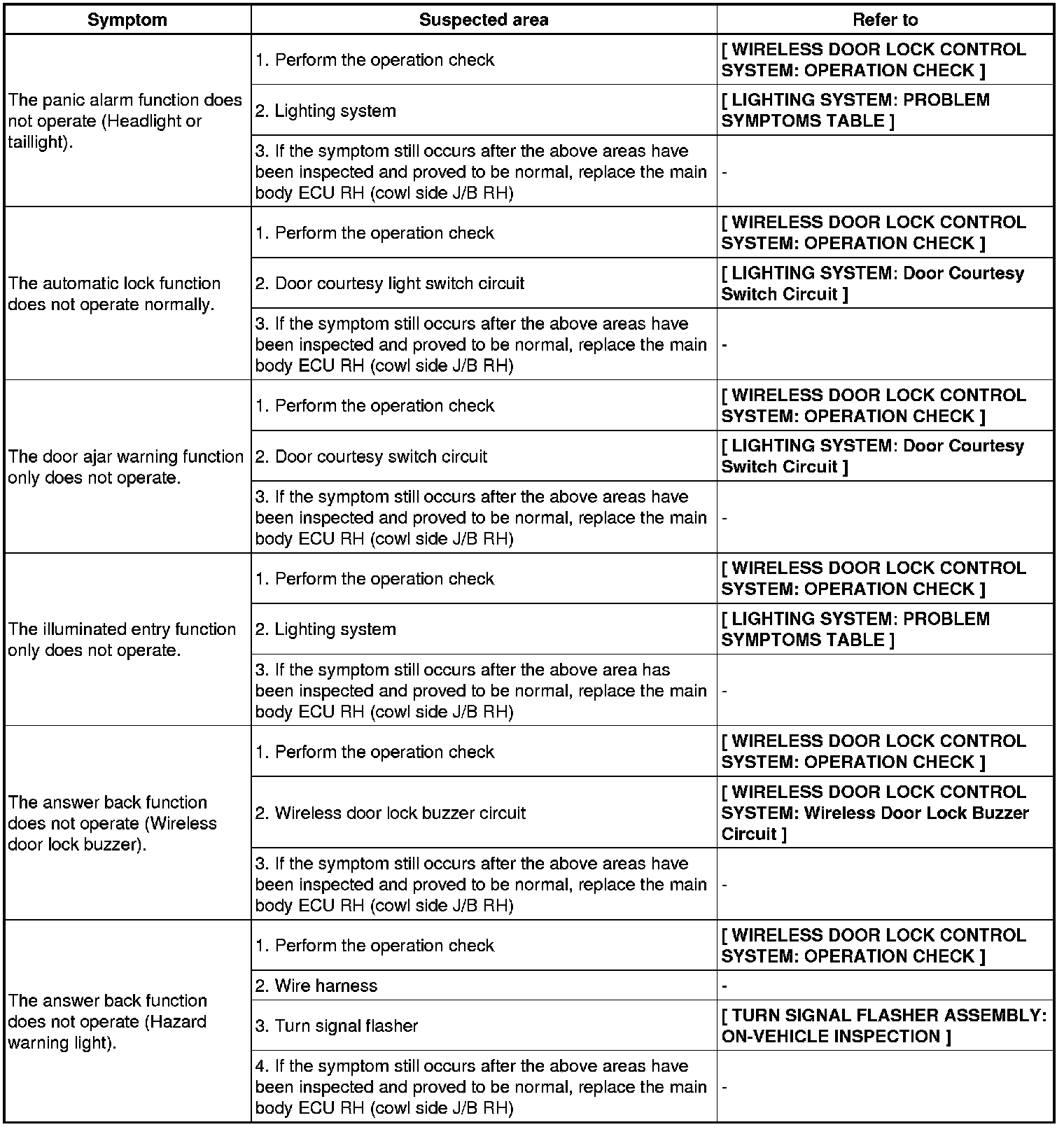

PROBLEM SYMPTOMS TABLE

Proceed to the reference shown in the table below for each malfunction symptom and troubleshoot each circuit.

WIRELESS DOOR LOCK CONTROL SYSTEM:
