Reassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD:

REASSEMBLY

1. INSTALL INSTRUMENT PANEL SPACER

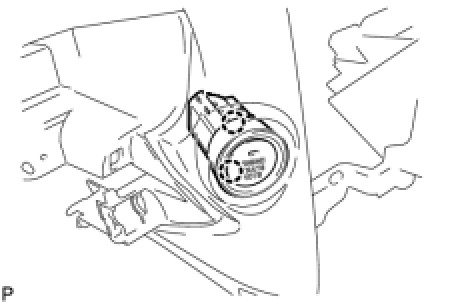

2. INSTALL ENGINE SWITCH






(a) Engage the 2 claws and install the engine switch.

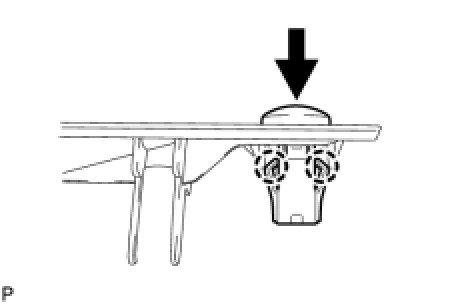

3. INSTALL AUTOMATIC LIGHT CONTROL SENSOR






(a) Engage the 2 claws and install the automatic light control sensor.

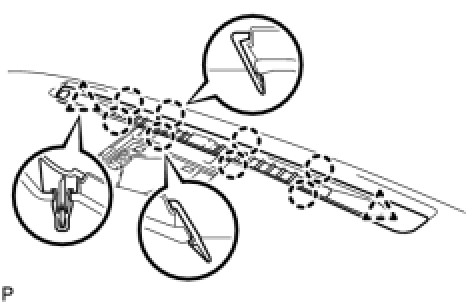

4. INSTALL DEFROSTER NOZZLE GARNISH






(a) Engage the 8 claws and 2 clips, and install the defroster nozzle garnish.
5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation

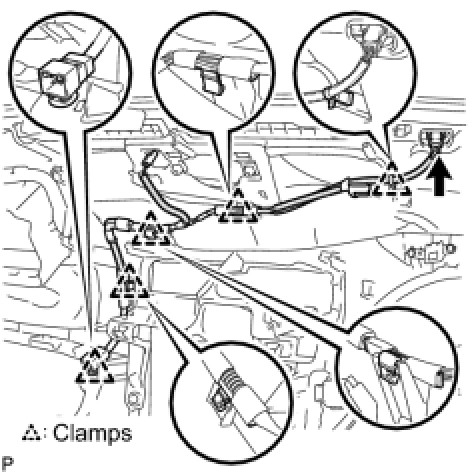

6. INSTALL NO. 2 INSTRUMENT PANEL WIRE






(a) Engage the 5 clamps.
(b) Connect the connector and install the No. 2 instrument panel wire.
7. INSTALL NAVIGATION ANTENNA Installation

8. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY Installation

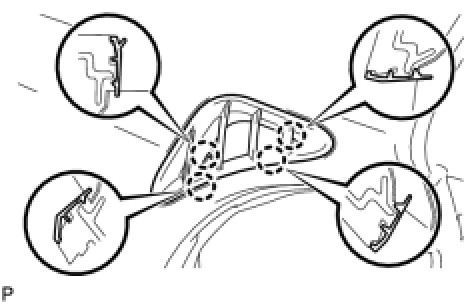

9. INSTALL SIDE DEFROSTER NOZZLE






(a) Engage the 4 claws and install the side defroster nozzle.

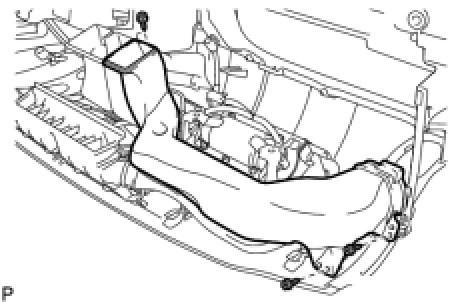

10. INSTALL NO. 2 HEATER TO REGISTER DUCT






(a) Install the No. 2 heater to register duct with the 4 screws [F].

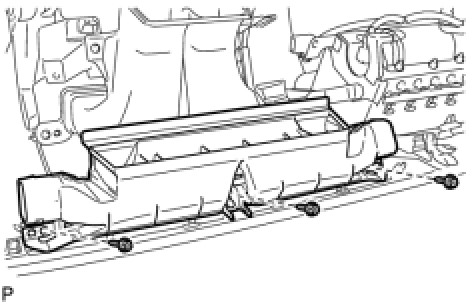

11. INSTALL DEFROSTER NOZZLE ASSEMBLY






(a) Install the defroster nozzle assembly with the 3 screws [F].

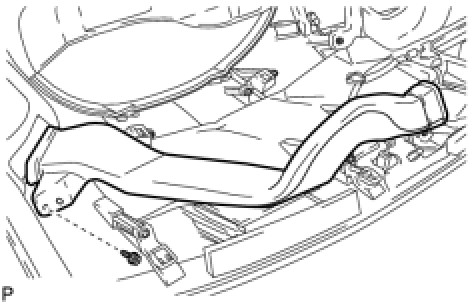

12. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT






(a) Install the side No. 2 defroster nozzle duct with the screw [F].
13. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT






(a) Install the side No. 1 defroster nozzle duct with the screw [F].

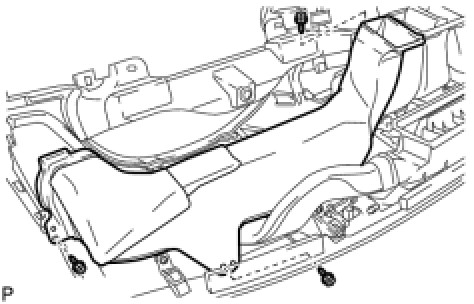

14. INSTALL NO. 3 HEATER TO REGISTER DUCT






(a) Install the No. 3 heater to register duct with the 3 screws [F].

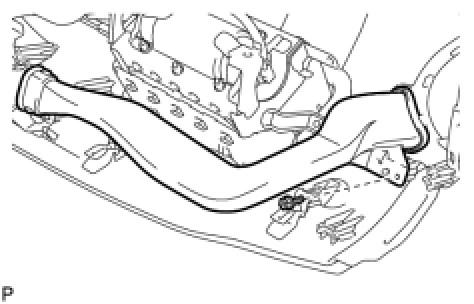

15. INSTALL NO. 1 HEATER TO REGISTER DUCT






(a) Install the No. 1 heater to register duct with the 3 screws [F].
