Reassembly

INSTRUMENT PANEL: REAR CONSOLE BOX:

REASSEMBLY

1. INSTALL AUDIO TERMINAL Installation

2. INSTALL POWER POINT SOCKET COVER
3. INSTALL POWER OUTLET SOCKET ASSEMBLY Installation

4. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
5. INSTALL CONSOLE COMPARTMENT DOOR CUSHION
6. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY






(a) Aligning the inside groove of the console compartment door with the console compartment door hinge, slide the console compartment door sub-assembly and install it.
7. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY






(a) Install the console compartment door lock sub-assembly with the 2 screws.
8. INSTALL FRONT UPPER CONSOLE PANEL GARNISH

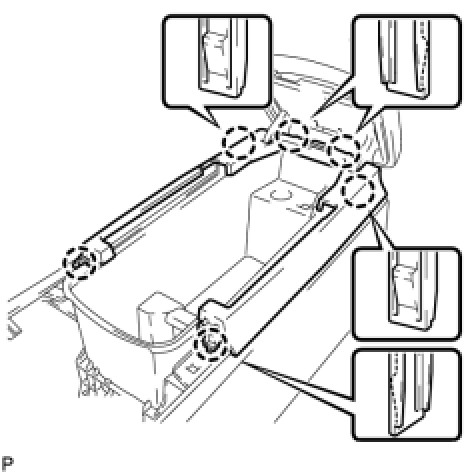

(a) Engage the 6 claws and install the front upper console panel garnish.
9. INSTALL CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

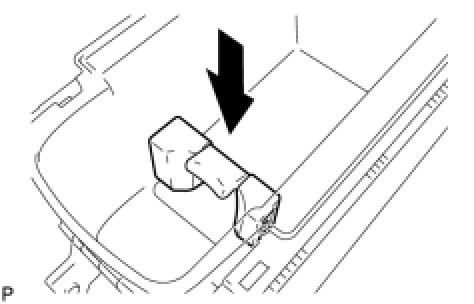

(a) Install the console box cup holder sub-assembly.
