Installation

EXTERIOR: NAME PLATE:

INSTALLATION
HINT: When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

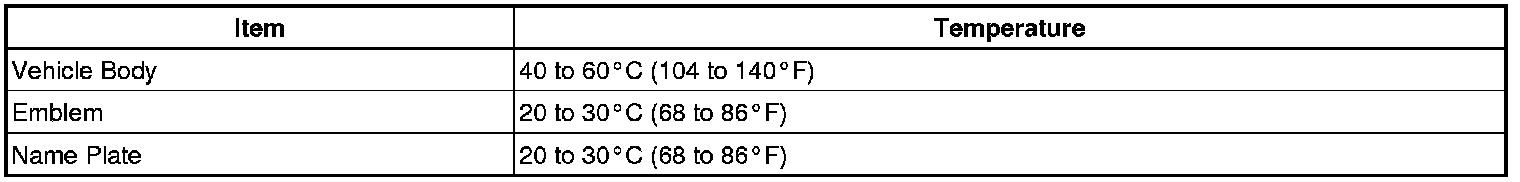

Heating temperature:





NOTE: Do not heat the vehicle body, emblem and name plate excessively.

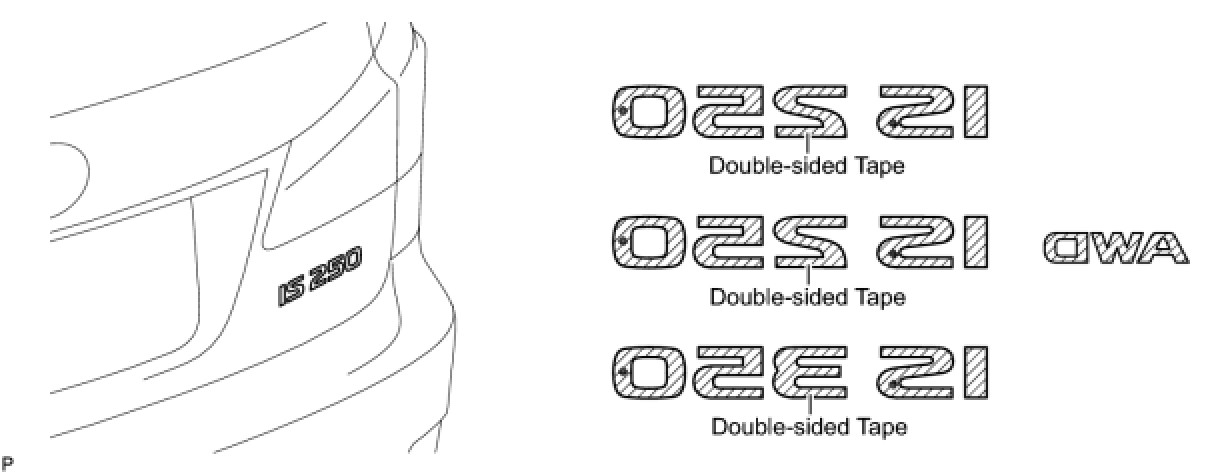

1. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the No. 3 luggage compartment door plate. (If reusing the No. 3 luggage compartment door plate)
(1) Using a heat light, heat the No. 3 luggage compartment door plate.
(2) Remove the double-sided tape from the No. 3 luggage compartment door plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the No. 3 luggage compartment door plate.
(c) Install the No. 3 luggage compartment door plate.
(1) Using a heat light, heat the vehicle body and No. 3 luggage compartment door plate.
(2) Remove the peeling paper from the face of the No. 3 luggage compartment door plate.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the No. 3 luggage compartment door plate.

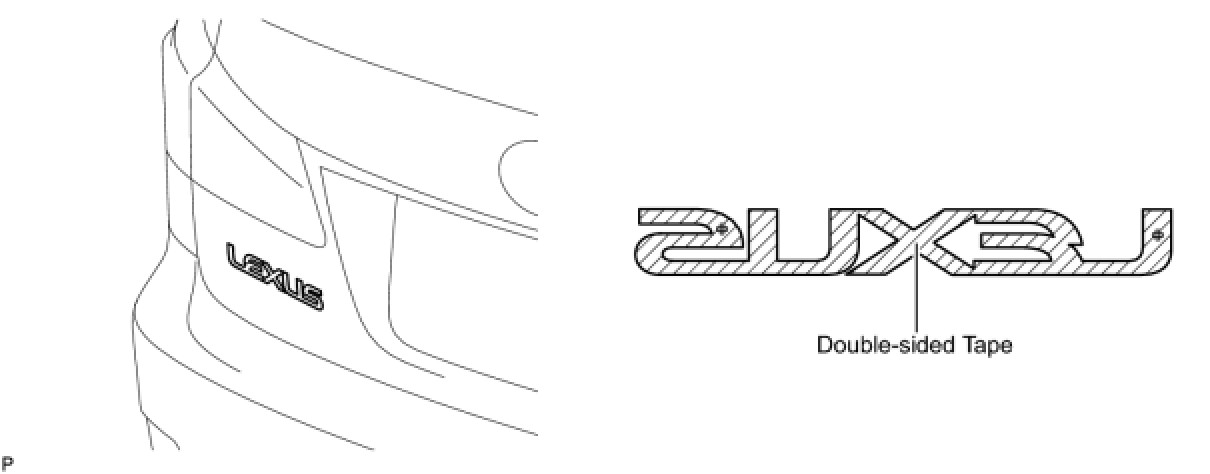

2. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the No. 1 luggage compartment door name plate. (If reusing the No. 1 luggage compartment door name plate)
(1) Using a heat light, heat the No. 1 luggage compartment door name plate.
(2) Remove the double-sided tape from the No. 1 luggage compartment door name plate.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the No. 1 luggage compartment door name plate.
(c) Install the No. 1 luggage compartment door name plate.
(1) Using a heat light, heat the vehicle body and No. 1 luggage compartment door name plate.
(2) Remove the peeling paper from the face of the No. 1 luggage compartment door name plate.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the No. 1 luggage compartment door name plate.

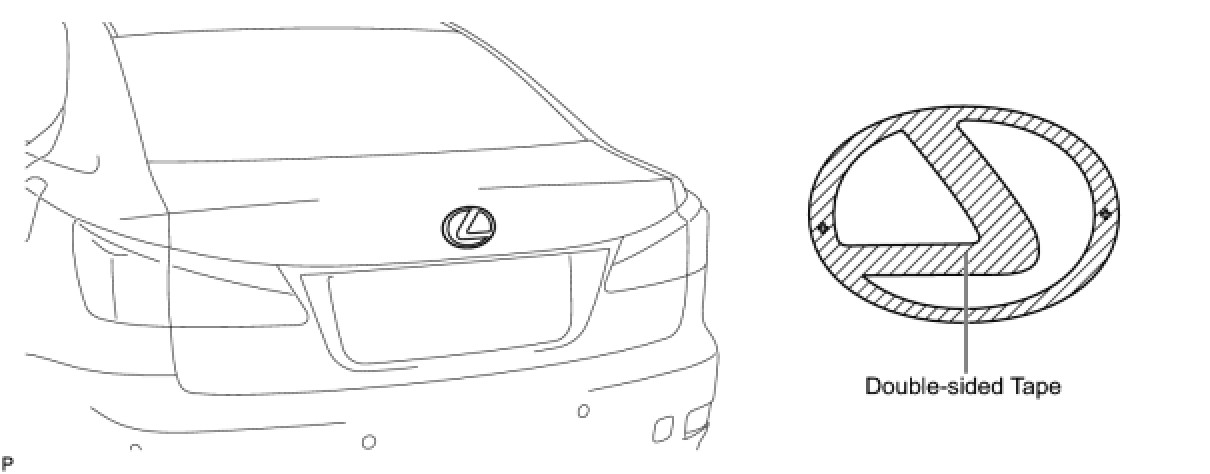

3. INSTALL SYMBOL EMBLEM
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove the double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Clean the symbol emblem. (If reusing the symbol emblem)
(1) Using a heat light, heat the symbol emblem.
(2) Remove the double-sided tape from the symbol emblem.
(3) Wipe off any tape adhesive residue with cleaner.
(4) Apply new double-sided tape to the symbol emblem.
(c) Install the symbol emblem.
(1) Using a heat light, heat the vehicle body and symbol emblem.
(2) Remove the peeling paper from the face of the symbol emblem.
HINT: After removing the peeling paper, keep the exposed adhesive free from foreign matter.
(3) Install the symbol emblem.
