Canada - Interior - Interior Panels Sticky/Poor Appearance





L-TCI-3094

March 26, 2012

INTERIOR PANELS STICKY/POOR APPEARANCE

Service Category
Vehicle Interior

Section
Interior Panels/Trim

Market
Canada





APPLICABILITY:

INTRODUCTION:

Same 2006 - 2008 model year IS 2501350 vehicles may exhibit sticky interior panels that have a shiny/degraded appearance This condition may be present on the Instrument Panel Pad and/or the Door Panel Trim. Revised interior panels have been developed to address this condition.

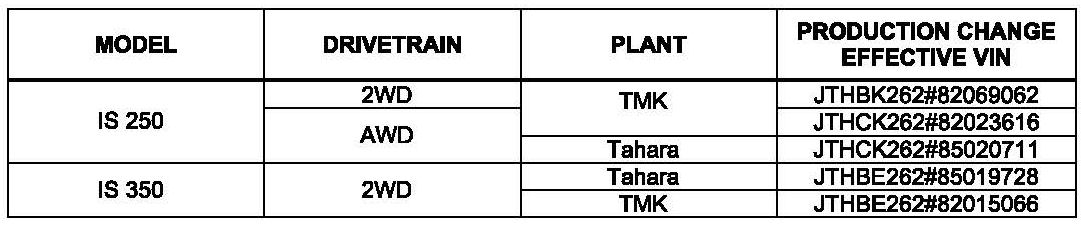

PRODUCTION CHANGE INFORMATION:





This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.





REQUIRED TOOLS & EQUIPMENT:

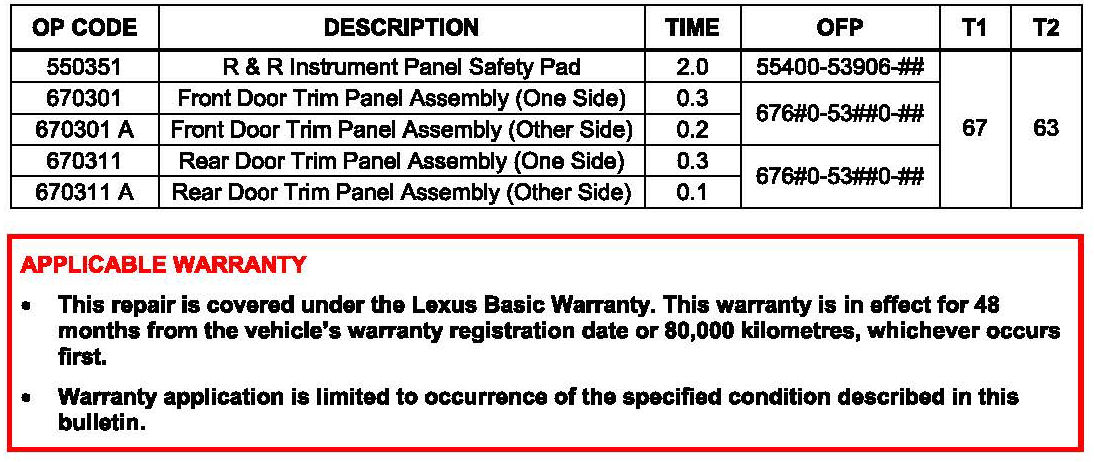

WARRANTY INFORMATION:

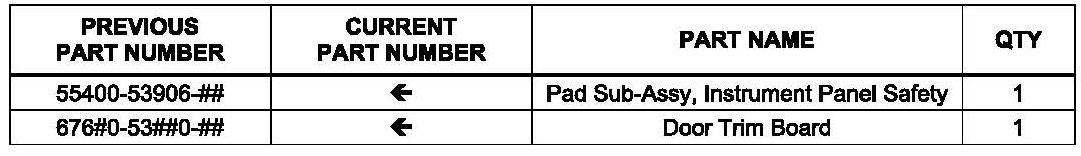

PARTS INFORMATION:

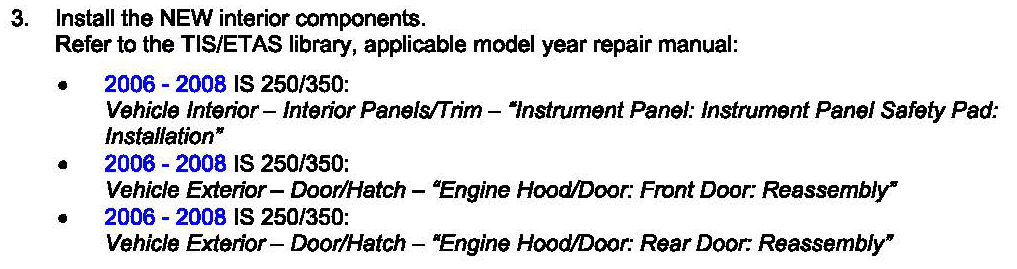

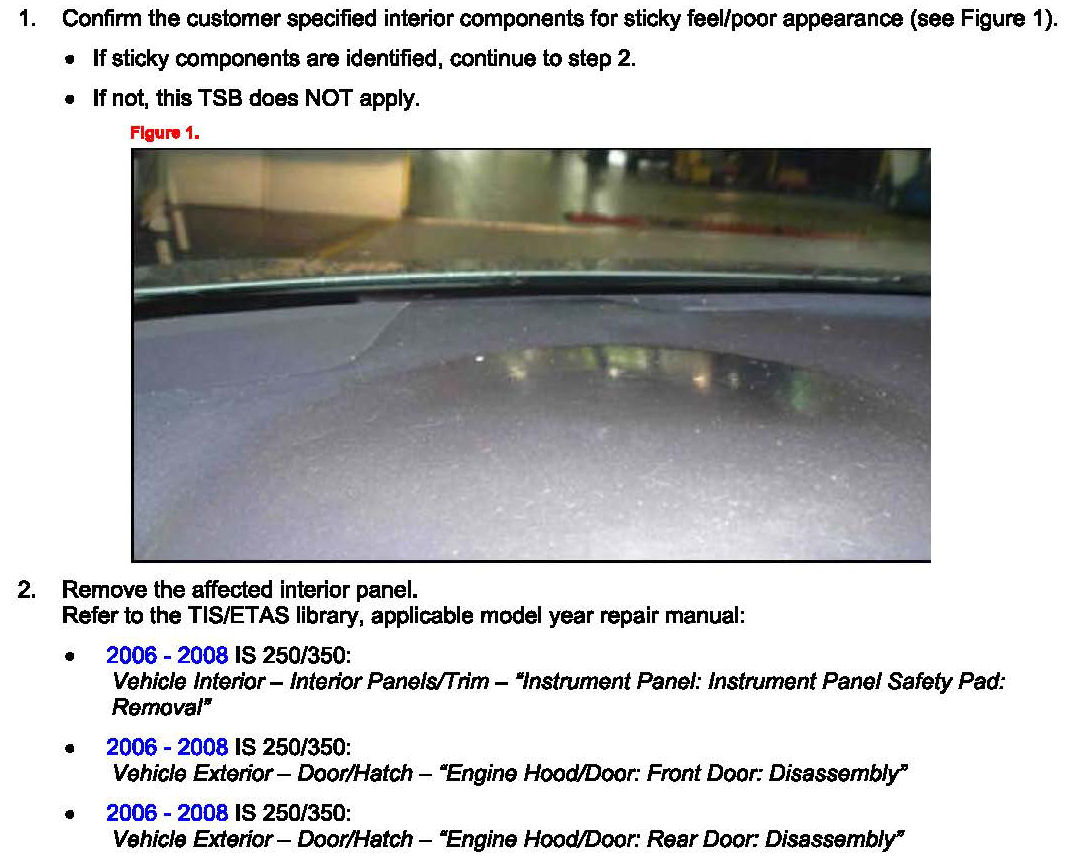

REPAIR PROCEDURE:

NOTE:

Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.

© 2012 Lexus, a division of Toyota Motor Sales, Canada
