Installation

AUDIO / VISUAL: AUDIO TERMINAL:

INSTALLATION

1. INSTALL AUDIO TERMINAL

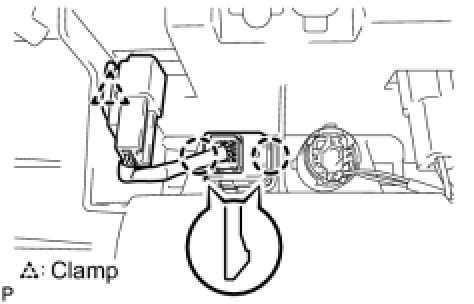

(a) Engage the 2 claws and install the audio terminal.
(b) Connect the connector clamp.
2. INSTALL CONSOLE BOX Installation

3. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
