Installation

PARK ASSIST / MONITORING: ULTRASONIC SENSOR:

INSTALLATION

1. INSTALL NO. 1 ULTRASONIC SENSOR
(a) Install the No. 1 ultrasonic sensor to the rear bumper.

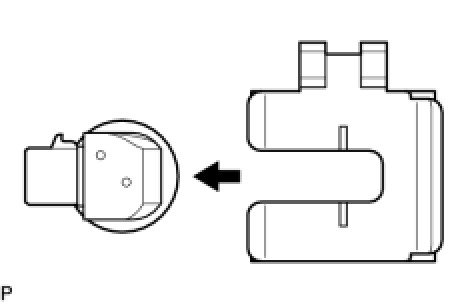

(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
2. INSTALL NO. 2 ULTRASONIC SENSOR
(a) Install the No. 2 ultrasonic sensor to the rear bumper.

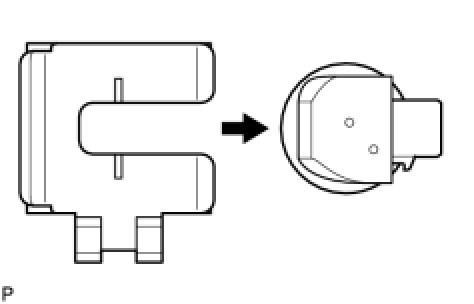

(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
3. INSTALL REAR BUMPER ASSEMBLY
4. INSTALL REAR BUMPER PLATE
5. CONNECT LUGGAGE ROOM WIRE
6. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
7. INSTALL LUGGAGE COMPARTMENT TRIM HOOK
8. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
9. INSTALL ROPE HOOK
10. INSTALL ROOM LIGHT ASSEMBLY
11. INSTALL ROPE HOOK ASSEMBLY
12. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
13. INSTALL DECK SIDE TRIM BOX RH
14. INSTALL DECK SIDE TRIM BOX LH
15. INSTALL LUGGAGE COMPARTMENT TRIM COVER
16. INSTALL NO. 1 ULTRASONIC SENSOR
(a) Install the No. 1 ultrasonic sensor to the front bumper.






(b) Install the sensor retainer as shown in the illustration.
(c) Connect the sensor connector.
17. INSTALL FRONT BUMPER ASSEMBLY
18. INSTALL COOL AIR INTAKE DUCT SEAL
19. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments

20. PREPARATION FOR FOG LIGHT AIMING Adjustments

21. FOG LIGHT AIMING INSPECTION Adjustments

22. FOG LIGHT AIMING ADJUSTMENT Adjustments
